Version: v4

Incoming Call

Overview

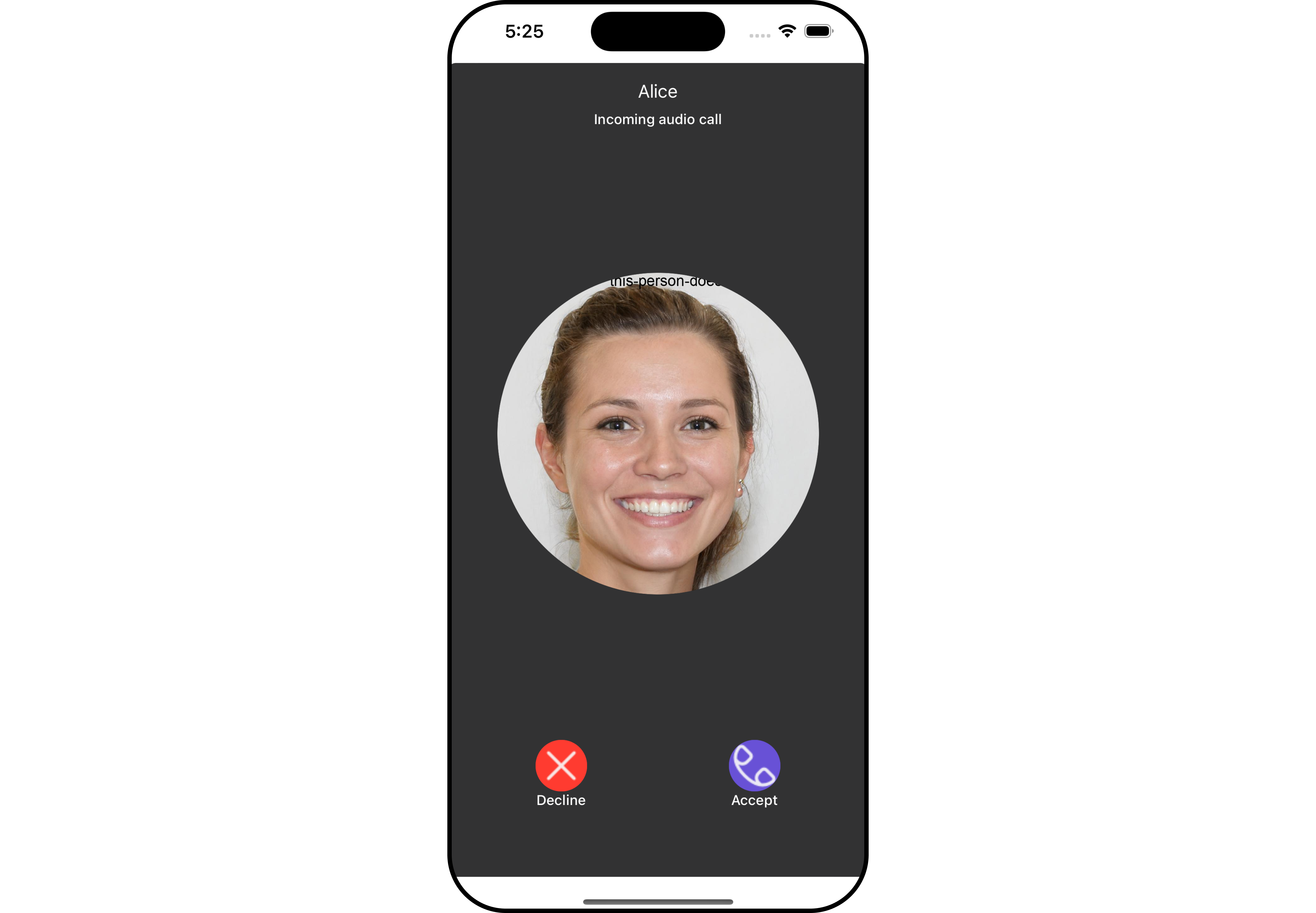

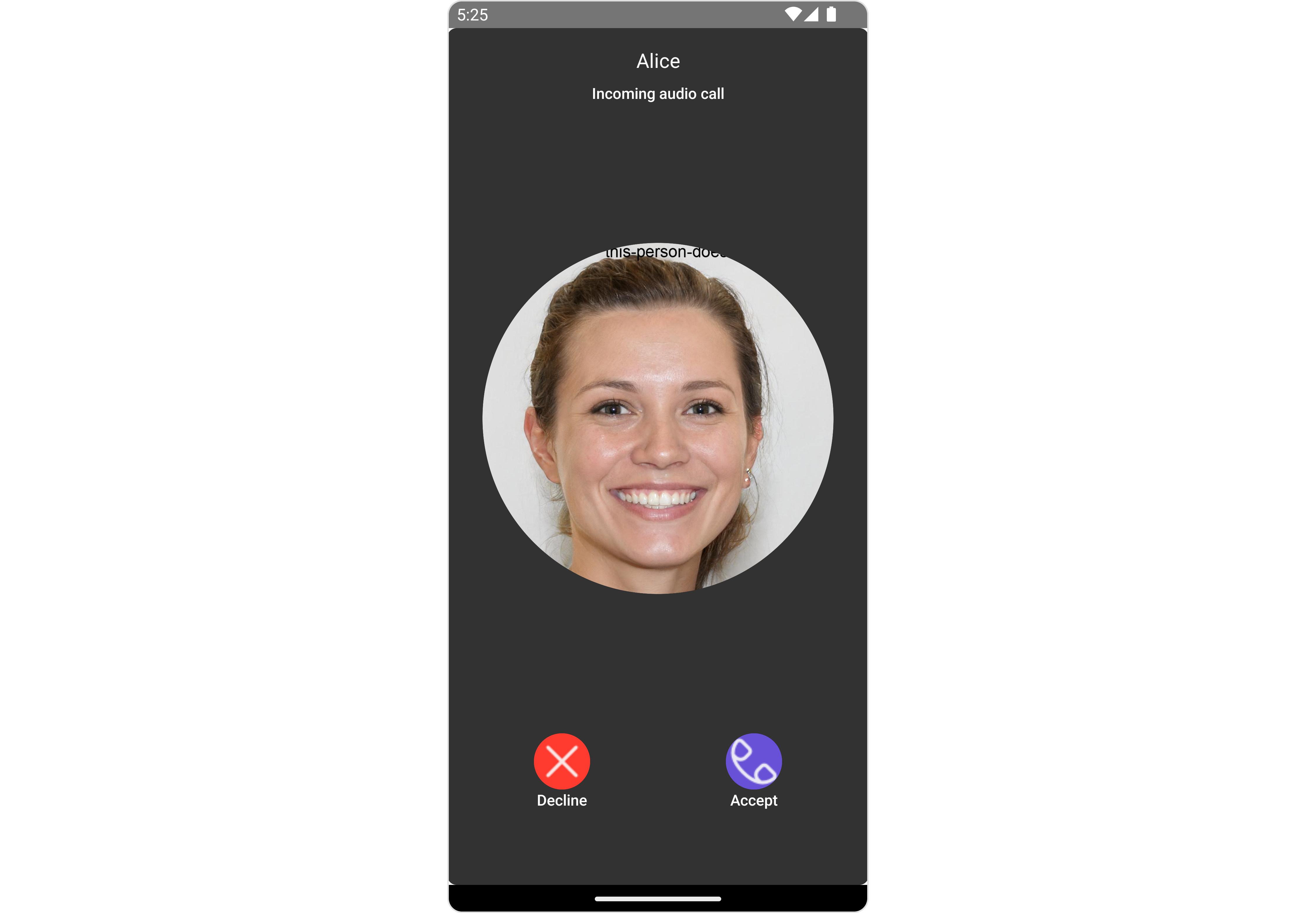

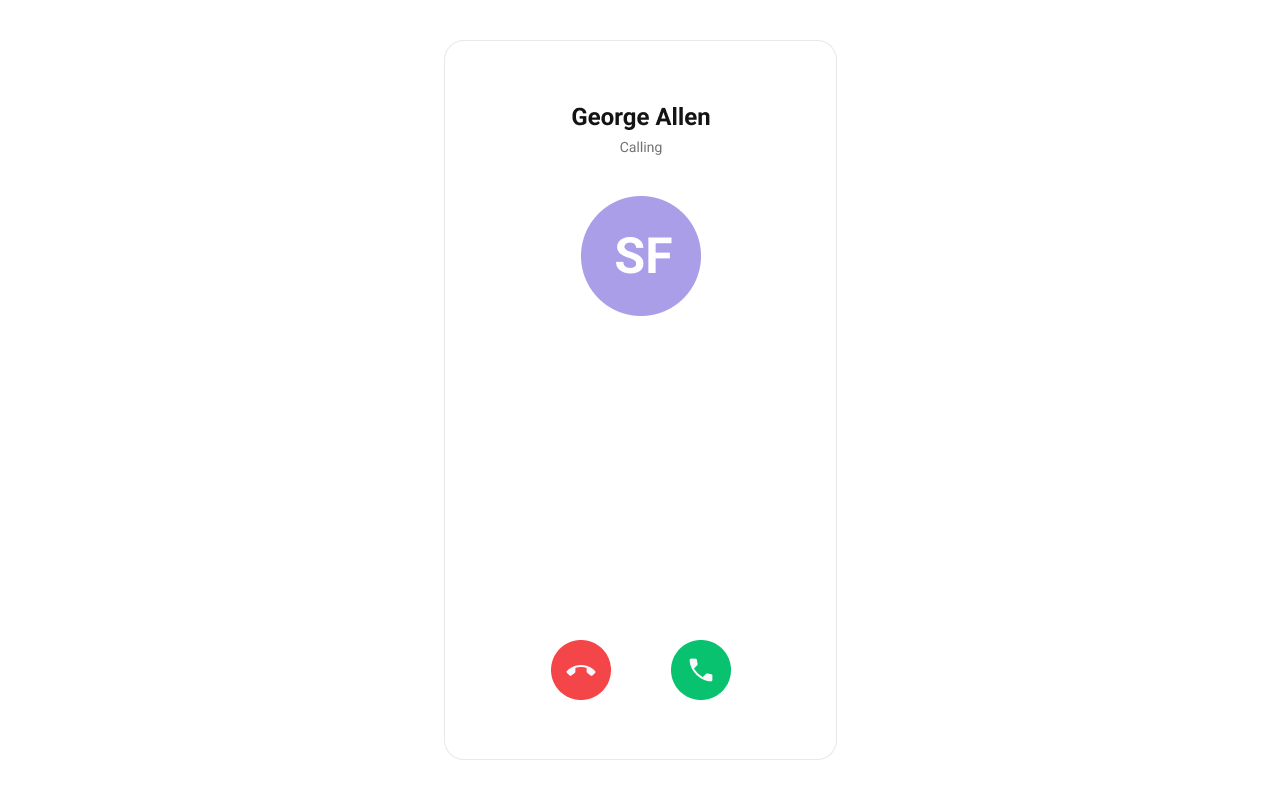

The Incoming call is a Component that serves as a visual representation when the user receives an incoming call, such as a voice call or video call, providing options to answer or decline the call.

iOS
Android

The Incoming Call is comprised of the following base components:

Components	Description
cometchat-list-item	This component’s view consists of avatar, status indicator , title, and subtitle. The fields are then mapped with the SDK’s user, group class.
cometchat-avatar	This component component displays an image or user's avatar with fallback to the first two letters of the username

Usage

Integration

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatIncomingCall } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const incomingCall = useRef(null);
  const [callReceived, setCallReceived] = useState(false);
  const listnerID = "UNIQUE_LISTENER_ID";

  useEffect(() => {
    //code
    CometChat.addCallListener(
      listnerID,
      new CometChat.CallListener({
        onIncomingCallReceived: (call) => {
          incomingCall.current = call;
          setCallReceived(true);
        },
        onOutgoingCallRejected: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
        onIncomingCallCancelled: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
      })
    );
  });

  return (
    <>
      {callReceived && (
        <CometChatIncomingCall
          call={incomingCall.current!}
          onDecline={(call) => {
            setCallReceived(false);
          }}
        />
      )}
    </>
  );
}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onAccept

onAccept is triggered when you click the accept button of the Incoming Call component. You can override this action using the following code snippet.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatIncomingCall } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const incomingCall = useRef(null);
  const [callReceived, setCallReceived] = useState(false);
  const listnerID = "UNIQUE_LISTENER_ID";

  useEffect(() => {
    //code
    CometChat.addCallListener(
      listnerID,
      new CometChat.CallListener({
        onIncomingCallReceived: (call) => {
          incomingCall.current = call;
          setCallReceived(true);
        },
        onOutgoingCallRejected: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
        onIncomingCallCancelled: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
      })
    );
  });

  const onAcceptHandler = (message: CometChat.BaseMessage) => {
    //code
  };

  return (
    <>
      {callReceived && (
        <CometChatIncomingCall
          call={incomingCall.current!}
          onDecline={(call) => {
            setCallReceived(false);
          }}
          onAccept={onAcceptHandler}
        />
      )}
    </>
  );
}

2. onDecline

onDecline is triggered when you click the Decline button of the Incoming Call component. This action does not have a predefined behavior. You can override this action using the following code snippet.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatIncomingCall } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const incomingCall = useRef(null);
  const [callReceived, setCallReceived] = useState(false);
  const listnerID = "UNIQUE_LISTENER_ID";

  useEffect(() => {
    //code
    CometChat.addCallListener(
      listnerID,
      new CometChat.CallListener({
        onIncomingCallReceived: (call) => {
          incomingCall.current = call;
          setCallReceived(true);
        },
        onOutgoingCallRejected: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
        onIncomingCallCancelled: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
      })
    );
  });

  const onDeclineHandler = (call) => {
    setCallReceived(false);
  };

  return (
    <>
      {callReceived && (
        <CometChatIncomingCall
          call={incomingCall.current!}
          onDecline={onDeclineHandler}
        />
      )}
    </>
  );
}

3. onError

This action doesn't change the behavior of the component but rather listens for any errors that occur in the Banned Members component.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatIncomingCall } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const incomingCall = useRef(null);
  const [callReceived, setCallReceived] = useState(false);
  const listnerID = "UNIQUE_LISTENER_ID";

  useEffect(() => {
    //code
    CometChat.addCallListener(
      listnerID,
      new CometChat.CallListener({
        onIncomingCallReceived: (call) => {
          incomingCall.current = call;
          setCallReceived(true);
        },
        onOutgoingCallRejected: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
        onIncomingCallCancelled: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
      })
    );
  });

  const onErrorHandler = (error: CometChat.CometChatException) => {
    //code
  };

  return (
    <>
      {callReceived && (
        <CometChatIncomingCall
          call={incomingCall.current!}
          onDecline={(call) => {
            setCallReceived(false);
          }}
          onError={onErrorHandler}
        />
      )}
    </>
  );
}

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

The Incoming Call component does not have any exposed filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The list of events emitted by the Incoming Call component is as follows.

Event	Description
ccCallRejected	This event is triggered when the initiated call is rejected by the receiver.
ccCallAccepted	This event is triggered when the initiated call is accepted by the receiver.
ccCallEnded	This event is triggered when the initiated call successfully ends.
ccCallFailled	This event is triggered when an error occurs during the intiated call.

Adding Listeners

import { CometChatUIEventHandler } from "@cometchat/chat-uikit-react-native";

CometChatUIEventHandler.addCallListener("CALL_LISTENER_ID", {
  ccCallRejected: ({ call }) => {
    //code
  },
});

CometChatUIEventHandler.addCallListener("CALL_LISTENER_ID", {
  ccCallAccepted: ({ call }) => {
    //code
  },
});

CometChatUIEventHandler.addCallListener("CALL_LISTENER_ID", {
  ccCallEnded: ({ call }) => {
    //code
  },
});

CometChatUIEventHandler.addCallListener("CALL_LISTENER_ID", {
  ccCallFailled: ({ call }) => {
    //code
  },
});

Removing Listeners

import { CometChatUIEventHandler } from "@cometchat/chat-uikit-react-native";

CometChatUIEventHandler.removeCallListener("CALL_LISTENER_ID");

Customization

To fit your app's design requirements, you can customize the appearance of the Incoming Call component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

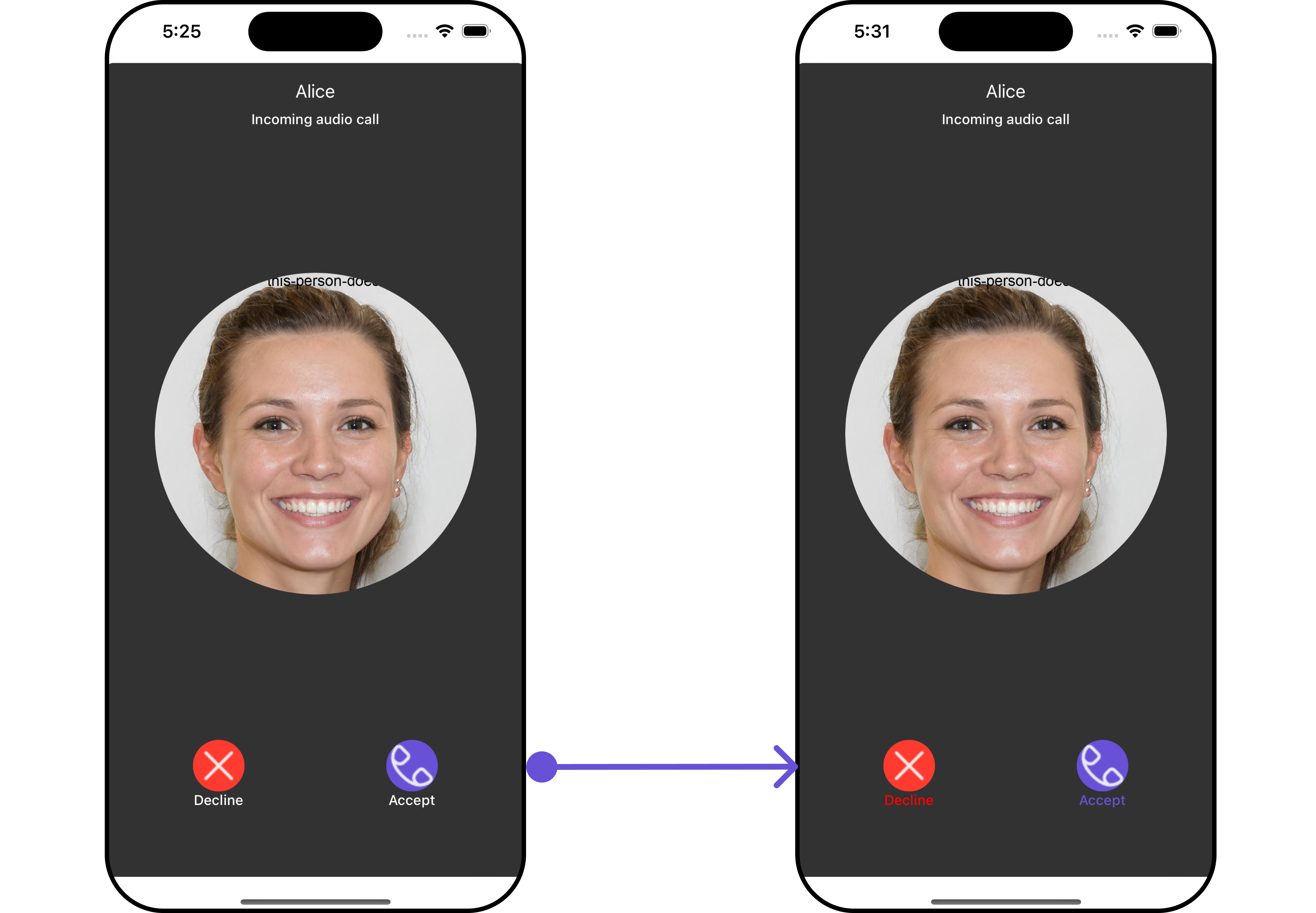

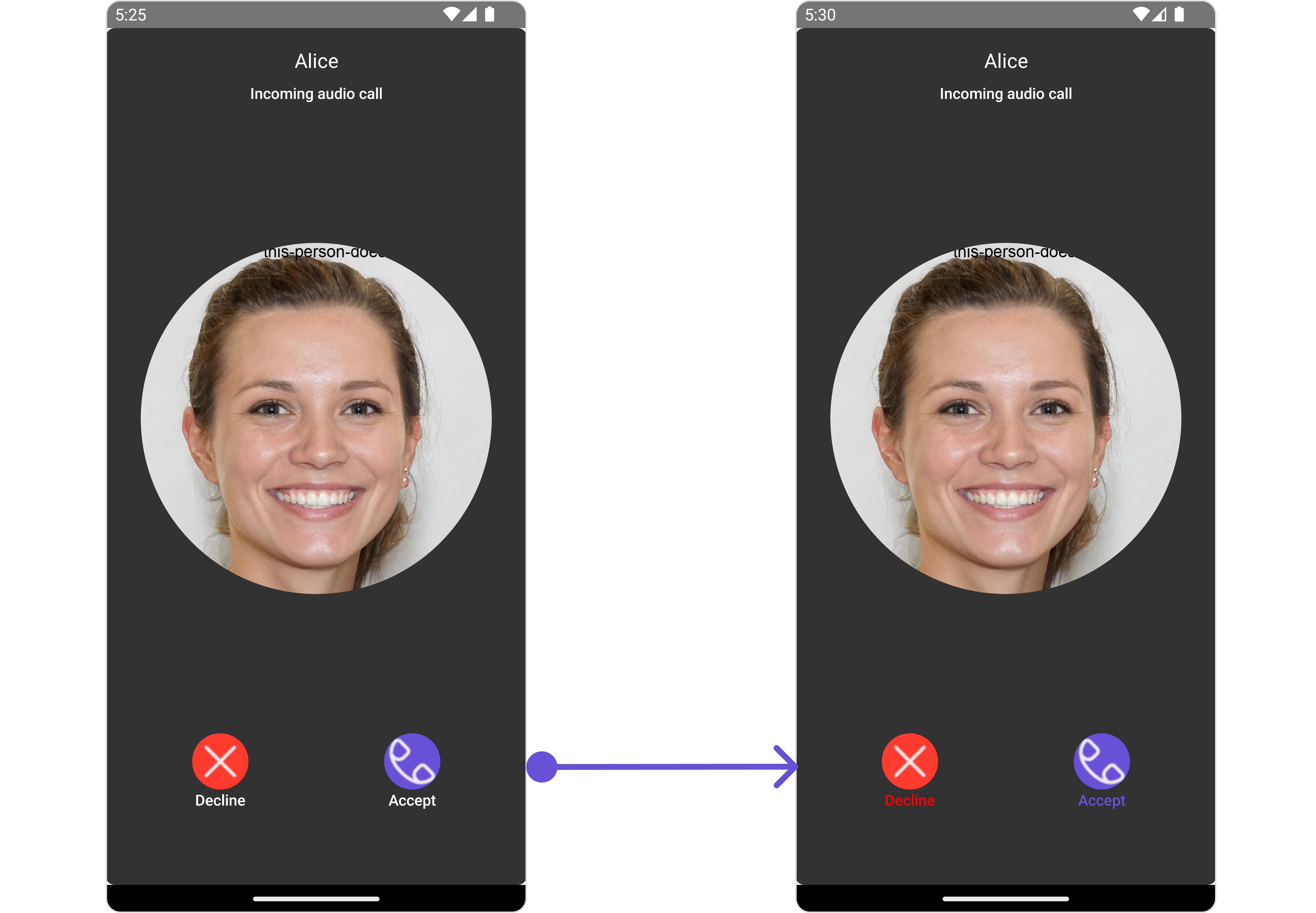

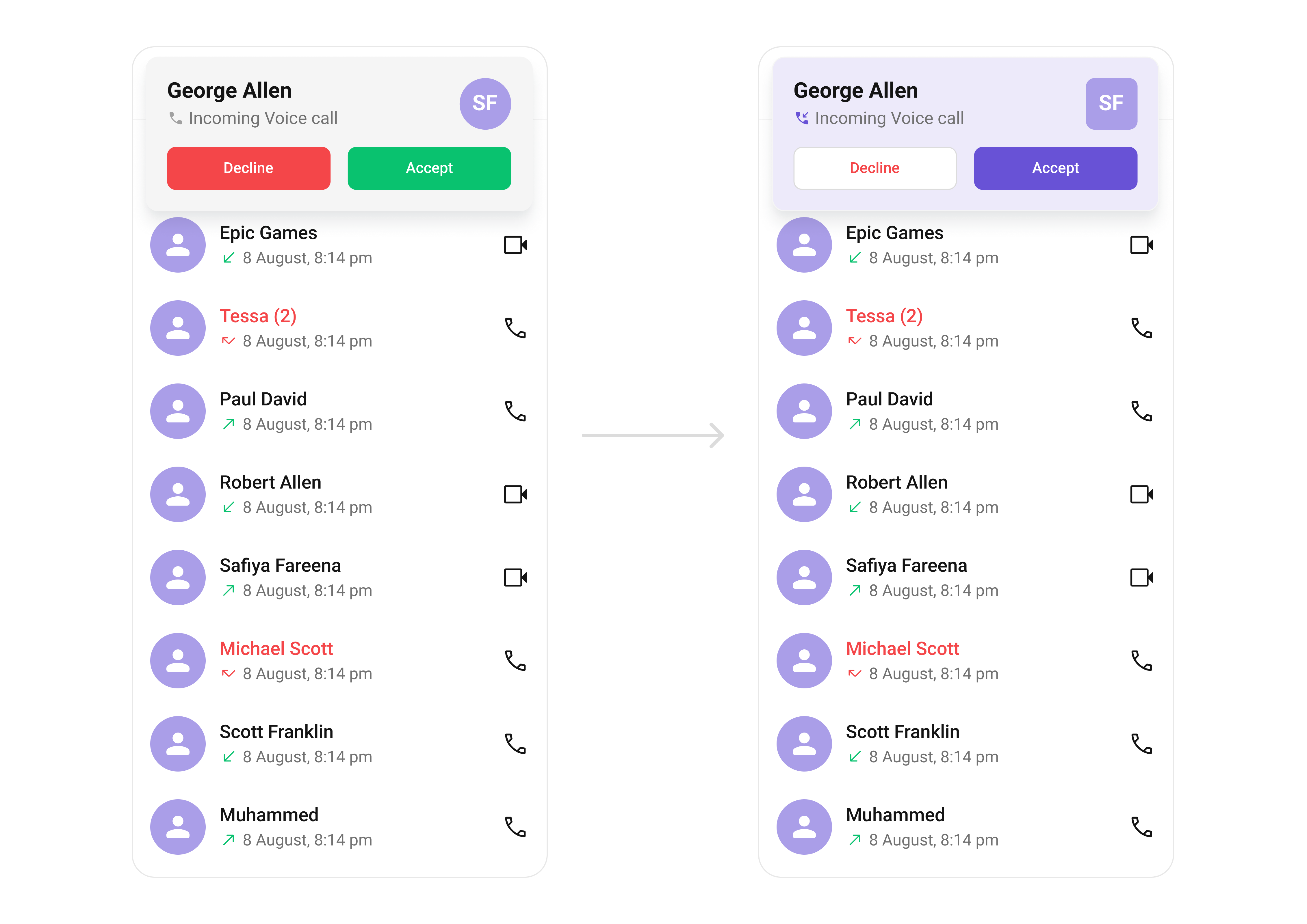

1. IncomingCall Style

To customize the appearance, you can assign a IncomingCallStyle object to the Incoming Call component.

In this example, we are employing the IncomingCallStyle.

iOS
Android

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatIncomingCall,
  IncomingCallStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const incomingCall = useRef(null);
  const [callReceived, setCallReceived] = useState(false);
  const listnerID = "UNIQUE_LISTENER_ID";

  useEffect(() => {
    //code
    CometChat.addCallListener(
      listnerID,
      new CometChat.CallListener({
        onIncomingCallReceived: (call) => {
          incomingCall.current = call;
          setCallReceived(true);
        },
        onOutgoingCallRejected: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
        onIncomingCallCancelled: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
      })
    );
  });

  const incomingCallStyle: IncomingCallStyleInterface = {
    declineButtonTextColor: "red",
    acceptButtonTextColor: "#6851D6",
  };

  return (
    <>
      {callReceived && (
        <CometChatIncomingCall
          call={incomingCall.current!}
          onDecline={(call) => {
            setCallReceived(false);
          }}
          incomingCallStyle={incomingCallStyle}
        />
      )}
    </>
  );
}

The following properties are exposed by IncomingCallStyle:

Property	Description	Code
border	Used to set border	`border?: BorderStyleInterface,`
borderRadius	Used to set border radius	`borderRadius?: number;`
backgroundColor	Used to set background colour	`background?: string;`
height	Used to set height	`height?: number` \| `string;`
width	Used to set width	`width?: number` \| `string;`
titleFont	Used to customise the font of the title in the app bar	`titleFont?: FontStyleInterface;`
titleColor	Used to customise the color of the title in the app bar	`titleColor?: string;`
subtitleColor	Used to set the color for group item subtitle	`subtitleColor?: string;`
subtitleFont	Used to set the font style for group item subtitle	`subtitle Font?: FontStyleInterface;`
onlineStatusColor	Used to set online status color	`onlineStatusColor?: string;`
acceptButtonTextColor	Used to set accept button text color	`acceptButtonTextColor?: string;`
acceptButtonTextFont	Used to set accept button text font	`acceptButtonTextFont?: FontStyleInterface;`
acceptButtonBackgroundColor	Used to set accept button background color	`acceptButtonBackgroundColor?: string;`
acceptButtonBorder	Used to set accept button border	`acceptButtonBorder?: BorderStyleInterface;`
declineButtonTextColor	Used to set decline button text color	`declineButtonTextColor?: string;`
declineButtonTextFont	Used to set decline button text font	`declineButtonTextFont?: FontStyleInterface;`
declineButtonBackgroundColor	Used to set decline button background color	`declineButtonBackgroundColor?: string;`
declineButtonBorder	Used to set decline button border	`declineButtonBorder?: BorderStyleInterface;`

2. Avatar Style

If you want to apply customized styles to the Avatar component within the Incoming Call Component, you can use the following code snippet. For more information you can refer Avatar Styles.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatIncomingCall,
  AvatarStyleInterface,
  BorderStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const incomingCall = useRef(null);
  const [callReceived, setCallReceived] = useState(false);
  const listnerID = "UNIQUE_LISTENER_ID";

  useEffect(() => {
    //code
    CometChat.addCallListener(
      listnerID,
      new CometChat.CallListener({
        onIncomingCallReceived: (call) => {
          incomingCall.current = call;
          setCallReceived(true);
        },
        onOutgoingCallRejected: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
        onIncomingCallCancelled: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
      })
    );
  });

  const borderStyle: BorderStyleInterface = {
    borderWidth: 10,
    borderStyle: "solid",
    borderColor: "#cc5e95",
  };

  const avatarStyle: AvatarStyleInterface = {
    outerViewSpacing: 5,
    outerView: {
      borderWidth: 2,
      borderStyle: "dotted",
      borderColor: "blue",
    },
    border: borderStyle,
  };

  return (
    <>
      {callReceived && (
        <CometChatIncomingCall
          call={incomingCall.current!}
          onDecline={(call) => {
            setCallReceived(false);
          }}
          avatarStyle={avatarStyle}
        />
      )}
    </>
  );
}

3. OngoingCallScreen Style

You can use this style property to apply customized styles to the OngoingCallScreen component within the Incoming Call Component.

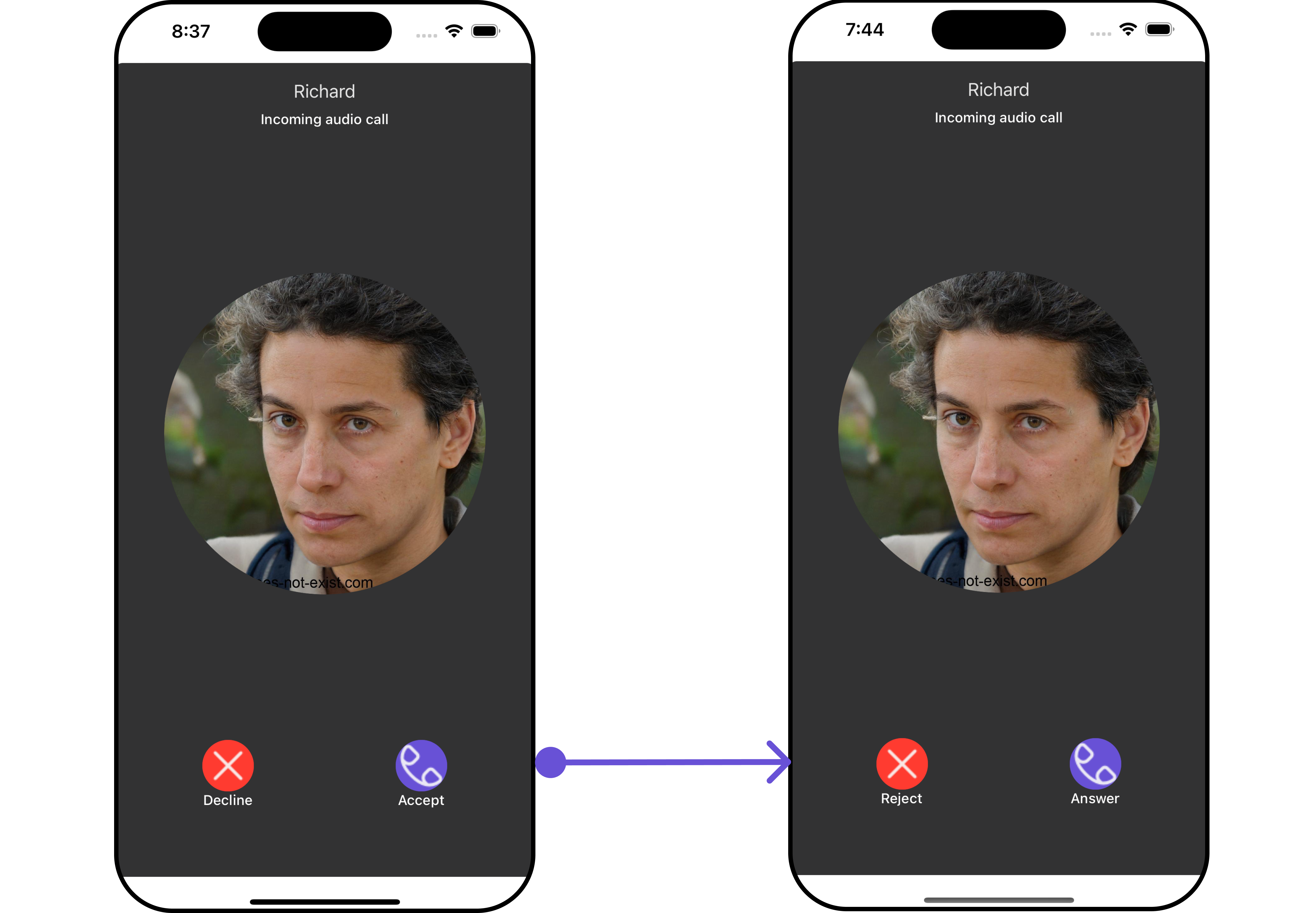

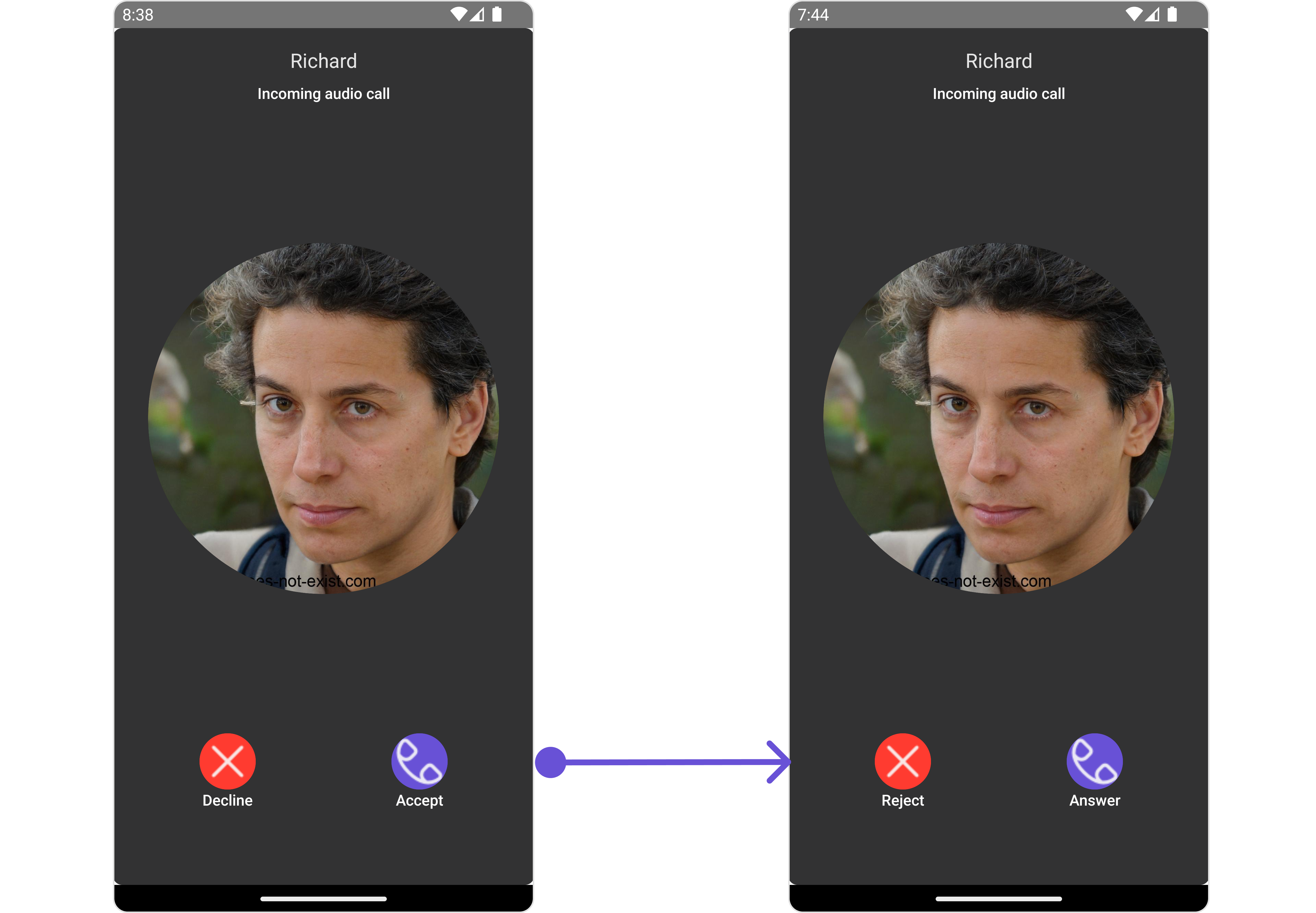

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Here is a code snippet demonstrating how you can customize the functionality of the Incoming Call component.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatIncomingCall } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const incomingCall = useRef(null);
  const [callReceived, setCallReceived] = useState(false);
  const listnerID = "UNIQUE_LISTENER_ID";

  useEffect(() => {
    //code
    CometChat.addCallListener(
      listnerID,
      new CometChat.CallListener({
        onIncomingCallReceived: (call) => {
          incomingCall.current = call;
          setCallReceived(true);
        },
        onOutgoingCallRejected: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
        onIncomingCallCancelled: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
      })
    );
  });

  return (
    <>
      {callReceived && (
        <CometChatIncomingCall
          call={incomingCall.current!}
          onDecline={(call) => {
            setCallReceived(false);
          }}
          acceptButtonText="Answer"
          declineButtonText="Reject"
          disableSoundForCalls={true}
        />
      )}
    </>
  );
}

iOS
Android

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
title	Used to set title	`title?: string`
acceptButtonText	Used to set custom accept button text	`acceptButtonText?: string`
declineButtonText	Used to set custom decline button text	`declineButtonText?: string`
customSoundForCalls	Used to set custom sound for incoming calls	`customSoundForCalls?: string`
disableSoundForCalls	Used to disable/enable the sound of incoming calls, by default it is set to false	`disableSoundForCalls?: string`
call	CometChat call object consumed by the component to launch itself	`disableSoundForMessages={true}`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

SubtitleView

By using the SubtitleView property, you can modify the SubtitleView to meet your specific needs.

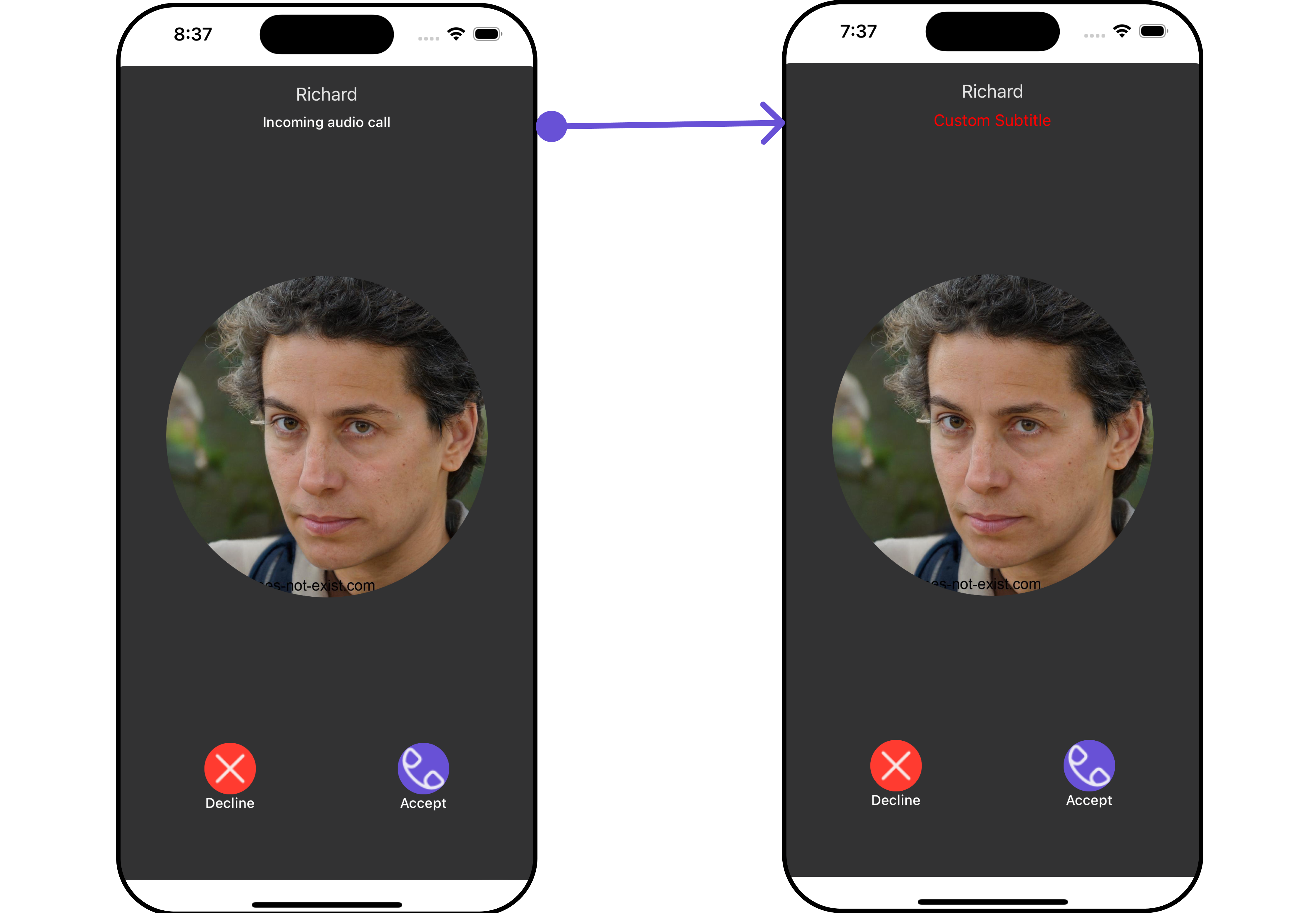

iOS

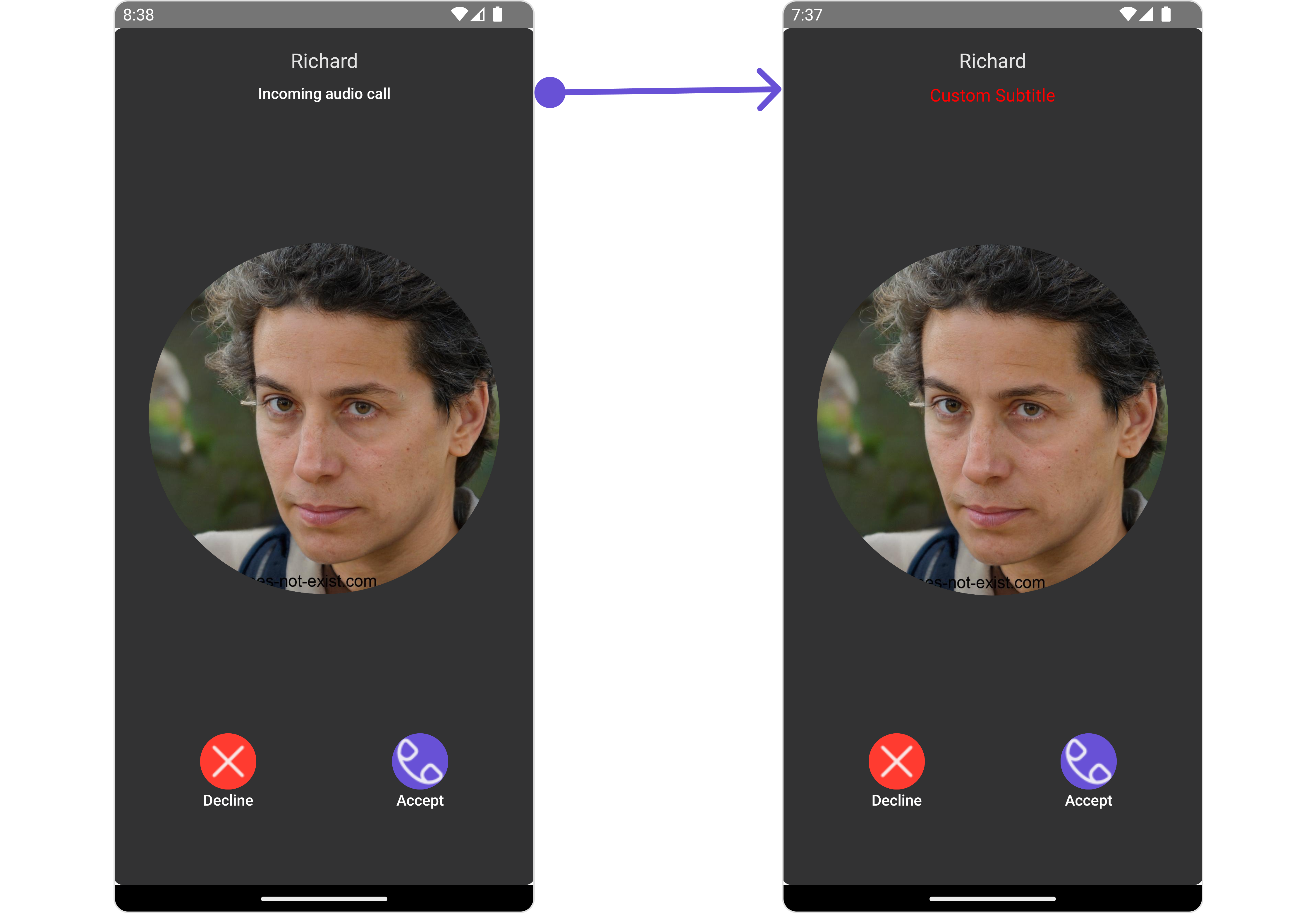

Android

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatIncomingCall } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const incomingCall = useRef(null);
  const [callReceived, setCallReceived] = useState(false);
  const listnerID = "UNIQUE_LISTENER_ID";

  useEffect(() => {
    //code
    CometChat.addCallListener(
      listnerID,
      new CometChat.CallListener({
        onIncomingCallReceived: (call) => {
          incomingCall.current = call;
          setCallReceived(true);
        },
        onOutgoingCallRejected: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
        onIncomingCallCancelled: (call) => {
          incomingCall.current = null;
          setCallReceived(false);
        },
      })
    );
  });

  const getSubtitleView = (call: CometChat.Call | CometChat.CustomMessage) => {
    return (
      <Text
        style={{
          fontSize: 15,
          color: "red",
          shadowColor: "red",
        }}
      >
        Custom Subtitle
      </Text>
    );
  };

  return (
    <>
      {callReceived && (
        <CometChatIncomingCall
          call={incomingCall.current!}
          onDecline={(call) => {
            setCallReceived(false);
          }}
          SubtitleView={getSubtitleView}
        />
      )}
    </>
  );
}

UI Kits

SDKs

Widgets

APIs

Overview​

Usage​

Integration​

Actions​

1. onAccept​

2. onDecline​

3. onError​

Filters​

Events​

Customization​

Style​

1. IncomingCall Style​

2. Avatar Style​

3. OngoingCallScreen Style​

Functionality​

Advanced​

SubtitleView​
