Call Buttons

Overview

The Call Button is a Component provides users with the ability to make calls, access call-related functionalities, and control call settings. Clicking this button typically triggers the call to be placed to the desired recipient.

iOS

Android

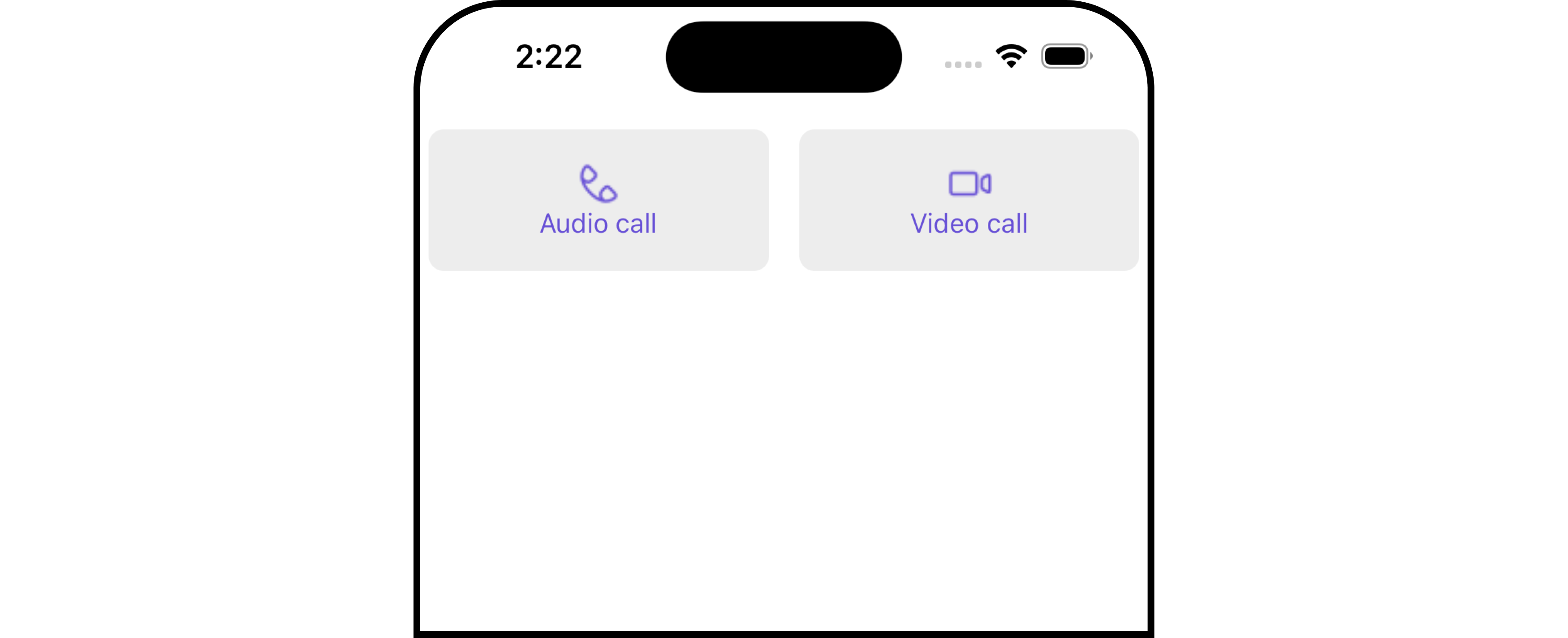

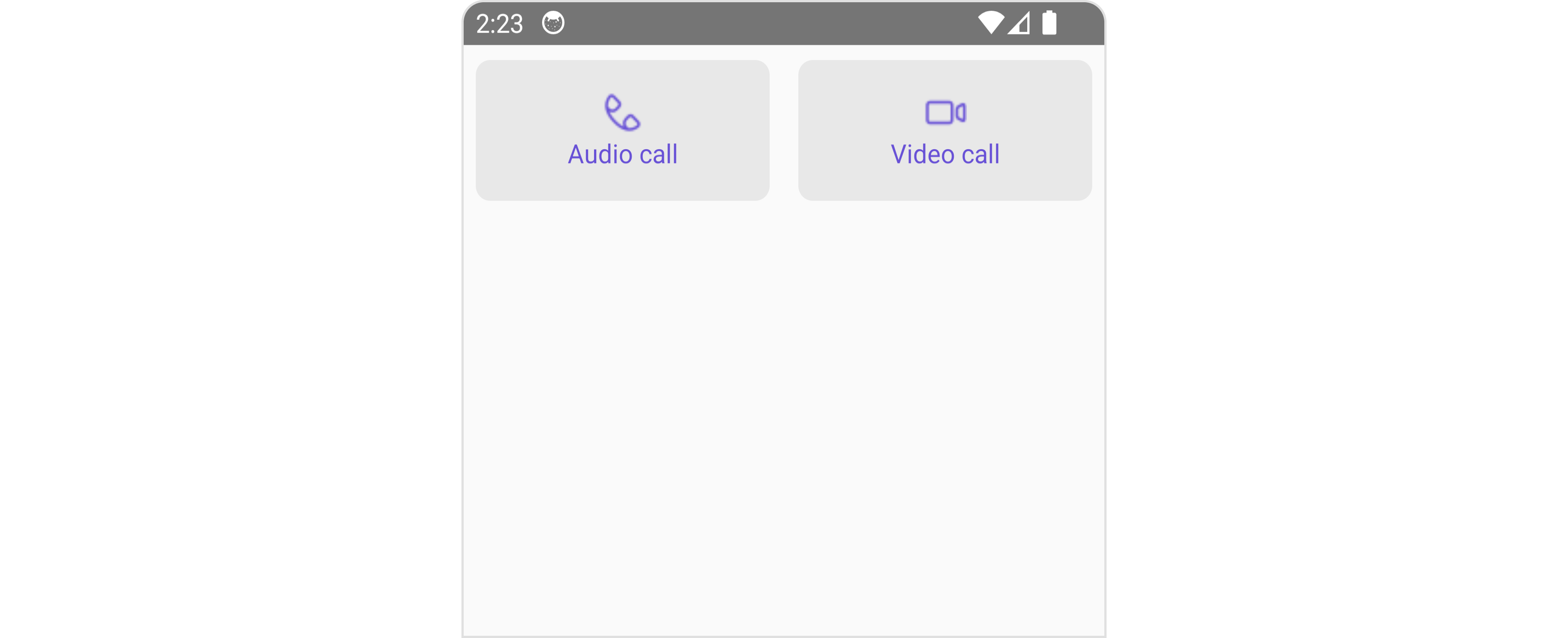

Usage

Integration

App.tsx

import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatCallButtons } from '@cometchat/chat-uikit-react-native';

function App(): React.JSX.Element {

	const [user, setUser] = useState<CometChat.User | undefined>(undefined);

    const getUser = async () => {
       const user = await CometChat.getUser('uid');
       setUser(user);
    };

	useEffect(() => {
	   //login
       getUser();
    }, []);


   return (
	 { user &&
	   <CometChatCallButtons
          user={user}
 	   />
	 }
   );
 }

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onVoiceCallPress

onVoiceCallPress is triggered when you click the voice call button of the Call Buttons component. You can override this action using the following code snippet.

App.tsx

import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatCallButtons } from '@cometchat/chat-uikit-react-native';

function App(): React.JSX.Element {

	const [user, setUser] = useState<CometChat.User | undefined>(undefined);

    const getUser = async () => {
       const user = await CometChat.getUser('uid');
       setUser(user);
    };

	useEffect(() => {
	   //login
       getUser();
    }, []);

	const onVoiceCallPressHandler  = ({user, group}: {user?: CometChat.User | undefined,
      group?: CometChat.Group | undefined }
    ) => {
       //code
    }


   return (
	 { user &&
	   <CometChatCallButtons
          user={user}
		  onVoiceCallPress={onVoiceCallPressHandler}
 	   />
	 }
   );
 }

2. onVideoCallClick

onVideoCallClick is triggered when you click the video call button of the Call Buttons component. You can override this action using the following code snippet.

App.tsx

import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatCallButtons } from '@cometchat/chat-uikit-react-native';

function App(): React.JSX.Element {

	const [user, setUser] = useState<CometChat.User | undefined>(undefined);

    const getUser = async () => {
       const user = await CometChat.getUser('uid');
       setUser(user);
    };

	useEffect(() => {
	   //login
       getUser();
    }, []);

    const onVideoCallPressHandler  = ({user, group}: {user?: CometChat.User | undefined,
      group?: CometChat.Group | undefined }
    ) => {
       //code
    }


   return (
	 { user &&
	   <CometChatCallButtons
          user={user}
		  onVideoCallPress={onVideoCallPressHandler}
 	   />
	 }
   );
 }

3. onError

This action doesn't change the behavior of the component but rather listens for any errors that occur in the Call Button component.

App.tsx

import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatCallButtons } from '@cometchat/chat-uikit-react-native';

function App(): React.JSX.Element {

	const [user, setUser] = useState<CometChat.User | undefined>(undefined);

    const getUser = async () => {
       const user = await CometChat.getUser('uid');
       setUser(user);
    };

	useEffect(() => {
	   //login
       getUser();
    }, []);

    const onErrorHandler = (error: CometChat.CometChatException) => {
      //code
    }


   return (
	 { user &&
	   <CometChatCallButtons
          user={user}
		  onError={onErrorHandler}
 	   />
	 }
   );
 }

---

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

The Call Buttons component does not have any exposed filters.

---

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The list of events emitted by the Call Buttons component is as follows.

Event	Description
ccCallRejected	This event is triggered when the initiated call is rejected by the receiver.
ccCallFailled	This event is triggered when an error occurs during the intiated call.
ccOutgoingCall	This event is triggered when the user initiates a voice/video call.

Adding Listeners

import { CometChatUIEventHandler } from "@cometchat/chat-uikit-react-native";

CometChatUIEventHandler.addCallListener("CALL_LISTENER_ID", {
  ccCallRejected: ({ call }) => {
    //code
  },
});

CometChatUIEventHandler.addCallListener("CALL_LISTENER_ID", {
  ccOutgoingCall: ({ call }) => {
    //code
  },
});

CometChatUIEventHandler.addCallListener("CALL_LISTENER_ID", {
  ccCallFailled: ({ call }) => {
    //code
  },
});

---

Removing Listeners

import { CometChatUIEventHandler } from "@cometchat/chat-uikit-react-native";

CometChatUIEventHandler.removeCallListener("CALL_LISTENER_ID");

Customization

To fit your app's design requirements, you can customize the appearance of the Call Buttons component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. CallButtons Style

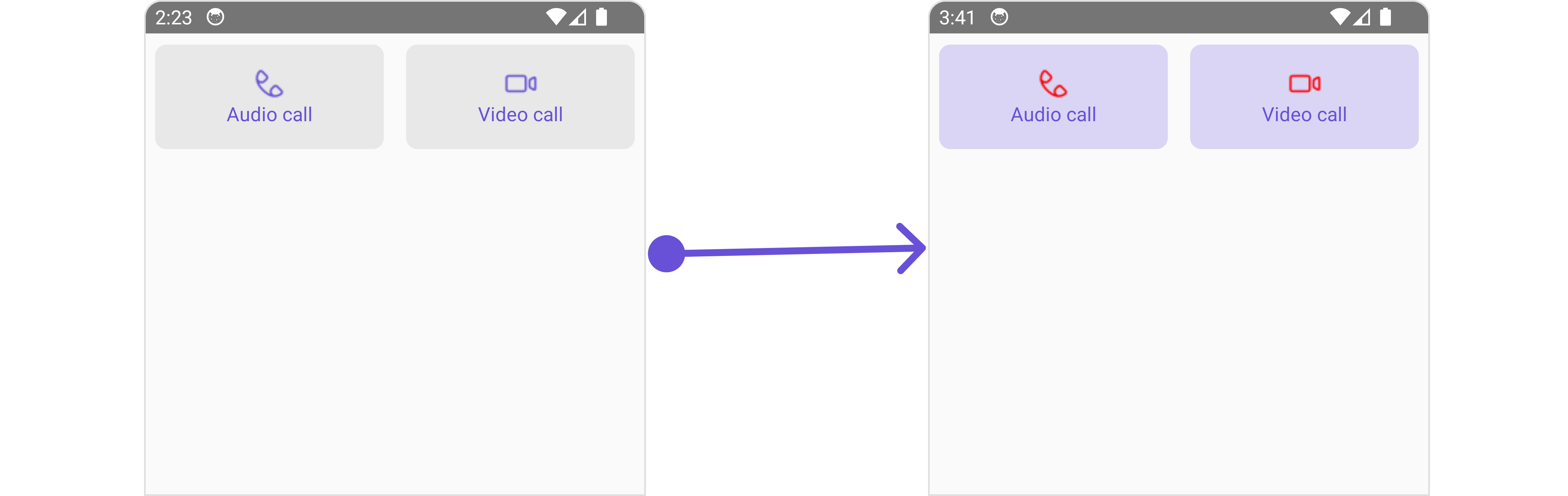

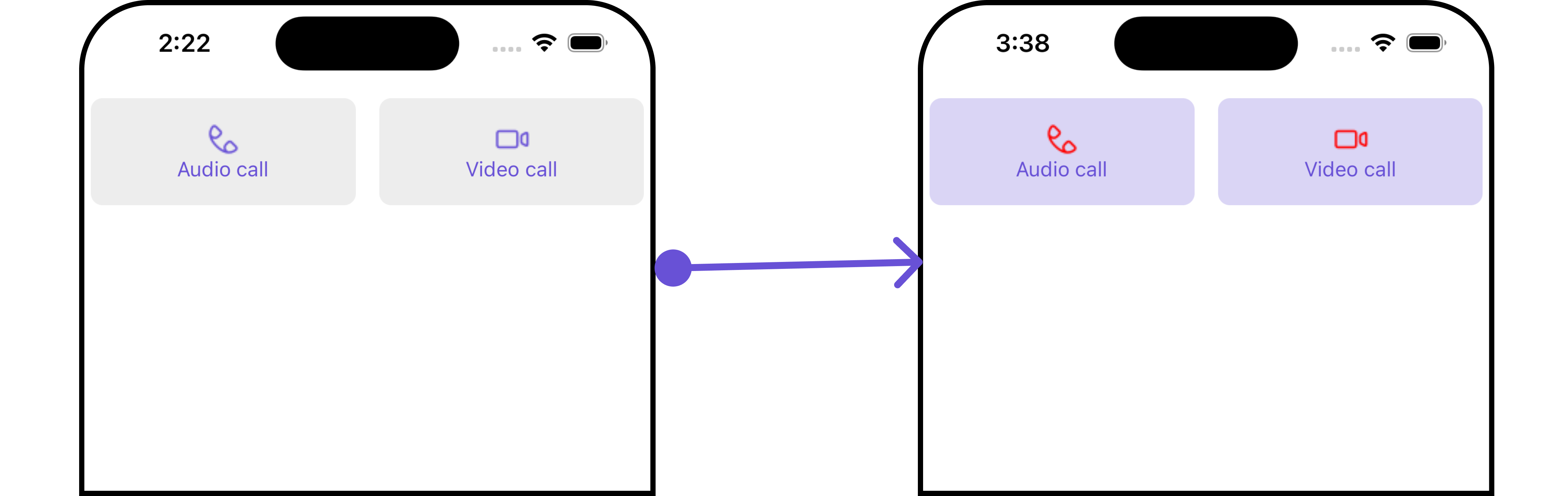

To customize the appearance, you can assign a CallButtonsStyle object to the Call Buttons component.

iOS

Android

In this example, we are employing the callButtonsStyle.

App.tsx

import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatCallButtons, CallButtonStyleInterface } from '@cometchat/chat-uikit-react-native';

function App(): React.JSX.Element {

	const [user, setUser] = useState<CometChat.User | undefined>(undefined);

    const getUser = async () => {
       const user = await CometChat.getUser('uid');
       setUser(user);
    };

	useEffect(() => {
	   //login
       getUser();
    }, []);

   const callButtonsStyle : CallButtonStyleInterface = {
       videoCallIconTint: "red",
       voiceCallIconTint: "red",
       backgroundColor: "#dad5f5",
   }

   return (
	 { user &&
	   <CometChatCallButtons
          user={user}
		  callButtonStyle={callButtonsStyle}
 	   />
	 }
   );
 }

---

The following properties are exposed by CallButtonsStyle:

Property	Description	Code
border	Used to set border	border?: BorderStyleInterface,
borderRadius	Used to set border radius	borderRadius?: number;
backgroundColor	Used to set background colour	background?: string;
height	Used to set height	height?: number | string;
width	Used to set width	width?: number | string;
voiceCallIconTint	Used to set voice call icon tint	voiceCallIconTint?: string,
videoCallIconTint	Used to set video call icon tint	videoCallIconTint?: string;
buttonPadding	Used to set voice call icon text font	buttonPadding?: number;

---

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

iOS

Android

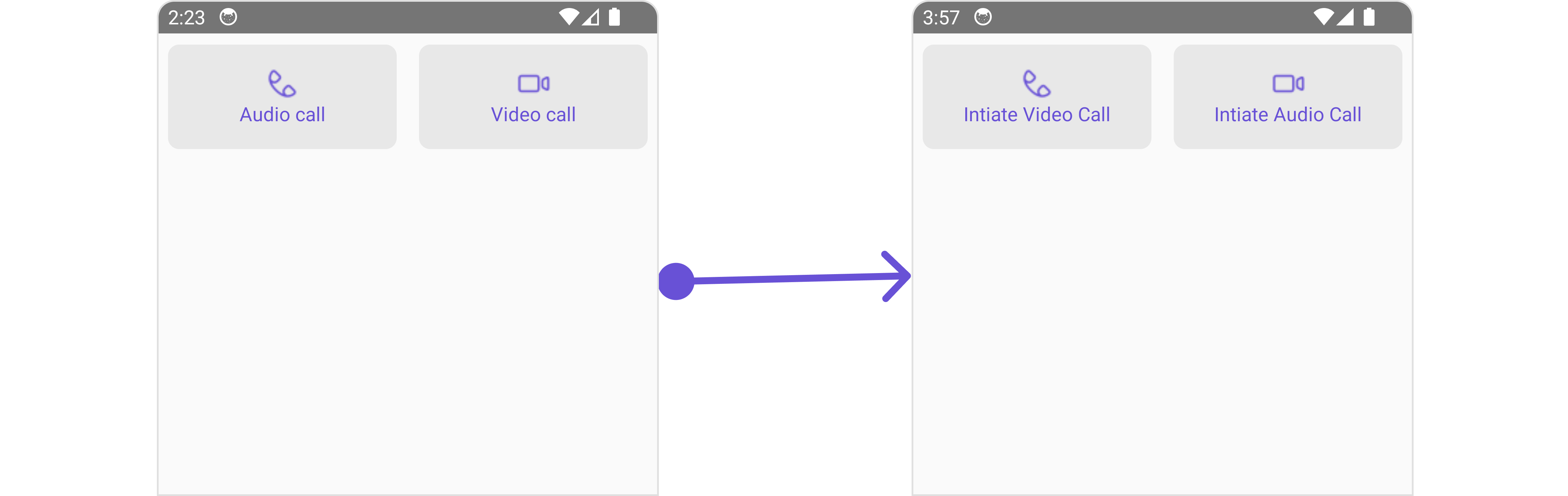

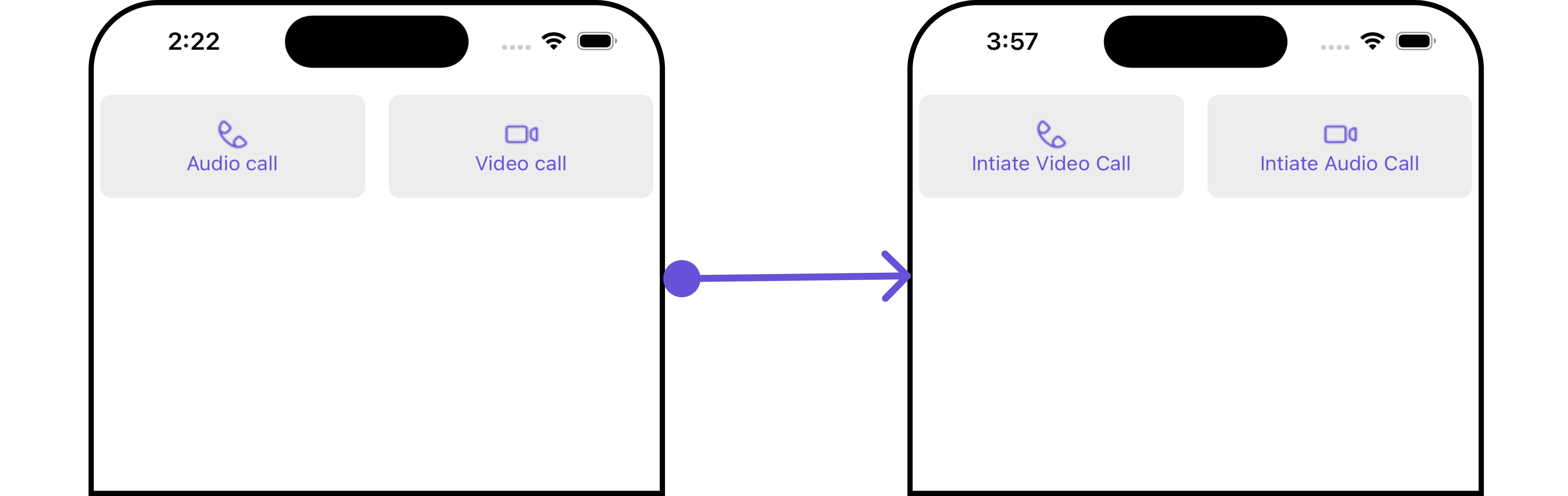

Here is a code snippet demonstrating how you can customize the functionality of the Call Buttons component.

App.tsx

import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatCallButtons } from '@cometchat/chat-uikit-react-native';

function App(): React.JSX.Element {

	const [user, setUser] = useState<CometChat.User | undefined>(undefined);

    const getUser = async () => {
       const user = await CometChat.getUser('uid');
       setUser(user);
    };

	useEffect(() => {
	   //login
       getUser();
    }, []);

   return (
	 { user &&
	   <CometChatCallButtons
          user={user}
          voiceCallIconText='Intiate Video Call'
          videoCallIconText='Intiate Audio Call'
 	   />
	 }
   );
 }

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
group	Used to set the group object for Call Buttons	group?: CometChat.Group
user	Sets the user object for Call Buttons	user?: CometChat.User
videoCallIconHoverText	Used to set the custom text or tooltip displayed on the video call button on mouse over.	videoCallIconHoverText='Your Custom Video Call Icon Hover Text'
voiceCallIconHoverText	Used to set the custom text or tooltip displayed on the voice call button on mouse over.	voiceCallIconHoverText='Your Custom Voice Call Icon Hover text'
voiceCallIconText	Used to set custom voice call icon text	voiceCallIconText?: string
videoCallIconText	Used to set custom video call icon text	videoCallIconText?: string
voiceCallIconImage	Used to set custom Icon for Video Call Button	voiceCallIconImage?: ImageType
videoCallIconImage	Used to set custom Icon for Voice Call Button	videoCallIconImage?: ImageType
hideVoiceCall	Used to hide Voice Call	`hideVoiceCall?: boolean
hideVideoCall	Used to hide Video Call	`hideVideoCall?: boolean

---

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

the Call Buttons component does not offer any advanced functionalities beyond this level of customization.

---
