Call Log History

Overview

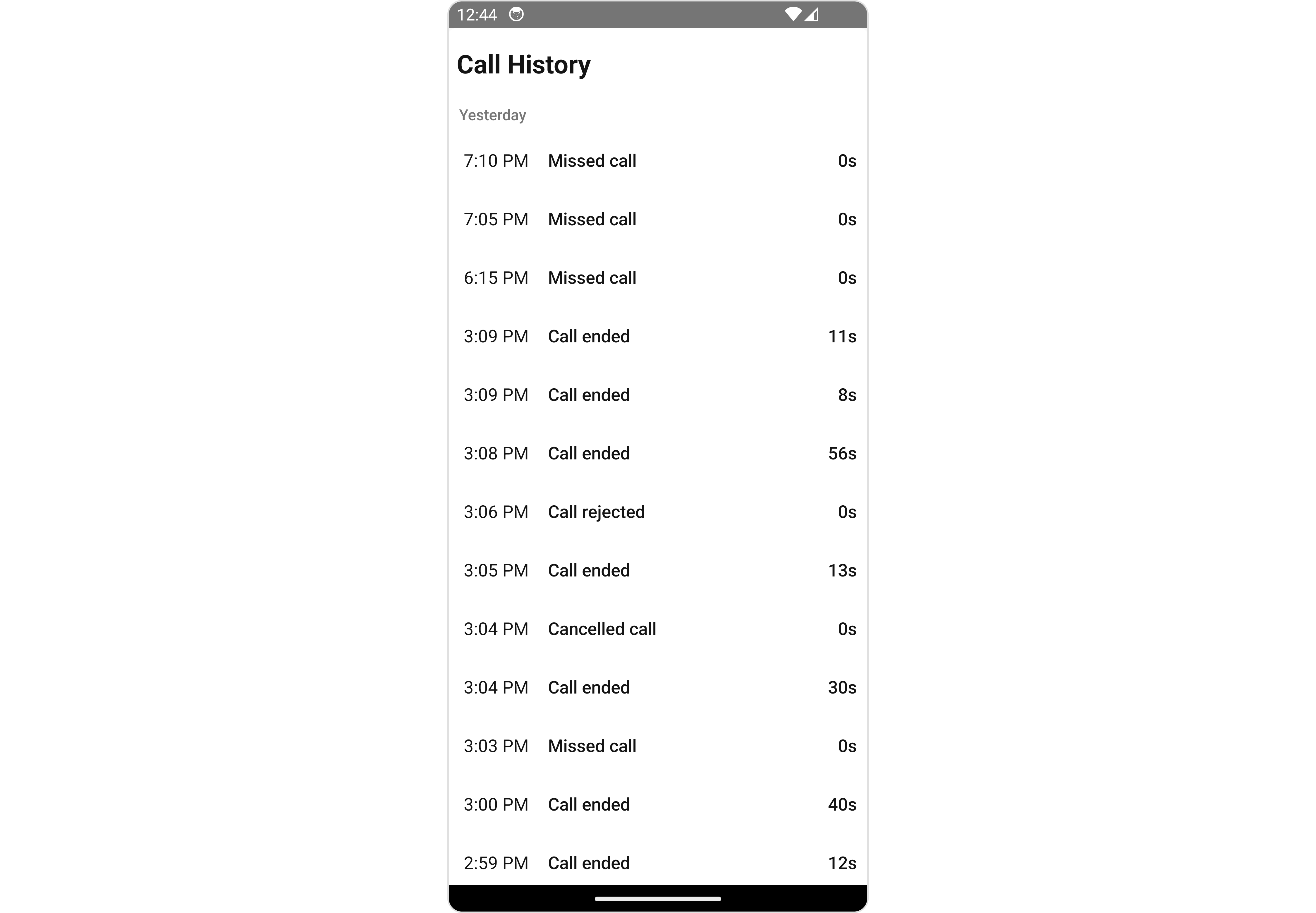

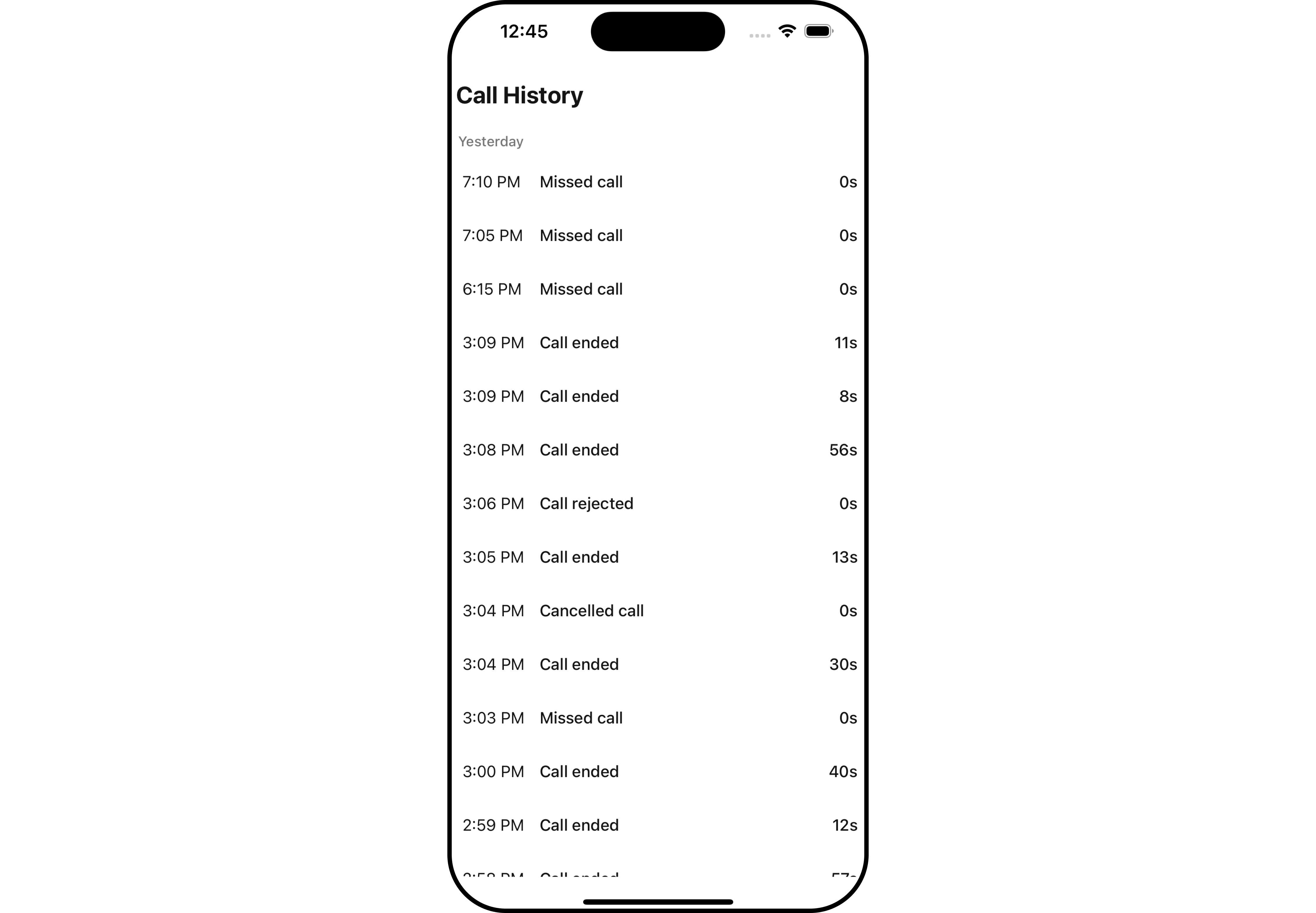

CometChatCallLogHistory is a Component that shows a paginated list of all the calls between the logged-in user & another user or group. This allows the user to see all the calls with a specific user/group they have initiated/received/missed.

iOS

Android

Usage

Integration

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  return <>{loggedInUser && <CometChatCallLogHistory />}</>;
}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onItemPress

onItemPress is triggered when you click on a ListItem of the of the Call Log History component. It does not have a default behavior. However, you can override its behavior using the following code snippet.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const onItemPressHandler = (item: CometChat.BaseMessage) => {
    //code
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogHistory onItemPress={onItemPressHandler} />
      )}
    </>
  );
}

2. onBack

The onBack function is built to respond when you press the back button in the AppBar. The back button is only displayed when the prop showBackButton is set to true.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const onBackHandler = () => {
    //code
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogHistory onBack={onBackHandler} showBackButton={true} />
      )}
    </>
  );
}

3. onError

This action doesn't change the behavior of the component but rather listens for any errors that occur in the Call Log History component.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const onErrorHandler = (error: CometChat.CometChatException) => {
    //code
  };

  return (
    <>{loggedInUser && <CometChatCallLogHistory onError={onErrorHandler} />}</>
  );
}

---

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. CallLogRequestBuilder

The CallLogRequestBuilder enables you to filter and customize the Call Log History based on available parameters in CallLogRequestBuilder. This feature allows you to create more specific and targeted queries when fetching the call logs. The following are the parameters available in CallLogRequestBuilder

Methods	Type	Description
setLimit	number	Specifies the number of call logs to fetch.
setCallType	String	Sets the type of calls to fetch (call or meet).
setCallStatus	callStatus	Sets the status of calls to fetch (initiated, ongoing, etc.)
setHasRecording	boolean	Sets whether to fetch calls that have recordings.
setCallCategory	string	Sets the category of calls to fetch (call or meet).
setCallDirection	string	Sets the direction of calls to fetch (incoming or outgoing)
setUid	string	Sets the UID of the user whose call logs to fetch.
setGuid	string	Sets the GUID of the user whose call logs to fetch.
setAuthToken	string	Sets the Auth token of the logged-in user.

Example

In the example below, we're filtering Call Log History to show only canceled calls and setting the limit to five.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-react-native";
import { CallLogRequestBuilder } from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogHistory
          callLogHistoryRequestBuilder={new CallLogRequestBuilder()
            .setLimit(5)
            .setAuthToken("auth-token")
            .setCallStatus("cancelled")
            .build()}
        />
      )}
    </>
  );
}

---

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The CallLogHistory does not produce any events.

---

Customization

To fit your app's design requirements, you have the ability to customize the appearance of the CallLogHistory component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. CallLogHistory Style

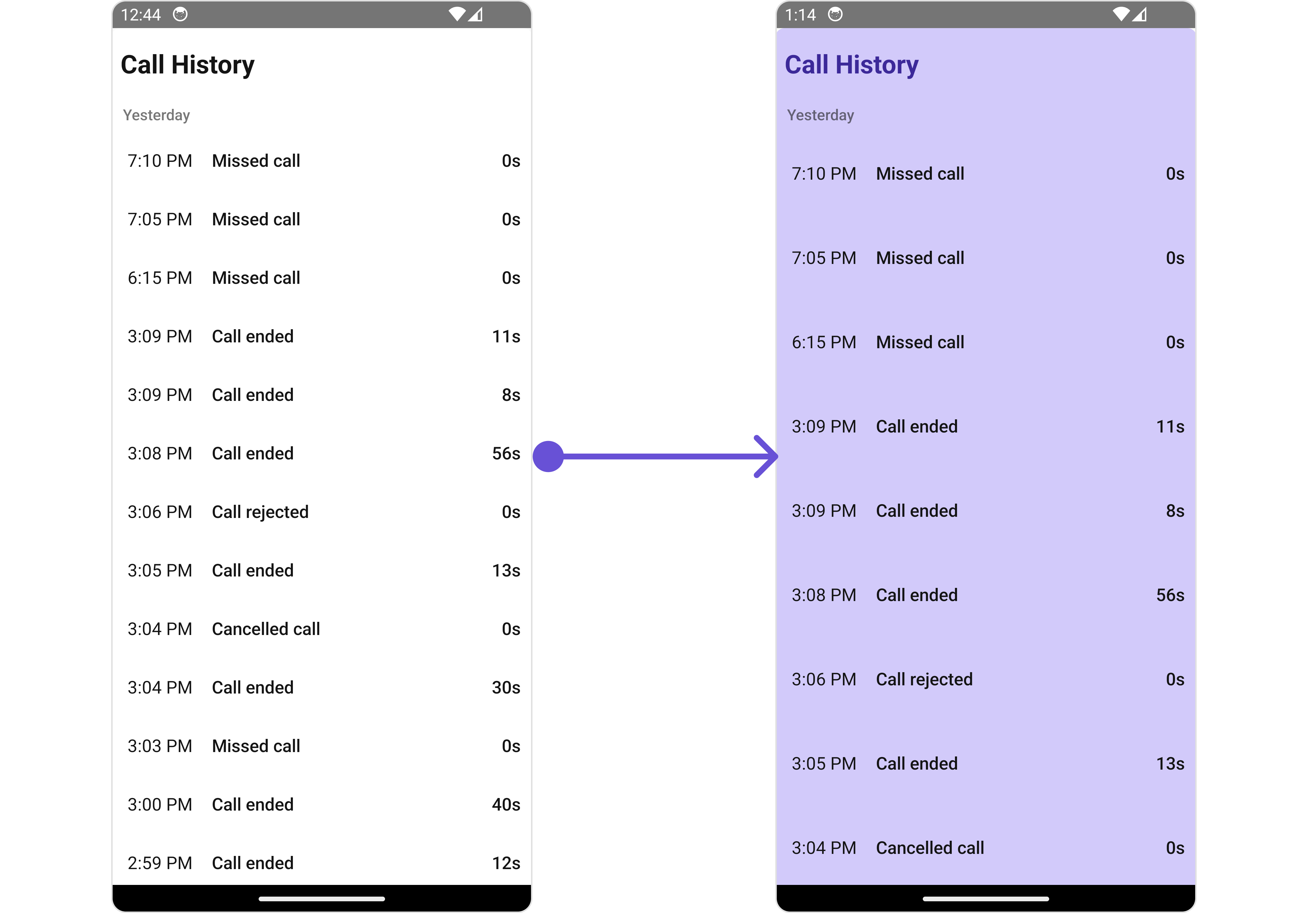

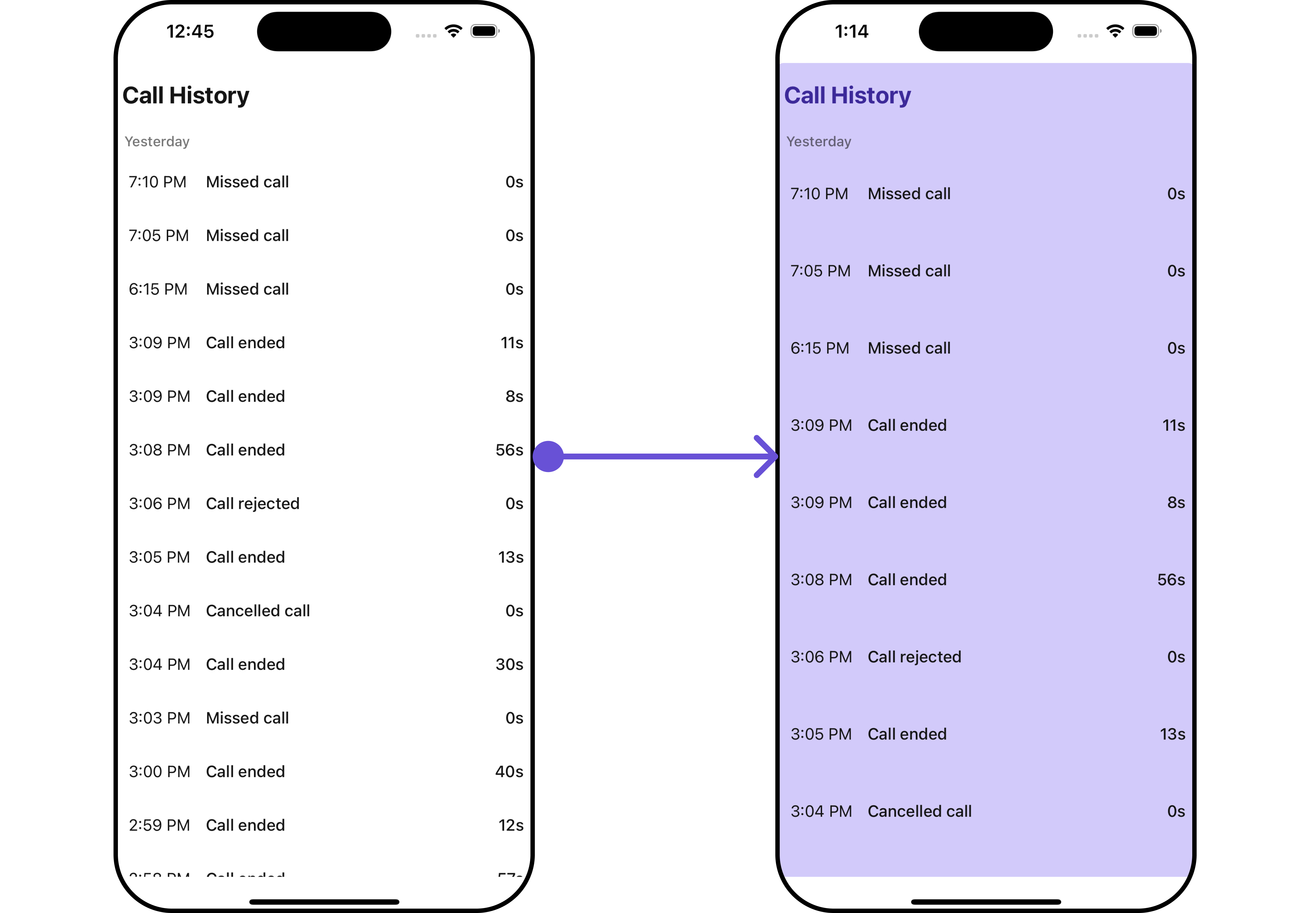

To customize the appearance, you can assign a CallLogHistoryStyle object to the Call Log History component.

iOS

Android

In this example, we are employing the callLogHistoryStyle.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogHistory,
  CallLogHistoryStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const callLogHistoryStyle: CallLogHistoryStyleInterface = {
    titleColor: "#3c2999",
    backgroundColor: "#d2cafa",
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogHistory
          callLogHistoryStyle={callLogHistoryStyle}
          listItemStyle={{ backgroundColor: "#d2cafa" }}
        />
      )}
    </>
  );
}

---

The following properties are exposed by CallLogHistoryStyle:

Property	Description	Code
border	Used to set border	border?: BorderStyleInterface,
borderRadius	Used to set border radius	borderRadius?: number;
backgroundColor	Used to set background colour	background?: string;
height	Used to set height	height?: number | string;
width	Used to set width	width?: number | string;

| titleFont | Used to set title font | titleFont?: FontStyleInterface, | | titleColor | Used to set title color | titleColor?: string; | | loadingTint | Used to set loading icon font | loadingTint?: FontStyleInterface, | | emptyTextColor | Used to set empty state text color | emptyTextColor?: string; | | emptyTextFont | Used to set empty state text font | emptyTextFont?: FontStyleInterface; | | errorTextColor | Used to set error state text color | errorTextColor?: string; | | errorTextFont | Used to set error state text font | errorTextFont?: FontStyleInterface; | | backIconTint | Used to set back icon tint | backIconTint?: string; | | dateTextFont | Used to set date text font | dateTextFont?: FontStyleInterface; | | dateTextColor | Used to set date text color | dateTextColor?: string; | | dateSeparatorTextFont | Used to set date separator text font | dateSeparatorTextFont?: FontStyleInterface; | | dateSeparatorTextColor | Used to set date separator text color | dateSeparatorTextColor?: string; | | callDurationTextFont | Used to set call duration text font | callDurationTextFont?: FontStyleInterface; | | callDurationTextColor | Used to set call duration text color | callDurationTextColor?: string; | | callStatusTextFont | Used to set call status text font | callStatusTextFont?: FontStyleInterface; | | callStatusTextColor | Used to set call status text color | callStatusTextColor?: string; | | separatorColor | Used to set separator color | separatorColor?: string; |

2. ListItem Style

If you want to apply customized styles to the ListItemStyle component within the Call Log History Component, you can use the following code snippet. For more information, you can refer ListItem Styles.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogHistory,
  CallLogHistoryStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const callLogHistoryStyle: CallLogHistoryStyleInterface = {
    titleColor: "#3c2999",
    backgroundColor: "#d2cafa",
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogHistory
          callLogHistoryStyle={callLogHistoryStyle}
          listItemStyle={{ backgroundColor: "#d2cafa" }}
        />
      )}
    </>
  );
}

---

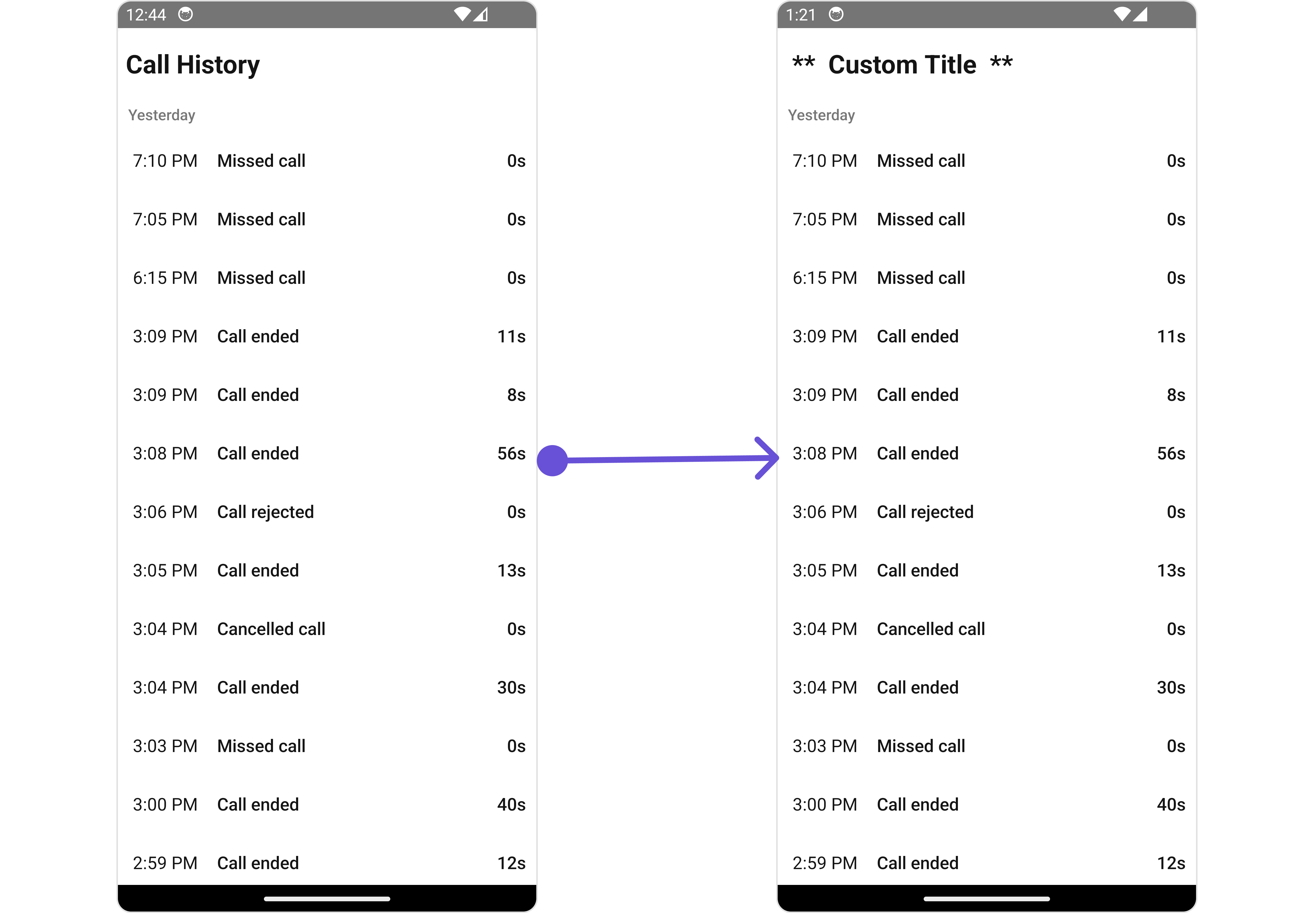

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

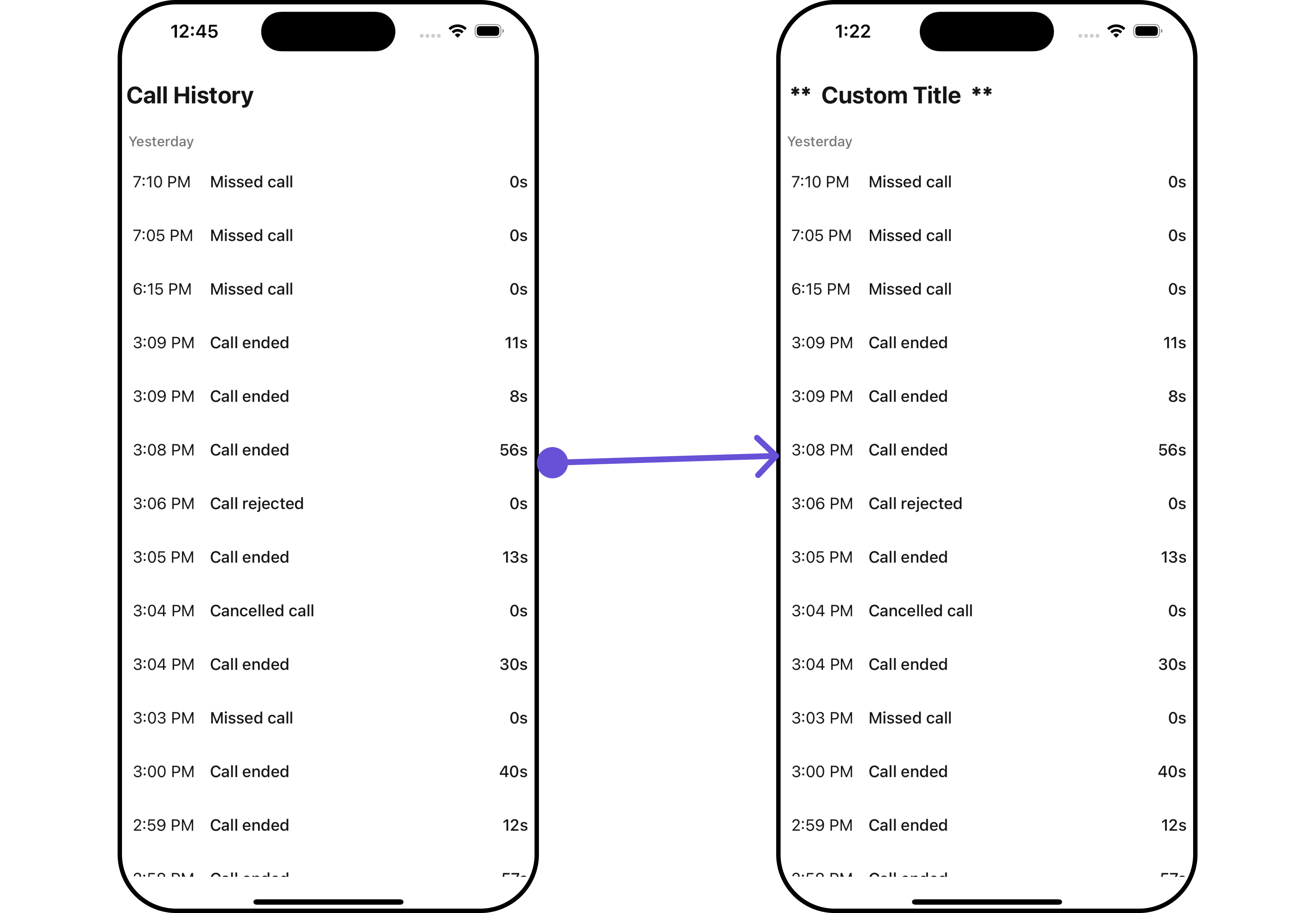

Here is a code snippet demonstrating how you can customize the functionality of the Call Log History component.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogHistory title=" **  Custom Title  **" />
      )}
    </>
  );
}

iOS

Android

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
title report	Used to set custom title	title='Your Custom Title'
emptyStateText report	Used to set custom empty state text	emptyStateText='Your Custom Empty State Text'
errorStateText report	Used to set custom error state text	errorStateText='Your Custom Error State Text'
datePattern	Used to set custom date pattern	datePattern?: DatePattern
dateSeparatorPattern	Used to set custom date separator pattern	dateSeparatorPattern?: DatePattern
showBackButton	Used to control the visibility of the back button	showBackButton?: boolean
BackButton	Used to set custom back icon	BackButton?: JSX.Element;
hideError	Used to hide errors	hideError?: boolean
loadingIcon	Used to set custom loading icon	loadingIcon?: ImageType;
user	Used to set group object	user?: CometChat.User
group	Used to set group object	group?: CometChat.Group

---

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

---

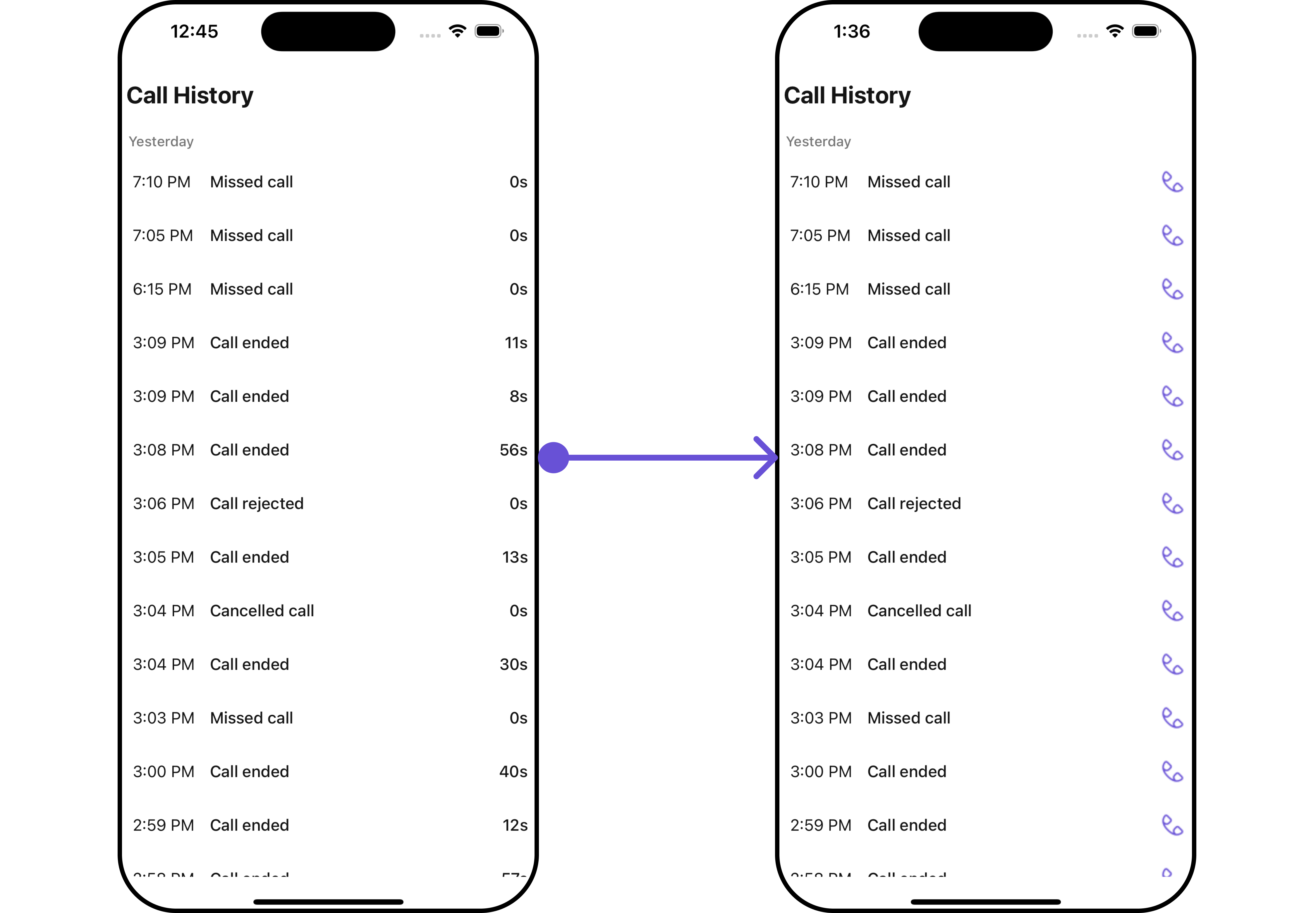

TailView

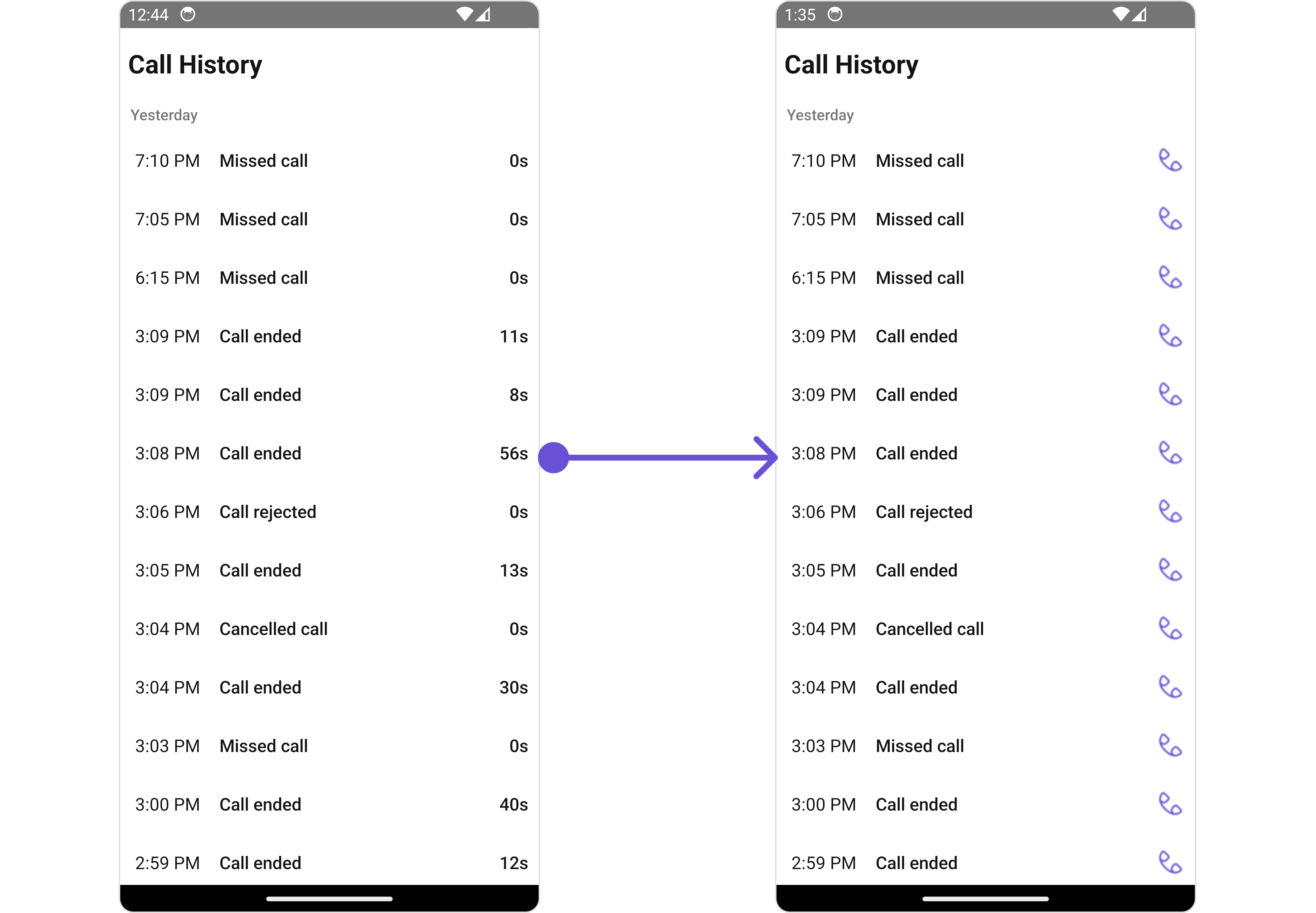

You can customize the tail view for each call log history item to meet your requirements

iOS

Android

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const getCustomTailView = (param: any) => {
    return <Image style={{ tintColor: "#6851D6" }} source={Call}></Image>;
  };

  return (
    <>
      {loggedInUser && <CometChatCallLogHistory TailView={getCustomTailView} />}
    </>
  );
}

---

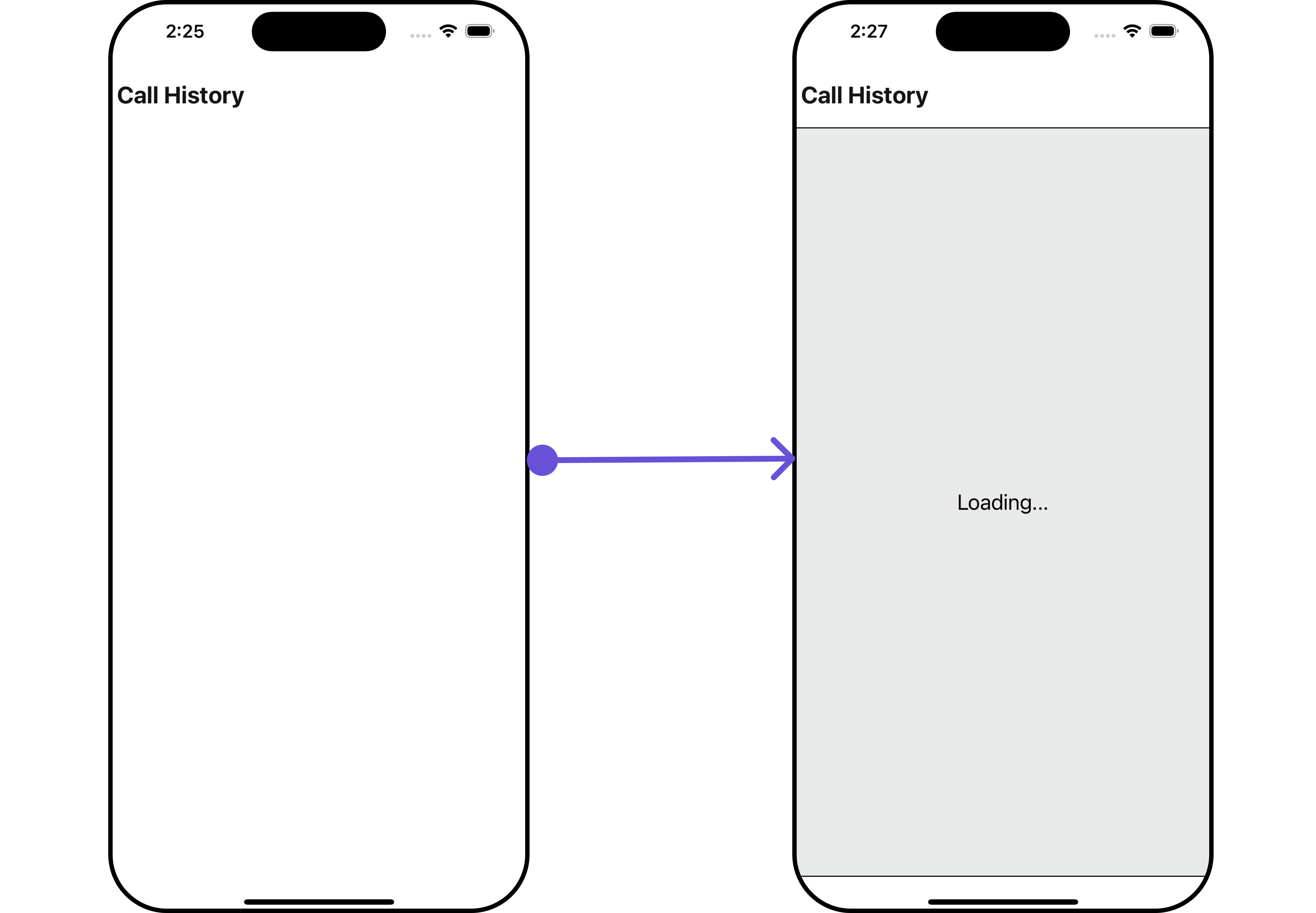

LoadingStateView

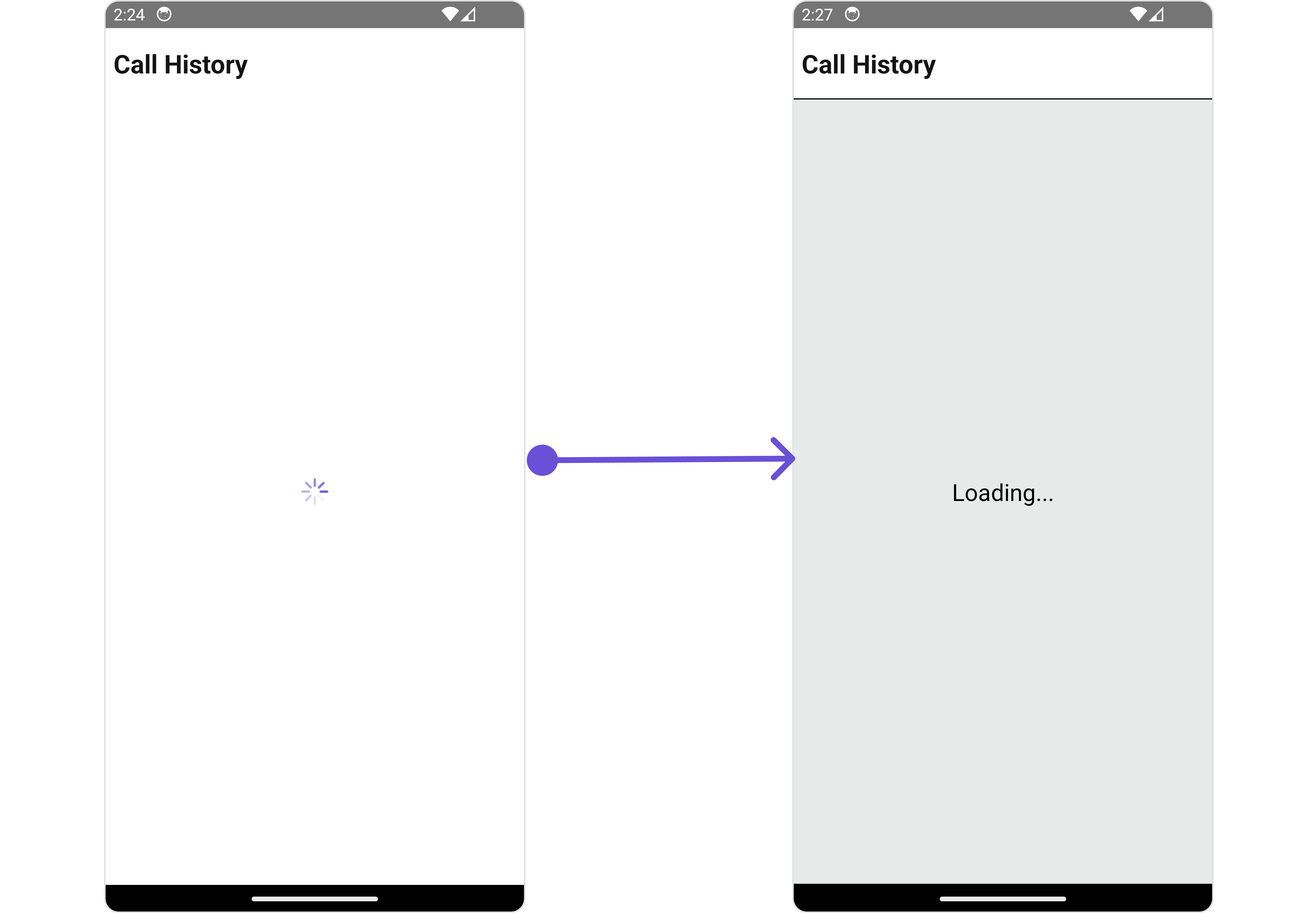

You can set a custom loader view using loadingStateView to match the loading view of your app.

iOS

Android

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const loadingViewStyle: StyleProp<ViewStyle> = {
    flex: 1,
    alignItems: "center",
    justifyContent: "center",
    padding: 10,
    borderColor: "black",
    borderWidth: 1,
    backgroundColor: "#E8EAE9",
  };

  const getLoadingStateView = () => {
    return (
      <View style={loadingViewStyle}>
        <Text style={{ fontSize: 20, color: "black" }}>Loading...</Text>
      </View>
    );
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogHistory LoadingStateView={getLoadingStateView} />
      )}
    </>
  );
}

---

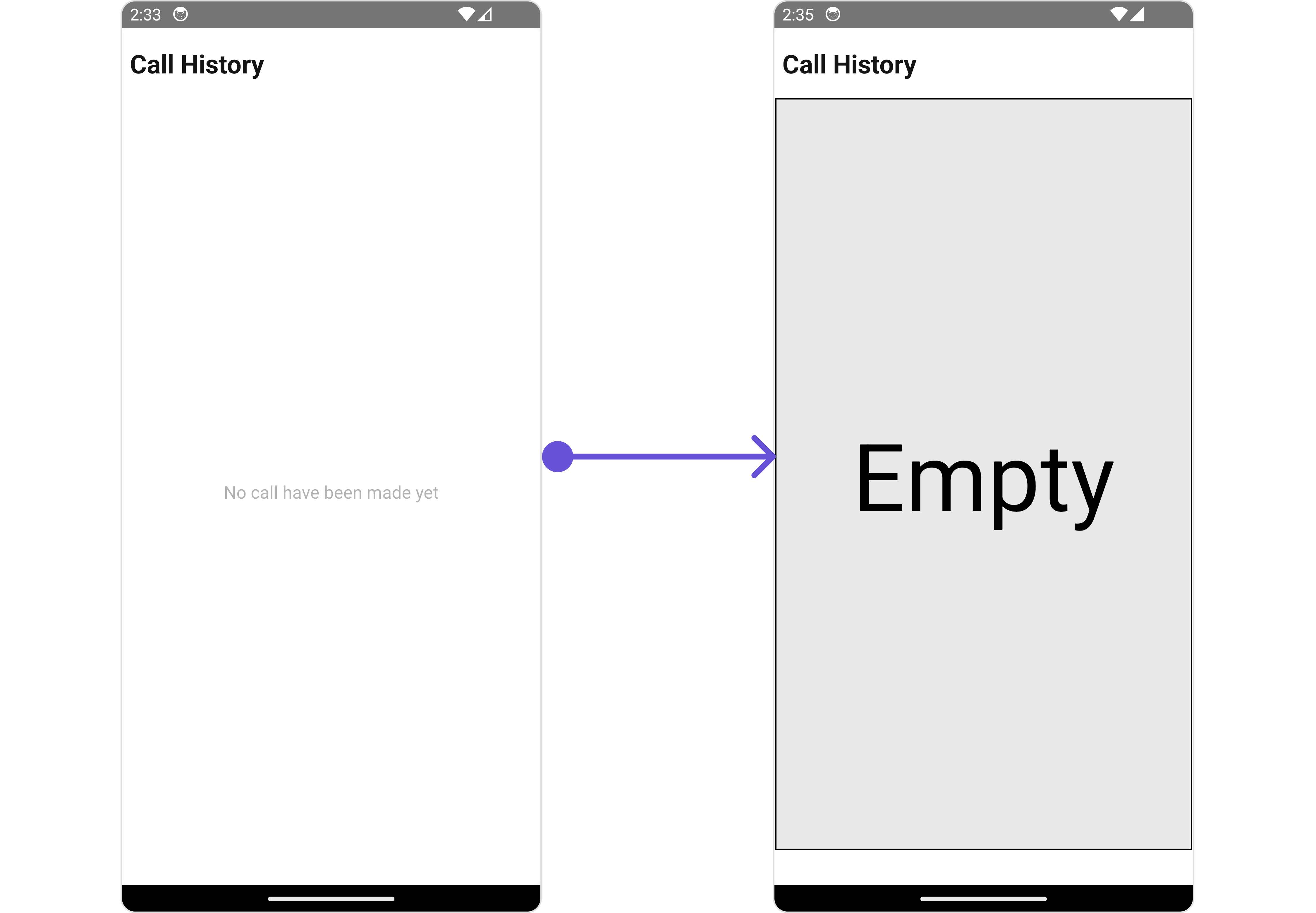

EmptyStateView

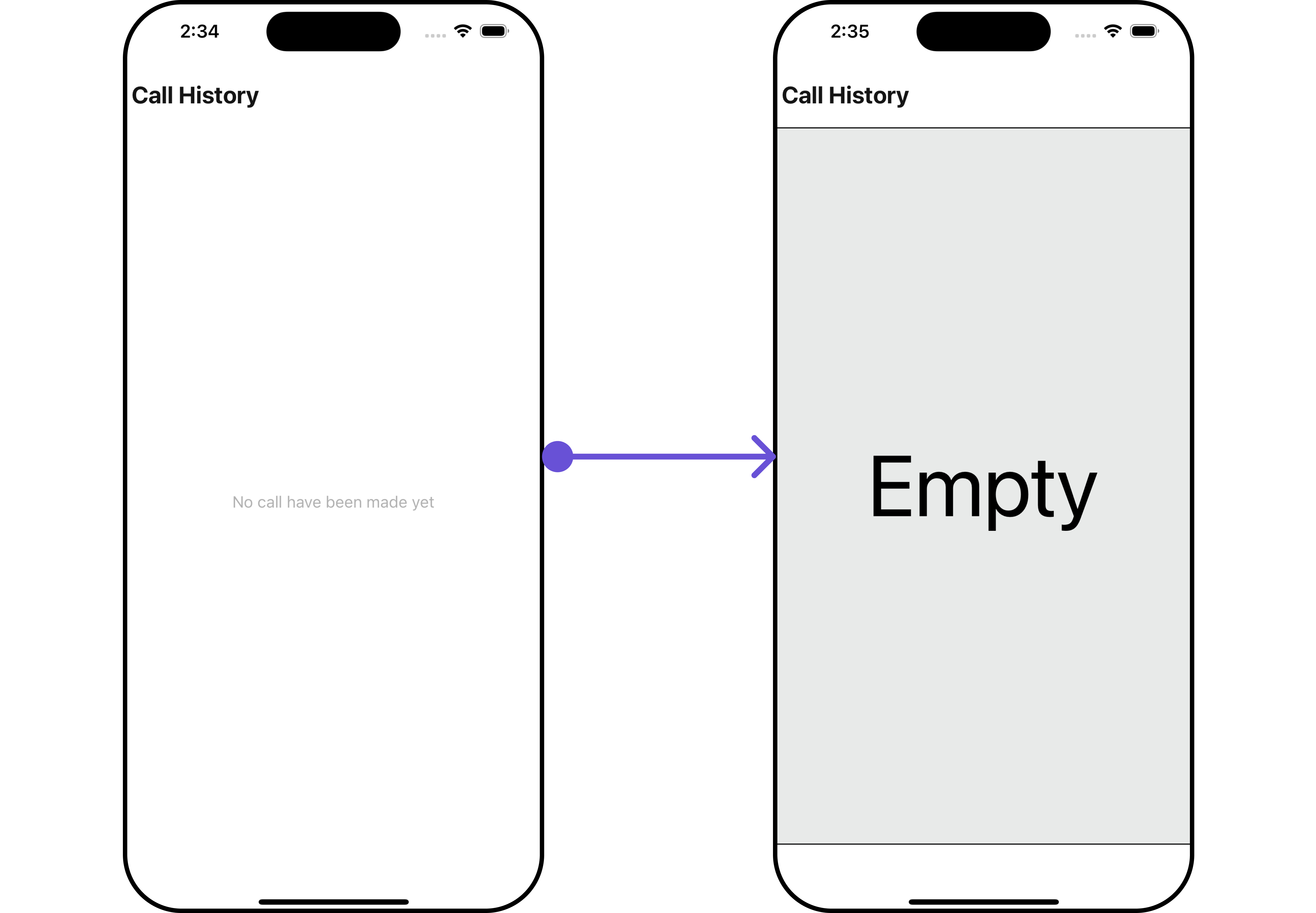

You can set a custom EmptyStateView using EmptyStateView to match the empty view of your app.

iOS

Android

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const emptyViewStyle: StyleProp<ViewStyle> = {
    flex: 1,
    alignItems: "center",
    justifyContent: "center",
    padding: 10,
    borderColor: "black",
    borderWidth: 1,
    backgroundColor: "#E8EAE9",
    marginLeft: 2,
    marginRight: 2,
    marginBottom: 30,
  };

  const getEmptyStateView = () => {
    //alice-uid
    return (
      <View style={emptyViewStyle}>
        <Text style={{ fontSize: 80, color: "black" }}>Empty</Text>
      </View>
    );
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogHistory EmptyStateView={getEmptyStateView} />
      )}
    </>
  );
}

---
