Group Details

Overview

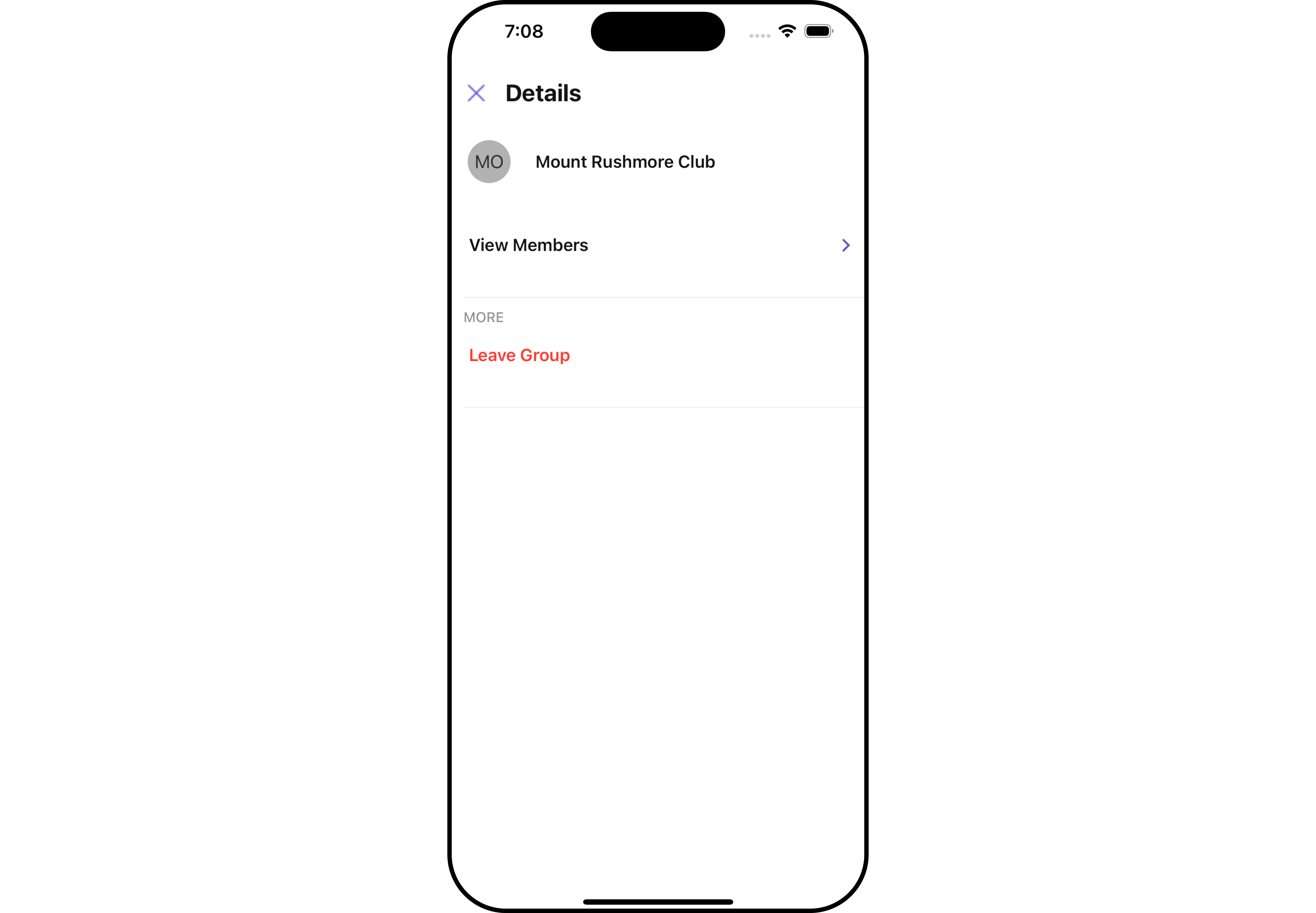

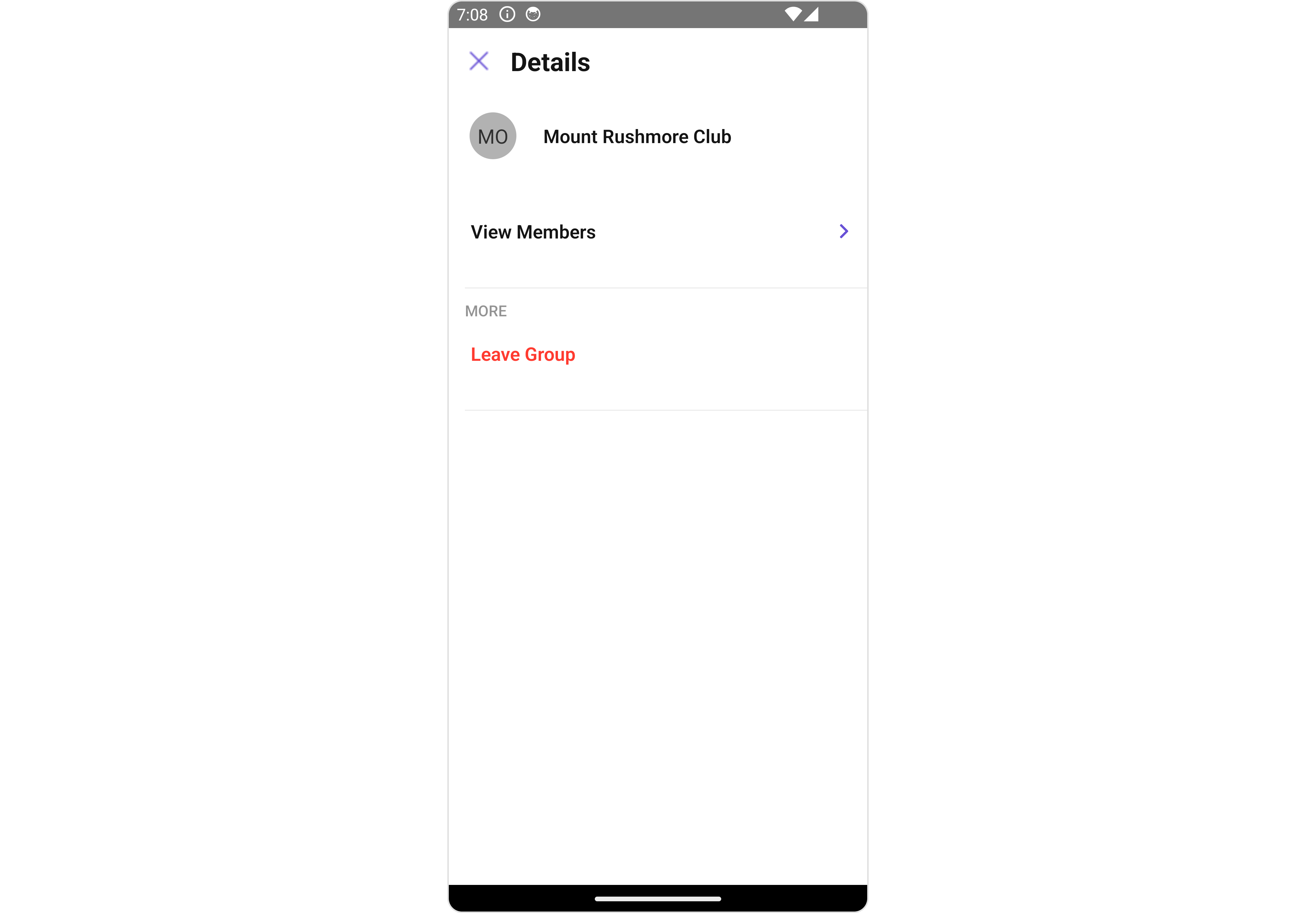

CometChatDetails is a Component that provides additional information and settings related to a specific group.

The details screen includes the following elements and functionalities:

  1. Group Information: It displays details about the user. This includes his/her profile picture, name, status, and other relevant information.
  2. Group Chat Features: It provides additional functionalities for managing the group. This includes options to add or remove participants, assign roles or permissions, and view group-related information.
  3. Group Actions: This offers actions related to the group, such as leaving the group, or deleting the group.

Usage

Integration

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatDetails } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

useEffect(() => {
//login
getGroup();
});

return <>{group && <CometChatDetails group={group}></CometChatDetails>}</>;
}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onBack

The onBack event is typically triggered when the back button is clicked and it does not carry a default action.

With the following code snippet, you can effortlessly override this default operation.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatDetails } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

useEffect(() => {
//login
getGroup();
});

const onBackHandler = () => {
//code
};

return (
<>
{group && (
<CometChatDetails
group={group}
onBack={onBackHandler}
></CometChatDetails>
)}
</>
);
}
2. onError

This action doesn't change the behavior of the component but rather listens for any errors that occur in the Details component.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatDetails } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

useEffect(() => {
//login
getGroup();
});

const onErrorHandler = (error: CometChat.CometChatException) => {
//code
};

return (
<>
{group && (
<CometChatDetails
group={group}
onError={onErrorHandler}
></CometChatDetails>
)}
</>
);
}

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

CometChatDetails component does not have available filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The list of Group Related Events emitted by the Details component is as follows:

EventDescription
ccGroupLeftThis event is triggered when the group member leaves the group successfully
ccGroupDeletedThis event is triggered when the group member deletes the group successfully
import { CometChatUIEventHandler } from "@cometchat/chat-uikit-react-native";

CometChatUIEventHandler.addGroupListener("GROUP_LISTENER_ID", {
ccGroupLeft: ({ leftGroup }) => {
//code
},
});

CometChatUIEventHandler.addGroupListener("GROUP_LISTENER_ID", {
ccGroupDeleted: ({ group }) => {
//code
},
});

import { CometChatUIEventHandler } from "@cometchat/chat-uikit-react-native";

CometChatUIEventHandler.removeGroupListener("GROUP_LISTENER_ID");

Customization

To fit your app's design requirements, you can customize the appearance of the details component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. Details Style

You can set the DetailsStyle to the User Details Component to customize the styling.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatMessageList,
DetailsStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] =
(useState < CometChat.Group) | (undefined > undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const detailsStyle: DetailsStyleInterface = {
width: "100",
height: "1000",
backgroundColor: "#ddd7f7",
titleColor: "red",
closeIconTint: "red",
};

return (
<>
{group && <CometChatDetails group={group} detailsStyle={detailsStyle} />}
</>
);
}

List of properties exposed by DetailsStyle

PropertyDescriptionCode
heightUsed to set heightheight?: string;
widthUsed to set widthwidth?: string;
backgroundColorUsed to set background colourbackgroundColor?: string;
borderUsed to set borderborder?: BorderStyleInterface,
borderRadiusUsed to set border radiusborderRadius?: string;
titleFontUsed to customise the font of the title in the app bartitleFont?: FontStyleInterface;
titleColorUsed to customise the color of the title in the app bartitleColor?: string;
backIconTintSets the color of the back icon of the componentbackIconTint?: string;
closeIconTintSets the color of the close icon of the componentcloseIconTint?: string;
onlineStatusColorSets the color of the status indicator representing the user's online statusonlineStatusColor?: string;
2. StatusIndicator Style

To apply customized styles to the StatusIndicator component in the Details Component, you can use the following code snippet. For further insights on StatusIndicator Styles refer

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatMessageList,
StatusIndicatorStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] =
(useState < CometChat.Group) | (undefined > undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const statusIndicatorStyle: StatusIndicatorStyleInterface = {
backgroundColor: "grey",
};

return (
<>
{group && (
<CometChatDetails
group={group}
statusIndicatorStyle={statusIndicatorStyle}
/>
)}
</>
);
}
3. ListItem Style

To apply customized styles to the List Item component in the Details Component, you can use the following code snippet. For further insights on List Item Styles refer

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatMessageList,
ListItemStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] =
(useState < CometChat.Group) | (undefined > undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const listItemStyle: ListItemStyleInterface = {
backgroundColor: "#ddd7f7",
};

return (
<>
{group && (
<CometChatDetails group={group} listItemStyle={listItemStyle} />
)}
</>
);
}
4. Avatar Style

To apply customized styles to the Avatar component in the Conversations Component, you can use the following code snippet. For further insights on Avatar Styles refer

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatMessageList,
BorderStyleInterface,
AvatarStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] =
(useState < CometChat.Group) | (undefined > undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const borderStyle: BorderStyleInterface = {
borderWidth: 1,
borderStyle: "solid",
borderColor: "red",
};

const avatarStyle: AvatarStyleInterface = {
border: borderStyle,
};

return (
<>{group && <CometChatDetails group={group} avatarStyle={avatarStyle} />}</>
);
}

Functionality

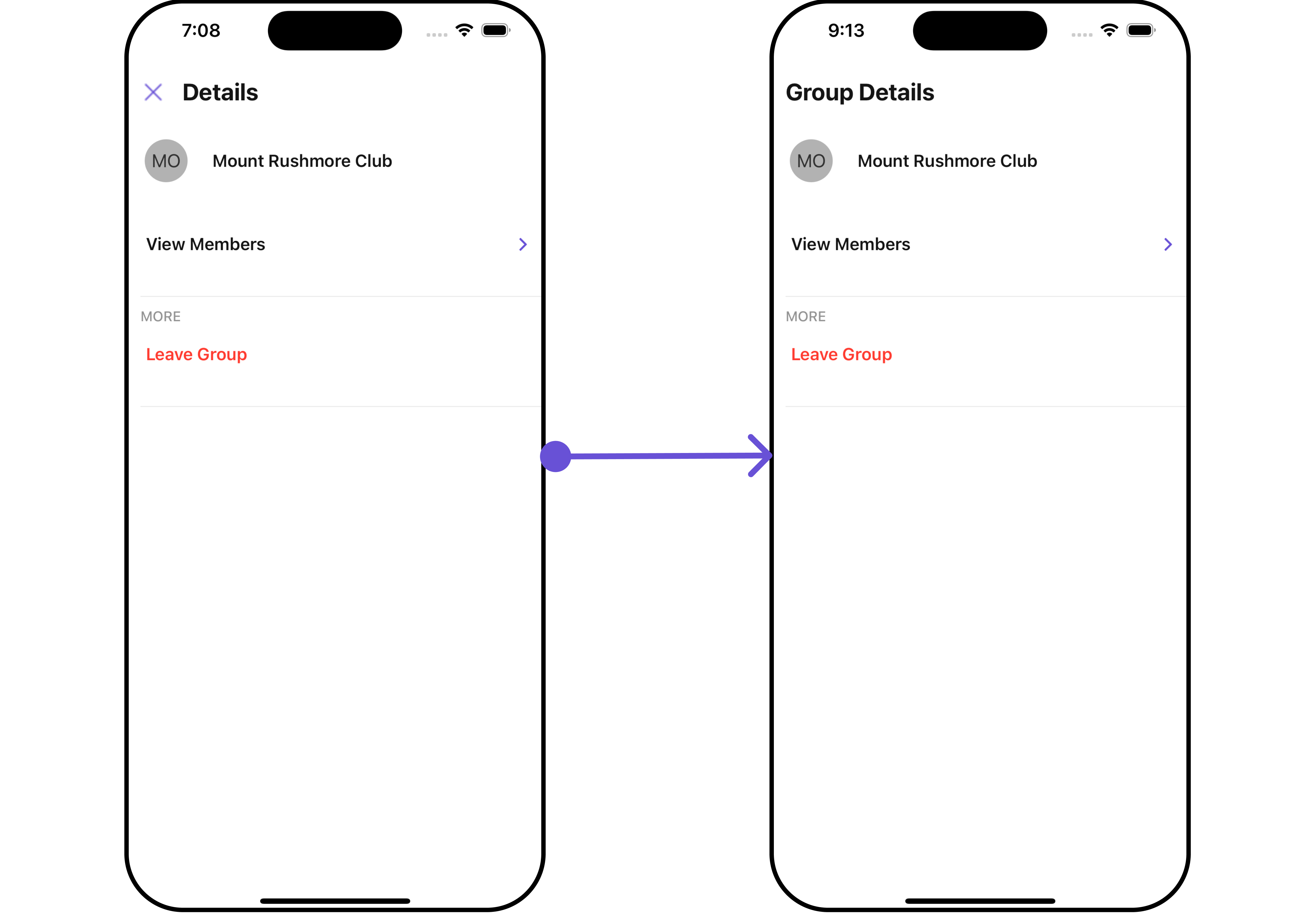

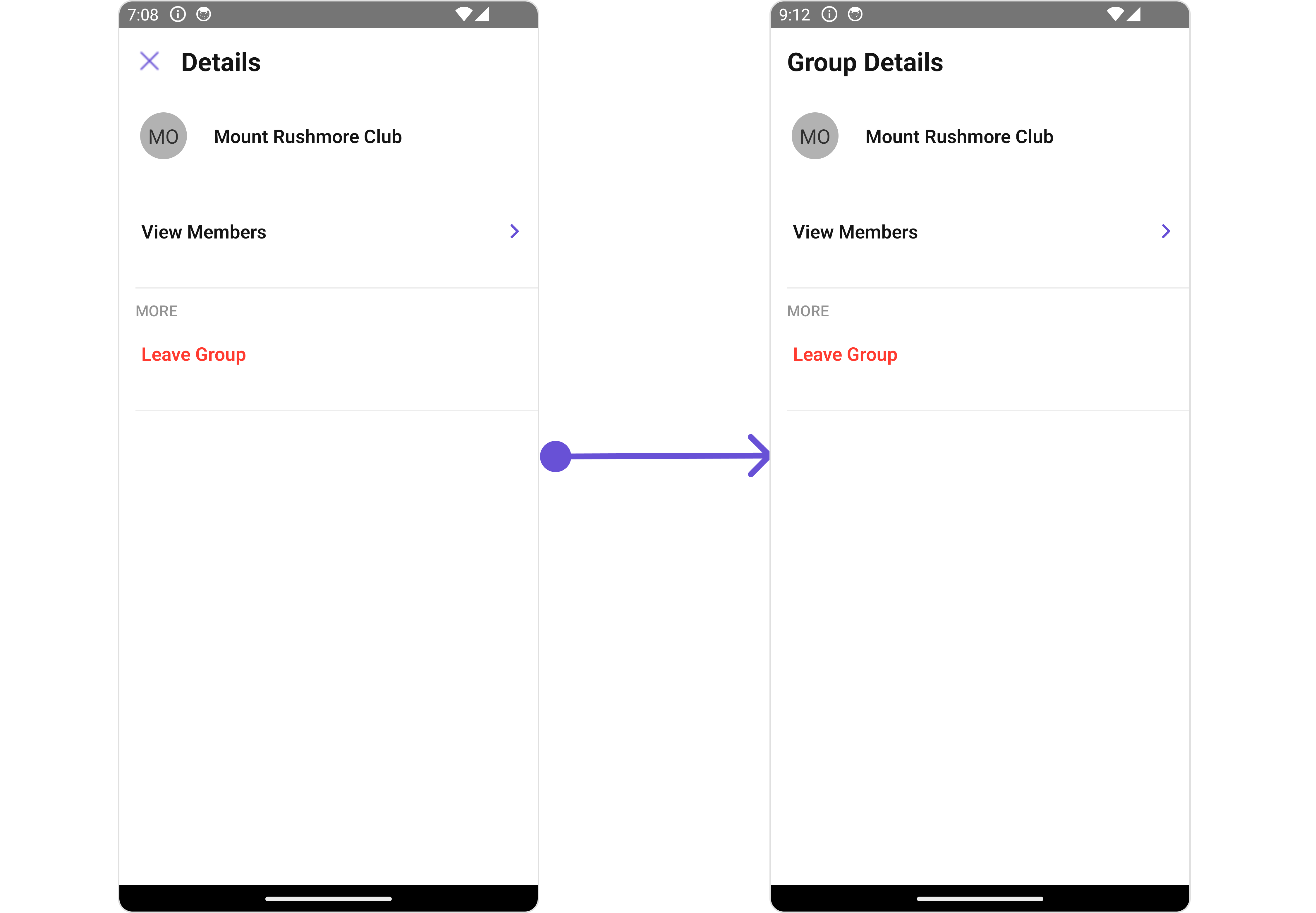

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatUsers,
CometChatListStylesInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

return (
<>
{group && (
<CometChatDetails
group={group}
title="Group Details"
showCloseButton={false}
/>
)}
</>
);
}

Below is a list of customizations along with corresponding code snippets

PropertyDescriptionCode
groupUsed to set the group report user: CometChat.User;
titleUsed to set title in the app bartitle?: string;
showCloseButtonUsed to toggle visibility for back buttonshowCloseButton?: boolean
closeButtonIconUsed to override the default close/back iconcloseButtonIcon?: ImageURISource
hideProfileUsed to hide user profile viewhideProfile?: boolean;
disableUsersPresenceUsed to control visibility of user indicator shown if user is onlinedisableUsersPresence?: boolean
searchBoxIconUsed to set search Icon in the search fieldsearchBoxIcon?: ImageURISource
hideSearchUsed to toggle visibility for search boxhideSearch?: boolean
hideErrorUsed to hide error on fetching usershideError?: boolean
hideSeparatorUsed to hide the divider separating the user itemshideSeparator?: boolean
emptyStateTextUsed to set a custom text response when fetching the users has returned an empty listemptyStateText?: string
errorStateTextUsed to set a custom text response when some error occurs on fetching the list of userserrorStateText?: string
dataUsed to pass custom details templatedata?: ({user, group,}: {user?: CometChat.User;group?: CometChat.Group;}) => CometChatDetailsTemplate[];
leaveGroupButtonText report Used to set custom leave group button textleaveGroupButtonText='Your Custom Leave Button Text'
leaveGroupCancelButtonText report Used to set cancel leave group button textleaveGroupCancelButtonText='Your Custom Cancel Button Text'
deleteGroupButtonText report Used to set delete group button textdeleteGroupButtonText='Your Custom delete Button Text'
deleteGroupCancelButtonText report Used to set cancel delete group button textdeleteGroupCancelButtonText='Your Custom transfer Button Text'
leaveGroupConfirmDialogMessage report Custom message for leave confirm dialogleaveGroupConfirmDialogMessage?: string
deleteGroupConfirmDialogMessage report Custom message for delete confirm dialogdeleteGroupConfirmDialogMessage?: string

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.


SubtitleView

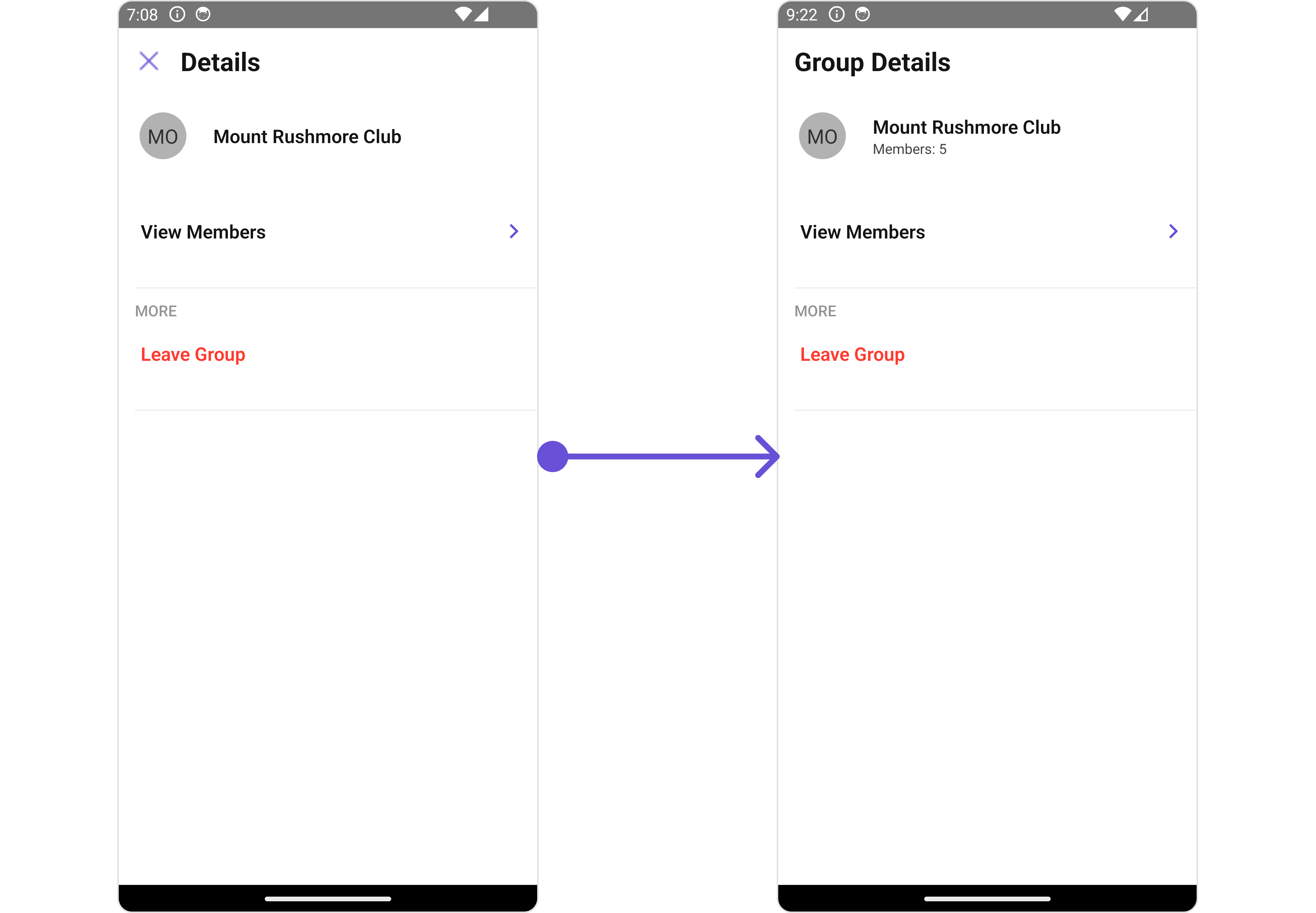

Using this prop, you can assign a custom SubtitleView to the Details Component.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatUsers,
CometChatListStylesInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const getGroupSubtitleView = ({
user,
group,
}: {
user?: CometChat.User | undefined;
group?: CometChat.Group | undefined;
}) => {
return (
<Text
style={{
fontSize: 12,
color: theme.palette.getAccent800(),
}}
>
Members: {group ? group?.getMembersCount() : "--"}
</Text>
);
};

return (
<>
{group && (
<CometChatDetails
group={group}
title="Group Details"
showCloseButton={false}
SubtitleView={getGroupSubtitleView}
/>
)}
</>
);
}

CustomProfileView

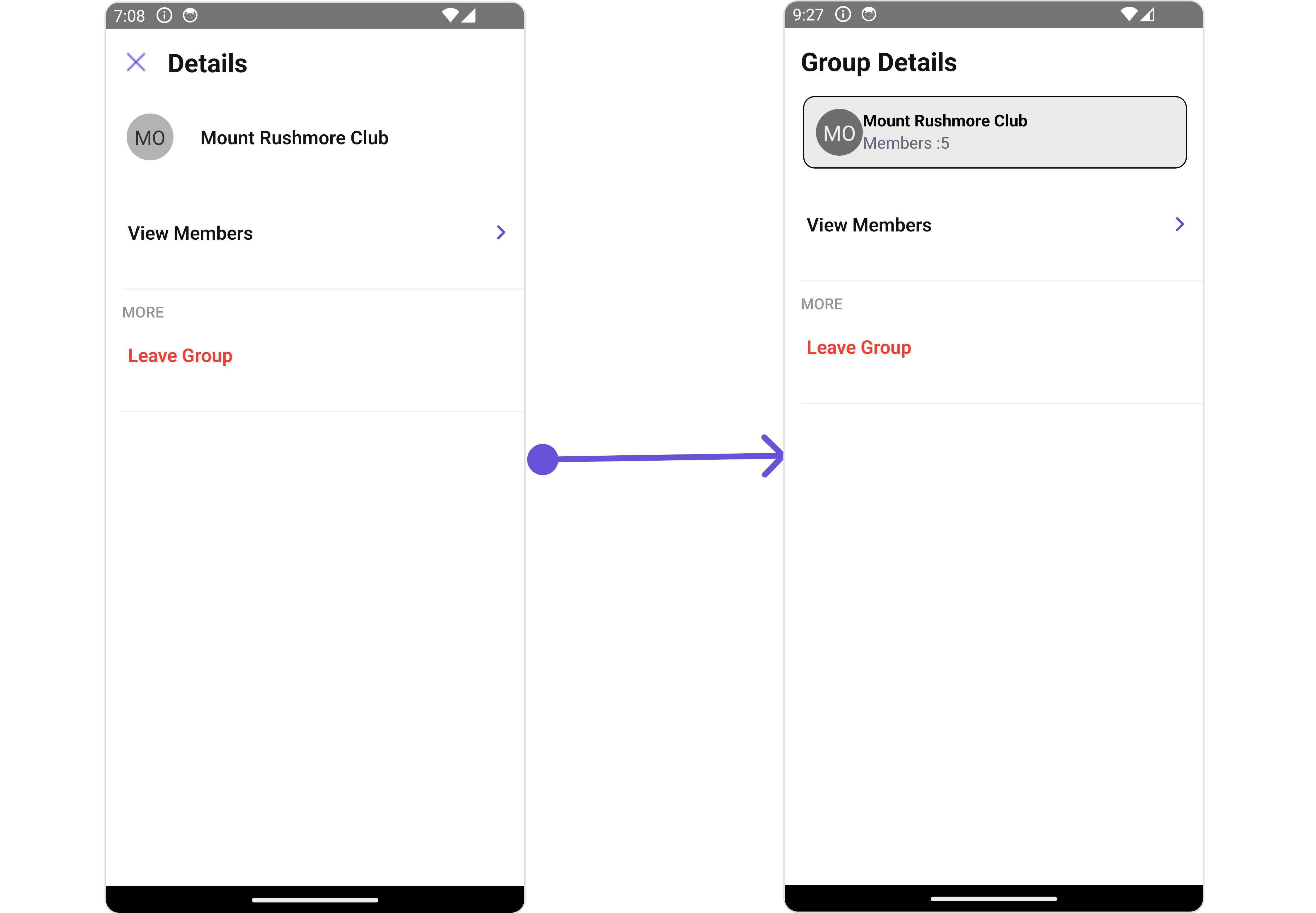

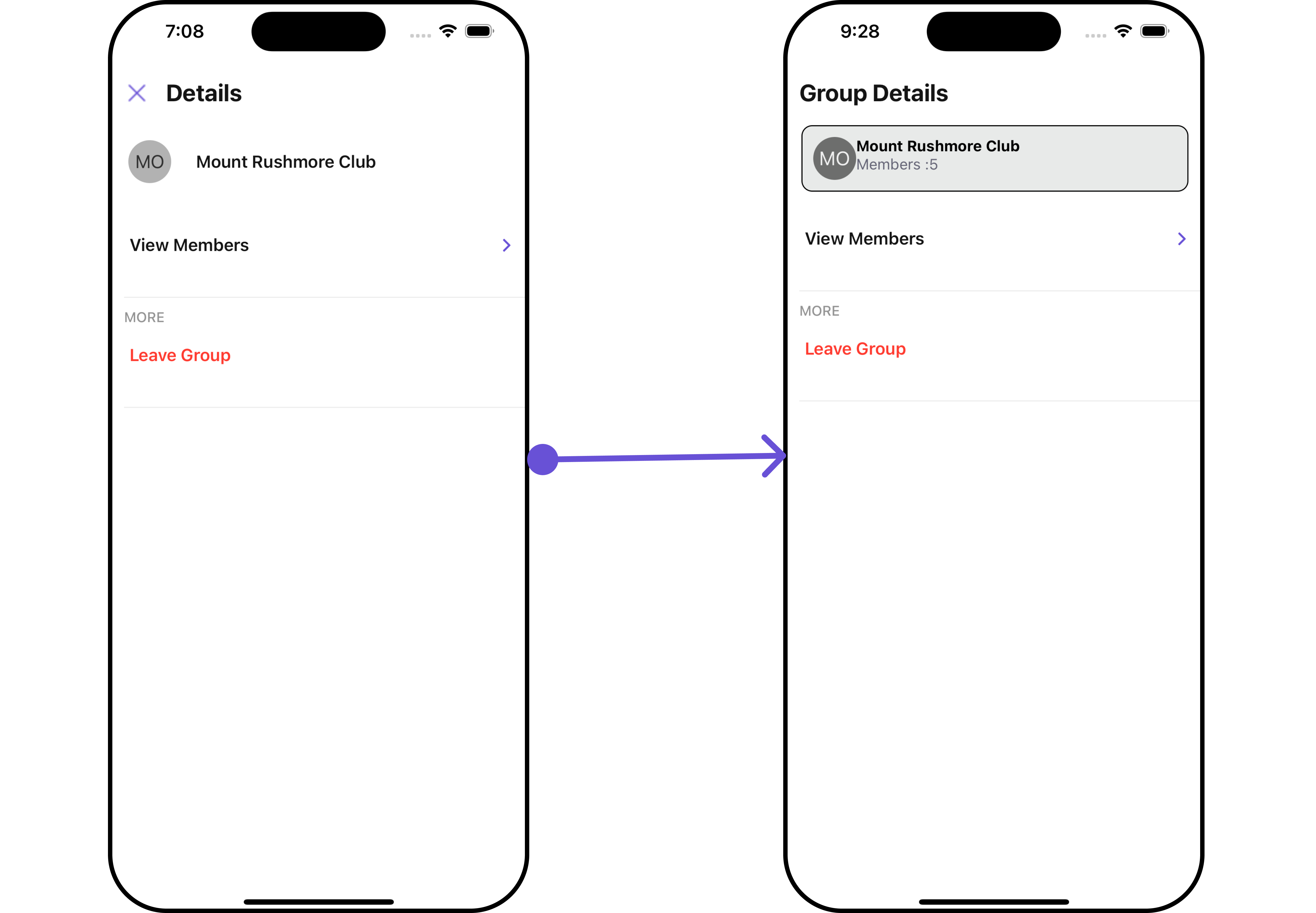

Using this prop, you can assign a Custom ProfileView to the Details Component.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatUsers,
CometChatListStylesInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const customProfileViewStyle: StyleProp<ViewStyle> = {
flexDirection: "row",
alignItems: "flex-start",
padding: 10,
marginRight: 15,
borderColor: "black",
borderWidth: 1,
backgroundColor: "#E8EAE9",
borderRadius: 10,
margin: 2,
};

const getCustomGroupProfileView = ({
user,
group,
}: {
user?: CometChat.User;
group?: CometChat.Group;
}) => {
return (
<View style={customProfileViewStyle}>
<CometChatAvatar
image={group?.getIcon() ? { uri: group.getIcon() } : undefined}
name={group?.getName()}
/>

<View>
<Text style={{ color: "black", fontWeight: "bold" }}>
{group?.getName()}
</Text>
<Text style={{ color: "#667" }}>
{"Members :" + group?.getMembersCount()}
</Text>
</View>
</View>
);
};

return (
<>
{group && (
<CometChatDetails
group={group}
title="Group Details"
showCloseButton={false}
CustomProfileView={getCustomGroupProfileView}
/>
)}
</>
);
}

DetailsTemplate

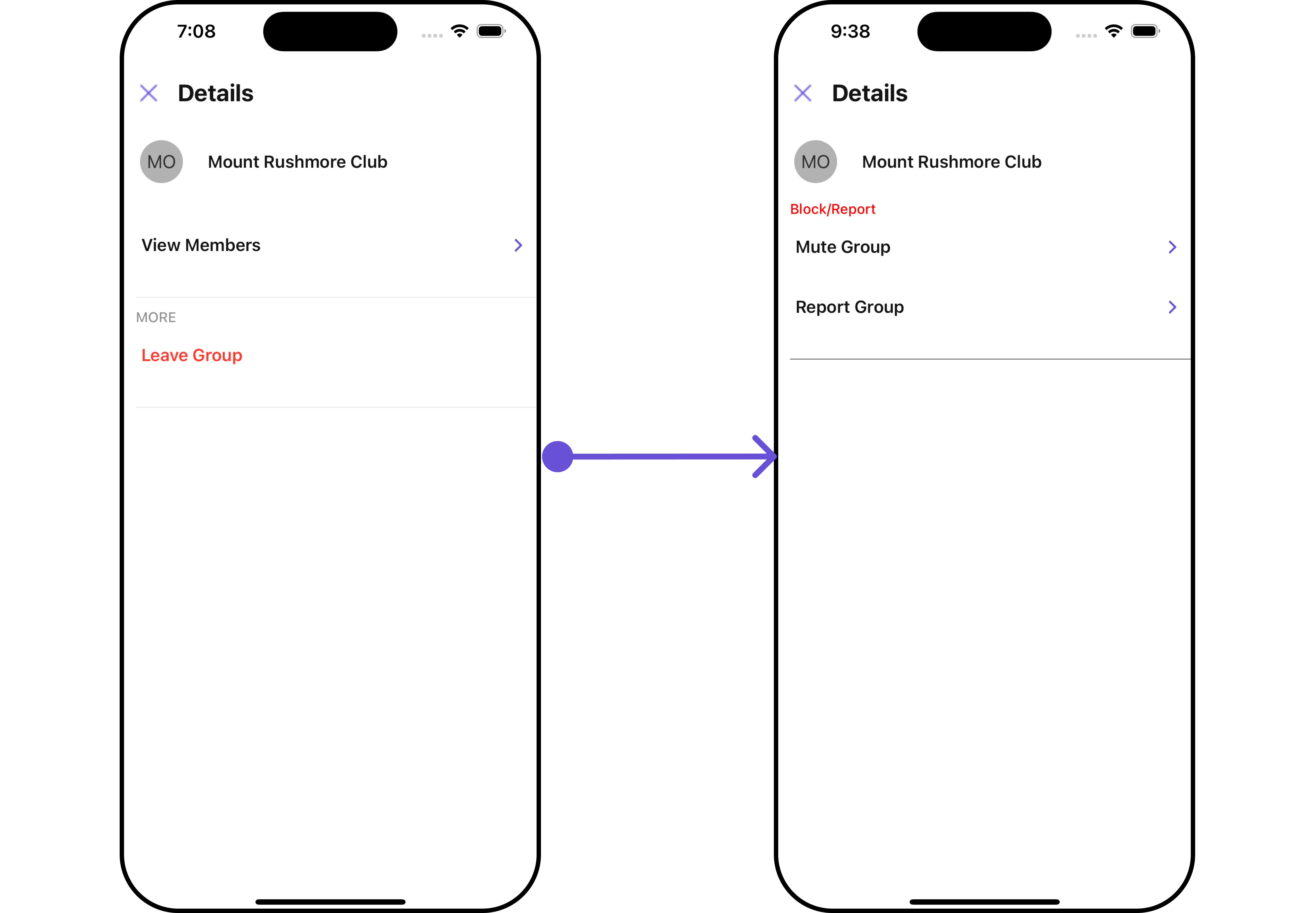

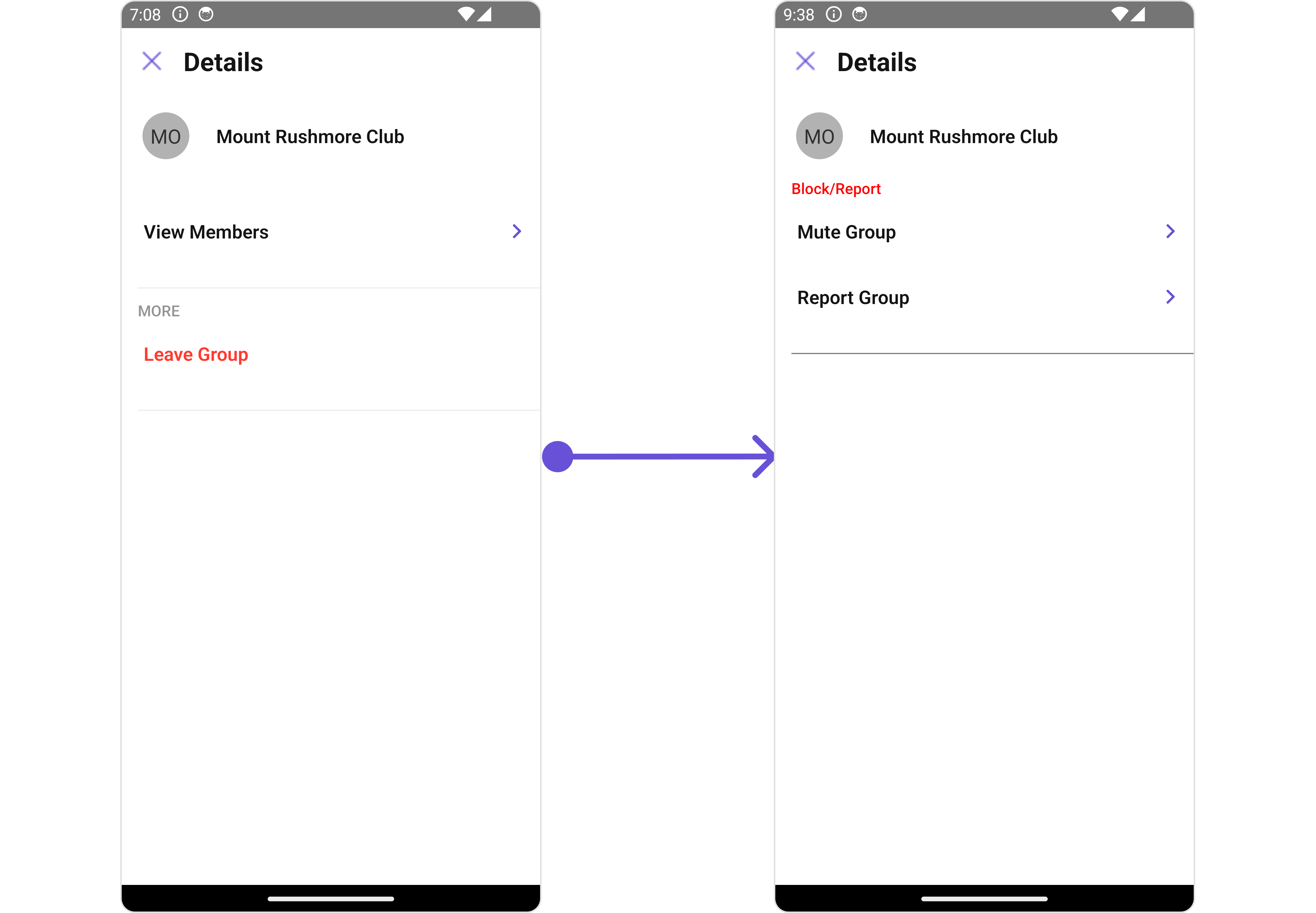

The CometChatDetailsTemplate offers a structure for organizing information in the CometChat details component. It serves as a blueprint, defining how user-related details are presented. This structure allows for customization and organization within the CometChat interface.

This defines the structure of template data for the details component.

NameTypeDescription
idstring | numberIdentifier for the template option
titlestringHeading text for the template option
titleColorstringUser-defined UI component to customise the trailing view for each option in a template.
titleFontFontStyleInterfaceUser-defined UI component to override the default view for the option.
titleStyleTextStyleFunction invoked when user clicks on the option.
sectionSeparatorColorstringSets all the different properties of font for the title text
itemSeparatorColorstringSets the foreground colour of title text
hideSectionSeparatorbooleanImage url for the icon to symbolise an option
hideItemSeparatorbooleanColor applied to the icon of the option
optionsCometChatDetailsOption[]Sets the CometChatDetailsOptions

DetailsOption

The DetailsOption defines the structure for individual options within the CometChat details component, facilitating customization and functionality for user interactions.

This defines the structure of each option for a template in the details component.

PropertyTypeDescription
idstring | numberIdentifier for the template
titlestringHeading text for the template
titleStyleTextStyleSets the title style
iconImageTypeSets all the different properties of font for the title text
iconTintstringSets the icon tint`
backgroundColorstringSets the background color
CustomView() => JSX.ElementSets custom view for the option
Tail() => JSX.ElementSets the tail view for the option
heightnumberSets the height
onClick({ user, group }: { user?: any; group?: any }) => void;Sets the onClick Handler for the option

Below is an example of using Custom Details templates:

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatUsers,
CometChatListStylesInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const getTemplate = ({
user,
group,
}: {
user?: CometChat.User;
group?: CometChat.Group;
}): CometChatDetailsTemplate[] => {
const blockOption: CometChatDetailsOption = {
id: "mute",
title: "Mute Group",
onClick: ({
user,
group,
}: {
user?: CometChat.User;
group?: CometChat.group;
}) => {
//code
},
};

const reportOption: CometChatDetailsOption = {
id: "report",
title: "Report Group",
onClick: ({
user,
group,
}: {
user?: CometChat.User;
group?: CometChat.group;
}) => {
//code
},
};

const detailsTemplate: CometChatDetailsTemplate = {
id: "Block",
title: "Block/Report",
titleColor: "red",
sectionSeparatorColor: "grey",
itemSeparatorColor: "#6851D6",
hideItemSeparator: false,
options: [blockOption, reportOption],
};

return [detailsTemplate];
};

return <>{group && <CometChatDetails group={group} data={getTemplate} />}</>;
}

Configurations

Configurations offer the ability to customize the properties of each component within a Composite Component.

CometChatDetails has Add Members, Banned Members, Transfer Ownership and Group Members component. Hence, each of these components will have its individual `Configuration``.

  • Configurations expose properties that are available in its individual components.

Group Members

You can customize the properties of the Group Members component by making use of the groupMembersConfiguration. You can accomplish this by employing the groupMembersConfiguration props as demonstrated below:

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatDetails,
GroupMemberConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const groupMembersConfiguration: GroupMemberConfigurationInterface = {
//override
};

return (
<>
{group && (
<CometChatDetails
group={group}
groupMembersConfiguration={groupMembersConfiguration}
/>
)}
</>
);
}

All exposed properties of GroupMembersConfiguration can be found under Group Members. Properties marked with the report symbol are not accessible within the Configuration Object.

Example

Let's say you want to change the style of the Group Member subcomponent and, in addition, you only want to hide separator and left allign the title.

You can change the title using title property and hide the separator using hideSeperator property.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatDetails,
GroupMemberConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const groupMembersConfiguration: GroupMemberConfigurationInterface = {
title: "List Of Members",
hideSeperator: true,
};

return (
<>
{group && (
<CometChatDetails
group={group}
groupMembersConfiguration={groupMembersConfiguration}
/>
)}
</>
);
}

Add Members

You can customize the properties of the Add Members component by making use of the AddMembersConfiguration. You can accomplish this by employing the addMembersConfiguration props as demonstrated below:

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatDetails,
AddMembersConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const addMembersConfiguration: AddMembersConfigurationInterface = {
//overide
};

return (
<>
{group && (
<CometChatDetails
group={group}
addMembersConfiguration={addMembersConfiguration}
/>
)}
</>
);
}

All exposed properties of AddMembersConfiguration can be found under Add Members. Properties marked with the report symbol are not accessible within the Configuration Object.

Example

Let's say you want to change the style of the Add Members subcomponent and, in addition, you only want to show section header.

You can modify the style using the addMembersStyle property and shide the separator using hideSeparator property.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatDetails,
AddMembersConfigurationInterface,
CometChatListStylesInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const addMembersStyle: CometChatListStylesInterface = {
titleColor: "red",
};

const addMembersConfiguration: AddMembersConfigurationInterface = {
title: "Custom Title",
hideSeparator: true,
addMembersStyle: addMembersStyle,
};

return (
<>
{group && (
<CometChatDetails
group={group}
addMembersConfiguration={addMembersConfiguration}
/>
)}
</>
);
}

Banned Members

You can customize the properties of the Banned Members component by making use of the BannedMembersConfiguration. You can accomplish this by employing the bannedMembersConfiguration props as demonstrated below:

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatDetails,
BannedMembersConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const bannedMembersConfiguration: BannedMembersConfigurationInterface = {
//override
};

return (
<>
{group && (
<CometChatDetails
group={group}
bannedMembersConfiguration={bannedMembersConfiguration}
/>
)}
</>
);
}

All exposed properties of BannedMembersConfiguration can be found under Banned Members. Properties marked with the report symbol are not accessible within the Configuration Object.

Example

Let's say you want to change the style of the Banned Members subcomponent and, in addition, you only want to hide the search bar.

You can modify the style using the bannedMembersStyle property and hide the search bar using hideSearch property.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatDetails,
BannedMembersConfigurationInterface,
CometChatListStylesInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

const getGroup = async () => {
const group = await CometChat.getGroup("guid");
setGroup(group);
};

const bannedMemberStyle: CometChatListStylesInterface = {
titleColor: "red",
};

const bannedMembersConfiguration: BannedMembersConfigurationInterface = {
bannedMemberStyle: bannedMemberStyle,
hideSearch: true,
};

return (
<>
{group && (
<CometChatDetails
group={group}
bannedMembersConfiguration={bannedMembersConfiguration}
/>
)}
</>
);
}

Transfer Ownership

You can customize the properties of the Transfer Ownership component by making use of the TransferOwnershipConfiguration. You can accomplish this by employing the transferOwnershipConfiguration props as demonstrated below:

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatDetails,
CometChatTransferOwnershipInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

let transferOwnershipConfiguration: CometChatTransferOwnershipInterface;

const getGroup = async () => {
const group = await CometChat.getGroup("guid");

/** add group **/
transferOwnershipConfiguration = {
group: group,
//overrie other properties
};
setGroup(group);
};

return (
<>
{group && (
<CometChatDetails
group={group}
transferOwnershipConfiguration={transferOwnershipConfiguration}
/>
)}
</>
);
}

All exposed properties of TransferOwnershipConfiguration can be found under Transfer Ownership. Properties marked with the report symbol are not accessible within the Configuration Object.

Example

Let's say you want to change the style of the Transfer Ownership subcomponent and, in addition, you only want to disable the users presence.

You can modify the style using the transferOwnershipStyle property and disable the users presence using disableUsersPresence property.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
CometChatDetails,
CometChatTransferOwnershipInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
const [group, setGroup] = useState<CometChat.Group | undefined>(undefined);

let transferOwnershipConfiguration: CometChatTransferOwnershipInterface;
const transferOwnershipStyle: GroupMembersStyleInterface = {
titleColor: "red",
};

const getGroup = async () => {
const group = await CometChat.getGroup("guid");

/** add group **/
transferOwnershipConfiguration = {
group: group,
transferOwnershipStyle: transferOwnershipStyle,
disableUsersPresence: true,
};

setGroup(group);
};

return (
<>
{group && (
<CometChatDetails
group={group}
transferOwnershipConfiguration={transferOwnershipConfiguration}
/>
)}
</>
);
}
