Call Logs

Overview

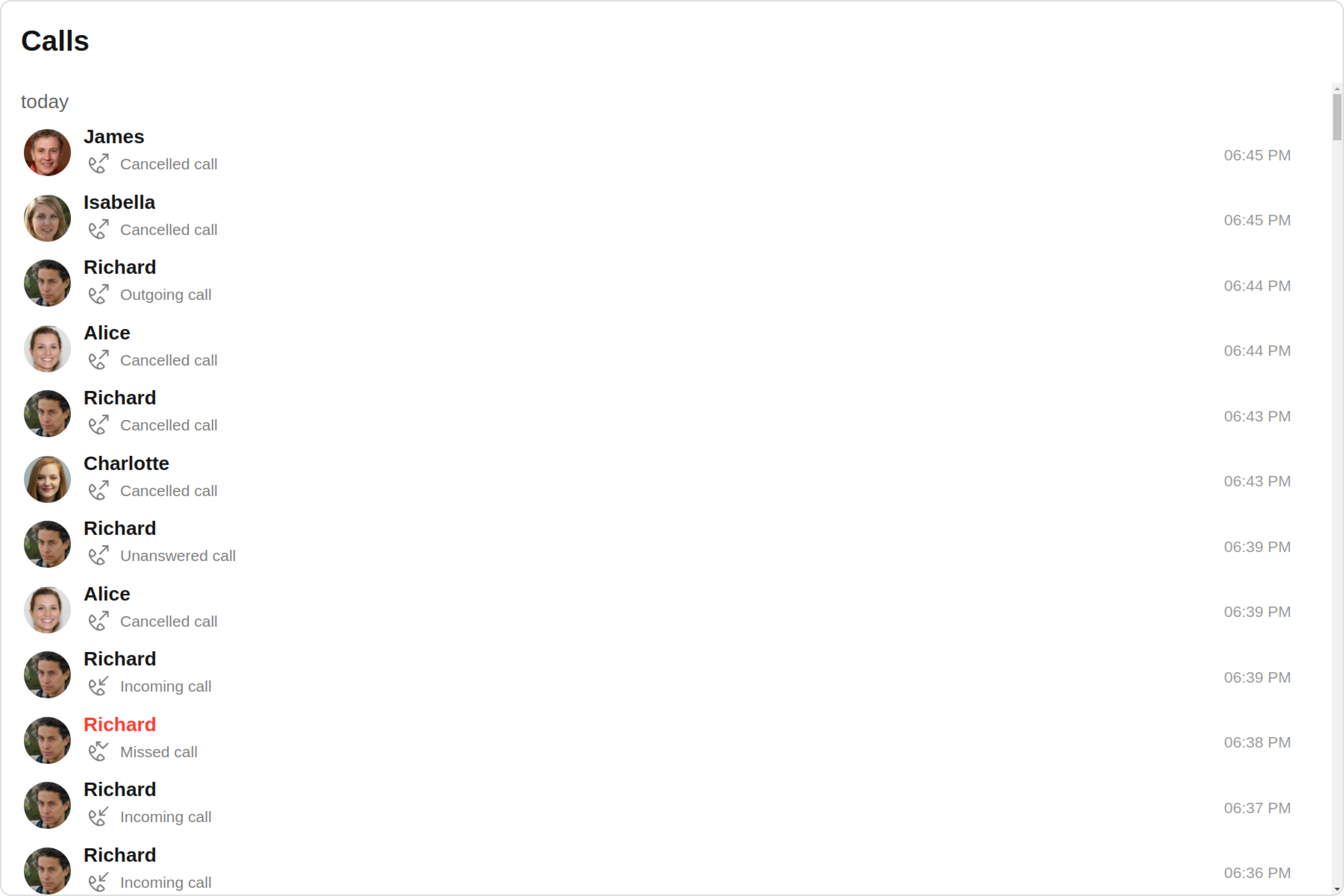

CometChatCallLogs is a Component that shows the list of Call Log available . By default, names are shown for all listed users, along with their avatar if available.

The Call Logs is comprised of the following components:

Components	Description
CometChatList	a reusable container component having title, search box, customisable background and a List View
cometchat-backdrop	This element represents the background against which other elements are presented.
CometChatListItem	a component that renders data obtained from a Group object on a Tile having a title, subtitle, leading and trailing view
cometchat-date	This Component used to show the date and time. You can also customize the appearance of this widget by modifying its logic.
cometchat-button	This component represents a button with optional icon and text.

Usage

Integration

app.module.ts

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { CometChatCallLogs } from "@cometchat/chat-uikit-angular";
import { AppComponent } from "./app.component";

@NgModule({
  imports: [BrowserModule, CometChatCallLogs],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs> </cometchat-call-logs>
</div>

---

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onItemClick

OnItemClick is triggered when you click on a ListItem of the Call Logs component. By default it initiate a call to the participant associated with the respective ListItem. You can override this action using the following code snippet.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public handleOnItemClick = (call: any) =>{
    console.log("your custom on item click");
  };
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [onItemClick]="handleOnItemClick"></cometchat-call-logs>
</div>

2. onInfoClick

onInfoClick is triggered when you click the Info button Icon of the Call Logs component. It does not have a default behavior. However, you can override its behavior using the following code snippet.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public handleOnInfoClick = (call: any) => {
    console.log("your custom on info click actions", call);
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [onInfoClick]="handleOnInfoClick"></cometchat-call-logs>
</div>

3. onError

This action doesn't change the behavior of the component but rather listens for any errors that occur in the Call Logs component.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public handleOnError = (error: CometChat.CometChatException) => {
    console.log("your custom on error action", error);
  };
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [onError]="handleOnError"></cometchat-call-logs>
</div>

---

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. CallLogRequestBuilder

The CallLogRequestBuilder enables you to filter and customize the Call Log based on available parameters in CallLogRequestBuilder. This feature allows you to create more specific and targeted queries when fetching the call logs. The following are the parameters available in CallLogRequestBuilder

Methods	Type	Description
setLimit	number	Specifies the number of call logs to fetch.
setCallType	String	Sets the type of calls to fetch (call or meet).
setCallStatus	callStatus	Sets the status of calls to fetch (initiated, ongoing, etc.)
setHasRecording	boolean	Sets whether to fetch calls that have recordings.
setCallCategory	string	Sets the category of calls to fetch (call or meet).
setCallDirection	string	Sets the direction of calls to fetch (incoming or outgoing)
setUid	string	Sets the UID of the user whose call logs to fetch.
setGuid	string	Sets the GUID of the user whose call logs to fetch.
setAuthToken	string	Sets the Auth token of the logged-in user.

Example

In the example below, we're filtering Call Logs to show only canceled calls and setting the limit to five.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("authtoken").setLimit(5).setCallStatus("cancelled")

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs
    [callLogRequestBuilder]="callLogRequestBuilder"
  ></cometchat-call-logs>
</div>

---

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The list of events emitted by the Call Logs component is as follows.

Event	Description
ccMessageSent	This event is triggered when the sent message is in transit and also when it is received by the receiver.

---

Adding CometChatCallEvents Listener's

TypeScript

import {CometChatCallEvents} from "@cometchat/chat-uikit-angular";

this.ccMessageSent = CometChatCallEvents.ccMessageSent.subscribe(
  () => {
        // Your Code
  }
);

---

Removing CometChatCallEvents Listener's

TypeScript

this.ccMessageSent.unsubscribe();

---

Customization

To fit your app's design requirements, you can customize the appearance of the Call Logs component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. CallLogs Style

To customize the appearance, you can assign a CallLogsStyle object to the Call Logs component.

Example

In this example, we are employing the callLogsStyle.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLogsStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  callLogsStyle = new CallLogsStyle({
    background: "#dac6f5",
    titleColor: "#000000",
    dateTextColor: "#dac6f5",
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [callLogsStyle]="callLogsStyle"></cometchat-call-logs>
</div>

---

The following properties are exposed by CallLogsStyle:

Property	Description	Code
border	Used to set border	border?: string,
borderRadius	Used to set border radius	borderRadius?: string;
background	Used to set background colour	background?: string;
height	Used to set height	height?: string;
width	Used to set width	width?: string;
titleFont	Used to set title font	titleFont?: string,
titleColor	Used to set title color	titleColor?: string;

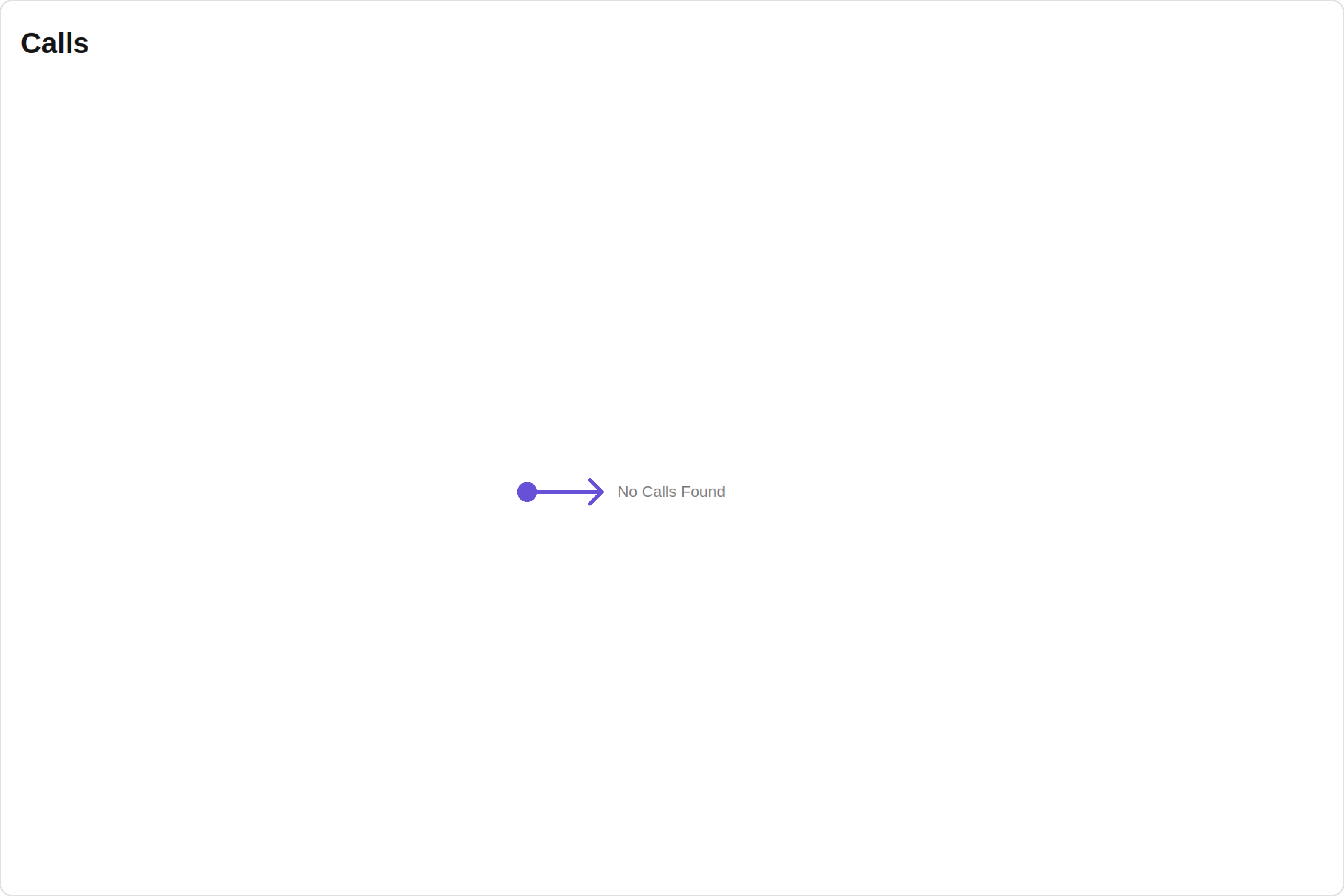

emptyStateTextColor	Used to set empty state text color	emptyStateTextColor?: string;
emptyStateTextFont	Used to set empty state text font	emptyStateTextFont?: string;
errorStateTextColor	Used to set error state text color	errorStateTextColor?: string;
errorStateTextFont	Used to set error state text font	errorStateTextFont?: string;

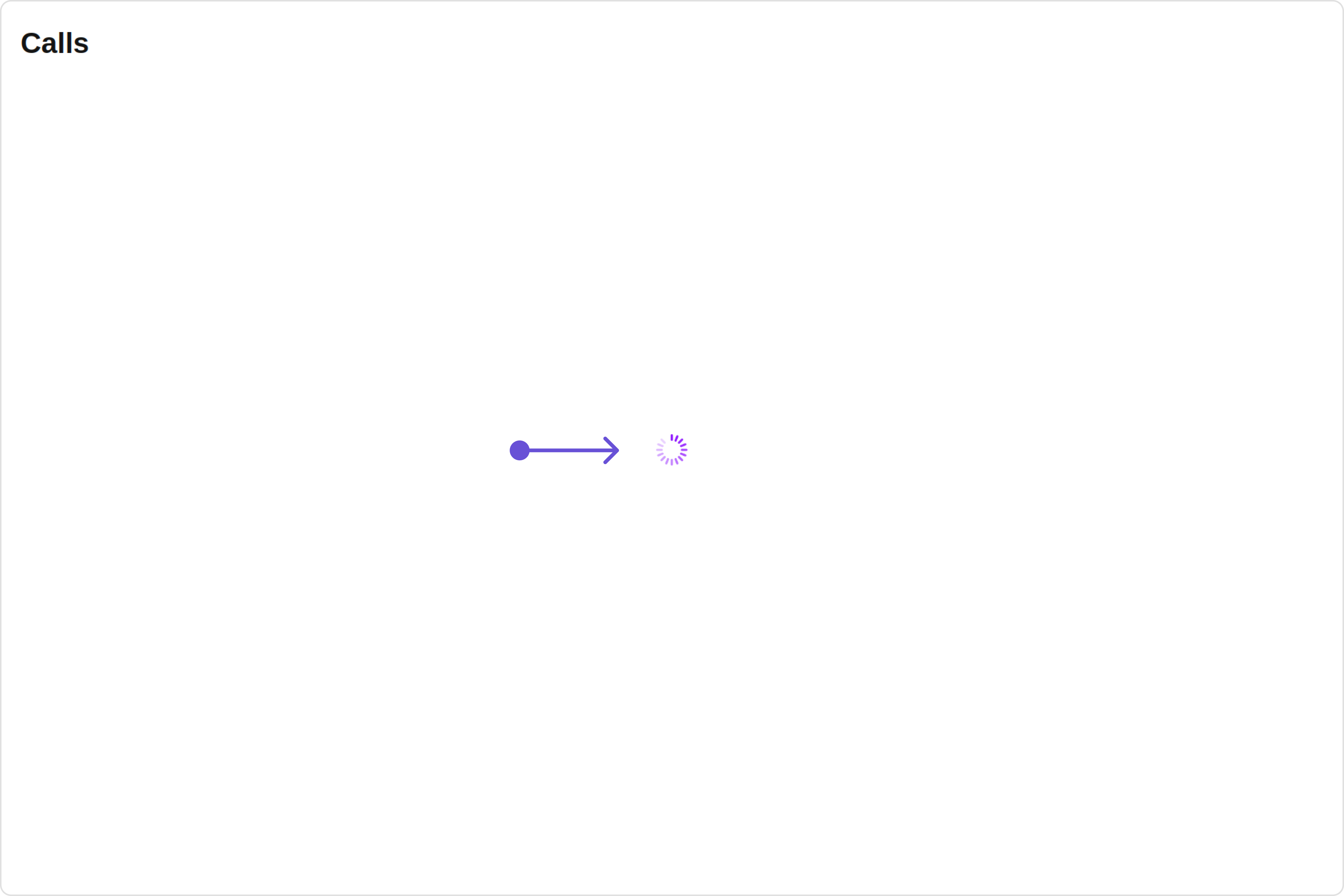

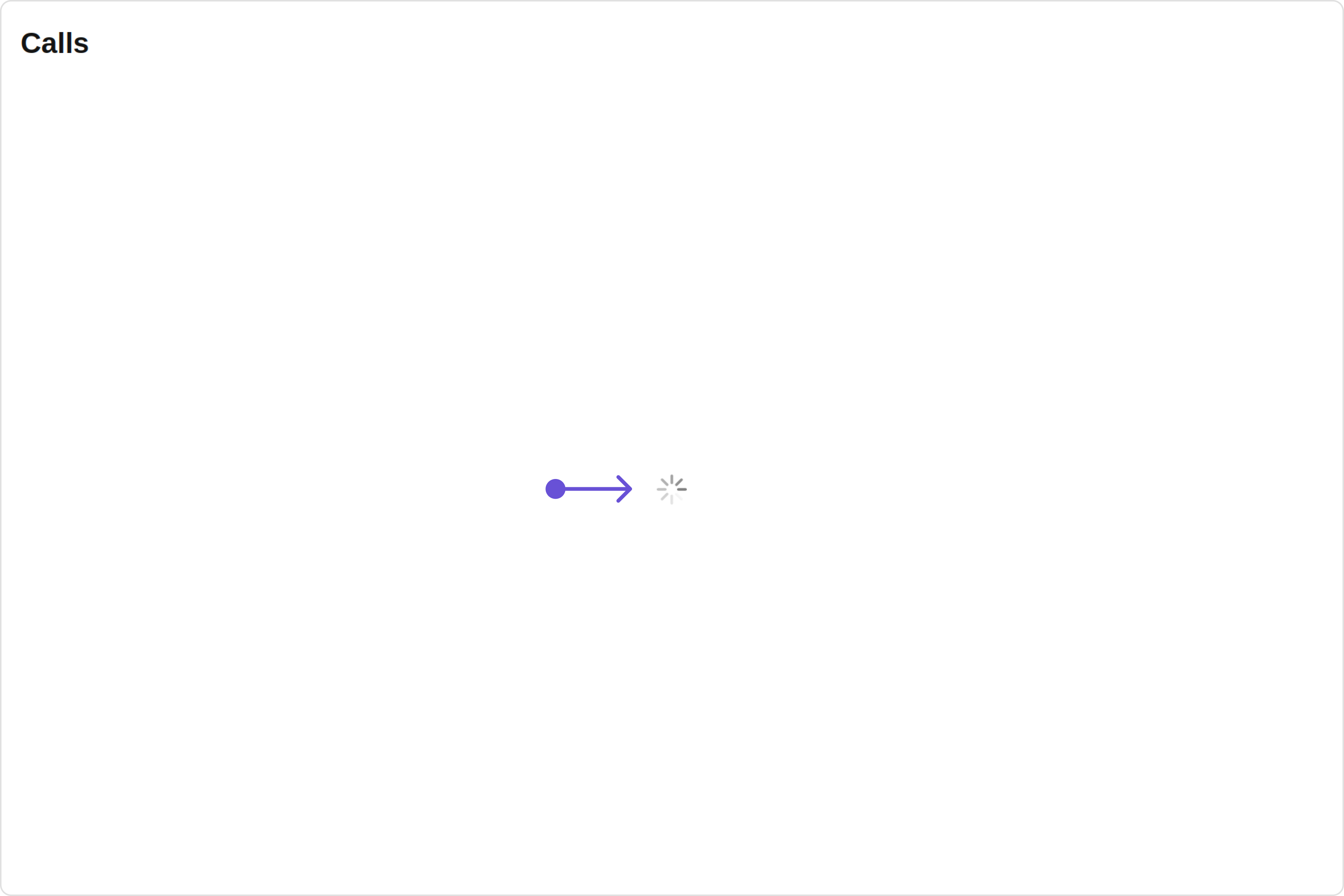

loadingIconTint	Used to set loading icon tint	loadingIconTint?: string;
infoIconTint	Used to set info icon tint	infoIconTint?: string;
missedCallIconTint	Used to set missed call icon tint	missedCallIconTint?: string;
outgoingCallIconTint	Used to set outgoing call icon tint	outgoingCallIconTint?: string;
incomingCallIconTint	Used to set incoming call icon tint	incomingCallIconTint?: string;
callStatusTextFont	Used to set call status text font	callStatusTextFont?: string;
callStatusTextColor	Used to set call status text color	callStatusTextColor?: string;
dateTextFont	Used to set date text font	dateTextFont?: string;
dateTextColor	Used to set date text color	dateTextColor?: string;
dateSeparatorTextFont	Used to set date separator text font	dateSeparatorTextFont?: string;
dateSeparatorTextColor	Used to set date separator text color	dateSeparatorTextColor?: string;

2. Avatar Style

If you want to apply customized styles to the Avatar component within the Call Logs Component, you can use the following code snippet. For more information you can refer Avatar Styles.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  avatarStyle = new AvatarStyle({
    backgroundColor: "#cdc2ff",
    border: "2px solid #6745ff",
    borderRadius: "10px",
    outerViewBorderColor: "#ca45ff",
    outerViewBorderRadius: "5px",
    nameTextColor: "#4554ff"
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [avatarStyle]="avatarStyle"></cometchat-call-logs>
</div>

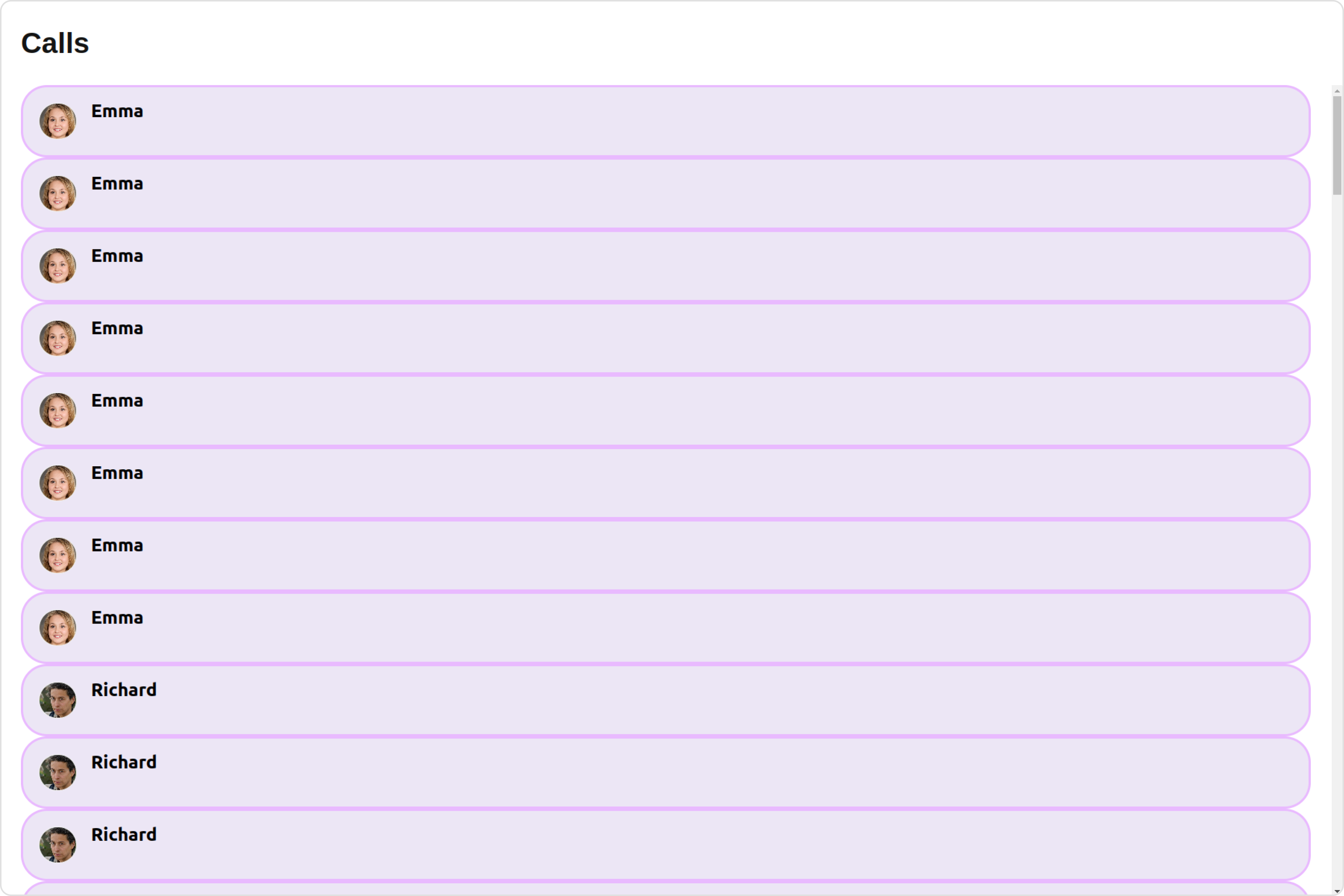

3. ListItem Style

If you want to apply customized styles to the List Item component within the Call Logs Component, you can use the following code snippet. For more information, you can refer ListItem Styles.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding: "5px",
    border: "1px solid #e9b8f5",
    titleColor: "#8830f2",
    borderRadius: "20px",
    width: "100% !important"
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [listItemStyle]="listItemStyle"></cometchat-call-logs>
</div>

---

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Here is a code snippet demonstrating how you can customize the functionality of the Call Logs component.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { DatePatterns } from '@cometchat/uikit-resources';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public datePattern: DatePatterns = DatePatterns.DateTime;

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs
    [title]="'Your Custom Title'"
    [datePattern]="datePattern"
    [hideSeparator]="false"
  ></cometchat-call-logs>
</div>

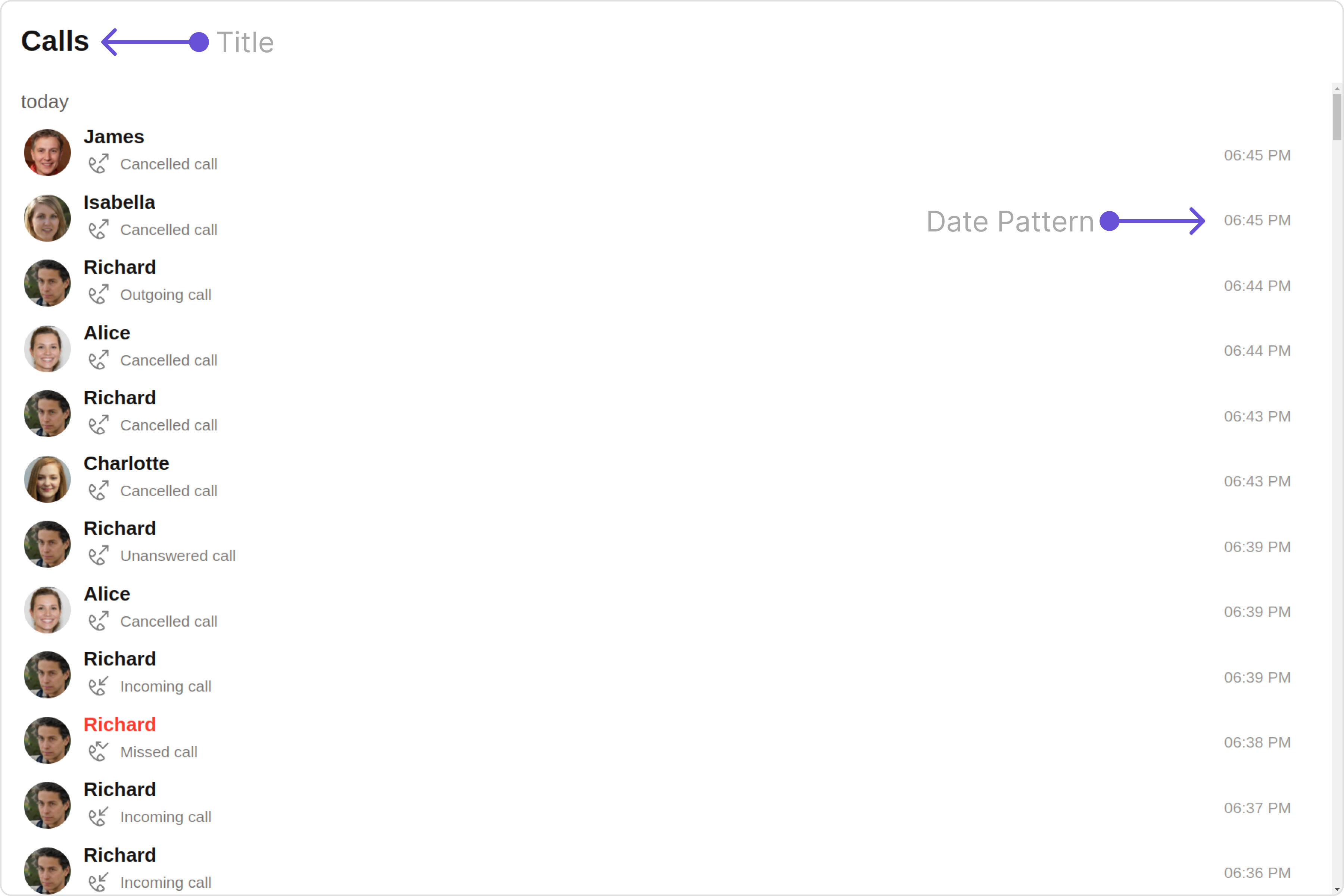

Default:

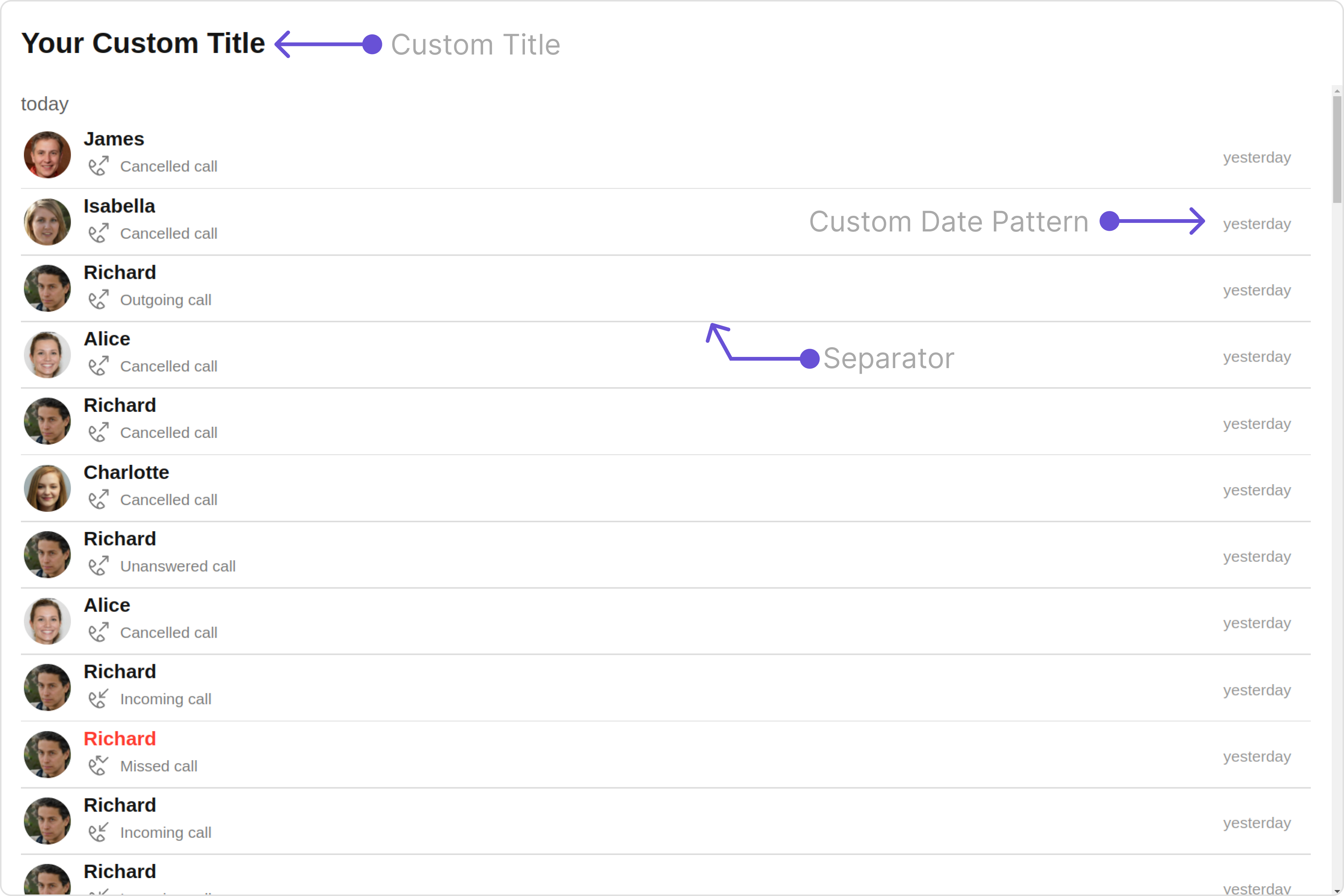

Custom:

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
title	Used to set custom title	[title]="'Your Custom Title'"
emptyStateText	Used to set custom empty state text	[emptyStateText]="'Your Custom Empty State Text'"
errorStateText	Used to set custom error state text	[errorStateText]="'Your Custom Error State Text'"
titleAlignment	Used to set custom title alignment	[titleAlignment]="titleAlignment"
datePattern	Used to set custom date pattern	[datePattern]="datePattern"
dateSeparatorPattern	Used to set custom date separator pattern	[dateSeparatorPattern]="dateSeparatorPattern"
infoIconUrl	Used to set custom info icon	[infoIconUrl]="infoIconURL"
incomingAudioCallIconUrl	Used to set custom incoming audio call icon	[incomingAudioCallIconUrl]="incomingAudioCallIconUrl"
missedAudioCallIconUrl	Used to set custom missed audio call icon	[missedAudioCallIconUrl]="missedAudioCallIconUrl"
missedVideoCallIconUrl	Used to set custom missed video call icon	[missedVideoCallIconUrl]='Custom Missed Video Call Icon'
incomingVideoCallIconUrl	Used to set custom incoming video call icon	[incomingVideoCallIconUrl]="incomingVideoCallIconUrl"
outgoingAudioCallIconUrl	Used to set custom outgoing audio call icon	[outgoingAudioCallIconUrl]="outgoingAudioCallIconUrl"
outgoingVideoCallIconUrl	Used to set custom outgoing video call icon	[outgoingVideoCallIconUrl]="outgoingVideoCallIconUrl"
loadingIconURL	Used to set custom loading icon	[loadingIconURL]="loadingIconURL"
hideSeparator	Option to hide separator	[hideSeparator]="false"
activeCall	Used to set active Call that is currently selected	[activeCall]="callObject"

---

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

---

ListItemView

With this property, you can assign a custom ListItem to the Call Logs Component.

Example

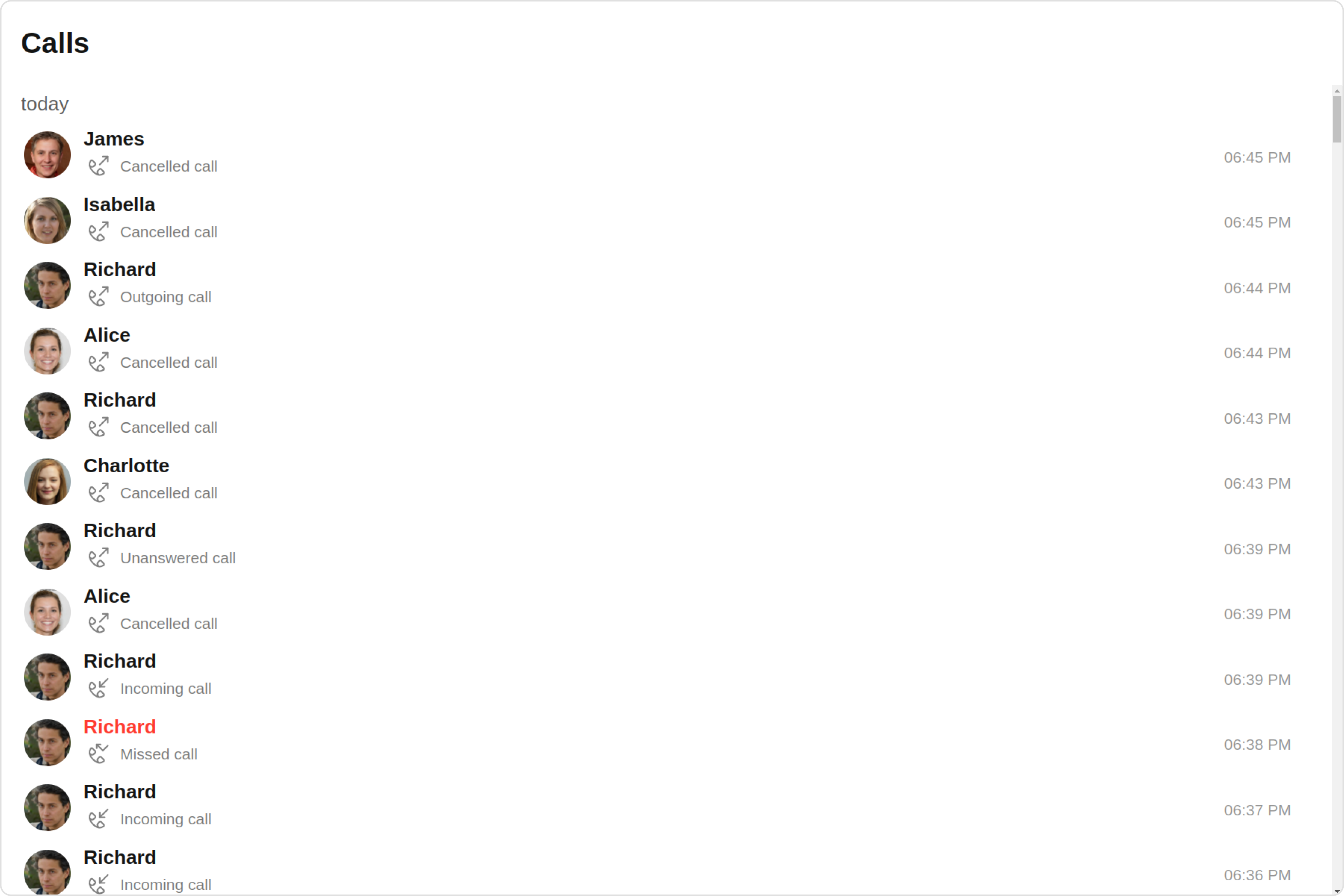

Default:

Custom:

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs
    [listItemView]="listItemViewTemplate"
  ></cometchat-call-logs>
</div>
<ng-template #listItemViewTemplate let-call>
  <div
    [ngStyle]="{
    display: 'flex',
    alignItems: 'left',
    padding: '10px',
    border: '2px solid #e9baff',
    borderRadius: '20px',
    background: '#6e2bd9'
  }"
  >
    <cometchat-avatar
      [image]="call.getInitiator().getAvatar()"
      [name]="call.getInitiator().getName()"
    ></cometchat-avatar>
    <div [ngStyle]="{ display: 'flex', paddingLeft: '10px' }">
      <div
        [ngStyle]="{ fontWeight: 'bold', color: '#ffffff', fontSize: '14px' }"
      >
        {{ call.getInitiator().getName() }}
      </div>
    </div>
  </div>
</ng-template>

---

SubtitleView

You can customize the subtitle view for each call logs item to meet your requirements

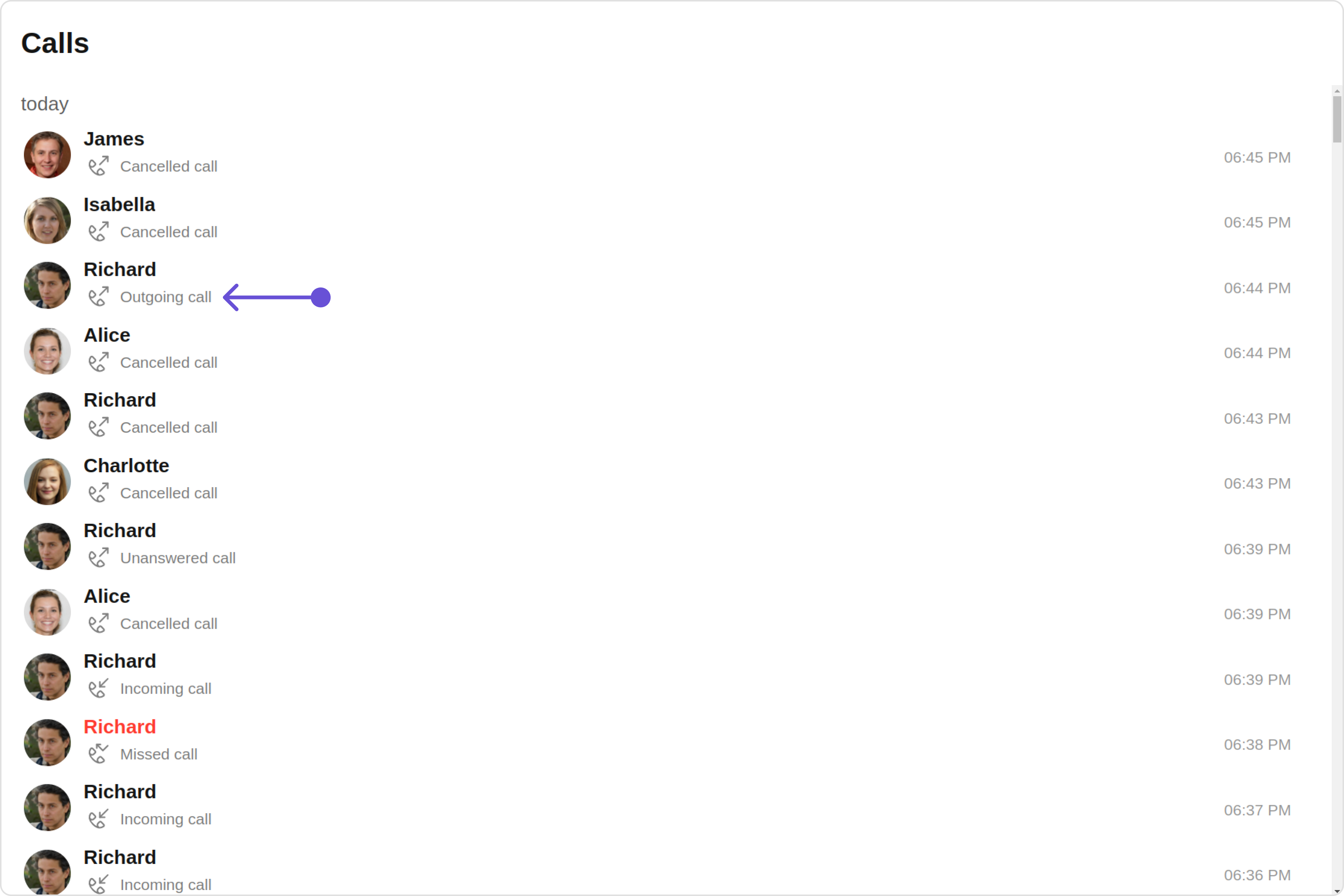

Default:

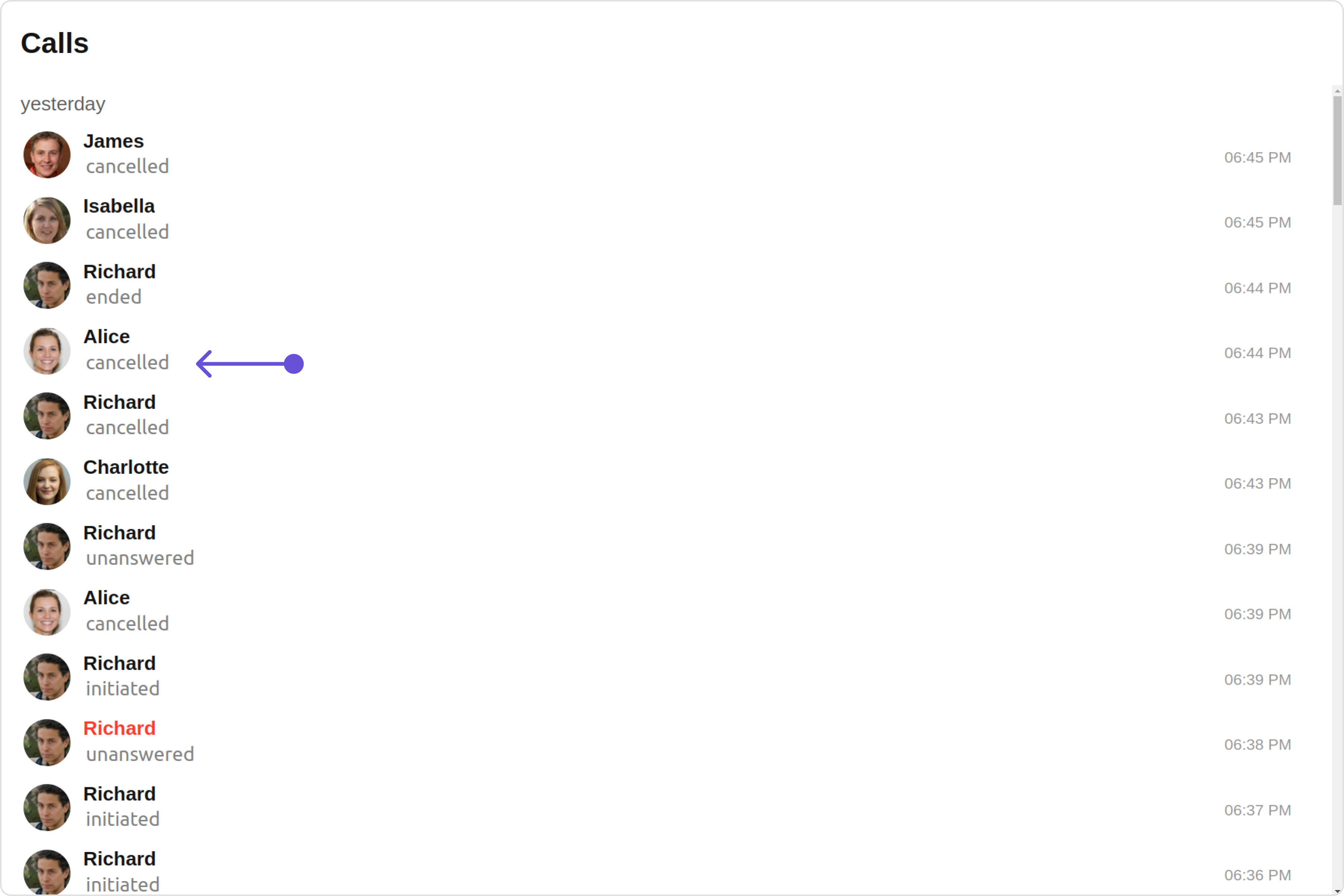

Custom:

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [subtitleView]="subtitleTemplate"></cometchat-call-logs>
</div>
<ng-template #subtitleTemplate>
  <div
    style="display: flex; align-items: left; padding: 10px; font-size: 10px;"
  >
    your custom subtitle view
  </div>
</ng-template>

---

TailView

You can customize the tail view for each call logs item to meet your requirements

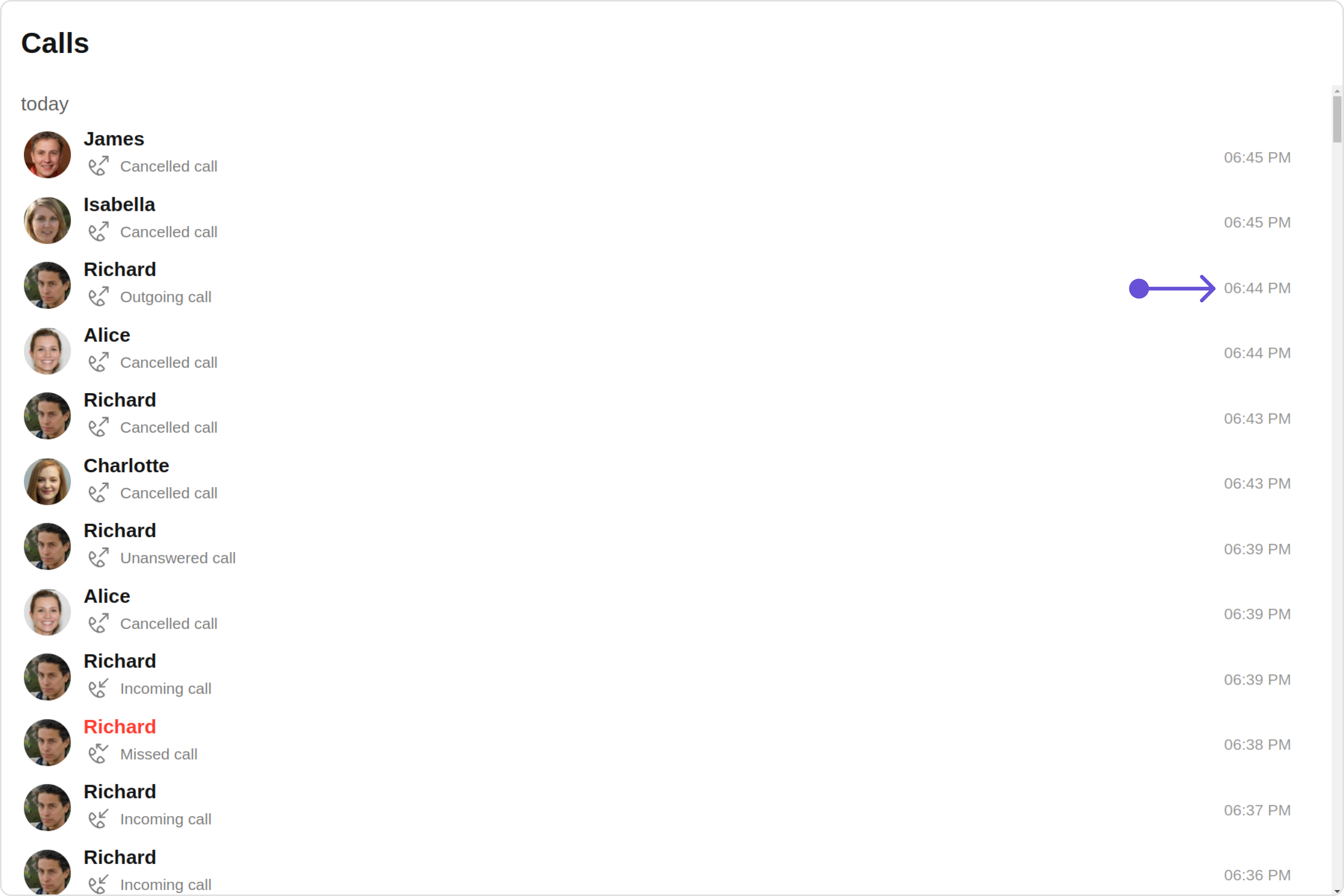

Default:

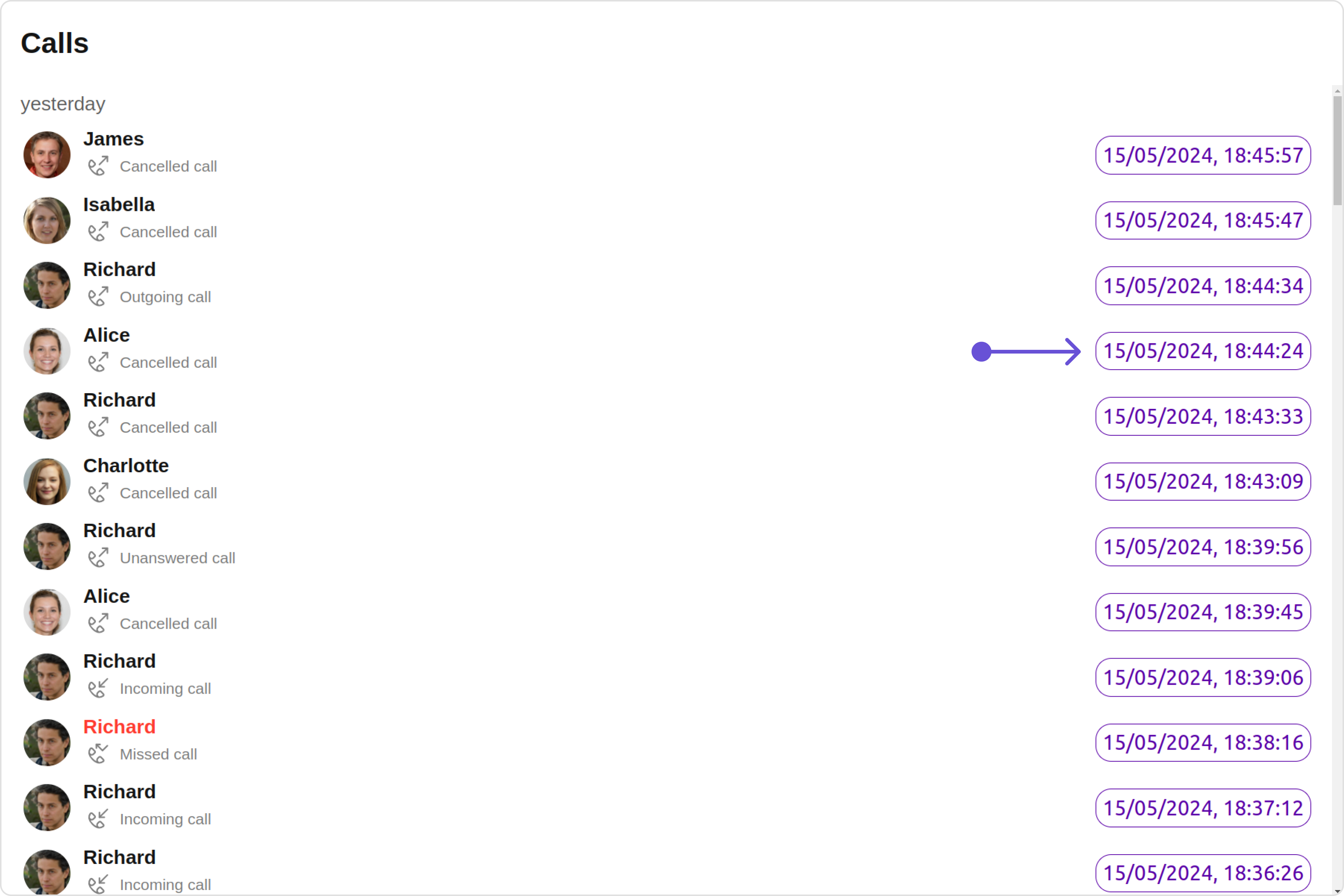

Custom:

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [tailView]="tailViewTemplate"></cometchat-call-logs>
</div>
<ng-template #tailViewTemplate>
  <div
    [ngStyle]="{
    color: '#5a00a8',
    border: '1px solid #5a00a8',
    borderRadius: '12px',
    padding: '5px'
  }"
  >
    your custom tailview
  </div>
</ng-template>

---

LoadingStateView

You can set a custom loader view using loadingStateView to match the loading view of your app.

Default:

Custom:

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, LoaderStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  getLoaderStyle: LoaderStyle = new LoaderStyle({
    iconTint: "red",
    background: "transparent",
    height: "20px",
    width: "20px",
    border: "none",
    borderRadius: "0",
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs
    [loadingStateView]="loadingStateView"
  ></cometchat-call-logs>
</div>
<ng-template #loadingStateView>
  <cometchat-loader
    iconURL="icon"
    [loaderStyle]="getLoaderStyle"
  ></cometchat-loader>
</ng-template>

---

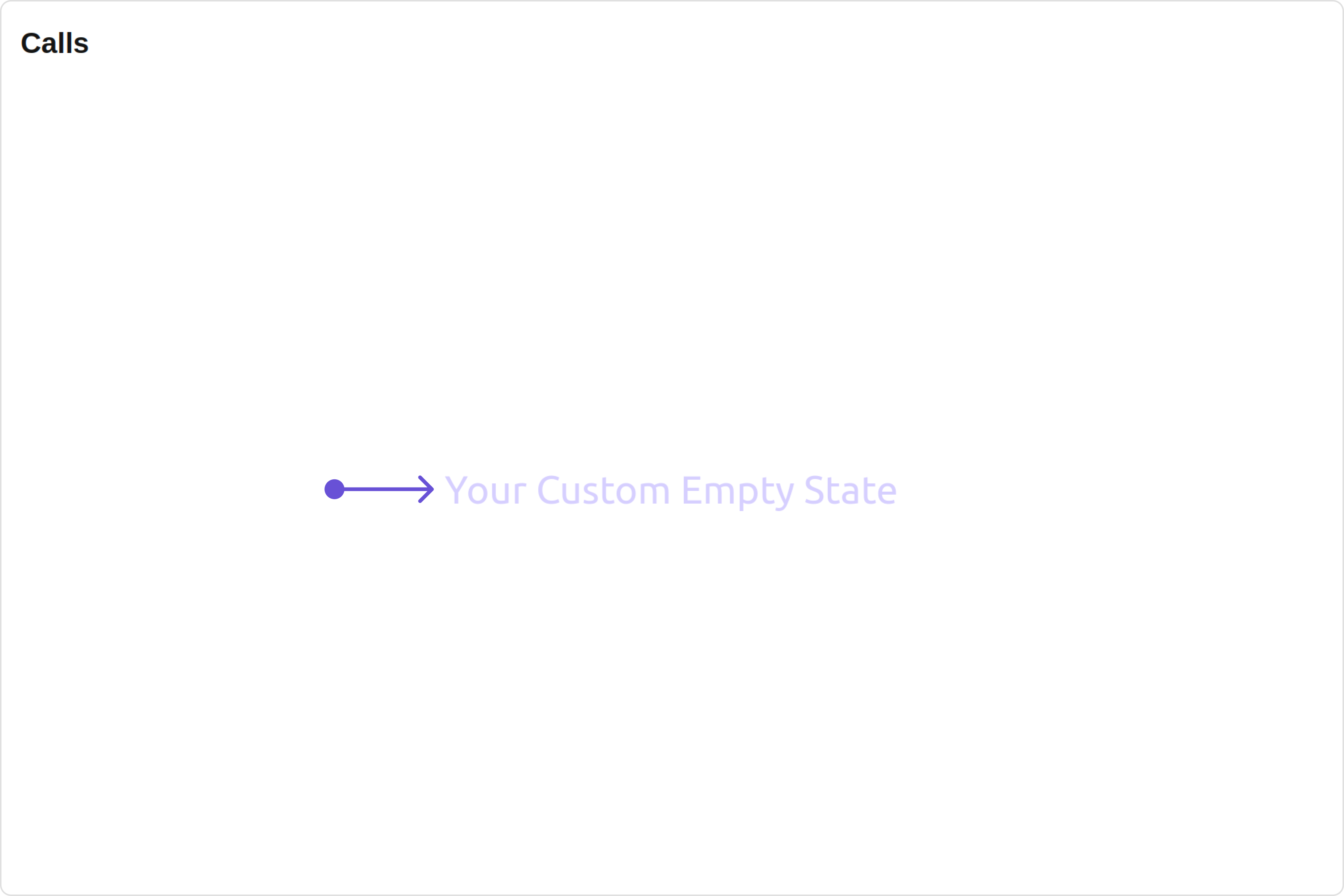

EmptyStateView

You can set a custom EmptyStateView using emptyStateView to match the empty view of your app.

Default:

Custom:

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [emptyStateView]="emptyStateView"></cometchat-call-logs>
</div>
<ng-template #emptyStateView>
  <div>Your Custom Empty State</div>
</ng-template>

---

ErrorStateView

You can set a custom ErrorStateView using errorStateView to match the error view of your app.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs [errorStateView]="errorStateView"></cometchat-call-logs>
</div>
<ng-template #errorStateView>
  <div style="height: 100vh; width: 100vw">
    <img
      src="icon"
      alt="error icon"
      style="height:100px; width: 100px; justify-content: center; margin-top: 250px; margin-right: 700px;"
    />
  </div>
</ng-template>

Configurations

Configurations offer the ability to customize the properties of each component within a Composite Component.

CometChatCallLogs has OutGoing Call component. Hence, each of these components will have its individual `Configuration``.

• Configurations expose properties that are available in its individual components.

OutGoing Call

You can customize the properties of the OutGoing Call component by making use of the OutgoingCallConfiguration.

All exposed properties of OutgoingCallConfiguration can be found under OutGoing Call. Properties marked with the report symbol are not accessible within the Configuration Object.

Example

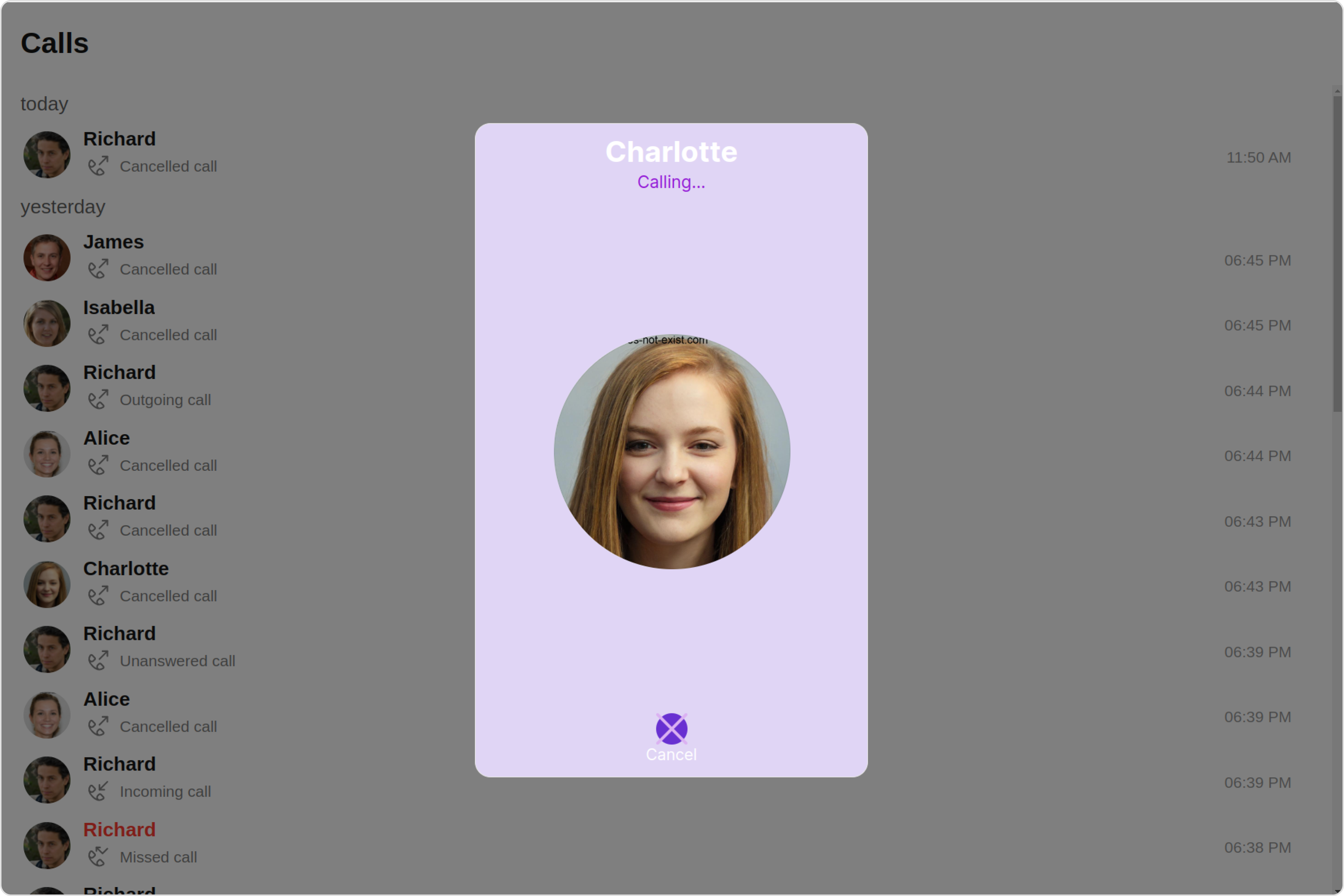

Let's say you want to change the style of the OutGoing Call subcomponent and, in addition, you want to change the decline button icon.

You can modify the style using the outgoingCallStyle property and set custom decline button icon using declineButtonIconURL property.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { OutgoingCallConfiguration, OutgoingCallStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  outgoingCallStyle = new OutgoingCallStyle({
    background: "#e0d5f5",
    declineButtonIconBackground: "#6830d1",
    height: "500px",
    width: "300px",
    declineButtonTextColor: "#ffffff",
    titleTextColor: "#ffffff",
    subtitleTextColor: "#9213d6",
    declineButtonIconTint: "#dbb1f2",
    border: "1px solid #e6e6e6",
    borderRadius: "12px",
  });
  public outgoingCallConfiguration = new OutgoingCallConfiguration({
     //override properties of out going call
     outgoingCallStyle: this.outgoingCallStyle,
     declineButtonIconURL: 'declineButtonIconURL',
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-logs
    [outgoingCallConfiguration]="outgoingCallConfiguration"
  ></cometchat-call-logs>
</div>

---
