Call Log Recordings

Overview

The CometChatCallLogRecordings is a Component that shows a paginated list of recordings of a particular call. This allows the user to see all the recordings along with the duration as well as a download link using which one can download the recording.

The Call Log Recordings is comprised of the following components:

Components	Description
CometChatList	a reusable container component having title, search box, customisable background and a List View
CometChatListItem	a component that renders data obtained from a Group object on a Tile having a title, subtitle, leading and trailing view
cometchat-date	This Component used to show the date and time. You can also customize the appearance of this widget by modifying its logic.
cometchat-button	This component represents a button with optional icon and text.

Usage

Integration

app.module.ts

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { CometChatCallLogRecordings } from "@cometchat/chat-uikit-angular";
import { AppComponent } from "./app.component";

@NgModule({
  imports: [BrowserModule, CometChatCallLogRecordings],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-log-recordings></cometchat-call-log-recordings>
</div>

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onBackClick

onBackClick is triggered when you click the Back button Icon of the Call Log Participants component. It does not have a default behavior. However, you can override its behavior using the following code snippet.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public handleOnBack = () => {
    console.log("Your custom on back action");
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-log-recordings
    [onBackClick]="handleOnBack"
  ></cometchat-call-log-recordings>
</div>

2. onDownloadClick

onDownloadClick is triggered when you click on the download of the of the Call Log Recordings component. you can override its behavior using the following code snippet.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public handleOnDownloadClick = (item: any)=>{
    console.log("your custom on download click actions");
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-log-recordings
    [onDownloadClick]="handleOnDownloadClick"
  ></cometchat-call-log-recordings>
</div>

---

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

The Call Log Recordings component does not have any exposed filters.

---

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The Call Log Recordings does not produce any events.

---

Customization

To fit your app's design requirements, you have the ability to customize the appearance of the CallLogRecordings component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. CallLogRecordings Style

To customize the appearance, you can assign a CallLogRecordingsStyle object to the Call Log Recordings component.

Example

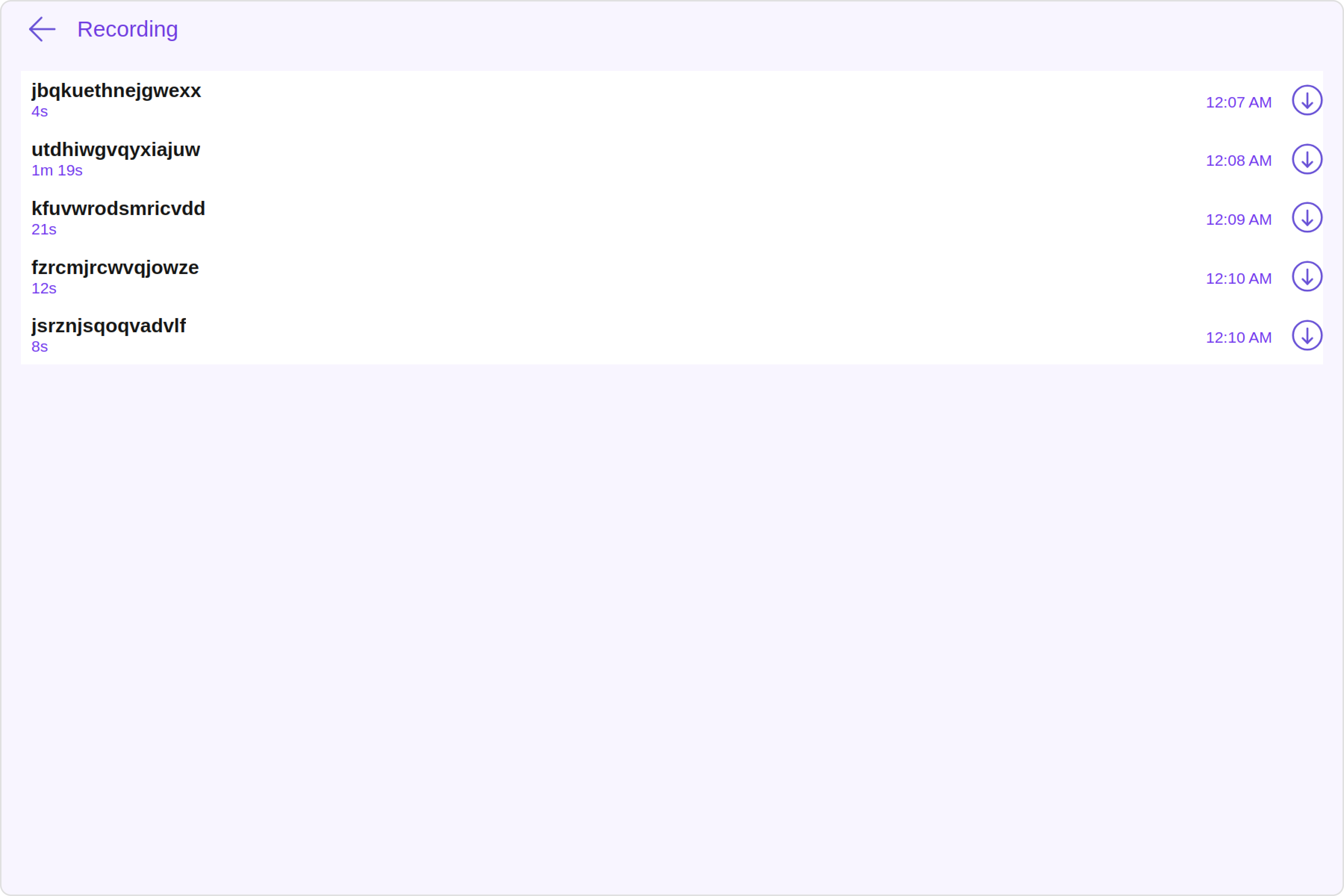

In this example, we are employing the CallLogRecordingsStyle.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLogRecordingsStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  callLogRecordingsStyle = new CallLogRecordingsStyle({
    background: "#f4f0fc",
    backIconTint: "#5f20e6",
    titleColor: "#5f20e6",
    dateTextColor: "#5f20e6",
    border: "2px solid #5f20e6",
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-log-recordings
    [CallLogRecordingsStyle]="callLogRecordingsStyle"
  ></cometchat-call-log-recordings>
</div>

---

The following properties are exposed by CallLogRecordingsStyle:

Property	Description	Code
border	Used to set border	border?: string,
borderRadius	Used to set border radius	borderRadius?: string;
background	Used to set background colour	background?: string;
height	Used to set height	height?: string;
width	Used to set width	width?: string;
titleFont	Used to set title font	titleFont?: string,
titleColor	Used to set title color	titleColor?: string;
backIconTint	Used to set back icon tint	backIconTint?: string;
downloadIconTint	Used to set download icon tint	downloadIconTint?: string;
recordingDurationFont	Used to set recording duration font	recordingDurationFont?: string;
recordingDurationColor	Used to set recording duration color	recordingDurationColor?: string;
dateTextFont	Used to set date text font	dateTextFont?: string;
dateTextColor	Used to set date text color	dateTextColor?: string;

2. ListItem Style

If you want to apply customized styles to the List Item component within the Call Log Recordings Component, you can use the following code snippet. For more information, you can refer ListItem Styles.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding: "5px",
    border: "1px solid #e9b8f5",
    titleColor: "#8830f2",
    borderRadius: "20px",
    width: "100% !important"
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-log-recordings
    [listItemStyle]="listItemStyle"
  ></cometchat-call-log-recordings>
</div>

---

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Here is a code snippet demonstrating how you can customize the functionality of the Call Log Recordings component.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { DatePatterns } from '@cometchat/uikit-resources';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public datePattern: DatePatterns = DatePatterns.DateTime;
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-log-recordings
    [title]="'Your Custom Title'"
    [datePattern]="datePattern"
    [downloadIconURL]="myCustomIcon"
  ></cometchat-call-log-recordings>
</div>

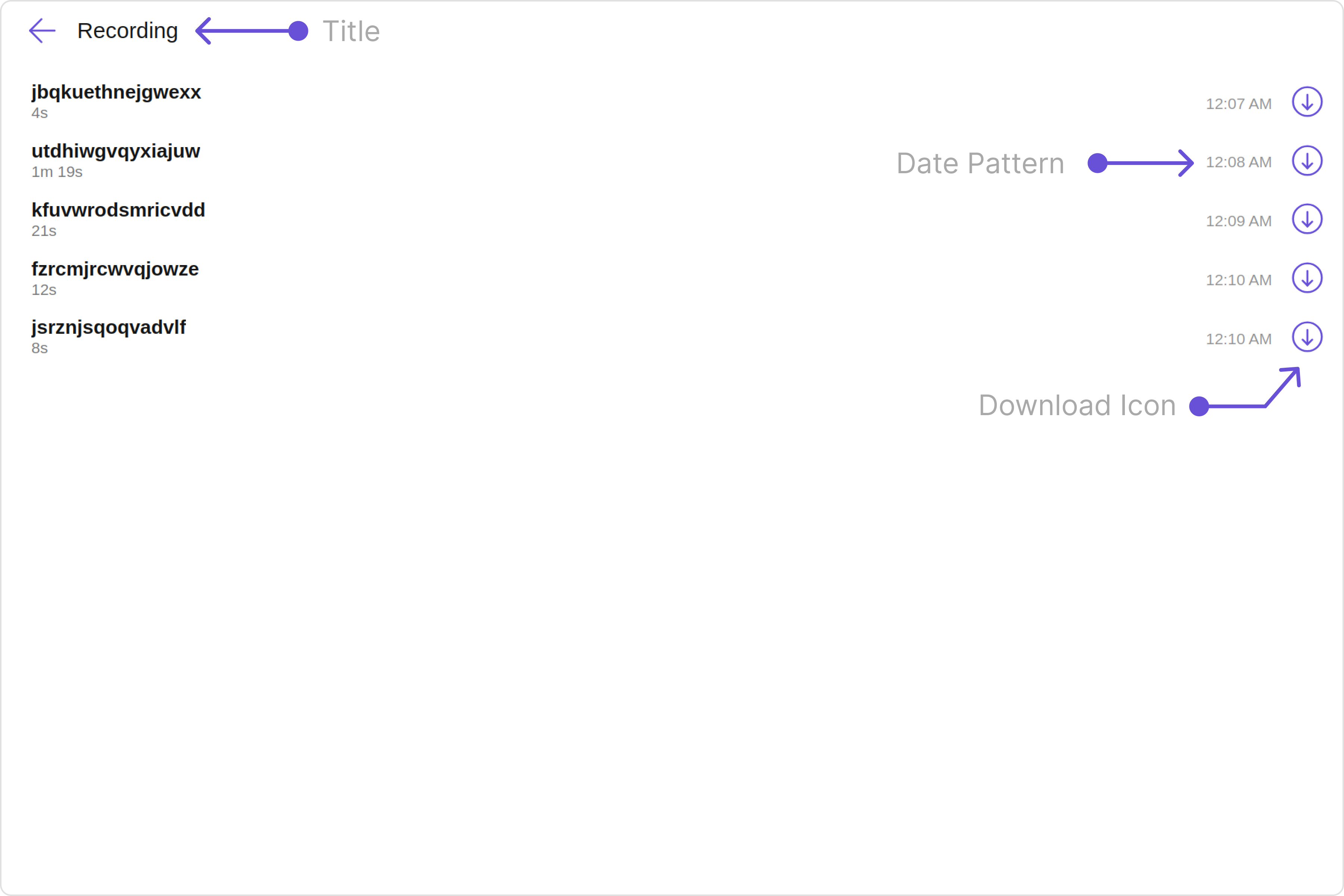

Default:

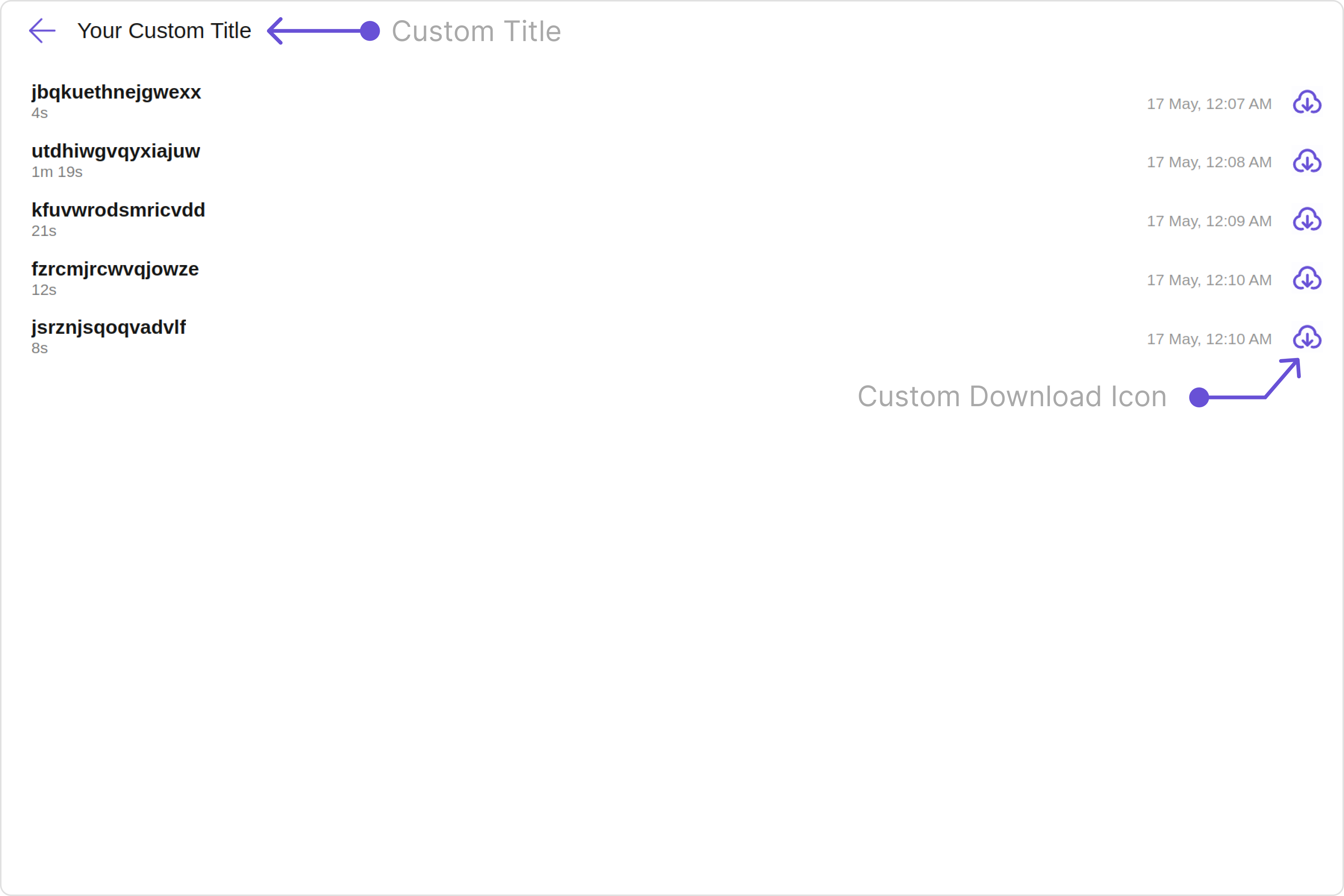

Custom:

---

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
title	Used to set custom title	[title]="'Your Custom Title'"
backIconUrl	Used to set custom back icon URL	[backIconUrl]="'custom back icon url'"
downloadIconUrl	Used to set custom download icon URL	[downloadIconUrl]="'custom download icon url'"
datePattern	Used to set custom date pattern	[datePattern]="datePattern"
call	Call data object	call: CallLog;
hideDownloadButton	used to control the visibility of the download button in the user interface.	[hideDownloadButton]="true"

---

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

---

ListItemView

With this property, you can assign a custom ListItem to the Call Log Recordings Component.

Example

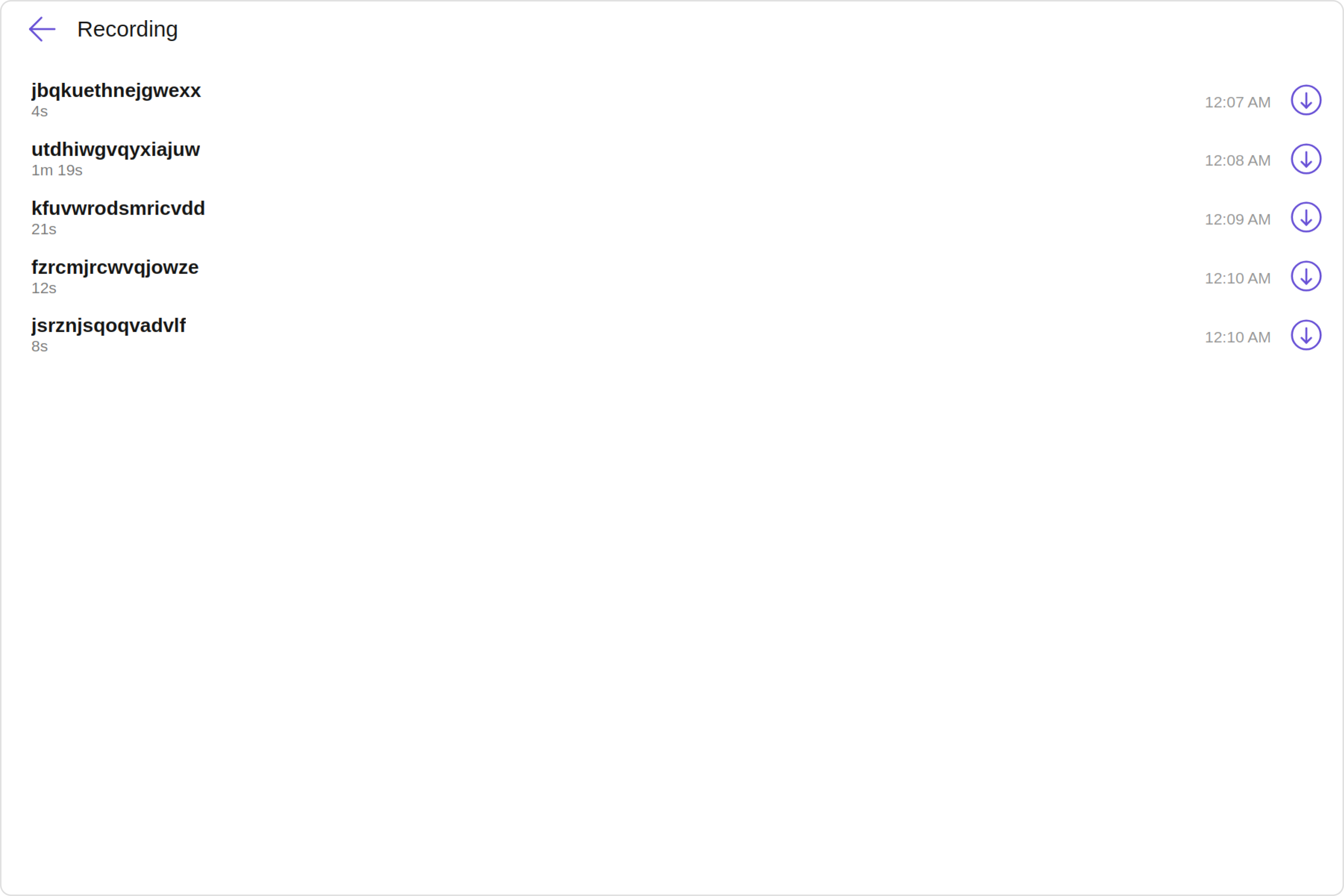

Default:

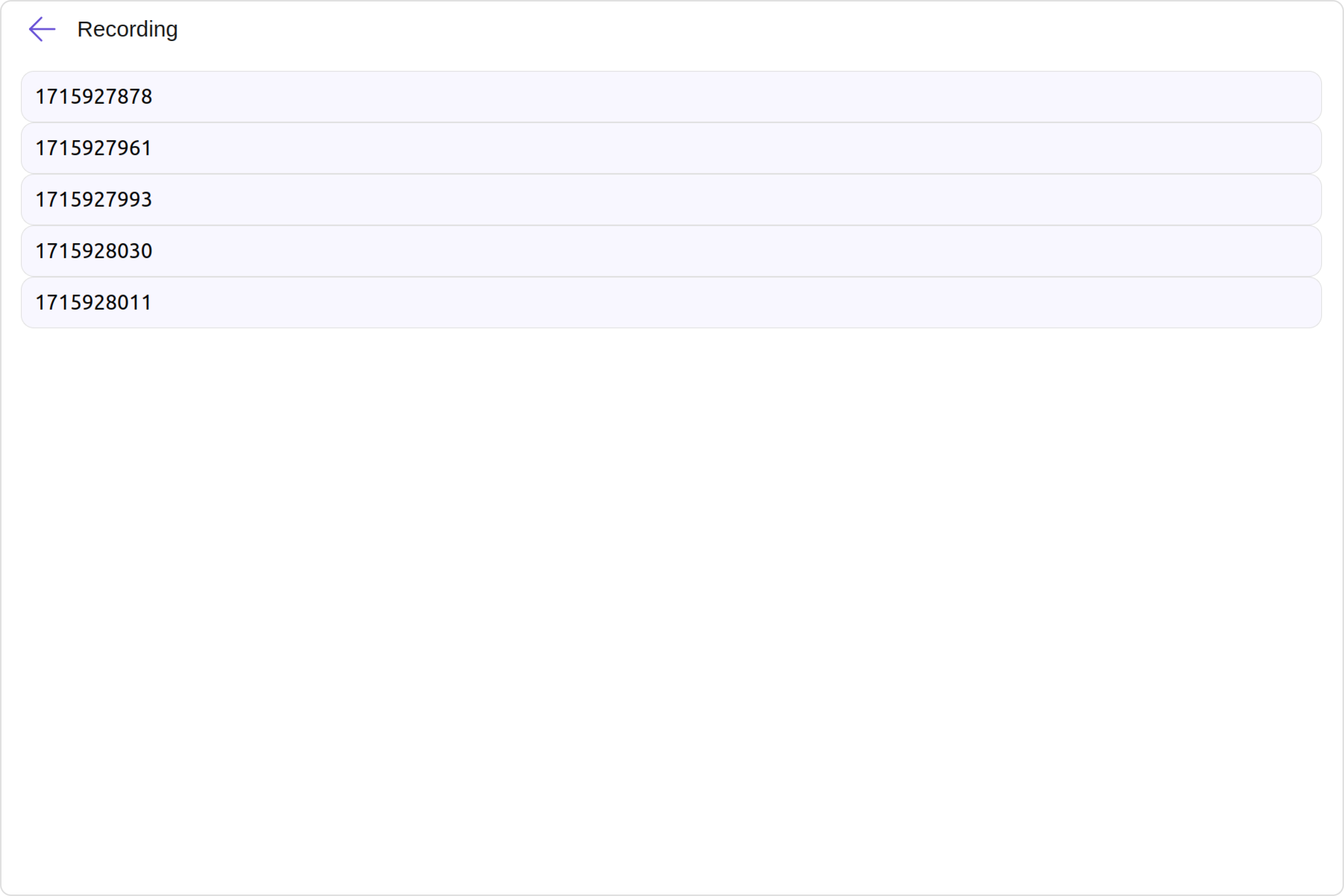

Custom:

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-log-recordings
    [listItemView]="listItemView"
  ></cometchat-call-log-recordings>
</div>
<ng-template #listItemView>
  <div>your custom listitem</div>
</ng-template>

---

SubtitleView

You can customize the subtitle view for each call log Recordings item to meet your requirements

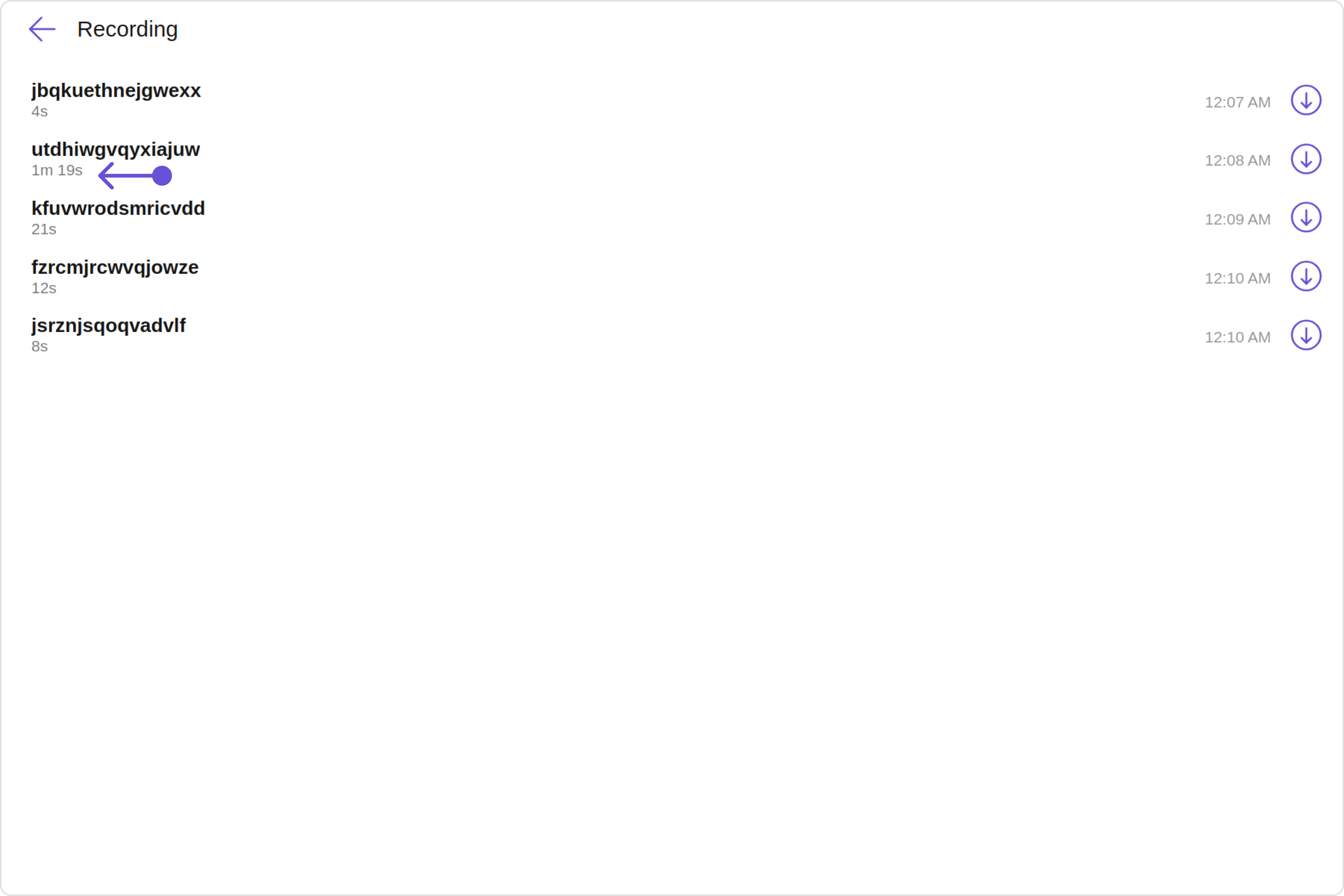

Default:

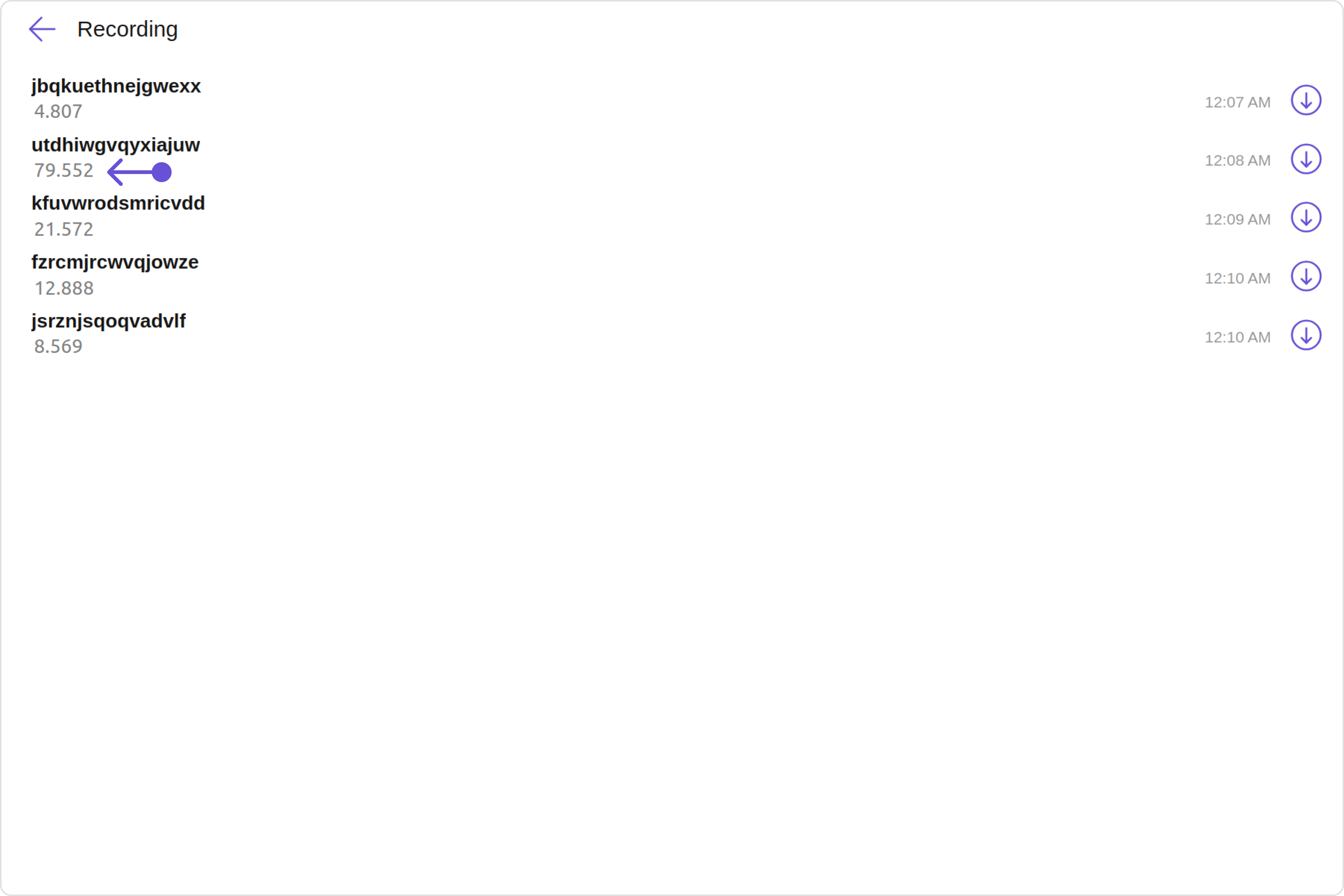

Custom:

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<div class="fullwidth">
  <cometchat-call-log-recordings
    [subtitleView]="subtitleTemplate"
  ></cometchat-call-log-recordings>
</div>
<ng-template #subtitleTemplate>
  <div
    style="display: flex; align-items: left; padding: 10px; font-size: 10px;"
  >
    your custom subtitle view
  </div>
</ng-template>

---
