Message Information

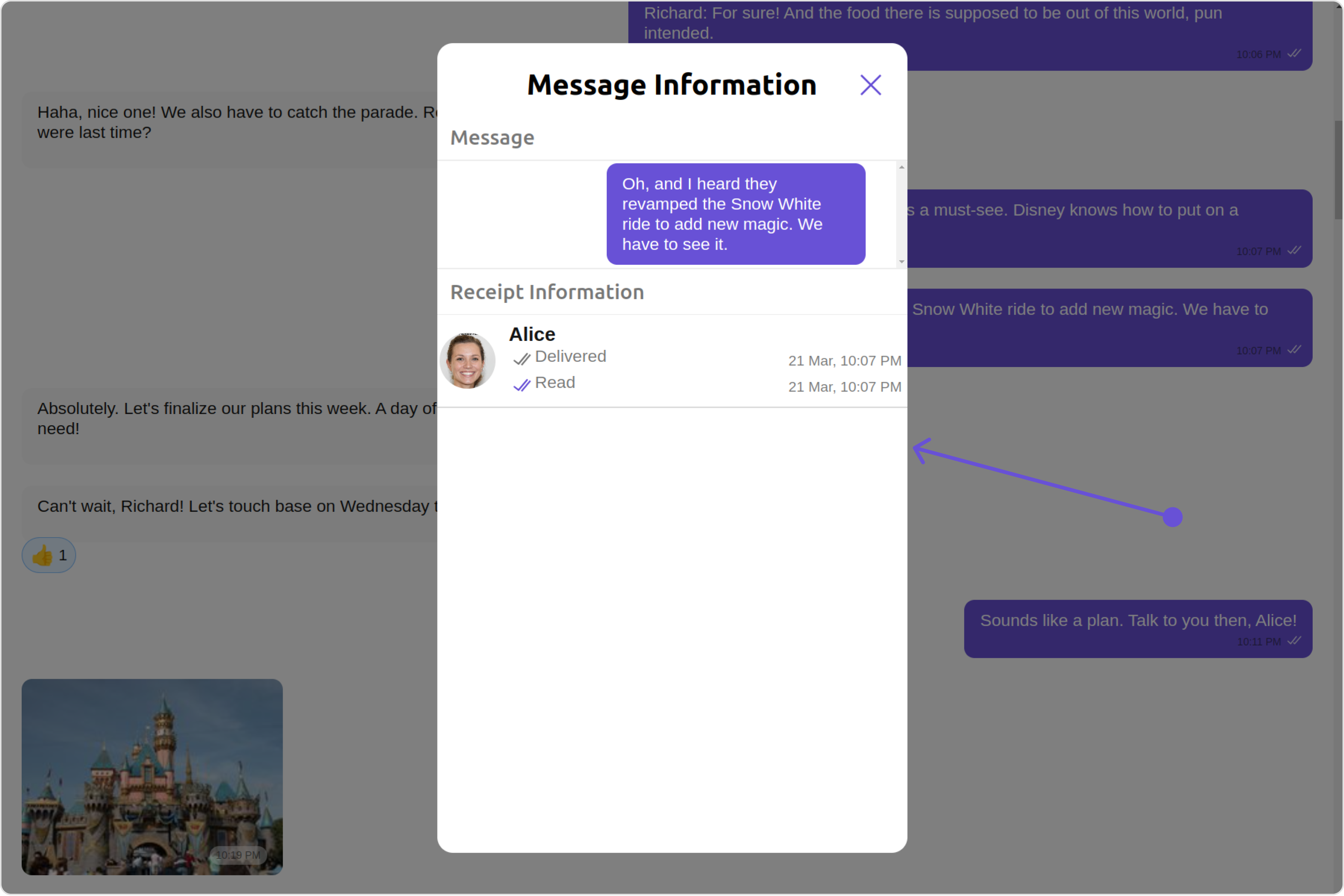

The MessageInformation is a Component designed to display message-related information, such as delivery and read receipts. It serves as an integral part of the CometChat UI UI Kit, extending the List Item class, which provides the underlying infrastructure for CometChat UI components. With its rich set of methods and properties, developers can easily customize and tailor the appearance and behavior of the message information view to suit the specific requirements of their application.

MessageInformation is comprised of the following Base Components:

Base Components	Description
List Item	This renders common components used across Conversations, Groups & Users.

Usage

Integration

The following code snippet illustrates how you can directly incorporate the Message Information component into your Application.

app.module.ts

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { CometChatMessageInformation } from '@cometchat/chat-uikit-angular';
import { AppComponent } from './app.component';

@NgModule({
  imports: [
    BrowserModule,
    CometChatMessageInformation
  ],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA]
})
export class AppModule { }

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{
  ngOnInit(): void {
    CometChat.getMessageDetails(messageId).then((message) => {
      if (message instanceof CometChat.TextMessage) {
        this.messageObject = message;
        this.textMessageContent = this.messageObject.getText();
      }
    }).catch((error) => {
      console.error('Error fetching message details:', error);
      this.textMessageContent = '';
    });
  }

  public messageObject!: CometChat.TextMessage;
  public textMessageContent: string | undefined;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding:"5px",
    border:"1px solid #e9b8f5",
    titleColor:"#8830f2",
    borderRadius:"20px",
    width:"100% !important"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<cometchat-message-information
*ngIf="messageObject"
[message]="messageObject"
[bubbleView]="bubbleViewTemplate"
></cometchat-message-information>
</div>

<ng-template #bubbleViewTemplate>
  <div>
    <cometchat-list-item
    [title]="textMessageContent"
    [listItemStyle]="listItemStyle"
    ></cometchat-list-item>
    </div>
</ng-template>

---

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onClose

The onClose event is typically triggered when the close button is clicked and it carries a default action. However, with the following code snippet, you can effortlessly override this default operation.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{
  ngOnInit(): void {
    CometChat.getMessageDetails(messageId).then((message) => {
      if (message instanceof CometChat.TextMessage) {
        this.messageObject = message;
        this.textMessageContent = this.messageObject.getText();
      }
    }).catch((error) => {
      console.error('Error fetching message details:', error);
      this.textMessageContent = '';
    });
  }

  public messageObject!: CometChat.TextMessage;
  public textMessageContent: string | undefined;
  public handleOnClose = () => {
    console.log("Your custom on close actions");
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding:"5px",
    border:"1px solid #e9b8f5",
    titleColor:"#8830f2",
    borderRadius:"20px",
    width:"100% !important"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<cometchat-message-information
*ngIf="messageObject"
[message]="messageObject"
[bubbleView]="bubbleViewTemplate"
[onClose]="handleOnClose"
></cometchat-message-information>
</div>

<ng-template #bubbleViewTemplate>
  <div>
    <cometchat-list-item
    [title]="textMessageContent"
    [listItemStyle]="listItemStyle"
    ></cometchat-list-item>
    </div>
</ng-template>

2. onError

This action doesn't change the behavior of the component but rather listens for any errors that occur in the MessageInformation component.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{
  ngOnInit(): void {
    CometChat.getMessageDetails(messageId).then((message) => {
      if (message instanceof CometChat.TextMessage) {
        this.messageObject = message;
        this.textMessageContent = this.messageObject.getText();
      }
    }).catch((error) => {
      console.error('Error fetching message details:', error);
      this.textMessageContent = '';
    });
  }

  public messageObject!: CometChat.TextMessage;
  public textMessageContent: string | undefined;
  public handleOnError = (error: CometChat.CometChatException) => {
    console.log("your custom on error action", error);
  };
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding:"5px",
    border:"1px solid #e9b8f5",
    titleColor:"#8830f2",
    borderRadius:"20px",
    width:"100% !important"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<cometchat-message-information
*ngIf="messageObject"
[message]="messageObject"
[bubbleView]="bubbleViewTemplate"
[onError]="handleOnError"
></cometchat-message-information>
</div>

<ng-template #bubbleViewTemplate>
  <div>
    <cometchat-list-item
    [title]="textMessageContent"
    [listItemStyle]="listItemStyle"
    ></cometchat-list-item>
    </div>
</ng-template>

---

Filters

MessageInformation component does not have any available filters.

---

Events

MessageInformation component does not have any available events.

---

Customization

To fit your app's design requirements, you can customize the appearance of the MessageInformation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. MessageInformationStyle

To modify the styling, you can apply the MessageInformationStyle to the MessageInformation Component using the messageInformationStyle property.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import { MessageInformationStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{
  ngOnInit(): void {
    CometChat.getMessageDetails(messageId).then((message) => {
      if (message instanceof CometChat.TextMessage) {
        this.messageObject = message;
        this.textMessageContent = this.messageObject.getText();
      }
    }).catch((error) => {
      console.error('Error fetching message details:', error);
      this.textMessageContent = '';
    });
  }

  public messageObject!: CometChat.TextMessage;
  public textMessageContent: string | undefined;
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding:"5px",
    border:"1px solid #e9b8f5",
    titleColor:"#8830f2",
    borderRadius:"20px",
    width:"100% !important"
  });
   messageInformationStyle = new MessageInformationStyle({
    background:'#ffffff',
    border:'2px solid #faf5ff',
    borderRadius:'10px',
    height:'500px',
    width:'400px',
    captionTextColor:"#630bba"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<cometchat-message-information
*ngIf="messageObject"
[message]="messageObject"
[bubbleView]="bubbleViewTemplate"
[messageInformationStyle]="messageInformationStyle"
></cometchat-message-information>
</div>

<ng-template #bubbleViewTemplate>
  <div>
    <cometchat-list-item
    [title]="textMessageContent"
    [listItemStyle]="listItemStyle"
    ></cometchat-list-item>
    </div>
</ng-template>

The following properties are exposed by MessageInformationStyle:

Property	Description	Code
titleTextFont	Sets the font for the title	titleTextFont?: string;
titleTextColor	Sets the font for the title	titleTextColor?: string;
subtitleTextColor	Sets the text color for the subtitle	subtitleTextColor?: string;
subtitleTextFont	Sets the text font for the subtitle	subtitleTextFont?: string;
emptyStateTextColor	Sets the color for the empty state text	emptyStateTextColor?: string;
emptyStateTextFont	Sets the font for the empty state text	emptyStateTextFont?: string;
errorStateTextFont	Sets the text font for the error state text	errorStateTextFont?: string;
errorStateTextColor	Sets the text font for the error state text	errorStateTextColor
captionTextFont	Sets the text font for the caption	captionTextFont?: string;
captionTextColor	Sets the text color for the caption	captionTextColor?: string;
sendIconTint	Sets the icon color for the send Icon	sendIconTint?: string;
loadingIconTint	Sets the icon color for the loading Icon	loadingIconTint?: string;
readIconTint	Sets the icon color for the read Icon	readIconTint?: string;
deliveredIconTint	Sets the icon color for the delivered Icon	deliveredIconTint?: string;
dividerTint	Sets the icon color for the separator	dividerTint?: string;
border	Used to set border	border?: string,
borderRadius	Used to set border radius	borderRadius?: string;
background	Used to set background colour	background?: string;
height	Used to set height	height?: string;
width	Used to set width	width?: string;

---

2. ListItemStyle

To apply customized styles to the List Item component in the MessageInformation Component, you can use the following code snippet. For further insights on List Item Styles refer

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{
  ngOnInit(): void {
    CometChat.getMessageDetails(messageId).then((message) => {
      if (message instanceof CometChat.TextMessage) {
        this.messageObject = message;
        this.textMessageContent = this.messageObject.getText();
      }
    }).catch((error) => {
      console.error('Error fetching message details:', error);
      this.textMessageContent = '';
    });
  }

  public messageObject!: CometChat.TextMessage;
  public textMessageContent: string | undefined;
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding:"5px",
    border:"1px solid #e9b8f5",
    titleColor:"#8830f2",
    borderRadius:"20px",
    width:"100% !important"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<cometchat-message-information
*ngIf="messageObject"
[message]="messageObject"
[bubbleView]="bubbleViewTemplate"
[listItemStyle]="listItemStyle"
></cometchat-message-information>
</div>

<ng-template #bubbleViewTemplate>
  <div>
    <cometchat-list-item
    [title]="textMessageContent"
    [listItemStyle]="listItemStyle"
    ></cometchat-list-item>
    </div>
</ng-template>

---

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{
  ngOnInit(): void {
    CometChat.getMessageDetails(messageId).then((message) => {
      if (message instanceof CometChat.TextMessage) {
        this.messageObject = message;
        this.textMessageContent = this.messageObject.getText();
      }
    }).catch((error) => {
      console.error('Error fetching message details:', error);
      this.textMessageContent = '';
    });
  }

  public messageObject!: CometChat.TextMessage;
  public textMessageContent: string | undefined;
  title='Custom Title';
  CloseICon='your custom close icon';

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding:"5px",
    border:"1px solid #e9b8f5",
    titleColor:"#8830f2",
    borderRadius:"20px",
    width:"100% !important"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<cometchat-message-information
*ngIf="messageObject"
[message]="messageObject"
[bubbleView]="bubbleViewTemplate"
[title]="title"
[closeIconURL]="CloseICon"
></cometchat-message-information>
</div>

<ng-template #bubbleViewTemplate>
  <div>
    <cometchat-list-item
    [title]="textMessageContent"
    [listItemStyle]="listItemStyle"
    ></cometchat-list-item>
    </div>
</ng-template>

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
message	Sets the message to be displayed in the message information view.	[message]="messageObject"
errorStateView	used to show the error state view in case of an error occurred	[errorStateView]="getErrorStateView"
deliveredIcon	It is used to pass user defined image in to the MessageReceipt, to change the icon When Message is delivered.	deliveredIcon='your custom delivered icon'
readIcon	It is used to pass user defined image in to the MessageReceipt, to change the icon When Message is read.	readIcon='your custom read icon'
receiptDatePattern	used to set the date pattern for delivered and read date time	[receiptDatePattern]="getReceiptDatePattern"
emptyStateText	used to set a custom text response when fetching the users has returned an empty list	emptyStateText='custom empty state text'

How to integrate CometChatMesssageInformation ?

Since CometChatMesssageInformation is a component, it can be added directly to your application.

app.module.ts

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { CometChatMessageInformation } from '@cometchat/chat-uikit-angular';
import { AppComponent } from './app.component';

@NgModule({
  imports: [
    BrowserModule,
    CometChatMessageInformation
  ],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA]
})
export class AppModule { }

app.component.ts

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{
  ngOnInit(): void {
    CometChat.getMessageDetails(messageId).then((message) => {
      if (message instanceof CometChat.TextMessage) {
        this.messageObject = message;
        this.textMessageContent = this.messageObject.getText();
      }
    }).catch((error) => {
      console.error('Error fetching message details:', error);
      this.textMessageContent = '';
    });
  }

  public messageObject!: CometChat.TextMessage;
  public textMessageContent: string | undefined;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding:"5px",
    border:"1px solid #e9b8f5",
    titleColor:"#8830f2",
    borderRadius:"20px",
    width:"100% !important"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

app.component.html

<cometchat-message-information
*ngIf="messageObject"
[message]="messageObject"
[bubbleView]="bubbleViewTemplate"
></cometchat-message-information>
</div>

<ng-template #bubbleViewTemplate>
  <div>
    <cometchat-list-item
    [title]="textMessageContent"
    [listItemStyle]="listItemStyle"
    ></cometchat-list-item>
    </div>
</ng-template>

---

Properties

property	type	Description
template	CometChatMessageTemplate	Sets a custom message template for the message information view.
message	BaseMessage	Sets the message to be displayed in the message information view.
title	String	Sets the title that will be displayed at the top of the message information.
listItemView	TemplateRef<any>	Sets a custom list item view for individual entries in the message information view.
subtitleView	TemplateRef<any>	Sets a custom subtitle view for individual entries in the message information view.
receiptDatePattern	((timestamp: number) => string)	Sets a custom date pattern for formatting receipt dates in the message information view.
messageInformationStyle	MessageInformationStyle	Sets the overall style and appearance for the message information view.
readIcon	string	Sets the custom icon resource for read receipts in the message information view.
deliveredIcon	string	Sets the custom icon resource for delivered receipts in the message information view.
listItemStyle	ListItemStyle	Sets the style for list items in the message information view.
onError	((error: CometChatException) => void)	Sets the error callback to handle any errors that may occur within the message information view.
emptyStateText	String	Sets the text to be displayed in the empty state view of the message information view.
errorStateText	String	Sets the error message to be displayed in the error state view of the message information view.
emptyStateView	TemplateRef<any>	Sets the custom layout resource for the empty state view of the message information view.
errorStateView	TemplateRef<any>	Sets the custom layout resource for the error state view of the message information view.
loadingStateView	TemplateRef<any>	Sets the custom layout resource for the loading state view of the message information view.
