Message Bubble Styling

Overview

The MessageBubble styling API allows developers to customize the appearance of incoming and outgoing message bubbles globally or at the component level. This includes various message types such as text, image, video, audio, file, and document bubbles.

There are two primary classes for styling message bubbles:

  • CometChat Incoming Message Bubble Style
  • CometChat Outgoing Message Bubble Style

Both classes provide properties for customizing background color, border, corner radius, and specific styles for individual message types.

Properties

Global Styling (Static Variables)

  • backgroundColor: The background color for message bubbles.
  • backgroundDrawable: A background image for message bubbles.
  • borderWidth: The width of the border for message bubbles.
  • borderColor: The color of the border for message bubbles.
  • cornerRadius: The corner radius for message bubbles.

Specific Message Type Styles:

  • textBubbleStyle: Style for text message bubbles.
  • imageBubbleStyle: Style for image message bubbles.
  • videoBubbleStyle: Style for video message bubbles.
  • audioBubbleStyle: Style for audio message bubbles.
  • fileBubbleStyle: Style for file message bubbles.
  • documentBubbleStyle: Style for document message bubbles.

Customization Examples

Customizing Incoming Message Bubble

The following code snippet shows how customize the incoming message bubble style:

CometChatMessageBubble.style.incoming.backgroundColor = UIColor(hexString: "#F76808")
CometChatMessageBubble.style.incoming.borderWidth = 2
CometChatMessageBubble.style.incoming.borderColor = UIColor.black

Customizing Outgoing Message Bubble

The following code snippet shows how customize the outgoing message bubble style:

CometChatMessageBubble.style.outgoing.backgroundColor = UIColor(hexString: "#F76808")
CometChatMessageBubble.style.outgoing.borderWidth = 2
CometChatMessageBubble.style.outgoing.borderColor = UIColor.black

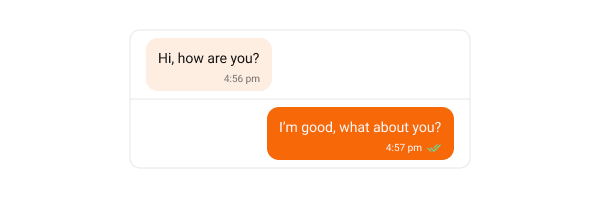

Text Bubble

Text bubbles display plain text messages, which are the most common message type.

The following code snippet shows how customize the text message bubble:

CometChatMessageBubble.style.incoming.textBubbleStyle.backgroundColor = UIColor(hexString: "#FEEDE1")

CometChatMessageBubble.style.outgoing.textBubbleStyle.backgroundColor = UIColor(hexString: "#F76808")

Default


Customization

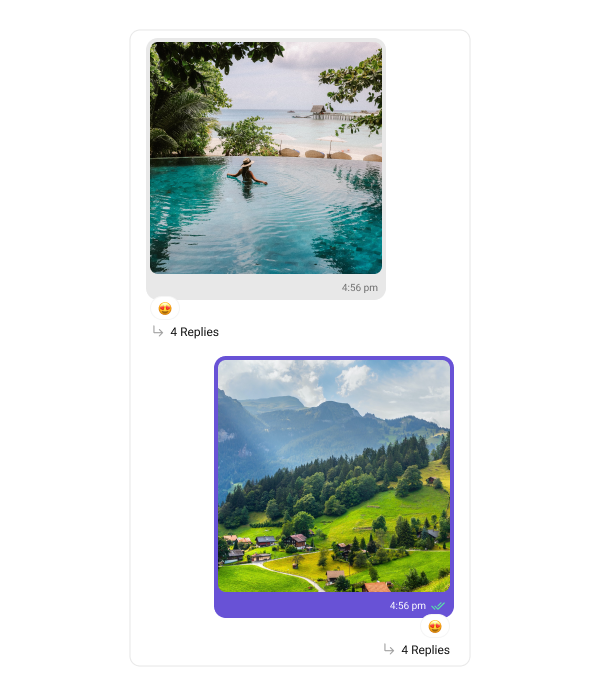

Image Bubble

Image bubbles display messages with images.

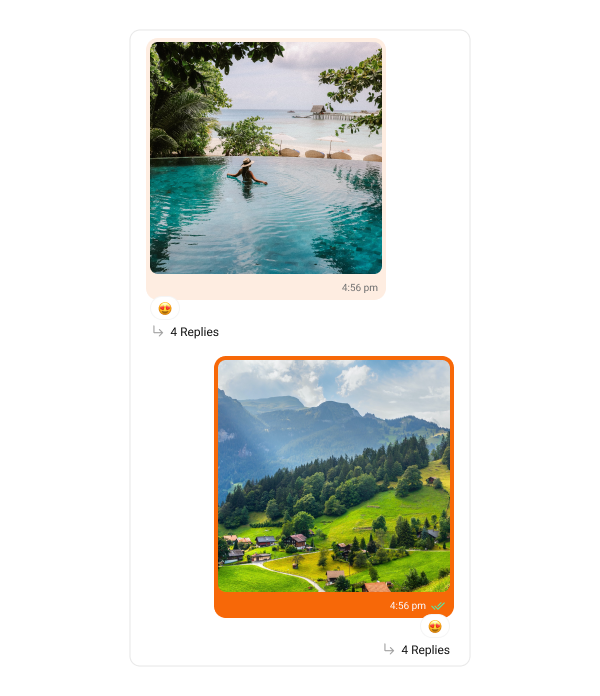

The following code snippet shows how customize the Image message bubble:

CometChatMessageBubble.style.incoming.imageBubbleStyle.backgroundColor = UIColor(hexString: "#FEEDE1")

CometChatMessageBubble.style.outgoing.imageBubbleStyle.backgroundColor = UIColor(hexString: "#F76808")

Default


Customization

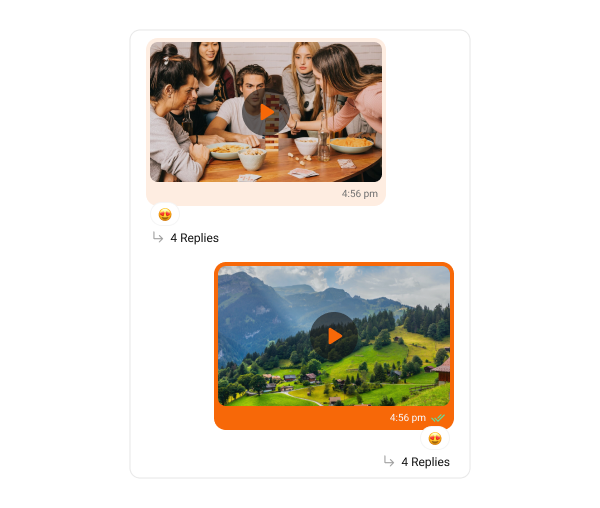

Video Bubble

Video bubbles display messages with video clips.

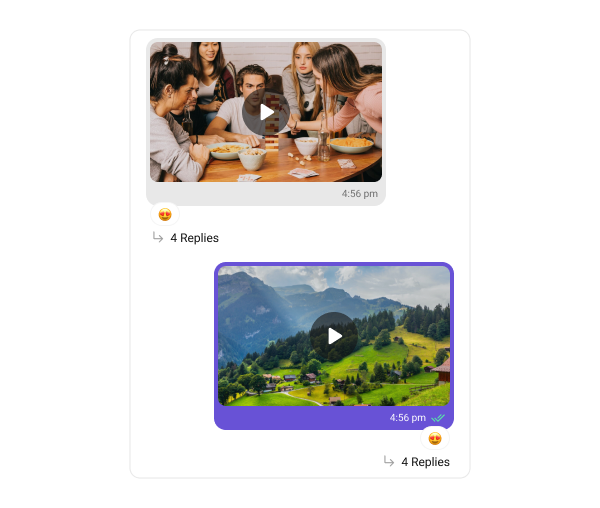

The following code snippet shows how customize the Video message bubble:

CometChatMessageBubble.style.incoming.videoBubbleStyle.backgroundColor = UIColor(hexString: "#FEEDE1")
CometChatMessageBubble.style.incoming.videoBubbleStyle.playButtonTint = UIColor(hexString: "#F76808")

CometChatMessageBubble.style.outgoing.deleteBubbleStyle.backgroundColor = UIColor(hexString: "#F76808")
CometChatMessageBubble.style.outgoing.videoBubbleStyle.playButtonTint = UIColor(hexString: "#F76808")

Default


Customization


Audio Bubble

Audio bubbles display Audio messages.

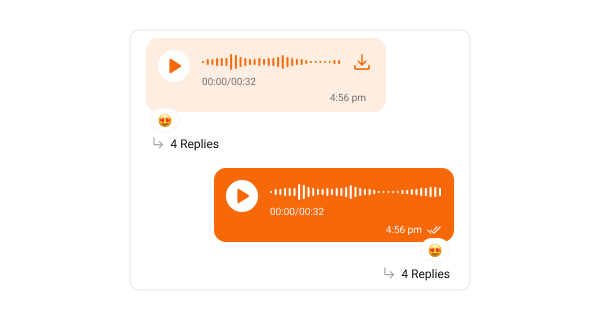

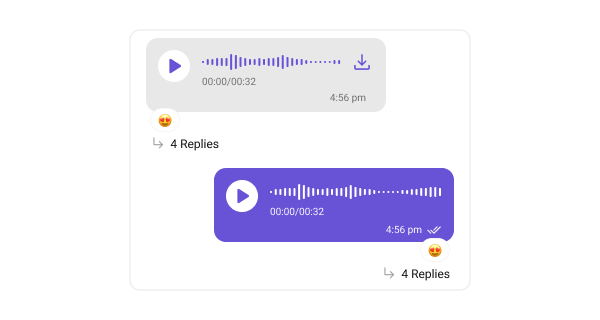

The following code snippet shows how customize the Audio message bubble:

CometChatMessageBubble.style.incoming.audioBubbleStyle.audioWaveFormTintColor = UIColor(hexString: "#F76808")
CometChatMessageBubble.style.incoming.audioBubbleStyle.playImageTintColor = UIColor(hexString: "#F76808")
CometChatMessageBubble.style.incoming.audioBubbleStyle.backgroundColor = UIColor(hexString: "#FEEDE1")

CometChatMessageBubble.style.outgoing.audioBubbleStyle.playImageTintColor = UIColor(hexString: "#F76808")
CometChatMessageBubble.style.outgoing.audioBubbleStyle.backgroundColor = UIColor(hexString: "#F76808")

Default


Customization


Poll Bubble

Poll bubbles display messages with polling.

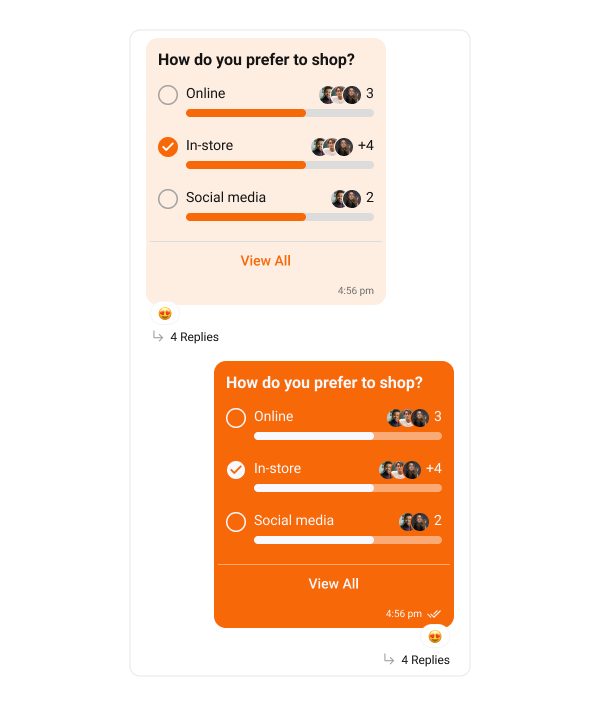

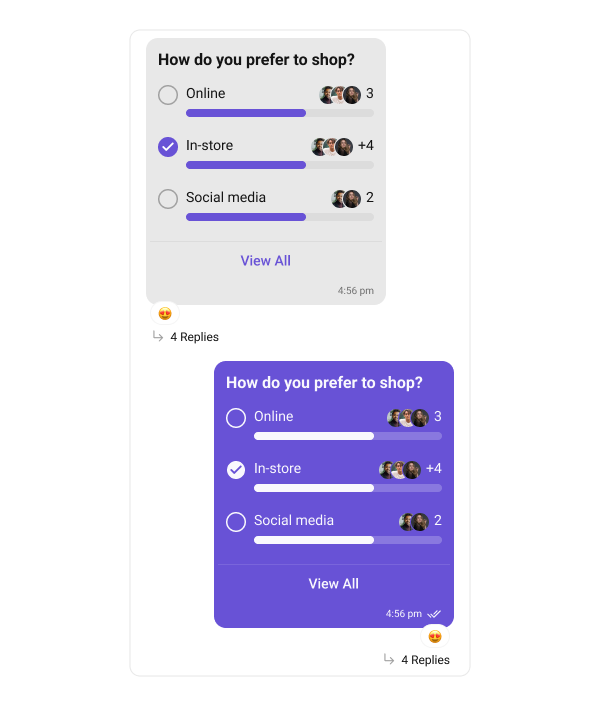

The following code snippet shows how customize the Poll message bubble:

CometChatMessageBubble.style.incoming.pollBubbleStyle.optionProgressTintColor = UIColor(hexString: "#F76808")
CometChatMessageBubble.style.incoming.pollBubbleStyle.selectedPollImageTint = UIColor(hexString: "#F76808")
CometChatMessageBubble.style.incoming.pollBubbleStyle.backgroundColor = UIColor(hexString: "#FEEDE1")

CometChatMessageBubble.style.outgoing.pollBubbleStyle.backgroundColor = UIColor(hexString: "#F76808")

Default


Customization

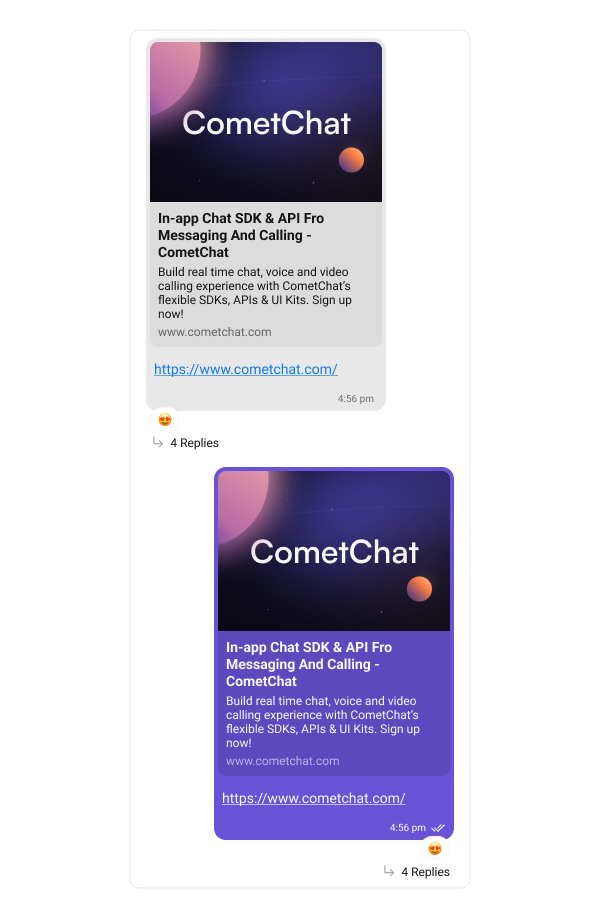

The Link Preview Bubble is designed to display a preview of links shared in messages. It enriches the messaging experience by showing details such as the page title, description, and an image from the linked content, making links more engaging and informative.

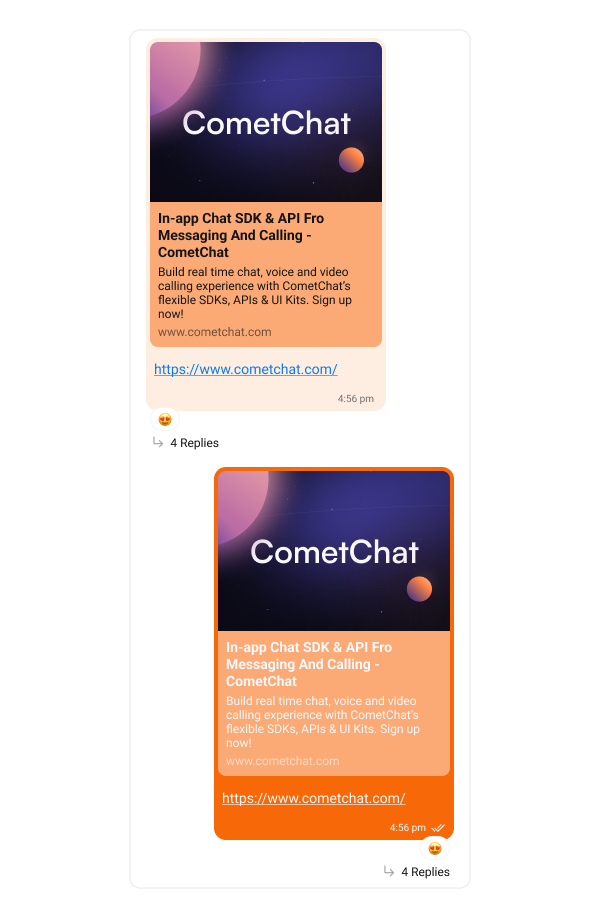

The following code snippet shows how customize the Link preview message bubble:

CometChatMessageBubble.style.incoming.linkPreviewBubbleStyle.backgroundColor = UIColor(hexString: "#FEEDE1")

CometChatMessageBubble.style.outgoing.linkPreviewBubbleStyle.backgroundColor = UIColor(hexString: "#F76808")

Default


Customization

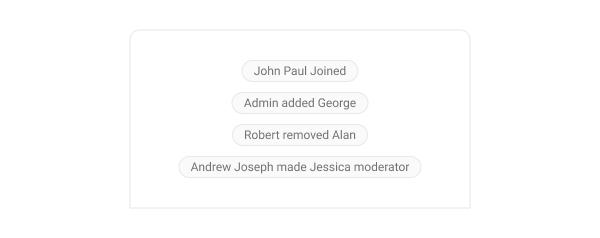

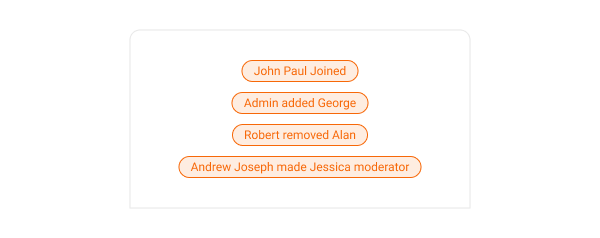

Action Bubble

Action bubbles provide a customizable interface for displaying a variety of actions, such as group actions, within a chat.

The following code snippet shows how customize the action message bubble:

CometChatMessageBubble.actionBubbleStyle.backgroundColor = UIColor(hexString: "#FEEDE1")
CometChatMessageBubble.actionBubbleStyle.bubbleTextColor = UIColor(hexString: "#F76808")
CometChatMessageBubble.actionBubbleStyle.borderColor = UIColor(hexString: "#F76808")

Default


Customization

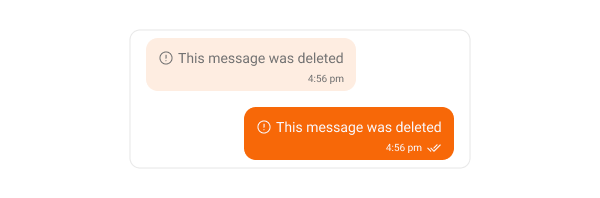

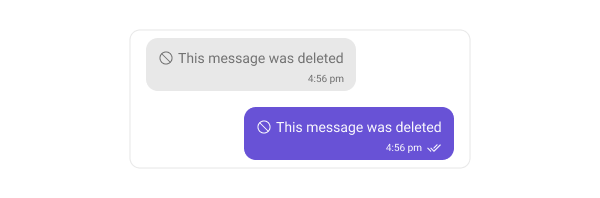

Delete Bubble

Delete bubbles displays messages that have been deleted by the sender. These indicate the message removal within the chat interface.

The following code snippet shows how customize the delete message bubble:

CometChatMessageBubble.style.incoming.deleteBubbleStyle.backgroundColor = UIColor(hexString: "#FEEDE1")

CometChatMessageBubble.style.outgoing.deleteBubbleStyle.backgroundColor = UIColor(hexString: "#F76808")

Default


Customization
