Conversations

Overview

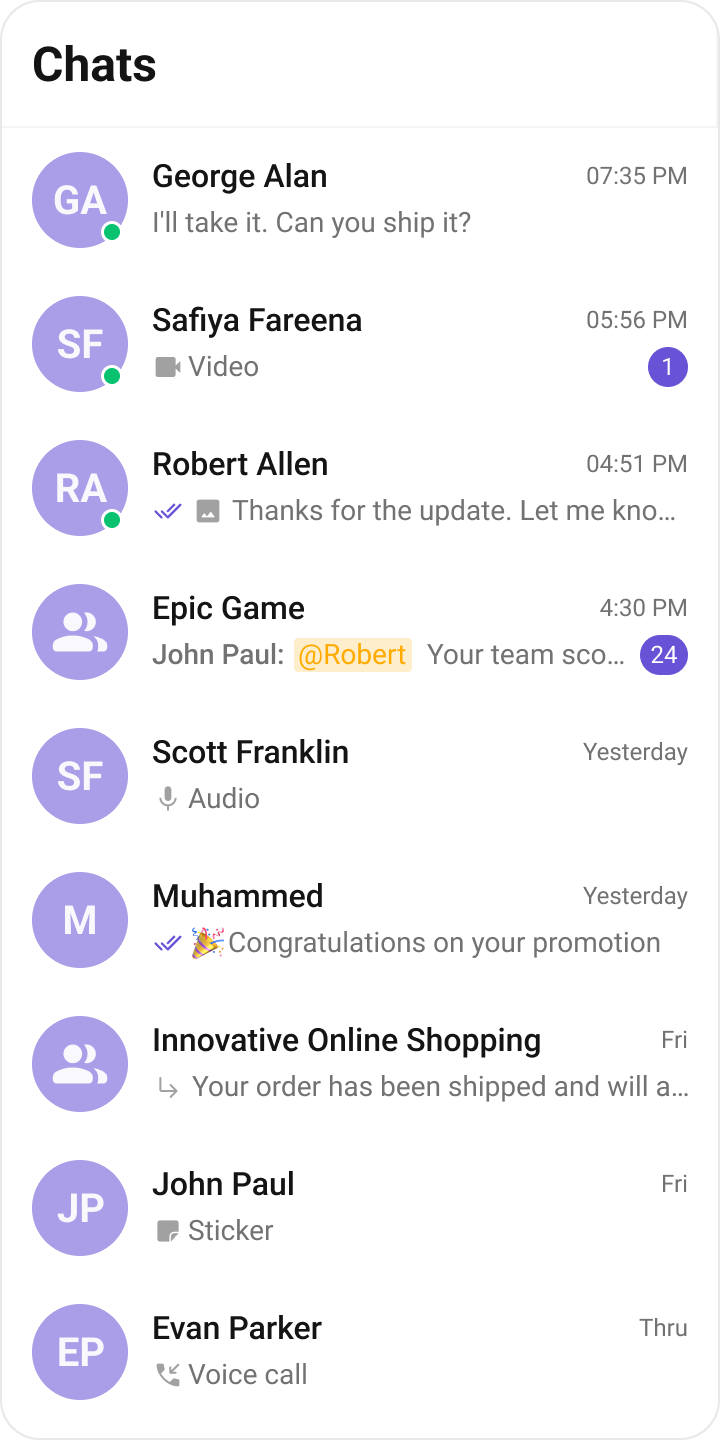

The CometChatConversations is a Widget, That shows all conversations related to the currently logged-in user,

Android
iOS

Usage

Integration

As CometChatConversations is a widget, it can be initiated either by tapping a button or through the trigger of any event. It offers multiple parameters and methods for tailoring its user interface.

You can launch CometChatConversations directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch `CometChatConversations`

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => const CometChatConversations()));

2. Embedding `CometChatConversations` as a Widget in the build Method

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class Conversations extends StatefulWidget {
  const Conversations({super.key});

  @override
  State<Conversations> createState() => _ConversationsState();
}

class _ConversationsState extends State<Conversations> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        child: CometChatConversations(),
      ),
    );
  }
}

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

onItemTap

onItemTap is triggered when you click on a ListItem of the CometChatConversations widget. This onItemTap method proves beneficial when a user intends to customize the click behavior in CometChatConversations.

Dart

CometChatConversations(
    onItemTap: (conversation) => {
        // TODO("Not yet implemented")
    }
),

2. onBack

This onBack method becomes valuable when a user needs to override the action triggered upon pressing the back button in CometChatConversations.

Dart

CometChatConversations(
    onBack: () => {
        // TODO("Not yet implemented")
    },
),

3. setOnSelection

The onSelection feature enables selection with modes: SelectionMode.single and SelectionMode.multiple.

The onSelection event is triggered upon the completion of a selection in onSelection. This returns the selected conversations list when the callback is triggered. It can be executed with any button or action.

Dart

CometChatConversations(
    selectionMode: SelectionMode.multiple,
    onSelection: (list) => {
        // TODO("Not yet implemented")
    },
),

4. onError

This method proves helpful when a user needs to customize the action taken upon encountering an error in CometChatConversations.

Dart

CometChatConversations(
    onError: (e) {
        // TODO("Not yet implemented")
    },
)

Filters

You can set ConversationsRequestBuilder in the CometChatConversations widget to filter the conversation list. You can modify the builder as per your specific requirements with multiple options available to know more refer to ConversationsRequestBuilder.

Dart

CometChatConversations(
    conversationsRequestBuilder: ConversationsRequestBuilder()
        ..conversationType = "user"
        ..limit = 10
        ..withTags = false,
)

You can set filters using the following parameters:

Property	Description	Code
Build	Builds and returns an `ConversationsRequest` object.	`build(): ConversationsRequest`
Conversation Type	Type of the conversation.	`conversationType: String?`
Limit	Number of results to limit the query.	`limit: int?`
Tags	Tags for filtering.	`tags: List<String>?`
With Tags	Flag to include tags.	`withTags: bool?`
With User And Group Tags	Flag to include user and group tags.	`withUserAndGroupTags: bool?`

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

1. Conversation Deleted

This ccConversationDeleted will be emitted when the user deletes a conversation

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';

class _YourScreenState extends State<YourScreen> with CometChatConversationEventListener {

  @override
  void initState() {
    super.initState();
    CometChatConversationEvents.addConversationListListener("listenerId", this); // Add the listener
  }

  @override
  void dispose(){
    super.dispose();
    CometChatConversationEvents.removeConversationListListener("listenerId"); // Remove the listener
  }

  @override
  void ccConversationDeleted(Conversation conversation) {
    // TODO("Not yet implemented")
  }
}

Customization

To align with your app's design specifications, you have the flexibility to customize the appearance of the conversation widget. We offer accessible methods that empower you to tailor the experience and functionality to meet your unique requirements.

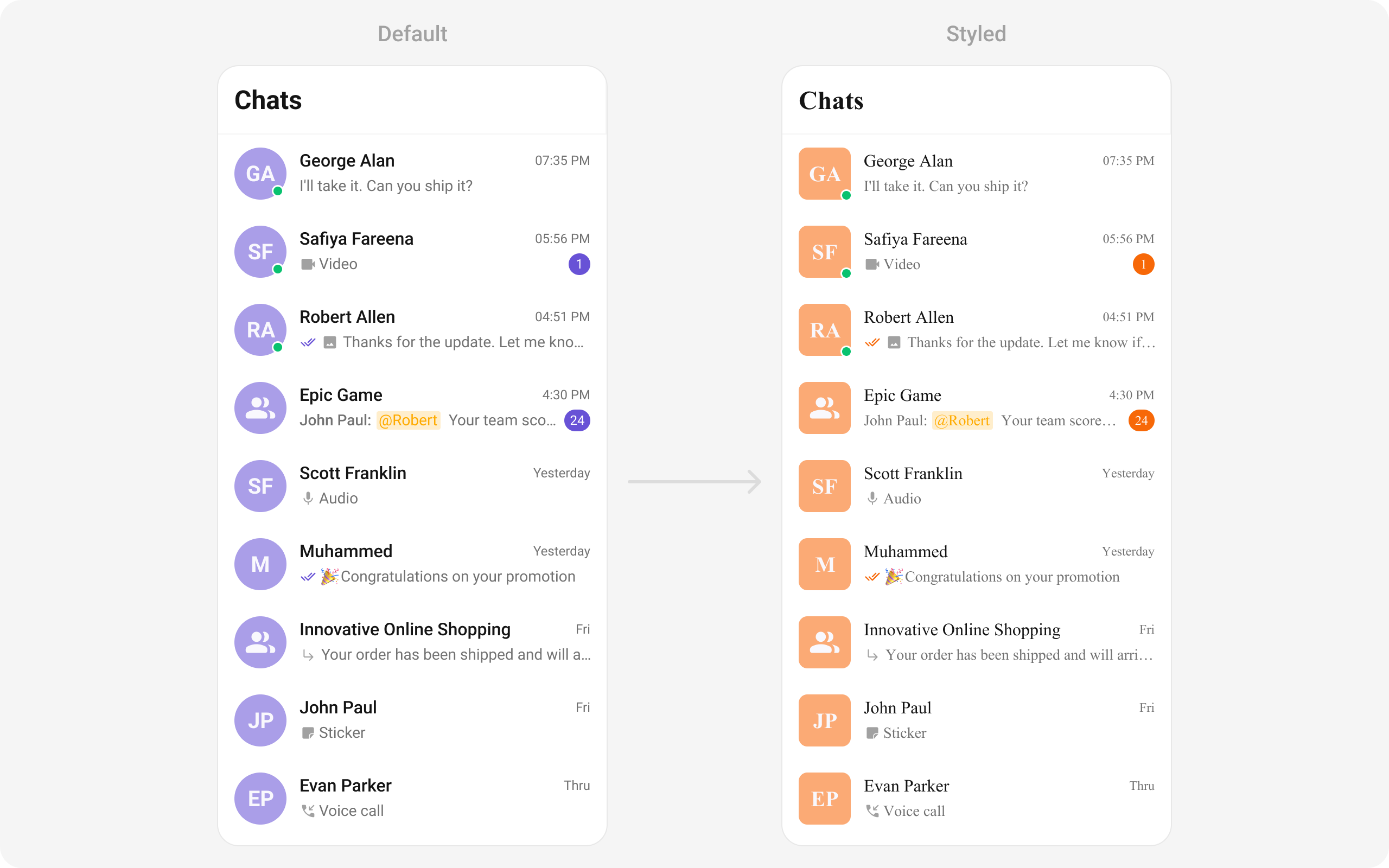

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

1. Conversation Style

You can set the ConversationsStyle to the CometChatConversations Widget to customize the styling.

Dart

CometChatConversations(
    conversationsStyle: ConversationsStyle(
        background: Colors.white300,
        backIconTint: Colors.red,
    )
)

Android
iOS

List of properties exposed by ConversationsStyle

Property	Description	Code
Back Icon Tint	Used to set the color of the back icon in the app bar.	`backIconTint: Color`
Background	Used to set background color.	`background: Color`
Border	Used to set border.	`border: BoxBorder`
Border Radius	Used to set border radius.	`borderRadius: double`
Empty Text Style	Used to set the style of the response text shown when fetching the list of conversations is empty.	`emptyTextStyle: TextStyle`
Error Text Style	Used to set the style of the response text shown when an error occurs while fetching conversations.	`errorTextStyle: TextStyle`
Gradient	Used to set a gradient background.	`gradient: Gradient`
Height	Used to set height.	`height: double`
Last Message Style	Used to customize the appearance of the last message in the conversation item's subtitle.	`lastMessageStyle: TextStyle`
Loading Icon Tint	Used to set the color of the loading icon shown during conversations fetching.	`loadingIconTint: Color`
Online Status Color	Used to set the color of the status indicator if a user is online.	`onlineStatusColor: Color`
Password Group Icon Background	Used to set the color of the icon shown as a status indicator if the group is password protected.	`passwordGroupIconBackground: Color`
Private Group Icon Background	Used to set the color of the icon shown as a status indicator if the group is private.	`privateGroupIconBackground: Color`
Separator Color	Used to set the color of the divider separating conversation items.	`separatorColor: Color`
Thread Indicator Style	Used to customize the appearance of the subtitle if the last message was made inside a thread.	`threadIndicatorStyle: TextStyle`
Title Style	Used to set the style of the title in the app bar.	`titleStyle: TextStyle`
Typing Indicator Style	Used to customize the appearance of the response text when participants are typing in a conversation.	`typingIndicatorStyle: TextStyle`
Width	Used to set width.	`width: double`

2. Avatar Style

To apply customized styles to the Avatar widget in the CometChatConversations Widget, you can use the following code snippet. For more information, visit Avatar Styles.

Dart

CometChatConversations(
    avatarStyle: AvatarStyle(
        border: Border.all(width: 2),
        borderRadius: 20,
        background: Colors.red
    ),
)

3. StatusIndicator Style

To apply customized styles to the StatusIndicator widget in the CometChatConversations Widget, you can use the following code snippet. For more information, visit Indicator Styles.

Dart

CometChatConversations(
    statusIndicatorStyle: const StatusIndicatorStyle(
        borderRadius: 10,
        gradient: LinearGradient(colors: [Colors.red, Colors.orange], begin: Alignment.topLeft, end: Alignment.bottomRight)
    ),
)

4. Date Style

To apply customized styles to the Date widget in the Conversations Widget, you can use the following code snippet. For more information, visit Date Styles.

Dart

CometChatConversations(
    dateStyle: DateStyle(
        background: Colors.white300,
        borderRadius: 20,
        border: Border.all(color: Colors.red, width: 1),
    ),
)

5. Badge Style

To apply customized styles to the Badge widget in the Conversations Widget, you can use the following code snippet. For more information, visit Badge Styles

Dart

CometChatConversations(
    badgeStyle: BadgeStyle(
        border: Border.all(width: 2, color: Colors.red),
        background: Colors.orange
    ),
)

6. LisItem Style

To apply customized styles to the List Item widget in the Conversations Widget, you can use the following code snippet. For more information, visit List Item Styles.

Dart

CometChatConversations(
    conversationsStyle: const ConversationsStyle(
        background: Color(0xFFB39DDB)
    ),
    listItemStyle: const ListItemStyle(
        background: Color(0xFFB39DDB),
    ),
)

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Android
iOS

Dart

 CometChatConversations(
    showBackButton: false,
    title: "Your Title",
)

Android
iOS

List of Poperties exposed by CometChatConversations

Property	Description	Code
Activate Selection	Used to specify if the listed conversations can be selected, selection can be activated on tap or on long press	`activateSelection: ActivateSelection`
AppBar Options	Used to set the options available in the app bar	`appBarOptions: List<Widget>`
Back Button	Used to set back button located in the app bar	`backButton: Widget`
Controller	Used to programmatically update the scroll physics of list containing the conversations	`controller: ScrollController`
Date Pattern	Used to display a custom string instead of the timestamp show at the tail of the conversation item	`datePattern: String Function(Conversation conversation)`
Disable Mentions	Disables mentions formatter if true	`disableMentions: bool`
Disable Typing	If true stops indicating if a participant in a conversation is typing	`disableTyping: bool`
Empty State Text	Used to set a custom text response when fetching the conversations has returned an empty list	`emptyStateText: String`
Error State Text	Used to set a custom text response when some error occurs on fetching the list of conversations	`errorStateText: String`
Hide Appbar	Toggle visibility for app bar	`hideAppbar: bool`
Hide Error	Used to hide error on fetching conversations	`hideError: bool`
Hide Receipt	Used to toggle visibility of message receipts shown in the subtitle of the conversation	`hideReceipt: bool`
Hide Search	Used to toggle visibility for search box	`hideSearch: bool`
Hide Separator	Used to hide the divider separating the conversation items	`hideSeparator: bool`
Hide Section Separator	Used to hide the text separating grouped conversation items	`hideSectionSeparator: bool`
Private Group Icon	Used to set icon shown in place of status indicator if the conversation is taking place in a private group	`privateGroupIcon: Widget`
Protected Group Icon	Used to set icon shown in place of status indicator if the conversation is taking place in a password protected group	`protectedGroupIcon: Widget`
Search Box Icon	Used to set search Icon in the search field	`searchBoxIcon: Widget`
Search Placeholder	Used to set placeholder text for the search field	`searchPlaceholder: String`
Selection Icon	Change selection icon	`selectionIcon: Widget`
Sent Icon	Used to customize the receipt icon shown in the subtitle of the conversation item if hideReceipt is false and if the status of the last message in the conversation is sent	`sentIcon: Widget`
Show Back Button	Used to toggle visibility for back button	`showBackButton: bool`
Theme	Used to set custom theme	`theme: CometChatTheme`
Title	Used to set the title in the app bar	`title: String`
Typing Indicator Text	Used to customize the text response shown in the subtitle of the conversation item if a participant of a conversation is typing	`typingIndicatorText: String`

Advanced

For advanced-level customization, you can set custom views to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your own widget and then incorporate those into the widget.

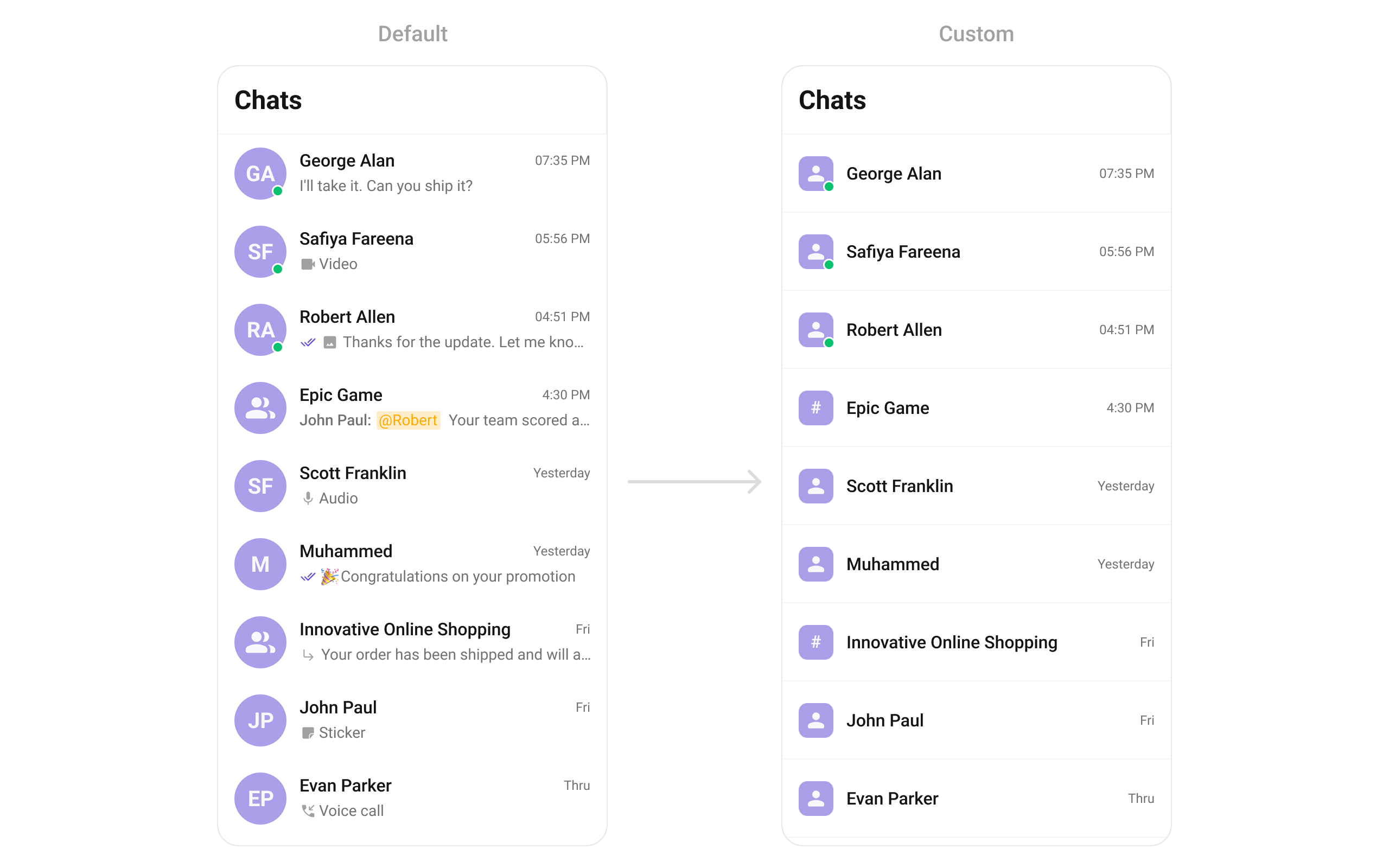

ListItemView

With this function, you can assign a custom ListItem view to the CometChatConversations Widget.

Dart

CometChatConversations(
    listItemView: (conversation) {
      return Placeholder();
    },
)

Android
iOS

Example

Here is the complete example for reference:

Dart

custom_list_item.dart
import 'package:flutter/material.dart';
import 'package:flutter_uikit_docs_sample_app/utils/custom_colors.dart';
import 'package:intl/intl.dart';

class CustomListItems extends StatelessWidget {
  final String name;
  final DateTime? lastMessageTime;
  final String? avatarUrl;

  const CustomListItems({
    super.key,
    required this.name,
    this.lastMessageTime,
    this.avatarUrl,
  });

  String formatDateTime(DateTime dateTime) {
    final now = DateTime.now();
    final difference = now.difference(dateTime);

    if (difference.inDays == 0) {
      return DateFormat('HH:mm').format(dateTime);
    } else if (difference.inDays == 1) {
      return 'Yesterday';
    } else {
      return DateFormat('yyyy-MM-dd').format(dateTime);
    }
  }

  @override
  Widget build(BuildContext context) {
    return Container(
      margin: const EdgeInsets.only(top: 5, bottom: 5),
      padding: const EdgeInsets.all(8.0),
      decoration: BoxDecoration(
        border: Border.all(color: Color(0xFF6851D6), width: 1), // Example border color
        borderRadius: BorderRadius.circular(8.0),
        color: Color(0xFFEEEEEE)
      ),
      child: Row(
        crossAxisAlignment: CrossAxisAlignment.center,
        children: [
          Expanded(
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              mainAxisAlignment: MainAxisAlignment.center,
              children: [
                Text(
                  name,
                  style: const TextStyle(
                    fontWeight: FontWeight.bold,
                  ),
                ),
                lastMessageTime == null ? Container() : Text(formatDateTime(lastMessageTime!)),
              ],
            ),
          ),
          const SizedBox(width: 8.0),
          if (avatarUrl != null)
            ClipOval(
              child: Image.network(
                avatarUrl!,
                width: 40.0,
                height: 40.0,
                fit: BoxFit.cover,
                errorBuilder: (context, error, stackTrace) {
                  return const Icon(
                    Icons.person,
                    size: 40.0,
                  );
                },
              ),
            )
          else
            const Icon(
              Icons.person,
              size: 40.0,
            ),
        ],
      ),
    );
  }
}

Dart

main.dart
CometChatConversations(
  listItemView: (conversation) {
    return CustomListItems(
      name: (conversation.conversationWith) is User ? ((conversation.conversationWith) as User).name : ((conversation.conversationWith) as Group).name,
      lastMessageTime: conversation.updatedAt!,
      avatarUrl: (conversation.conversationWith) is User ? ((conversation.conversationWith) as User).avatar : ((conversation.conversationWith) as Group).icon,
    );
  },
)

TextFormatters

Assigns the list of text formatters. If the provided list is not null, it sets the list. Otherwise, it assigns the default text formatters retrieved from the data source. To configure the existing Mentions look and feel check out CometChatMentionsFormatter

Example

Here is the complete example for reference:

Dart

CometChatConversations(
  textFormatters: [
    CometChatMentionsFormatter(
      messageBubbleTextStyle: (theme, alignment,{forConversation = false}) =>
          TextStyle(
              color: alignment==BubbleAlignment.left? Colors.orange : Colors.pink,
              fontSize: 14,
              fontWeight: FontWeight.bold
          ),
    )
  ],
)

Android
iOS

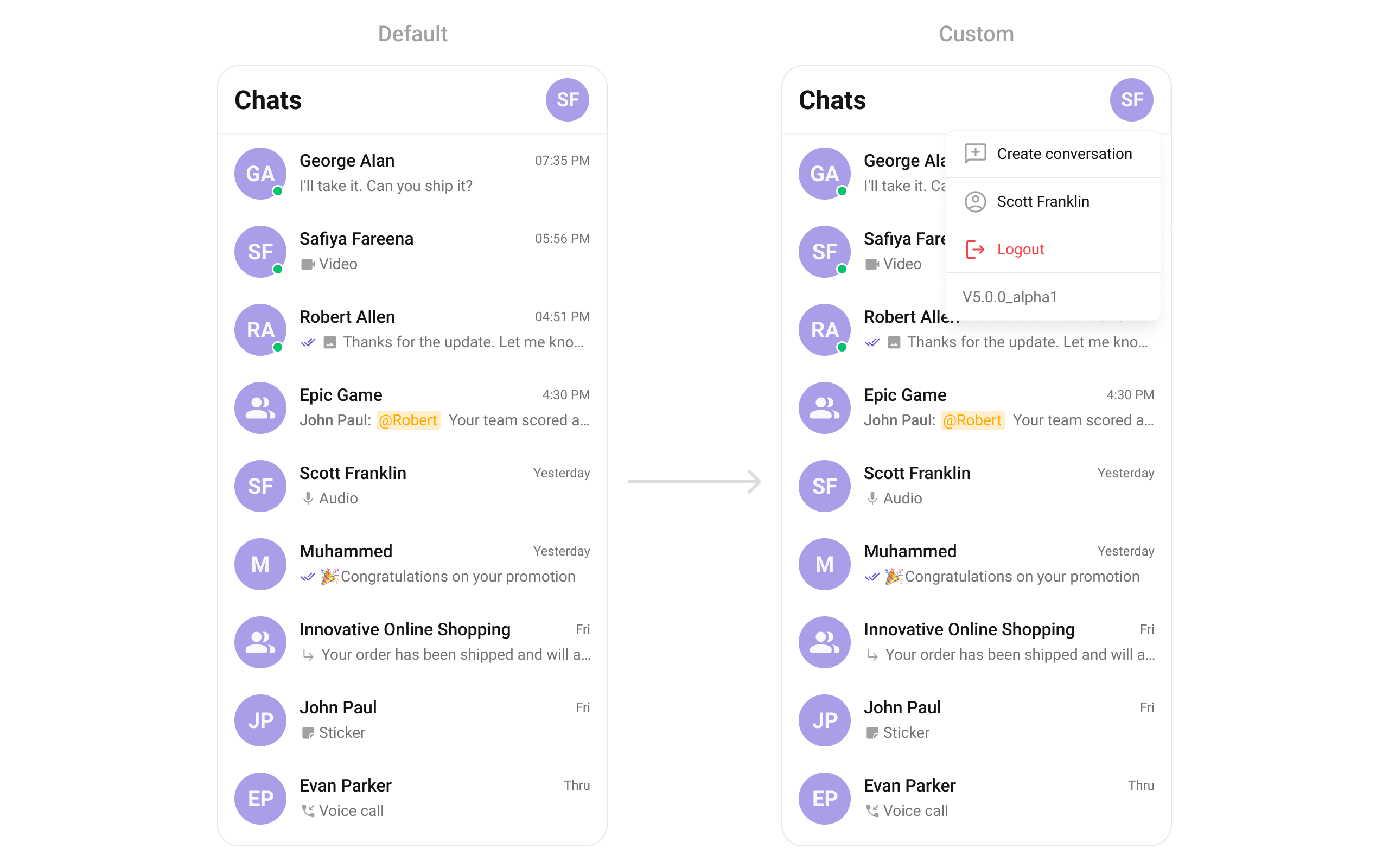

AppBarOptions

You can set the Custom AppBarOptions to the CometChatConversations widget.

Android
iOS

Dart

CometChatConversations(
  appBarOptions: [
    InkWell(
      onTap: () {
        // TODO("Not yet implemented")
      },
      child: const Icon(Icons.ac_unit, color: Color(0xFF6851D6)),
    ),
    const SizedBox(width: 10)
  ],
)

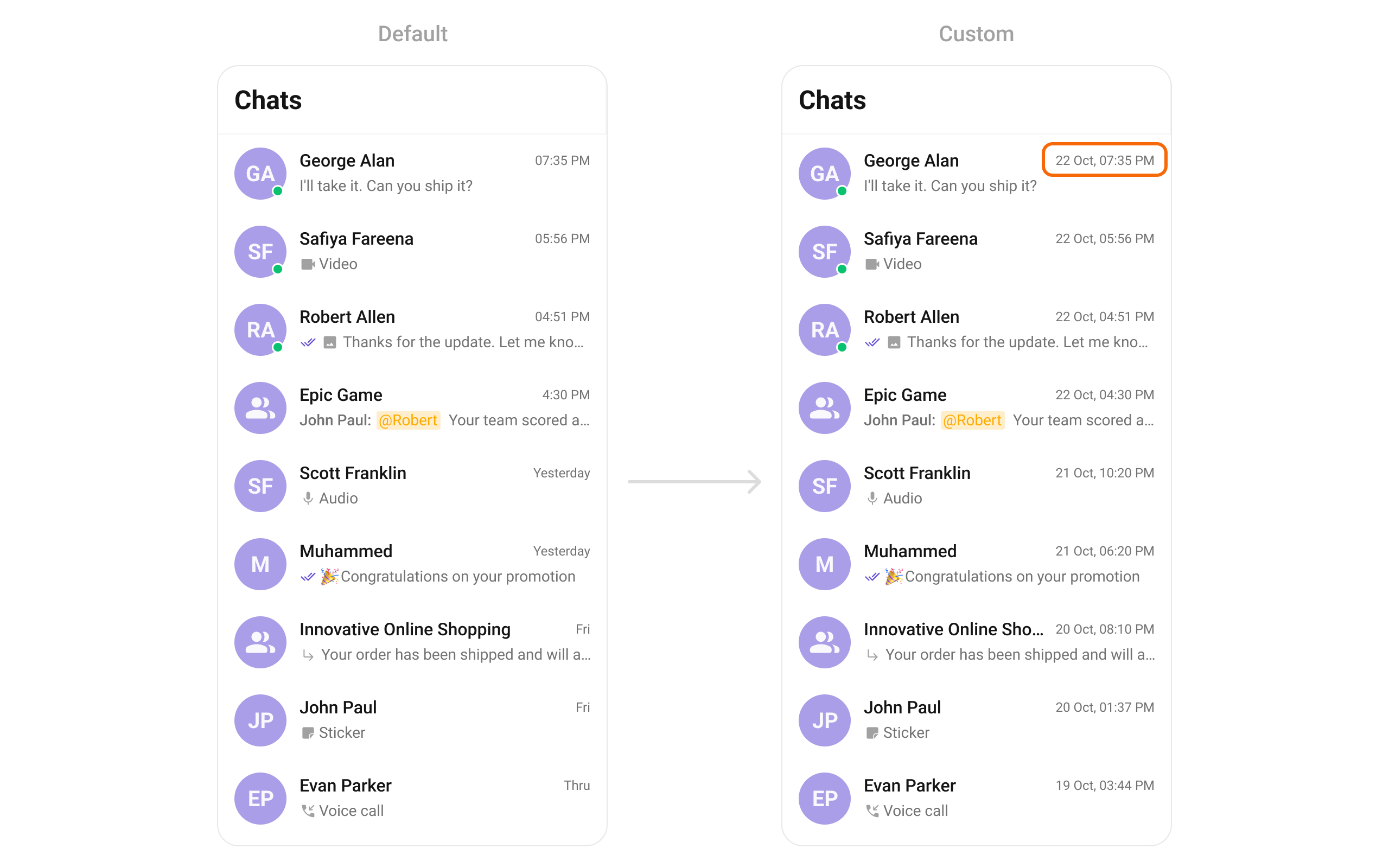

DatePattern

You can modify the date pattern to your requirement using datePattern. This method accepts a function with a return type String. Inside the function, you can create your own pattern and return it as a String.

Android
iOS

Dart

CometChatConversations(
  datePattern: (conversation) {
    return DateFormat('HH:mm').format(conversation.updatedAt!);
  },
)

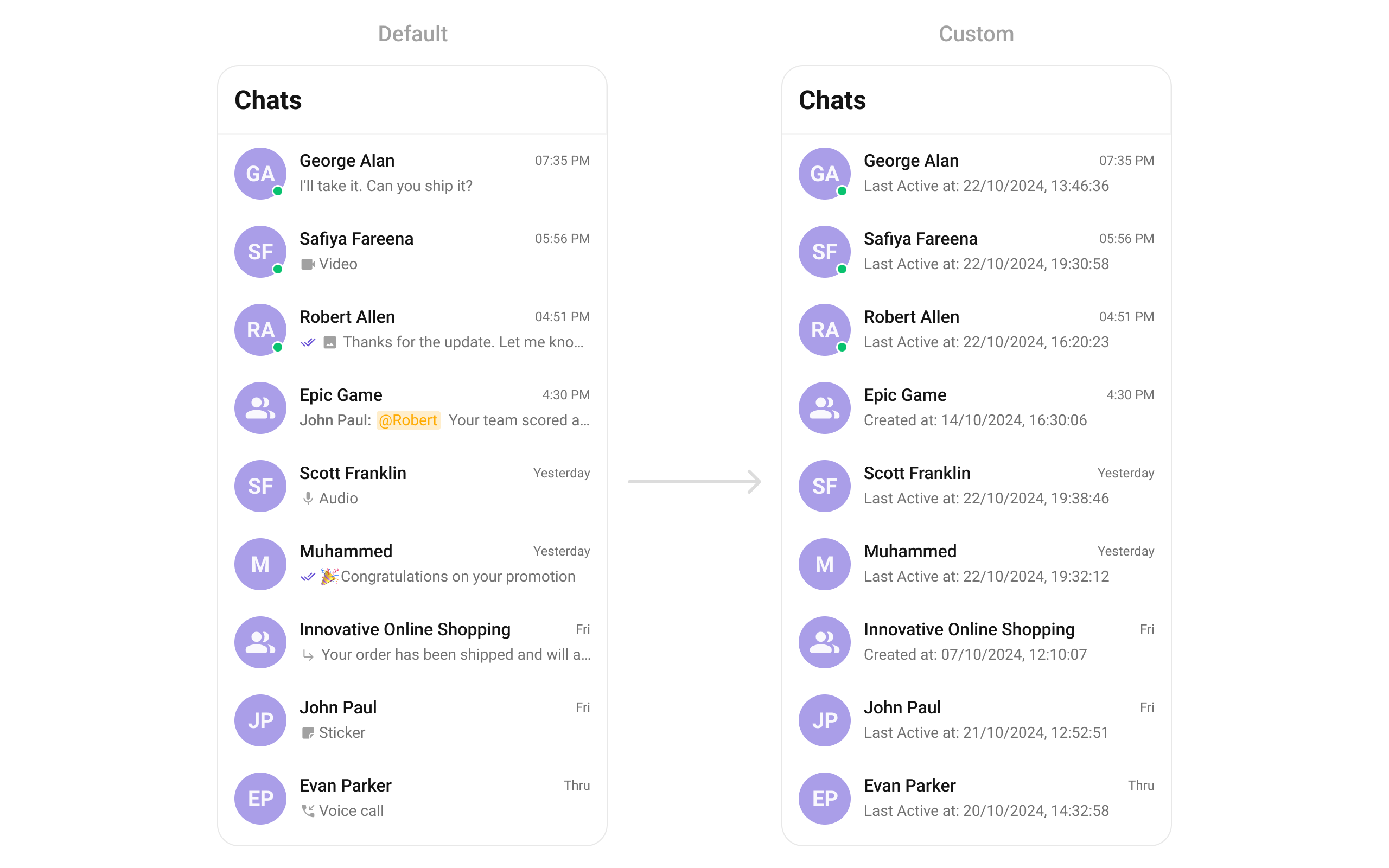

SubtitleView

You can customize the subtitle view for each conversation item to meet your requirements

Android
iOS

Dart

CometChatConversations(
  subtitleView: (context, conversation) {
    return const Row(
      children: [
        Icon(Icons.call, color: Color(0xFF6851D6), size: 25,),
        SizedBox(width: 10),
        Icon(Icons.video_call, color: Color(0xFF6851D6), size: 25,),
      ],
    );
  },
)

EmptyStateView

You can set a custom EmptyStateView using emptyStateView to match the empty UI of your app.

Dart

CometChatConversations(
  emptyStateView: (context) {
    return Container(
      width: MediaQuery.of(context).size.width,
      child: Center(
          child: const Column(
            crossAxisAlignment: CrossAxisAlignment.center,
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              Spacer(),
              Icon(Icons.sms_failed_outlined, color: Colors.red, size: 100,),
              SizedBox(height: 20,),
              Text("Your Custom Message"),
              Spacer(),
            ],
          )
      ),
    ); // Replaced the placeholder with a custom widget.
  },
)

Android
iOS

ErrorStateView

You can set a custom ErrorStateView using errorStateView to match the error view of your app.

Android
iOS

Dart

CometChatConversations(
  errorStateView: (context) {
    return SizedBox(
      width: MediaQuery.of(context).size.width,
      child: const Column(
        crossAxisAlignment: CrossAxisAlignment.center,
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Spacer(),
          Icon(Icons.error_outline, color: Colors.red, size: 100,),
          SizedBox(height: 20,),
          Text("Your Custom Error Message"),
          Spacer(),
        ],
      ),
    );
  },
)

Options

You can set a List of 'CometChatOption' for a conversation item to add your custom actions to the conversation. These options will be visible when swiping any conversation item.

Here is the complete example for reference:

Example

Dart

main.dart
CometChatConversations(
  options: (p0, controller, context) {
    return [
      CometChatOption(id: "id", title: "Option1", icon: "assets/img/envelope.png", backgroundColor: Colors.yellow, onClick: () {
        // TODO something when this option is clicked
      },)
    ];
  },
)

Android
iOS

UI Kits

SDKs

Widgets

APIs

Overview​

Usage​

Integration​

1. Using Navigator to Launch CometChatConversations​

2. Embedding CometChatConversations as a Widget in the build Method​

Actions​

onItemTap​

2. onBack​

3. setOnSelection​

4. onError​

Filters​

Events​

1. Conversation Deleted​

Customization​

Style​

1. Conversation Style​

2. Avatar Style​

3. StatusIndicator Style​

4. Date Style​

5. Badge Style​

6. LisItem Style​

Functionality​

Advanced​

ListItemView​

TextFormatters​

AppBarOptions​

DatePattern​

SubtitleView​

EmptyStateView​

ErrorStateView​

Options​

Overview

Usage

Integration

1. Using Navigator to Launch `CometChatConversations`

2. Embedding `CometChatConversations` as a Widget in the build Method

Actions

onItemTap

2. onBack

3. setOnSelection

4. onError

Filters

Events

1. Conversation Deleted

Customization

Style

1. Conversation Style

2. Avatar Style

3. StatusIndicator Style

4. Date Style

5. Badge Style

6. LisItem Style

Functionality

Advanced

ListItemView

TextFormatters

AppBarOptions

DatePattern

SubtitleView

EmptyStateView

ErrorStateView

Options
