Getting Started

Start your first conversation

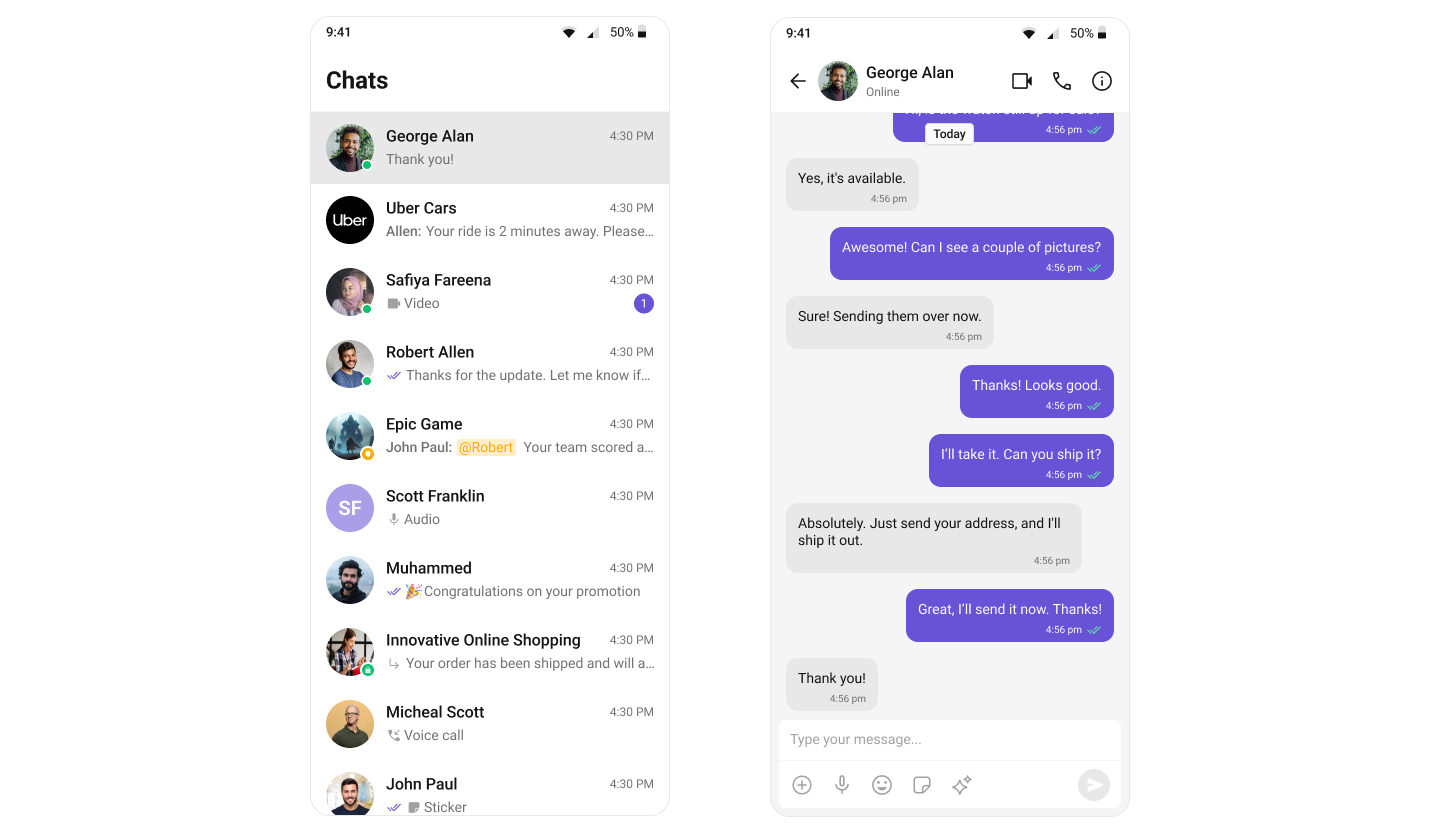

CometChat UI Kit for Android is a collection of prebuilt UI components designed to simplify the development of an in-app chat with all the essential messaging features. Our UI Kit offers light and dark themes, various fonts, colors, and additional customization options.

CometChat UI Kit supports both one-to-one and group conversations. Follow the guide below to initiate conversations from scratch using CometChat Android UI Kit.

Prerequisites

Before installing the UI Kit, you need to create a CometChat application on the CometChat Dashboard, which includes all the necessary data for a chat service, such as users, groups, calls, and messages. You will require the App ID, AuthKey, and Region of your CometChat application when initializing the SDK.

i. Register on CometChat

You need to register on the CometChat Dashboard first. Click here to sign up.

ii. Get Your Application Keys

Create a new app
Head over to the QuickStart or API & Auth Keys section and note the App ID, Auth Key, and Region.

iii. IDE Setup

You have Android Studio installed on your machine.
You have an Android device or emulator with Android version 6.0 or above.
Android 5.0 (API level 21) or higher is installed.
Java 8 or higher is installed.
Android Gradle plugin 4.0.1 or higher is installed.

Getting Started

Step 1

Create a project

To get started, open Android Studio and create a new project for UI Kit in the Project window as follows:

Click Start a new Android Studio project in the Welcome to Android Studio window.
Select Empty Activity in the Select a Project Template window and click Next.
Enter your project name in the Name field in the Configure your project window.
Select your language as either Java or Kotlin from the Language drop-down menu.
Select minimum API level as 21 or higher.

Step 2

Add CometChat to your project

i. Add the CometChat Repository

To integrate CometChat into your Android project, you need to add the CometChat repository to your project-level settings.gradle or settings.gradle.kts file. Follow the steps below based on your project configuration.

Kotlin
Groovy

settings.gradle.kts
dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
        maven("https://dl.cloudsmith.io/public/cometchat/cometchat/maven/")
    }
}

settings.gradle
dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
        maven{
            url "https://dl.cloudsmith.io/public/cometchat/cometchat/maven/"
        }
    }
}

ii. Add the CometChat Dependency

Version Catalog (libs.versions.toml)
Gradle (build.gradle)

Inside libs.versions.toml, add the CometChat Chat UI Kit version under the [versions] section:

libs.versions.toml
[versions]
cometchat-ui-kit = "5.0.0"

Under the [libraries] section, define the library and reference the version:

libs.versions.toml
[libraries]
cometchat-ui-kit = { module = "com.cometchat:chat-uikit-android", version.ref = "cometchat-ui-kit" }

Now, in your app-level build.gradle.kts file, add the dependency using libs from Version Catalogs:

build.gradle.kts
dependencies {
    implementation(libs.cometchat.ui.kit)
}

Open the app level build.gradle file and add the following dependency to fetch the chat UI kit into your project.

build.gradle
dependencies {
    implementation 'com.cometchat:chat-uikit-android:5.0.0'
}

iii. Add AndroidX Support

The Jetifier tool helps migrate legacy support libraries to AndroidX.

Open the gradle.properties file and verify if the specified line is present. If not, add it accordingly.

gradle.properties
android.enableJetifier=true

Step 3

To start using the UI Kit, you first need to initialize and log in. Follow the steps below to get started:

Initialization
Call the Init method to set up the necessary configurations for CometChat in your app. This step should be done before invoking any other methods from CometChat UI Kit or SDK.
User Login
Once initialized, use the login() method to authenticate the user. This method will return a User object containing all relevant user details. For testing purposes, you can use the following pre-generated users:
- cometchat-uid-1
- cometchat-uid-2
- cometchat-uid-3
- cometchat-uid-4
- cometchat-uid-5

For more details, refer to the documentation on Init and Login.

You can initialize CometChat and log in a user in your MainActivity.kt file. Upon successful login, navigate to the ConversationActivity.

Kotlin
Java

MainActivity.kt

import android.content.Intent
import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.enableEdgeToEdge
import com.cometchat.chat.core.CometChat
import com.cometchat.chat.exceptions.CometChatException
import com.cometchat.chat.models.User
import com.cometchat.chatuikit.shared.cometchatuikit.CometChatUIKit
import com.cometchat.chatuikit.shared.cometchatuikit.UIKitSettings

class MainActivity : ComponentActivity() {
    val appID: String = "********************" // Replace with your App ID
    val region: String = "**" // Replace with your App Region ("EU" or "US")
    val authKey: String = "****************************************" // Replace with your Auth Key or leave blank if you are authenticating using Auth Token


    val uiKitSettings = UIKitSettings.UIKitSettingsBuilder()
        .setRegion(region)
        .setAppId(appID)
        .setAuthKey(authKey)
        .subscribePresenceForAllUsers().build()

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        enableEdgeToEdge()

        CometChatUIKit.init(this, uiKitSettings, object : CometChat.CallbackListener<String?>() {
            override fun onSuccess(successString: String?) {
                CometChatUIKit.login("cometchat-uid-1", object : CometChat.CallbackListener<User>() {
                    override fun onSuccess(user: User) {
                        startActivity(Intent(this@MainActivity, ConversationActivity::class.java))
                    }
                    override fun onError(e: CometChatException) {}
                })
            }
            override fun onError(e: CometChatException?) {}
        })
    }
}

MainActivity.java
import android.content.Intent;
import android.os.Bundle;
import androidx.activity.ComponentActivity;
import com.cometchat.chat.core.CometChat;
import com.cometchat.chat.exceptions.CometChatException;
import com.cometchat.chat.models.User;
import com.cometchat.chatuikit.shared.cometchatuikit.CometChatUIKit;
import com.cometchat.chatuikit.shared.cometchatuikit.UIKitSettings;

public class MainActivity extends ComponentActivity {
    private final String appID = "********************"; // Replace with your App ID
    private final String region = "**"; // Replace with your App Region ("EU" or "US")
    private final String authKey = "****************************************"; // Replace with your Auth Key or leave blank if you are authenticating using Auth Token

    private final UIKitSettings uiKitSettings = new UIKitSettings.UIKitSettingsBuilder()
            .setRegion(region)
            .setAppId(appID)
            .setAuthKey(authKey)
            .subscribePresenceForAllUsers()
            .build();

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        CometChatUIKit.init(this, uiKitSettings, new CometChat.CallbackListener<String>() {
            @Override
            public void onSuccess(String successString) {
                CometChatUIKit.login("cometchat-uid-1", new CometChat.CallbackListener<User>() {
                    @Override
                    public void onSuccess(User user) {
                        startActivity(new Intent(MainActivity.this, ConversationActivity.class));
                    }

                    @Override
                    public void onError(CometChatException e) {
                        // Handle login error
                    }
                });
            }

            @Override
            public void onError(CometChatException e) {
                // Handle initialization error
            }
        });
    }
}

This code will initialize UIKit, log in a test user (cometchat-uid-1), and navigate to the ConversationActivity upon successful login.

warning

You will need to create ConversationActivity & MessageActivity to handle the chat interface and conversation functionality.

Step 4

Set Up Global Theme

To customize component styling across your application in one place, you need to set up the CometChat Theme.

Use the CometChatTheme.DayNight style, which is built on Theme.MaterialComponents.DayNight.NoActionBar.

Apply the Theme

Set CometChatTheme.DayNight as the parent theme for your application in the themes.xml file.

themes.xml
<style name="YourAppParentTheme" parent="CometChatTheme.DayNight"/>

AndroidManifest.xml
    <application
        android:theme="@style/YourAppParentTheme"
        ...
        ...
    >

    </application>

Step 5

Render Conversations Component

The Conversations component is a Component that displays all conversations related to the currently logged-in user.

Below are the steps to render the Conversations component:

Add CometChatConversations to the Layout File

When you create ConversationActivity, a layout file named activity_conversation.xml is also generated.

Add the CometChatConversations component inside this layout file:

activity_conversations.xml
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 xmlns:tools="http://schemas.android.com/tools"
 android:id="@+id/main"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 tools:context=".ConversationActivity">

 <com.cometchat.chatuikit.conversations.CometChatConversations
     android:id="@+id/conversation_view"
     android:layout_width="0dp"
     android:layout_height="0dp"
     app:layout_constraintTop_toTopOf="parent"
     app:layout_constraintBottom_toBottomOf="parent"
     app:layout_constraintStart_toStartOf="parent"
     app:layout_constraintEnd_toEndOf="parent" />

 </androidx.constraintlayout.widget.ConstraintLayout>

Handle Conversation Click Events

To navigate to the Message Activity for a particular conversation, you need to set up setOnItemClick. Inside ConversationActivity, initialize the CometChatConversations component and set a click listener on the conversation object

Kotlin
Java

ConversationActivity.kt
 import android.content.Intent
 import android.os.Bundle
 import androidx.activity.enableEdgeToEdge
 import androidx.appcompat.app.AppCompatActivity
 import com.cometchat.chat.constants.CometChatConstants
 import com.cometchat.chat.models.Group
 import com.cometchat.chat.models.User
 import com.cometchat.chatuikit.conversations.CometChatConversations
 import com.google.gson.Gson

 class ConversationActivity : AppCompatActivity() {
     private lateinit var  cometchatConversations: CometChatConversations

     override fun onCreate(savedInstanceState: Bundle?) {
         super.onCreate(savedInstanceState)
         enableEdgeToEdge()
         setContentView(R.layout.activity_conversation)

         //initialize Conversation object
         cometchatConversations = findViewById(R.id.conversation_view)

         //set click listener on conversation item
         cometchatConversations.setOnItemClick { view, position, conversation ->
             //Checking if Conversation is of Group type or User type
             if (conversation.conversationType == CometChatConstants.CONVERSATION_TYPE_GROUP) {
                 val group = conversation.conversationWith as Group
                 val intent = Intent(this, MessageActivity::class.java)
                 intent.putExtra("Group", Gson().toJson(group))
                 startActivity(intent)   //Start MessageActivity
             } else {
                 val user = conversation.conversationWith as User
                 val intent = Intent(this, MessageActivity::class.java)
                 intent.putExtra("User", Gson().toJson(user))
                 startActivity(intent)   //Start MessageActivity
             }
         }
     }
 }

ConversationActivity.java

 import android.content.Intent;
 import android.os.Bundle;
 import androidx.appcompat.app.AppCompatActivity;
 import com.cometchat.chat.constants.CometChatConstants;
 import com.cometchat.chat.models.Group;
 import com.cometchat.chat.models.User;
 import com.cometchat.chatuikit.conversations.CometChatConversations;
 import com.google.gson.Gson;

 public class ConversationActivity extends AppCompatActivity {
     private CometChatConversations cometchatConversations;

     @Override
     protected void onCreate(Bundle savedInstanceState) {
         super.onCreate(savedInstanceState);
         setContentView(R.layout.activity_conversation);

         // Initialize Conversation object
         cometchatConversations = findViewById(R.id.conversation_view);

         // Set click listener on conversation item
         cometchatConversations.setOnItemClick((view, position, conversation) -> {
             Intent intent = new Intent(ConversationActivity.this, MessageActivity.class);

             // Checking if Conversation is of Group type or User type
             if (CometChatConstants.CONVERSATION_TYPE_GROUP.equals(conversation.getConversationType())) {
                 Group group = (Group) conversation.getConversationWith();
                 intent.putExtra("Group", new Gson().toJson(group));
             } else {
                 User user = (User) conversation.getConversationWith();
                 intent.putExtra("User", new Gson().toJson(user));
             }
             startActivity(intent); // Start MessageActivity
         });
     }
 }

warning

You must use an activity that supports the lifecycle API, such as:

AppCompatActivity
ComponentActivity
FragmentActivity

This is necessary to properly manage the UI Kit's lifecycle events.

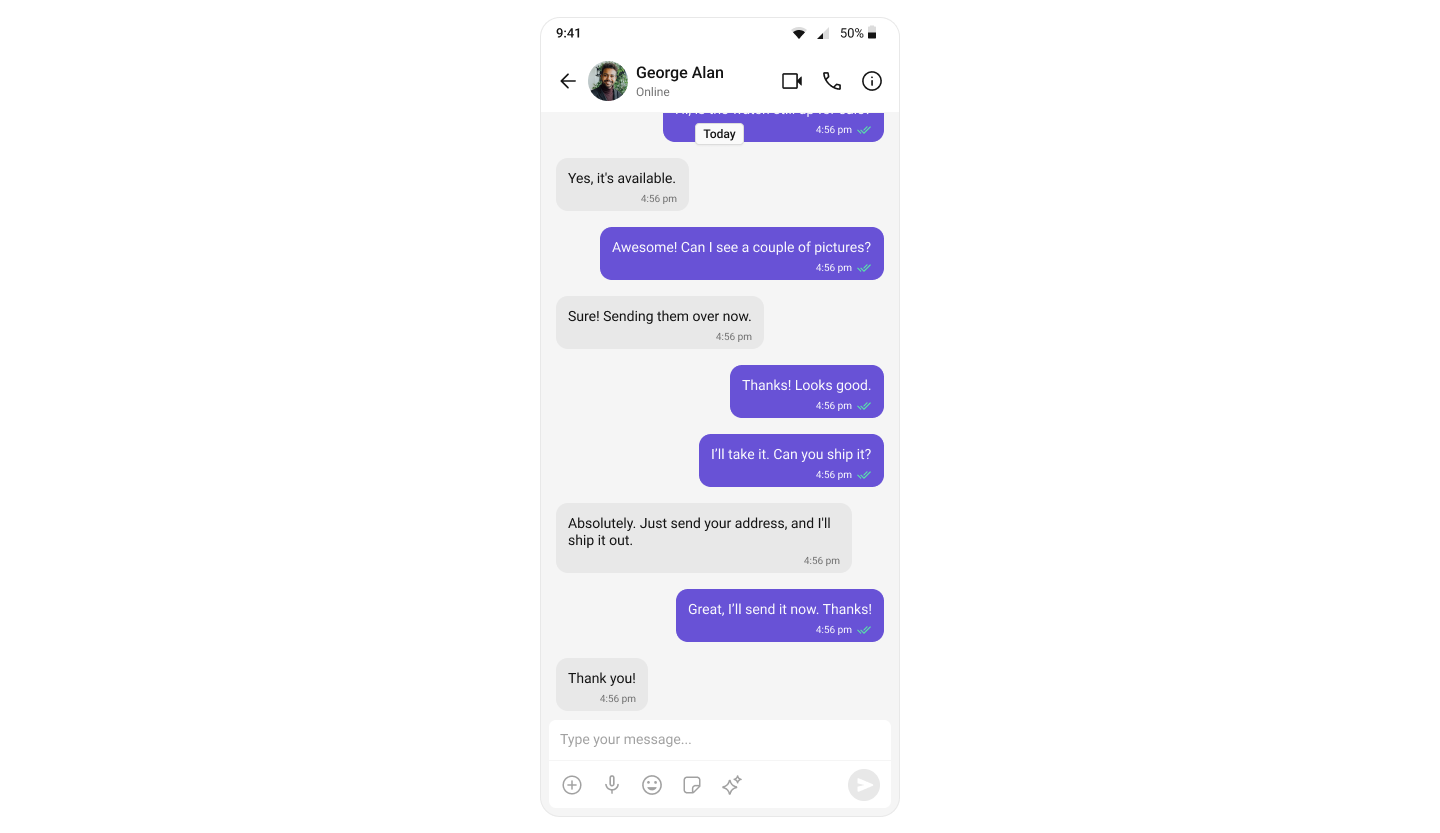

Rendering the Messages Component

To achieve full messaging functionality in MessageActivity, you need to combine the following three components:

Below are the steps to render Messages Screen:

Add Messages Component to the Layout File

When you create MessageActivity, a layout file named activity_messages.xml is also generated. Add the following code to activity_messages.xml

activity_messages.xml
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MessageActivity">

    <!-- Message Header -->
    <com.cometchat.chatuikit.messageheader.CometChatMessageHeader
        android:id="@+id/message_header"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintEnd_toEndOf="parent" />

    <!-- Message List -->
    <com.cometchat.chatuikit.messagelist.CometChatMessageList
        android:id="@+id/message_list"
        android:layout_width="0dp"
        android:layout_height="0dp"
        app:layout_constraintTop_toBottomOf="@id/message_header"
        app:layout_constraintBottom_toTopOf="@id/message_composer"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintEnd_toEndOf="parent" />

    <!-- Message Composer -->
    <com.cometchat.chatuikit.messagecomposer.CometChatMessageComposer
        android:id="@+id/message_composer"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintEnd_toEndOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

Add User or Group Object to Message Components

In your MessagesActivity, configure the components to display messages based on the selected user or group.

Kotlin
Java

MessagesActivity.kt
 import android.os.Bundle
 import androidx.activity.enableEdgeToEdge
 import androidx.appcompat.app.AppCompatActivity
 import com.cometchat.chat.models.Group
 import com.cometchat.chat.models.User
 import com.cometchat.chatuikit.messagecomposer.CometChatMessageComposer
 import com.cometchat.chatuikit.messageheader.CometChatMessageHeader
 import com.cometchat.chatuikit.messagelist.CometChatMessageList
 import com.google.gson.Gson

 class MessageActivity : AppCompatActivity() {
     private lateinit var messageHeader: CometChatMessageHeader
     private lateinit var messageList: CometChatMessageList
     private lateinit var messageComposer: CometChatMessageComposer

     private var user: User? = null
     private var group: Group? = null

     override fun onCreate(savedInstanceState: Bundle?) {
         super.onCreate(savedInstanceState)
         enableEdgeToEdge()
         setContentView(R.layout.activity_message)

         messageHeader = findViewById(R.id.message_header)
         messageList = findViewById(R.id.message_list)
         messageComposer = findViewById(R.id.message_composer)

         // Deserialize user or group object from intent
         user = Gson().fromJson<User>(intent.getStringExtra("User"), User::class.java)
         group = Gson().fromJson<Group>(intent.getStringExtra("Group"), Group::class.java)

         if (user != null) {
             // Configure components for user chat
             messageHeader.setUser(user!!)
             messageList.setUser(user)
             messageComposer.setUser(user)
         } else if (group != null) {
             // Configure components for group chat
             messageHeader.setGroup(group!!)
             messageList.setGroup(group)
             messageComposer.setGroup(group)
         }

         // Handle back button in the header
         messageHeader.onBackButtonPressed { finish() }

     }
 }

MessagesActivity.java

import com.cometchat.chat.models.Group;
import com.cometchat.chat.models.User;
import com.cometchat.chatuikit.messageheader.CometChatMessageHeader;
import com.cometchat.chatuikit.messagelist.CometChatMessageList;
import com.cometchat.chatuikit.messagecomposer.CometChatMessageComposer;

public class MessagesActivity extends AppCompatActivity {

    private CometChatMessageHeader messageHeader;
    private CometChatMessageList messageList;
    private CometChatMessageComposer messageComposer;

    private User user;
    private Group group;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_messages);

        messageHeader = findViewById(R.id.message_header);
        messageList = findViewById(R.id.message_list);
        messageComposer = findViewById(R.id.message_composer);

        // Deserialize user or group object from intent
        user = new Gson().fromJson(getIntent().getStringExtra(getString(R.string.app_user)), User.class);
        group = new Gson().fromJson(getIntent().getStringExtra(getString(R.string.app_group)), Group.class);

        if (user != null) {
            // Configure components for user chat
            messageHeader.setUser(user);
            messageList.setUser(user);
            messageComposer.setUser(user);
        } else if (group != null) {
            // Configure components for group chat
            messageHeader.setGroup(group);
            messageList.setGroup(group);
            messageComposer.setGroup(group);
        }

        // Handle back button in the header
        messageHeader.onBackButtonPressed(() -> finish());
    }
}

Chat & Calling

Extend

UI Kits

SDKs

Widgets

APIs

Start your first conversation​

Prerequisites​

Getting Started​

Create a project​

Add CometChat to your project​

Initialize & Login UIkit​

Set Up Global Theme​

Render Conversations Component​

Rendering the Messages Component​

Start your first conversation

Prerequisites

Getting Started

Create a project

Add CometChat to your project

Initialize & Login UIkit

Set Up Global Theme

Render Conversations Component

Rendering the Messages Component
