Version: v4

Join Protected Group

Overview

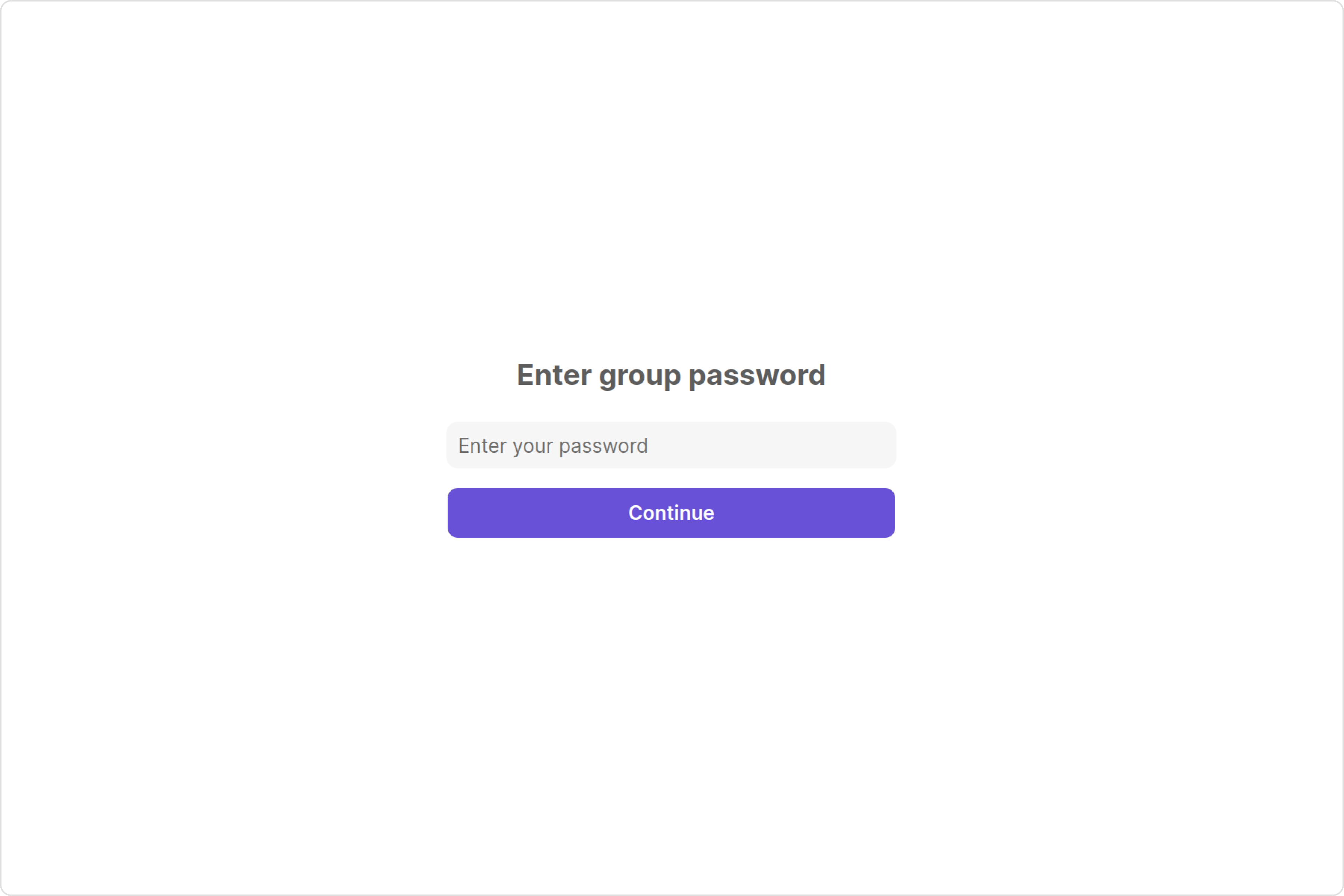

CometChatJoinGroup is a Component used to set up a screen that shows the functionality to join a password protected group, featuring the functionality to join a password-protected group, where users can join a single password-protected group at a time.

The Groups component is composed of the following BaseComponents:

Components	Description
cometchat-button	This component represents a button with optional icon and text.
cometchat-label	This component provides descriptive information about the associated UI element.
cometchat-input	This component allows users to enter or provide data or information within a web form or interface.

Usage

Integration

The following code snippet illustrates how you can directly incorporate the Join Group component into your Application.

app.module.ts
app.component.ts
app.component.html

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { AppComponent } from "./app.component";

@NgModule({
  imports: [BrowserModule],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-join-group [group]="groupObject"></cometchat-join-group>
</div>

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. joinClick

The joinClick action is activated when you click the join Group button. This returns the join groups.

You can override this action using the following code snippet.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  public handleJoinClick = (group: CometChat.Group, password: string) => {
    console.log("your custom join click action", group);
  };
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [joinClick]="handleJoinClick"
  ></cometchat-create-group>
</div>

2. errorCallback

This action doesn't change the behavior of the component but rather listens for any errors that occur in the Groups component.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  public handleErrorCallback = () => {
    console.log("yoour custom error callback");
  };
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [errorCallback]="handleErrorCallback"
  ></cometchat-create-group>
</div>

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

The Join Group component does not have any exposed filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

Events emitted by the Join Group component is as follows.

Event	Description
ccGroupMemberJoined	Triggers when the user joined a protected group successfully

TypeScript

import {CometChatGroupEvents} from "@cometchat/chat-uikit-angular";

this.ccGroupMemberJoined = CometChatGroupEvents.ccGroupMemberJoined.subscribe(
  (item: IGroupMemberJoined) => {
        // Your Code
  }
);

Removing CometChatGroupEvents Listener's

TypeScript

this.ccGroupMemberJoined.unsubscribe();

Customization

To fit your app's design requirements, you can customize the appearance of the Join Groups component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. JoinGroup Style

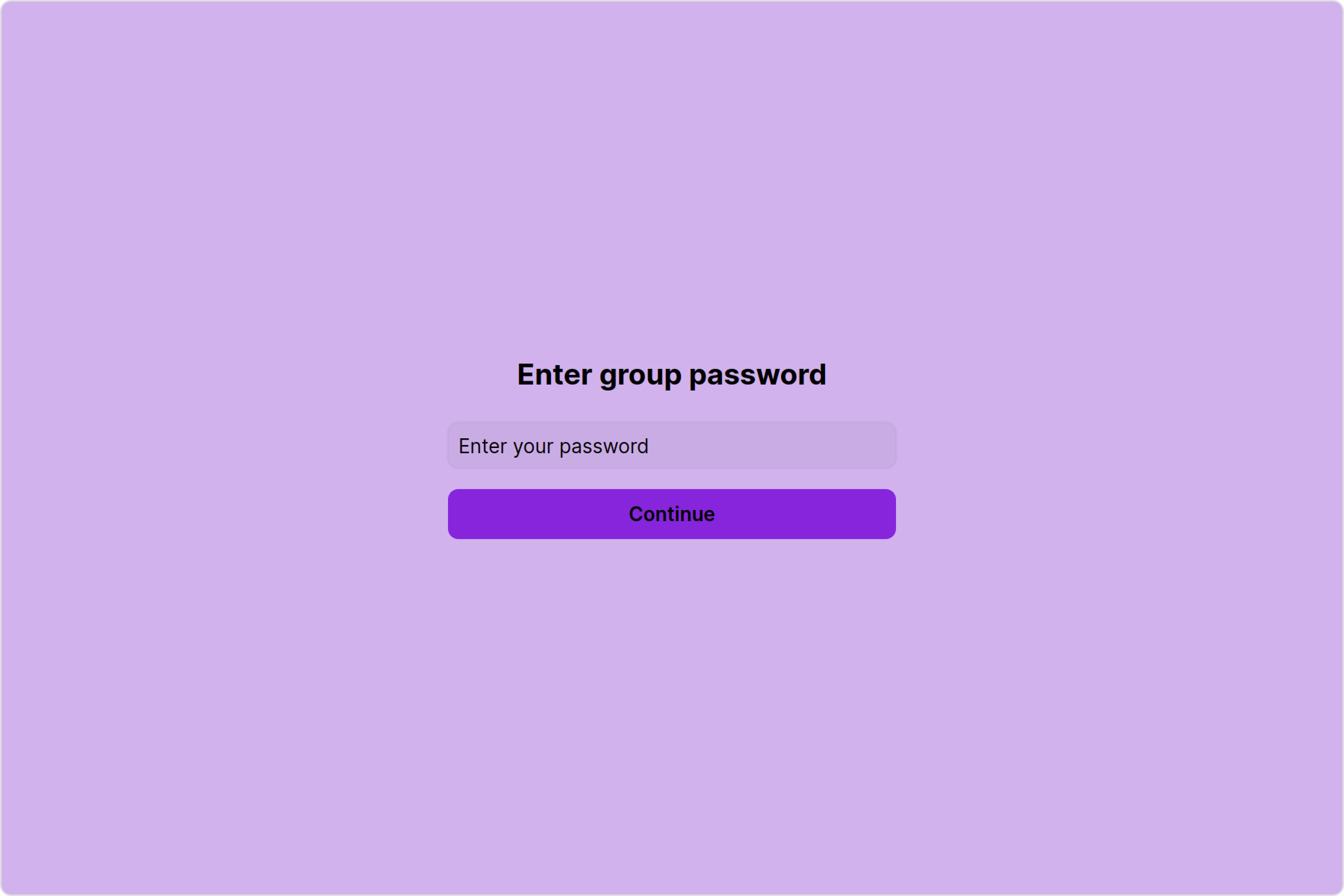

You can set the JoinGroupStyle to the Join Group Component to customize the styling.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, JoinGroupStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  joinGroupStyle = new JoinGroupStyle({
    background: "#d1b2ed",
    joinButtonBackground: "#8625db",
    joinButtonTextColor: "#000000",
    passwordInputTextColor: "#000000",
    titleTextColor: "#000000",
    passwordInputPlaceholderTextColor: "#000000",
  });
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [joinGroupStyle]="joinGroupStyle"
  ></cometchat-create-group>
</div>

List of properties exposed by JoinGroupsStyle

Property	Description	Code
border	Used to set border	`border?: string,`
borderRadius	Used to set border radius	`borderRadius?: string;`
background	Used to set background colour	`background?: string;`
height	Used to set height	`height?: string;`
width	Used to set width	`width?: string;`
boxShadow	Sets shadow effects around the element	`boxShadow?: string;`
titleTextFont	Sets the font style for the title text	`titleTextFont?: string;`
titleTextColor	Sets the color for the title text	`titleTextColor?: string;`
errorTextFont	Sets the font style for error messages	`errorTextFont?: string;`
errorTextColor	Sets the color for error messages	`errorTextColor?: string;`
passwordInputTextFont	Sets the font style for password input	`passwordInputTextFont?: string;`
passwordInputTextColor	Sets the color for password input text	`passwordInputTextColor?: string;`
passwordInputPlaceholderTextFont	Sets the font style for password input placeholder text	`passwordInputPlaceholderTextFont?: string;`
passwordInputPlaceholderTextColor	Sets the color for password input placeholder text	`passwordInputPlaceholderTextColor?: string;`
passwordInputBackground	Sets the background color for password input field	`passwordInputBackground?: string;`
passwordInputBorder	Sets the border style for password input field	`passwordInputBorder?: string;`
passwordInputBorderRadius	Sets the border radius for password input field	`passwordInputBorderRadius?: string;`
passwordInputBoxShadow	Sets shadow effects around the password input field	`passwordInputBoxShadow?: string;`
joinButtonTextFont	Sets the font style for the join button	`joinButtonTextFont?: string;`
joinButtonTextColor	Sets the color for the join button text	`joinButtonTextColor?: string;`
joinButtonBackground	Sets the background color for the join button	`joinButtonBackground?: string;`
joinButtonBorderRadius	Sets the border radius for the join button	`joinButtonBorderRadius?: string;`
joinButtonBorder	Sets the border style for the join button	`joinButtonBorder?: string;`

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [title]="'Your custom Title'"
    [passwordInputPlaceholderText]="'Your Custom Placeholder Text'"
    [joinButtonText]="'Your Custom Join Button Text'"
  ></cometchat-create-group>
</div>

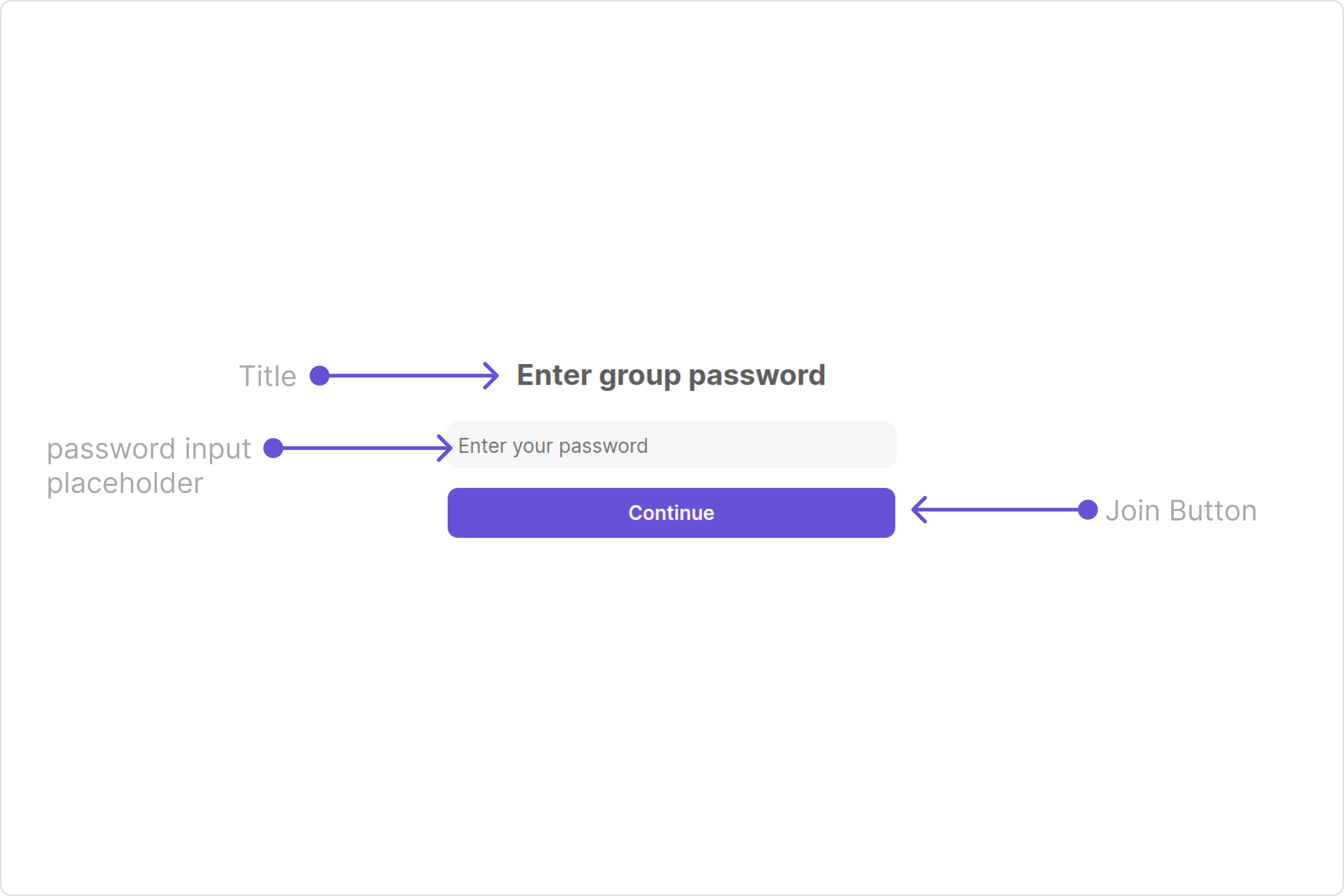

Default:

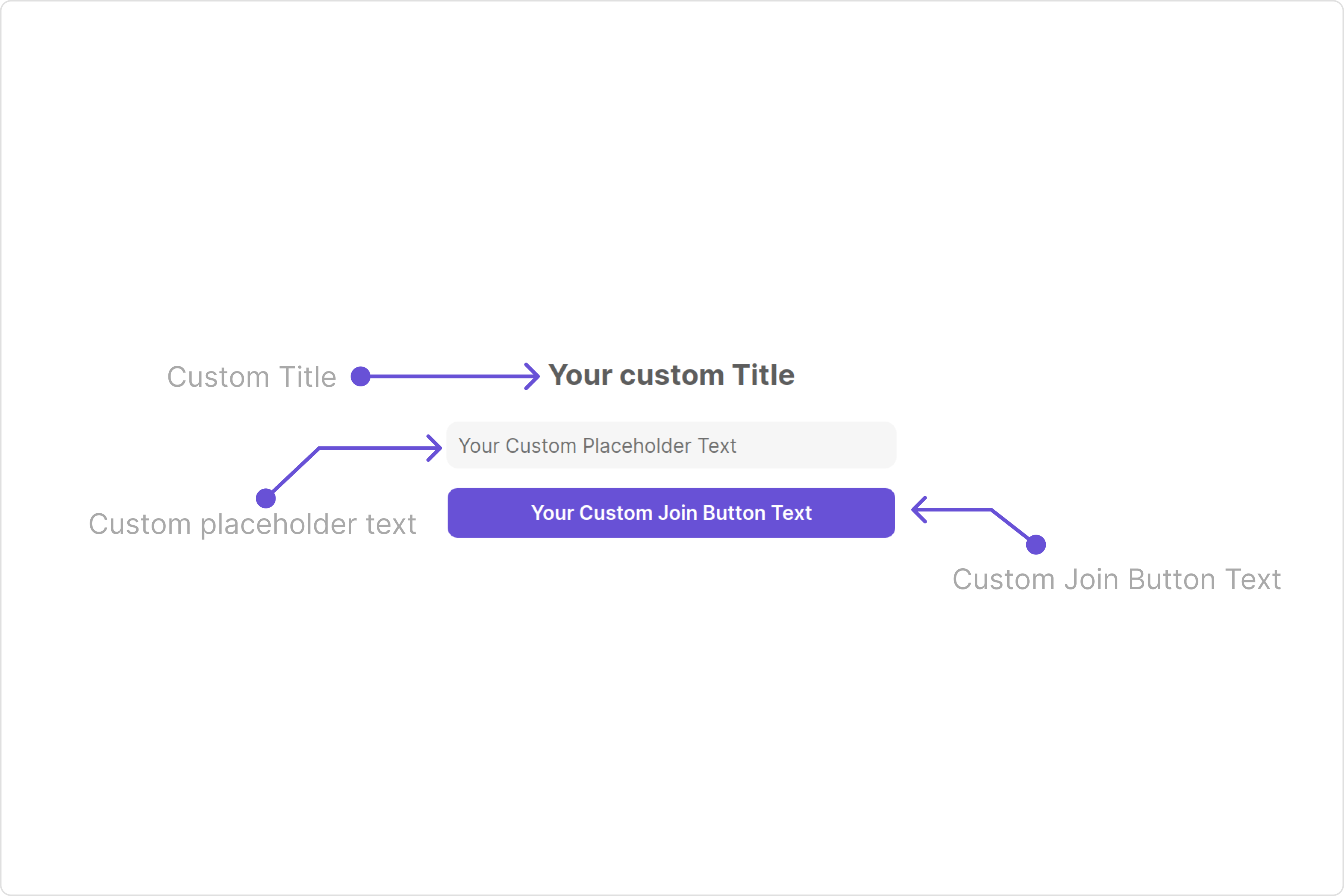

Custom:

Property	Description	Code
title	Custom title for the component	`[title]="'Your Custom Title'"`
joinButtonText	Custom text for the join group button	`[joinButtonText]="'Your Custom Join Group Button Text'"`
passwordInputPlaceholderText	Custom placeholder text for password input field	`[passwordInputPlaceholderText]="'Your Custom Password Input Placeholder Text'"`
errorText	Custom error state text	`[errorText]="'Your Custom Error Text'"`
group	used to set the group	`[group]="groupObject"`

Advance

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

the Join Group component does not offer any advanced functionalities beyond this level of customization.
