Version: v4

Group Members

Overview

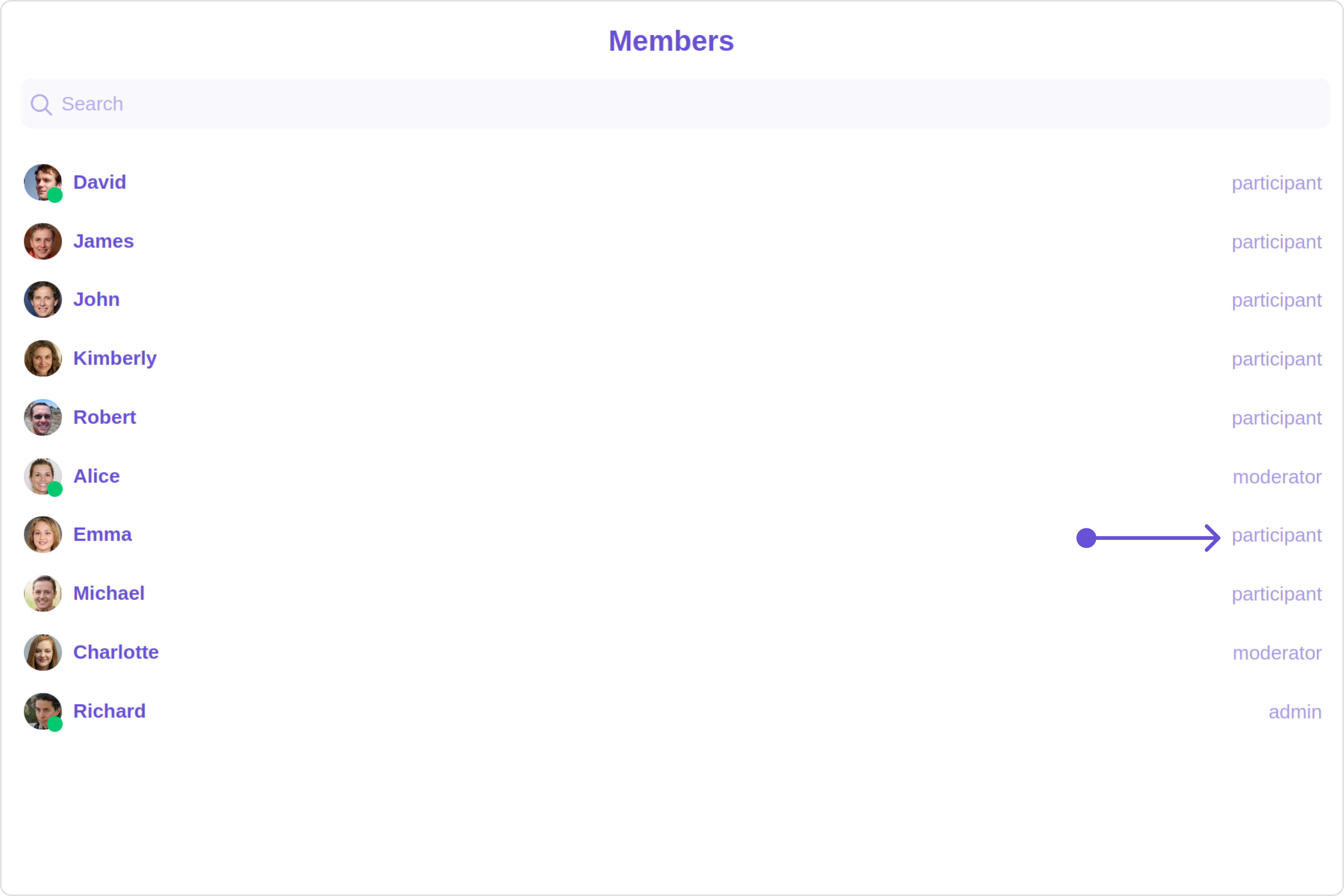

CometChatGroupMembers is a Component that displays all users added or invited to a group, granting them access to group discussions, shared content, and collaborative features. Group members can communicate in real-time via messaging, voice and video calls, and other activities. They can interact, share files, and join calls based on group permissions set by the administrator or owner.

Usage

Integration

The following code snippet illustrates how you can directly incorporate the Group Members component into your Application.

app.module.ts
app.component.ts
app.component.html

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { CometChatGroupMembers } from "@cometchat/chat-uikit-angular";
import { AppComponent } from "./app.component";

@NgModule({
  imports: [BrowserModule, CometChatGroupMembers],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-group-members
    *ngIf="groupObject"
    [group]="groupObject"
  ></cometchat-group-members>
</div>

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onSelect

The onSelect action is activated when you select the done icon while in selection mode. This returns a list of all the group members that you have selected.

This action does not come with any predefined behavior. However, you have the flexibility to override this event and tailor it to suit your needs using the following code snippet.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { SelectionMode } from '@cometchat/uikit-resources';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  public selectionMode: SelectionMode = SelectionMode.multiple;
  public handleOnSelectGroupMembers = (groupMember: CometChat.GroupMember, selected: boolean) => {
    console.log("your custom on select actions",groupMember, selected);
  };
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [selectionMode]="selectionMode"
    [onSelect]="handleOnSelectGroupMembers"
  ></cometchat-create-group>
</div>

2. onItemClick

The onItemClick event is activated when you click on the Group Members List item. This action does not come with any predefined behavior. However, you have the flexibility to override this event and tailor it to suit your needs using the following code snippet.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  public handleOnItemClickGroupMembers = (user: CometChat.GroupMember) => {
    console.log("your custom on item click action", user);
  };
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [onItemClick]="handleOnItemClickGroupMembers"
  ></cometchat-create-group>
</div>

3. onBack

OnBack is triggered when you click on the back button of the Group Members component. You can override this action using the following code snippet.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  public handleOnBack = () => {
    console.log("Your custom on back action");
  }
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [onBack]="handleOnBack"
  ></cometchat-create-group>
</div>

4. onClose

onClose is triggered when you click on the close button of the Group Members component. You can override this action using the following code snippet.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  public handleOnClose = () => {
    console.log("Your custom on close actions");
  };
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [onClose]="handleOnClose"
  ></cometchat-create-group>
</div>

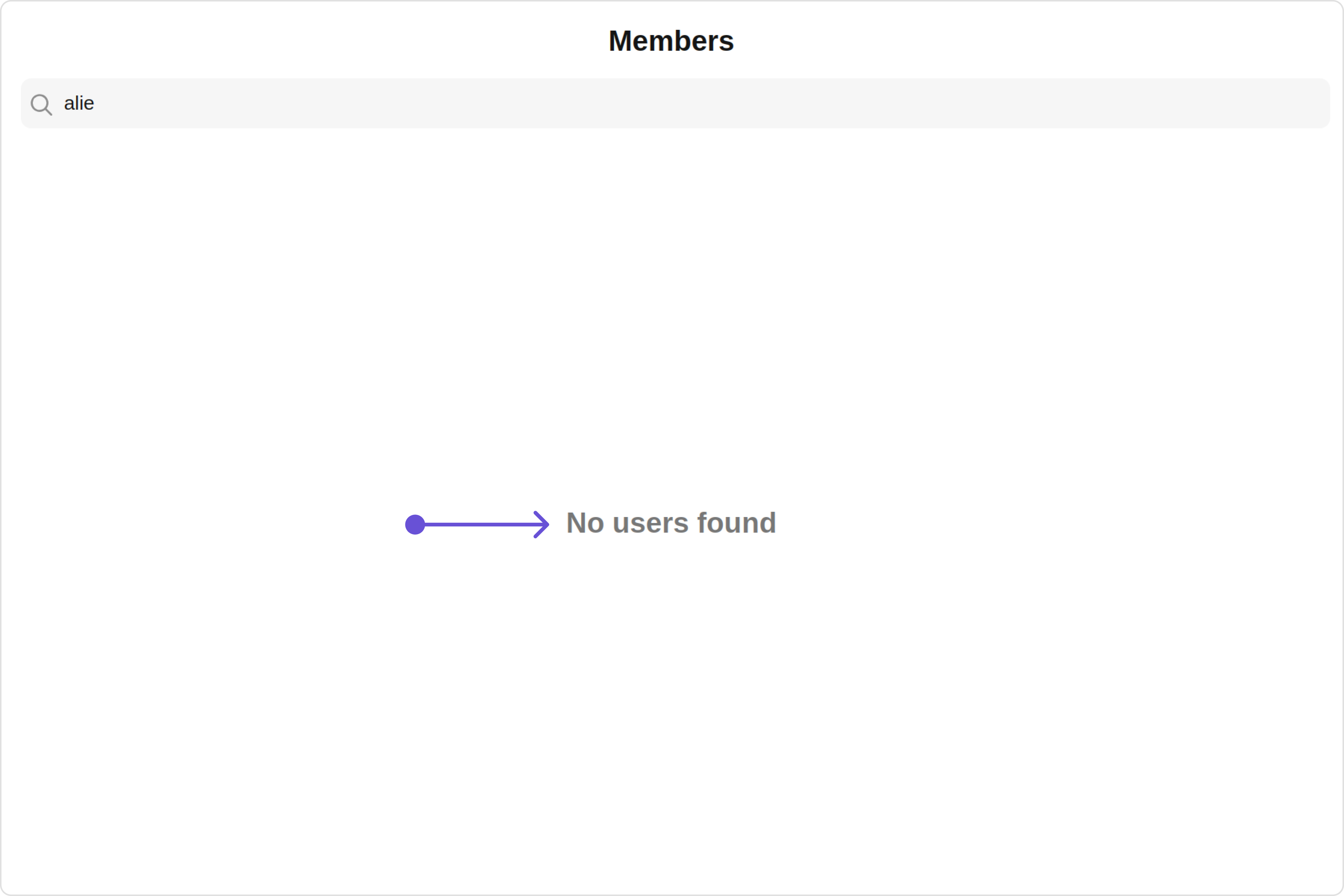

5. onEmpty

This action allows you to specify a callback function to be executed when a certain condition, typically the absence of data or content, is met within the component or element.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  public handleOnEmpty = () =>{
    console.log("your custom on empty action");
  }
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [onEmpty]="handleOnEmpty"
  ></cometchat-create-group>
</div>

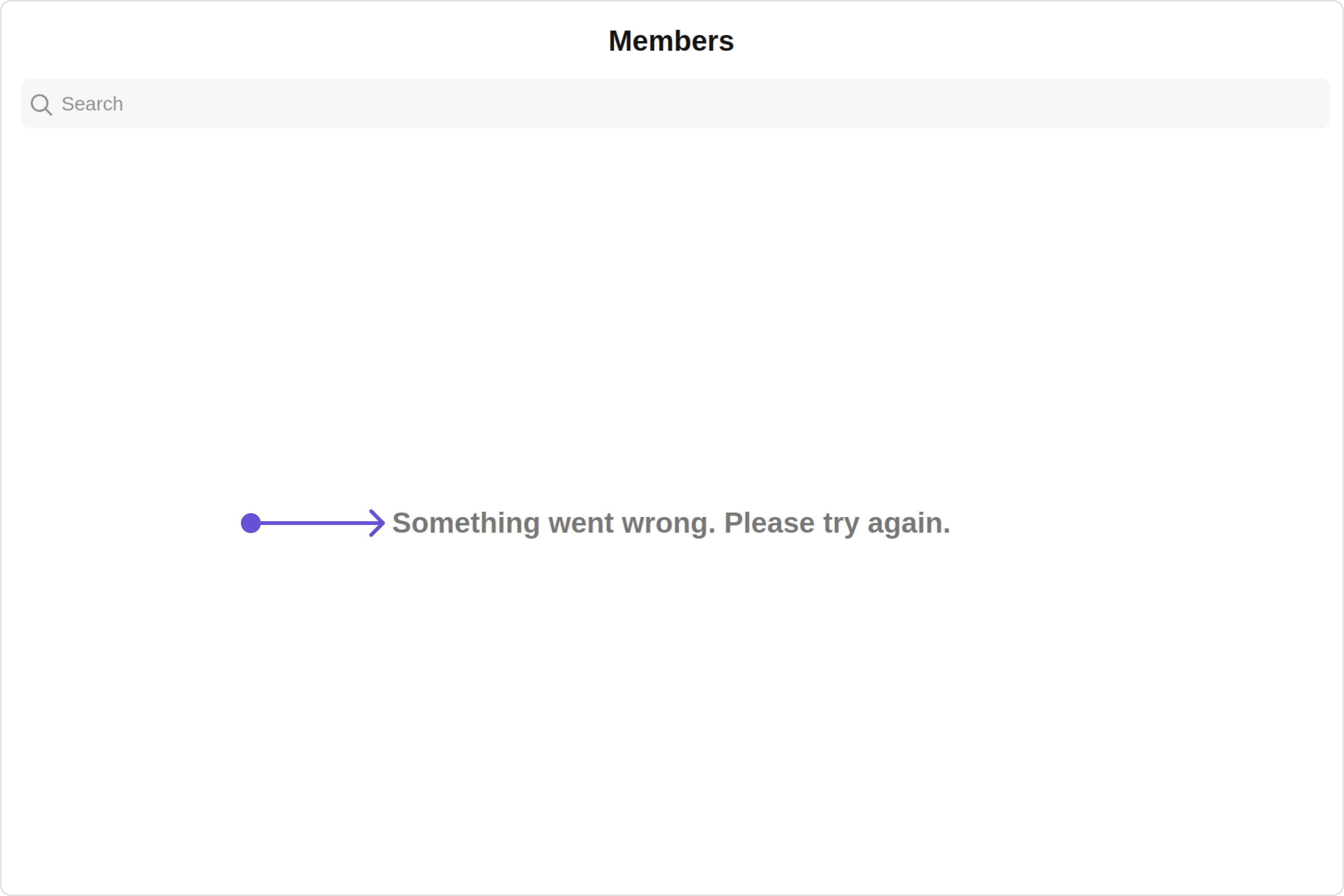

6. onError

This action doesn't change the behavior of the component but rather listens for any errors that occur in the Group Members component.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  public handleOnError = (error: CometChat.CometChatException) => {
    console.log("your custom on error action", error);
  };
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [onError]="handleOnError"
  ></cometchat-create-group>
</div>

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. GroupMembersRequestBuilder

The GroupMembersRequestBuilder enables you to filter and customize the group members list based on available parameters in GroupMembersRequestBuilder. This feature allows you to create more specific and targeted queries when fetching groups. The following are the parameters available in GroupMembersRequestBuilder

Methods	Type	Description
setLimit	number	sets the number of group members that can be fetched in a single request, suitable for pagination
setSearchKeyword	String	used for fetching group members matching the passed string
setScopes	Array<String>	used for fetching group members based on multiple scopes

Example

In the example below, we are applying a filter to the Group Members by setting the limit to two and setting the scope to show only admin and moderator.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  groupMemberRequestBuilder = new CometChat.GroupMembersRequestBuilder('guid').setLimit(2).setScopes(['admin', 'moderator'])

  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [groupMemberRequestBuilder]="groupMemberRequestBuilder"
  ></cometchat-create-group>
</div>

2. SearchRequestBuilder

The SearchRequestBuilder uses GroupMembersRequestBuilder enables you to filter and customize the search list based on available parameters in GroupMembersRequestBuilder. This feature allows you to keep uniformity between the displayed Group Members List and searched Group Members List.

Example

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  searchRequestBuilder = new CometChat.GroupMembersRequestBuilder('guid').setLimit(2).setSearchKeyword('**')
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [searchRequestBuilder]="searchRequestBuilder"
  ></cometchat-create-group>
</div>

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

Events emitted by the Group Members component is as follows.

Event	Description
ccGroupMemberBanned	Triggers when the group member banned from the group successfully
ccGroupMemberKicked	Triggers when the group member kicked from the group successfully
ccGroupMemberScopeChanged	Triggers when the group member scope is changed in the group

TypeScript

import {CometChatGroupEvents} from "@cometchat/chat-uikit-angular";

this.ccGroupMemberBanned = CometChatGroupEvents.ccGroupMemberBanned.subscribe(
  (item: IGroupMemberKickedBanned) => {
        // Your Code
  }
);

this.ccGroupMemberKicked = CometChatGroupEvents.ccGroupMemberKicked.subscribe(
  (item: IGroupMemberKickedBanned) => {
        // Your Code
  }
);

this.ccGroupMemberScopeChanged = CometChatGroupEvents.ccGroupMemberScopeChanged.subscribe(
  (item: IGroupMemberScopeChanged) => {
        // Your Code
  }
);

Removing CometChatGroupEvents Listener's

TypeScript

this.ccGroupMemberBanned.unsubscribe();
this.ccGroupMemberKicked.unsubscribe();
this.ccGroupMemberScopeChanged.unsubscribe();

Customization

To fit your app's design requirements, you can customize the appearance of the Group Members component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

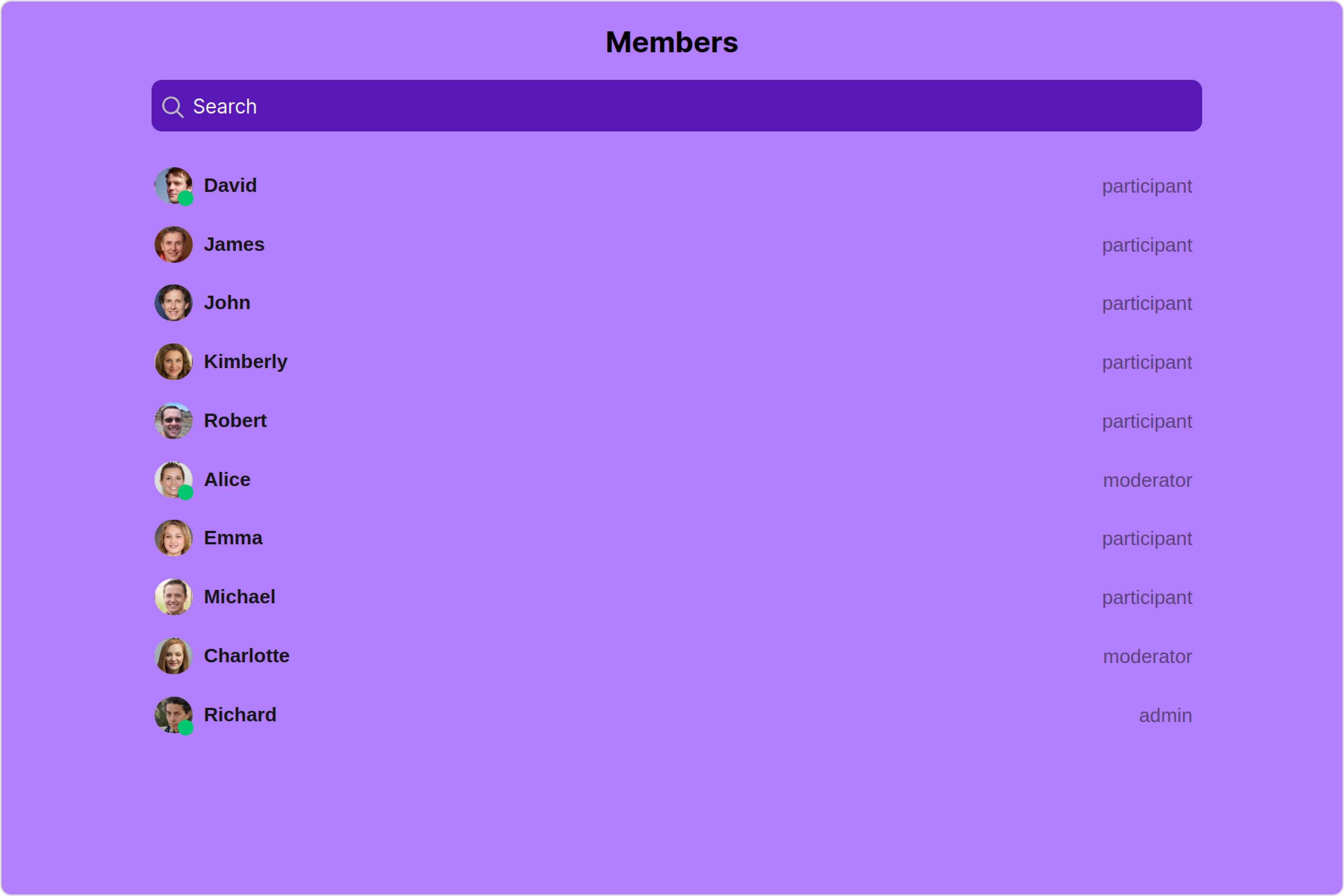

1. GroupMembers Style

You can set the GroupMembersStyle to the Group Members Component to customize the styling.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { GroupMembersStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  groupMembersStyle = new GroupMembersStyle({
    background: "#b17efc",
    searchPlaceholderTextColor: "#ffffff",
    titleTextColor: "#000000",
    searchBackground: "#5718b5",
  });
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [groupMembersStyle]="groupMembersStyle"
  ></cometchat-create-group>
</div>

List of properties exposed by GroupMembersStyle:

Property	Description	Code
border	Used to set border	`border?: string,`
borderRadius	Used to set border radius	`borderRadius?: string;`
background	Used to set background colour	`background?: string;`
height	Used to set height	`height?: string;`
width	Used to set width	`width?: string;`
titleTextFont	Used to set title text font	`titleTextFont?: string,`
titleTextColor	Used to set title text color	`titleTextColor?: string;`
searchPlaceholderTextFont	Used to set search placeholder font	`searchPlaceholderTextFont?: string;`
searchPlaceholderTextColor	Used to set search placeholder color	`searchPlaceholderTextColor?: string;`
searchTextFont	Used to set search text font	`searchTextFont?: string;`
searchTextColor	Used to set search text color	`searchTextColor?: string;`
emptyStateTextFont	Used to set empty state text font	`emptyStateTextFont?: string;`
emptyStateTextColor	Used to set empty state text color	`emptyStateTextColor?: string;`
errorStateTextFont	Used to set error state text font	`errorStateTextFont?: string;`
errorStateTextColor	Used to set error state text color	`errorStateTextColor?: string;`
loadingIconTint	Used to set loading icon tint	`loadingIconTint?: string;`
searchIconTint	Used to set search icon tint	`searchIconTint?: string;`
searchBorder	Used to set search border	`searchBorder?: string;`
searchBorderRadius	Used to set search border radius	`searchBorderRadius?: string;`
searchBackground	Used to set search background color	`searchBackground?: string;`
onlineStatusColor	Used to set online status color	`onlineStatusColor?: string;`
separatorColor	Used to set separator color	`separatorColor?: string;`
boxShadow	Used to set box shadow	`boxShadow?: string;`
backButtonIconTint	Used to set back button icon tint	`backButtonIconTint?: string;`
closeButtonIconTint	Used to set close button icon tint	`closeButtonIconTint?: string;`
privateGroupIconBackground	Used to set private group icon bg	`privateGroupIconBackground?: string;`
passwordGroupIconBackground	Used to set password group icon bg	`passwordGroupIconBackground?: string;`
padding	Used to set padding	`padding?: string;`

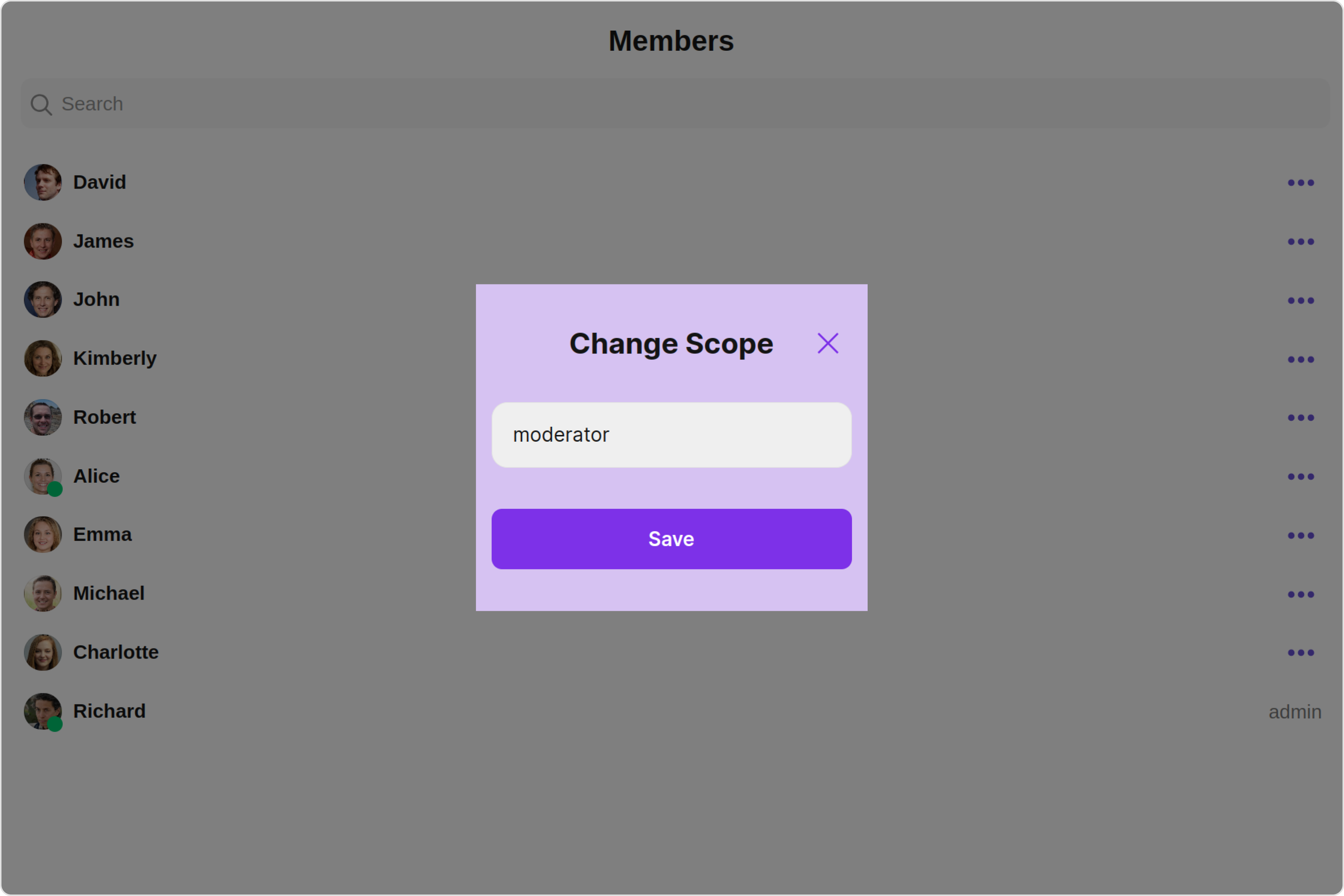

2. GroupScope Style

You can set the GroupScope to the Group Members Component to customize the styling.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ChangeScopeStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  groupScopeStyle = new ChangeScopeStyle({
    activeTextBackground: "#b17efc",
    activeTextColor: "#000000",
    arrowIconTint: "b17efc",
    buttonTextColor: "#ffffff",
    height:'400px',
    width:'400px'
  });
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [groupScopeStyle]="groupScopeStyle"
  ></cometchat-create-group>
</div>

List of properties exposed by ChangeScopeStyle:

Property	Description	Code
border	Used to set border	`border?: string,`
borderRadius	Used to set border radius	`borderRadius?: string;`
background	Used to set background colour	`background?: string;`
height	Used to set height	`height?: string;`
width	Used to set width	`width?: string;`
titleTextFont	Used to set title text font	`titleTextFont?: string,`
titleTextColor	Used to set title text color	`titleTextColor?: string;`
activeTextFont	Used to set active text font	`activeTextFont?: string;`
activeTextColor	Used to set active text color	`activeTextColor?: string;`
activeTextBackground	Used to set active text background	`activeTextBackground?: string;`
arrowIconTint	Used to set arrow icon tint	`arrowIconTint?: string;`
textFont	Used to set text font	`textFont?: string;`
textColor	Used to set text color	`textColor?: string;`
optionBackground	Used to set option background color	`optionBackground?: string;`
optionBorder	Used to set option border	`optionBorder?: string;`
optionBorderRadius	Used to set option border radius	`optionBorderRadius?: string;`
hoverTextFont	Used to set hover text font	`hoverTextFont?: string;`
hoverTextColor	Used to set hover text color	`hoverTextColor?: string;`
hoverTextBackground	Used to set hover text background	`hoverTextBackground?: string;`
buttonTextFont	Used to set button text font	`buttonTextFont?: string;`
buttonTextColor	Used to set button text color	`buttonTextColor?: string;`
buttonBackground	Used to set button background color	`buttonBackground?: string;`
closeIconTint	Used to set close icon tint	`closeIconTint?: string;`

3. Avatar Style

To apply customized styles to the Avatar component in the Group Members Component, you can use the following code snippet. For further insights on Avatar Styles refer

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  avatarStyle = new AvatarStyle({
    backgroundColor: "#cdc2ff",
    border: "2px solid #6745ff",
    borderRadius: "10px",
    outerViewBorderColor: "#ca45ff",
    outerViewBorderRadius: "5px",
    nameTextColor: "#4554ff"
  });
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [avatarStyle]="avatarStyle"
  ></cometchat-create-group>
</div>

4. ListItem Style

To apply customized styles to the List Item component in the Group Members Component, you can use the following code snippet. For further insights on List Item Styles refer

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding: "5px",
    border: "1px solid #e9b8f5",
    titleColor: "#8830f2",
    borderRadius: "20px",
    width: "100% !important"
  });
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [listItemStyle]="listItemStyle"
  ></cometchat-create-group>
</div>

5. StatusIndicator Style

To apply customized styles to the Status Indicator component in the Group Members Component, You can use the following code snippet. For further insights on Status Indicator Styles refer

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  statusIndicatorStyle: any = ({
    height: '20px',
    width: '20px',
    backgroundColor: 'red'
  });
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [statusIndicatorStyle]="statusIndicatorStyle"
  ></cometchat-create-group>
</div>

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { TitleAlignment,UserPresencePlacement } from '@cometchat/uikit-resources';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;
  titleAlignment = TitleAlignment.center;
  userPresencePlacement = UserPresencePlacement.right;
  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [titleAlignment]="titleAlignment"
    [title]="'Your Custom Title'"
    [userPresencePlacement]="userPresencePlacement"
  ></cometchat-create-group>
</div>

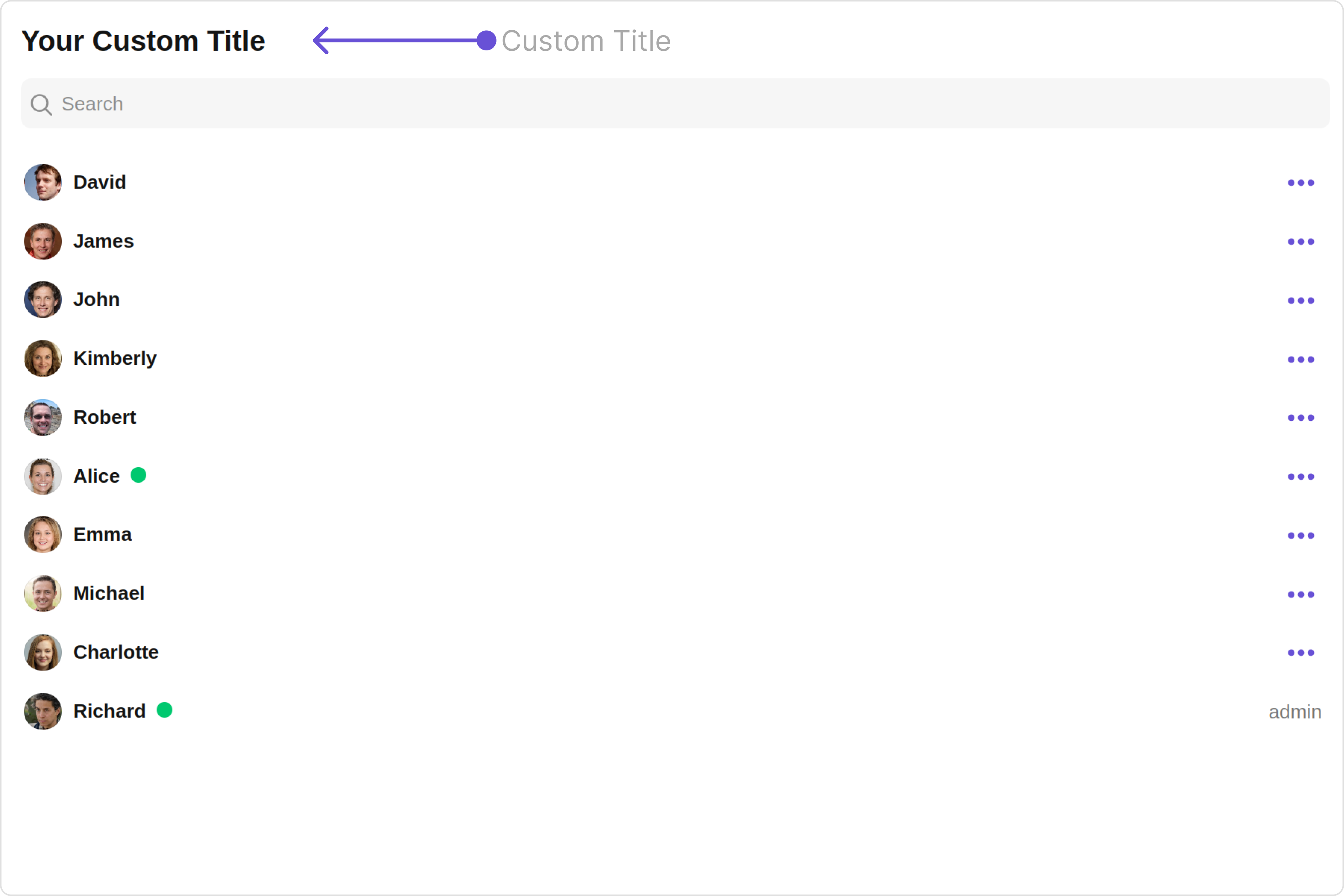

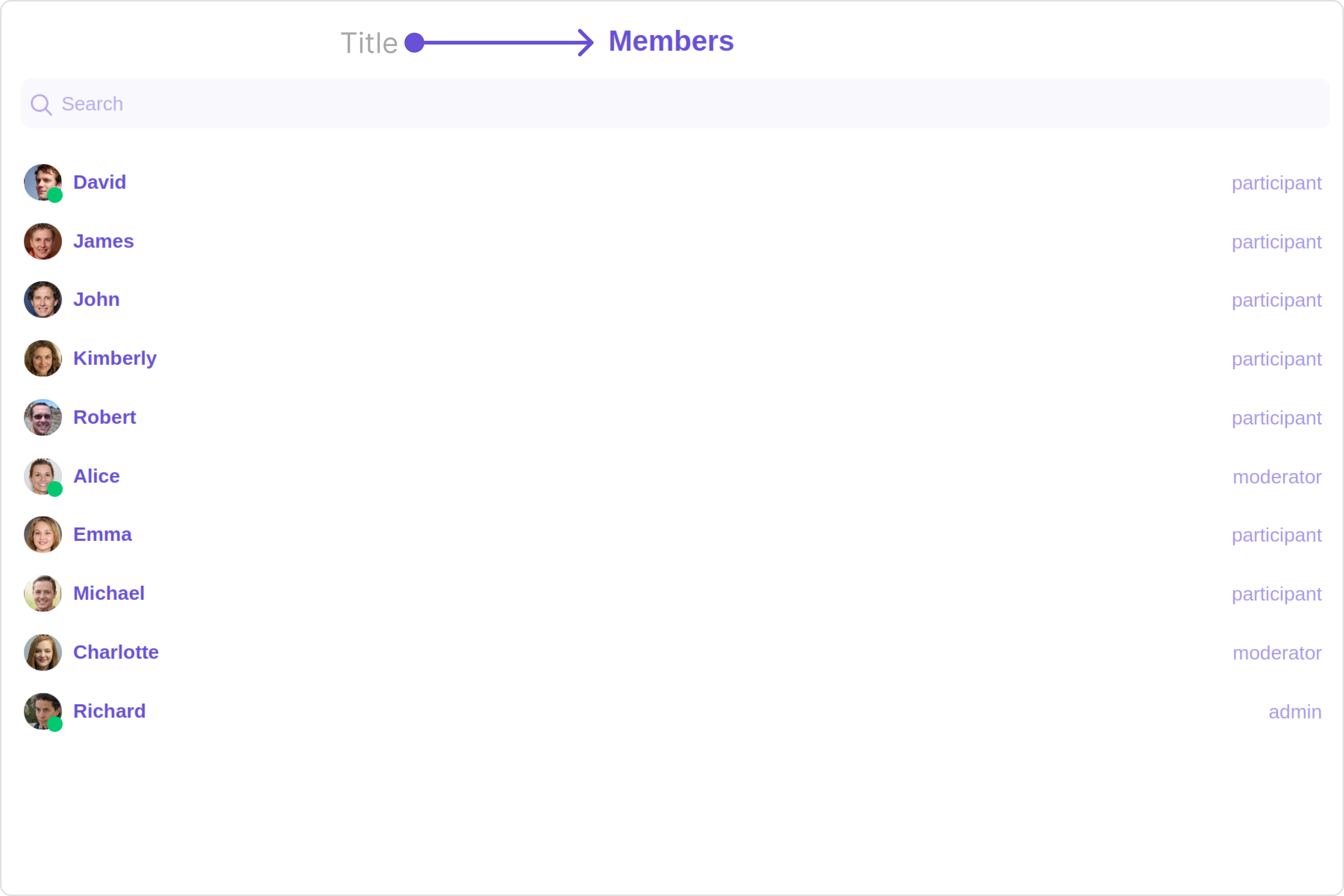

Default:

Custom:

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
title report	Used to set title in the app heading	`[title]="'Your Custom Title'"`
errorStateText report	Used to set a custom text response when some error occurs on fetching the list of group members	`[errorStateText]="'your custom error state text'"`
emptyStateText report	Used to set a custom text response when fetching the group members has returned an empty list	`[emptyStateText]="'your custom empty state text'"`
searchIconURL	Used to set search Icon in the search field	`[searchIconURL]="searchIconURL"`
loadingIconURL	Used to set loading Icon	`[loadingIconURL]="loadingIconURL"`
closeButtonIconURL	Used to set close button Icon	`[closeButtonIconURL]="closeButtonIconURL"`
dropDownIconURL	Used to set the dropdown Icon	`[dropDownIconURL]="dropDownIconURL"`
backButtonIconURL	Used to set the back button Icon	`[backButtonIconURL]="backButtonIconURL"`
hideError	Used to hide error on fetching groups	`[hideError]="true"`
hideSearch	Used to toggle visibility for search box	`[hideSearch]="true"`
hideSeparator	Used to hide the divider separating the user items	`[hideSeparator]="true"`
disableLoadingState report	disable the loading state	`[disableLoadingState]="true"`
disableUsersPresence	Used to toggle functionality to show user's presence	`[disableUsersPresence]="true`
showBackButton	Hides / shows the back button as per the boolean value	`[showBackButton]="true"`
selectionMode	set the number of group members that can be selected, SelectionMode can be single, multiple or none.	`[selectionMode]="selectionMode"`
titleAlignment	Alignment of the heading text for the component	`[titleAlignment]="titleAlignment"`
userPresencePlacement report	determines the position where the user presence indicator is displayed relative to the user's avatar or name, with `right` or `bottom` indicating it's displayed to the right or bottom of the user's list.	`[userPresencePlacement]="userPresencePlacement"`
group report	Used to pass group object of which group members will be shown	`[group]="groupObject"`
searchKeyword report	Used to set the search keyword	`[searchKeyword]="'alice'"`
searchPlaceholder report	Used to set custom search placeholder text	`[searchPlaceholder]="'Custom Search PlaceHolder'"`

Advance

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

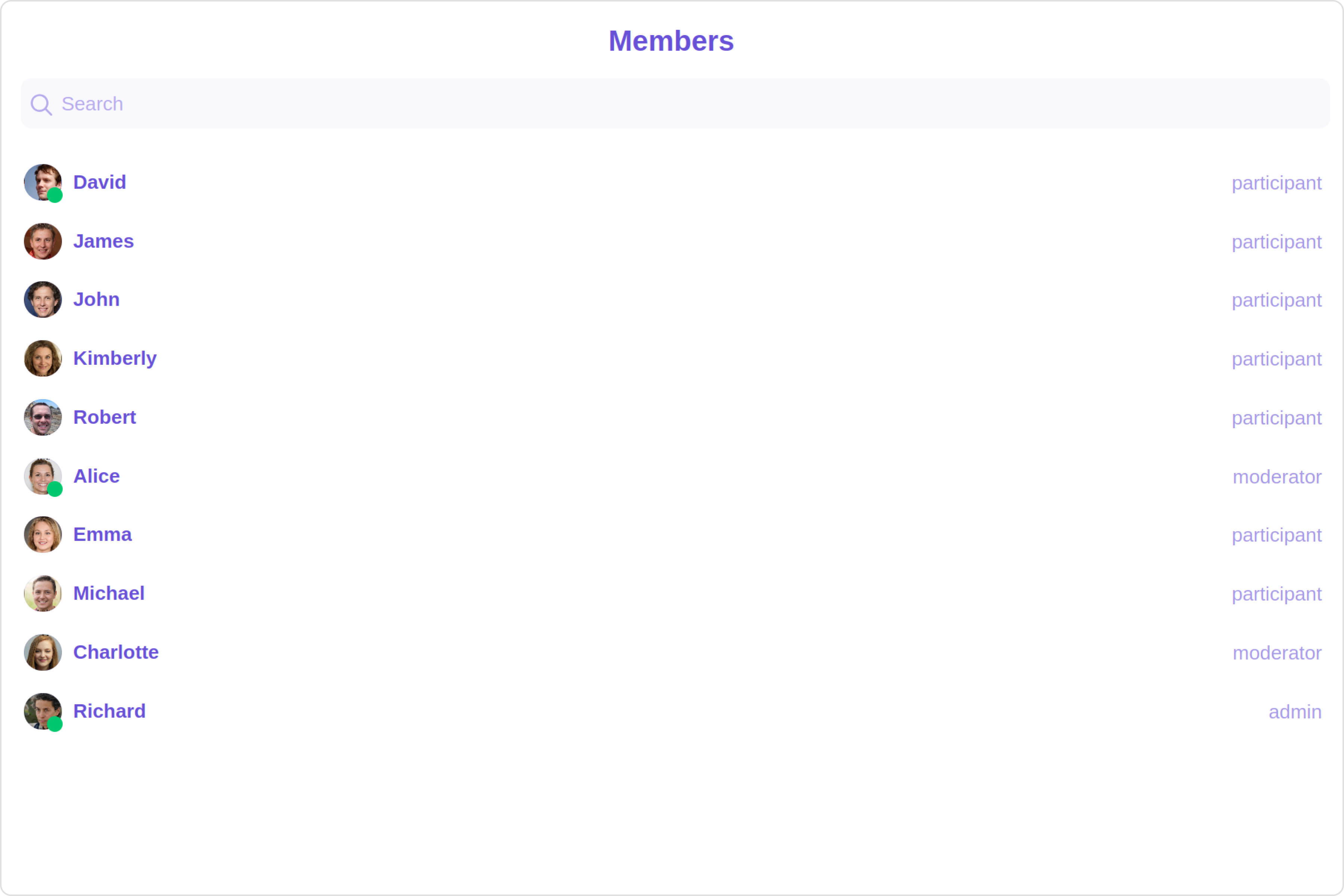

ListItemView

With this property, you can assign a custom ListItem to the Group Members Component.

Example

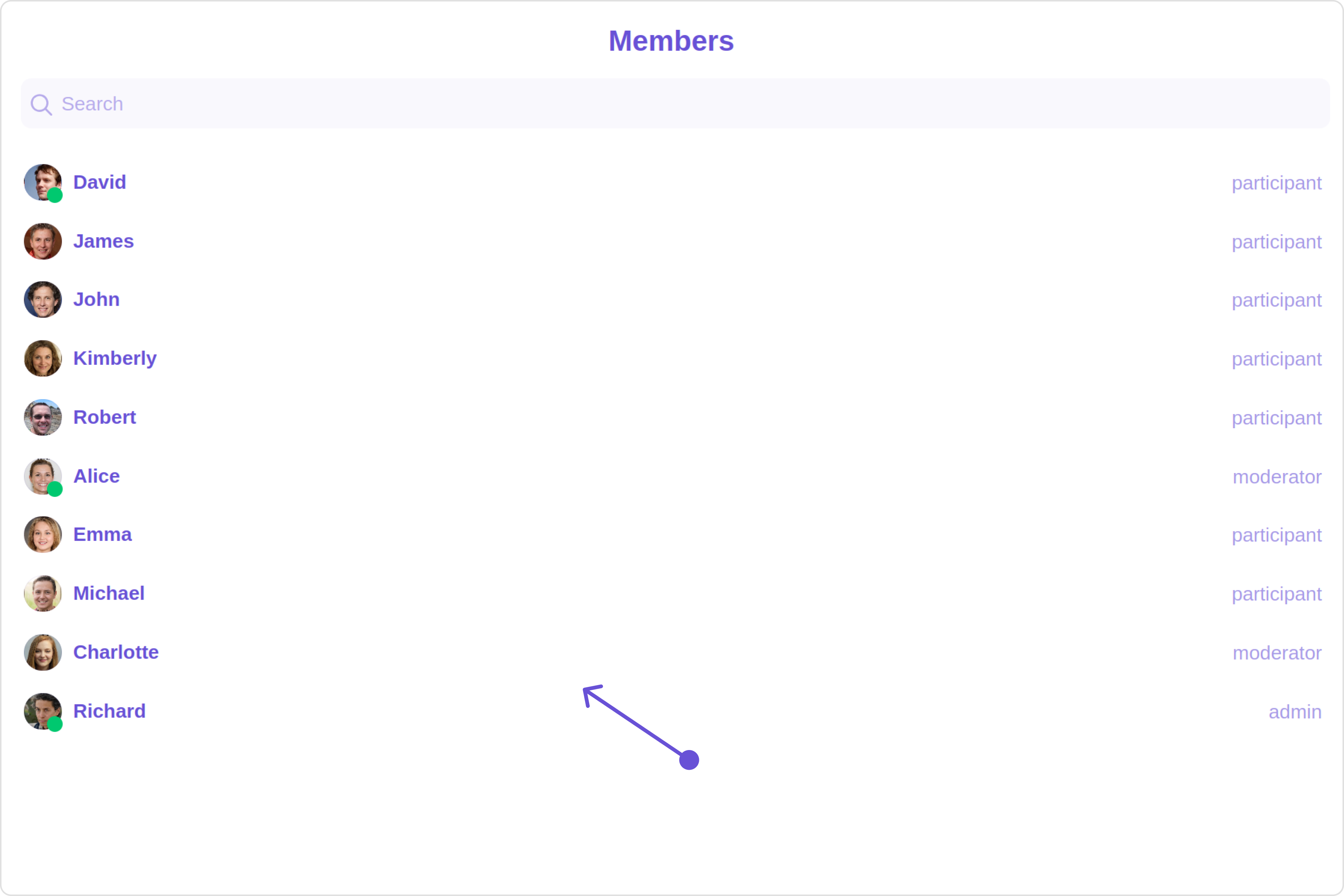

Default:

Custom:

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;

  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [listItemView]="listItemViewTemplate"
  ></cometchat-create-group>
</div>

<ng-template #listItemViewTemplate let-groupMember>
  <div
    [ngStyle]="{
      display: 'flex',
      alignItems: 'left',
      padding: '10px',
      border: '2px solid #e9baff',
      borderRadius: '20px',
      background: '#ffffff'
    }"
  >
    <cometchat-avatar
      [image]="groupMember.getAvatar()"
      [name]="groupMember.getName()"
    ></cometchat-avatar>
    <div [ngStyle]="{ display: 'flex', paddingLeft: '10px' }">
      <div
        [ngStyle]="{
          fontWeight: 'bold',
          color: '#937aff',
          fontSize: '14px',
          marginTop: '5px'
        }"
      >
        {{ groupMember.getName() }}
        <div
          [ngStyle]="{
            color: '#cfc4ff',
            fontSize: '10px',
            textAlign: 'left'
          }"
        >
          {{ groupMember.getStatus() }}
        </div>
      </div>
    </div>
  </div>
</ng-template>

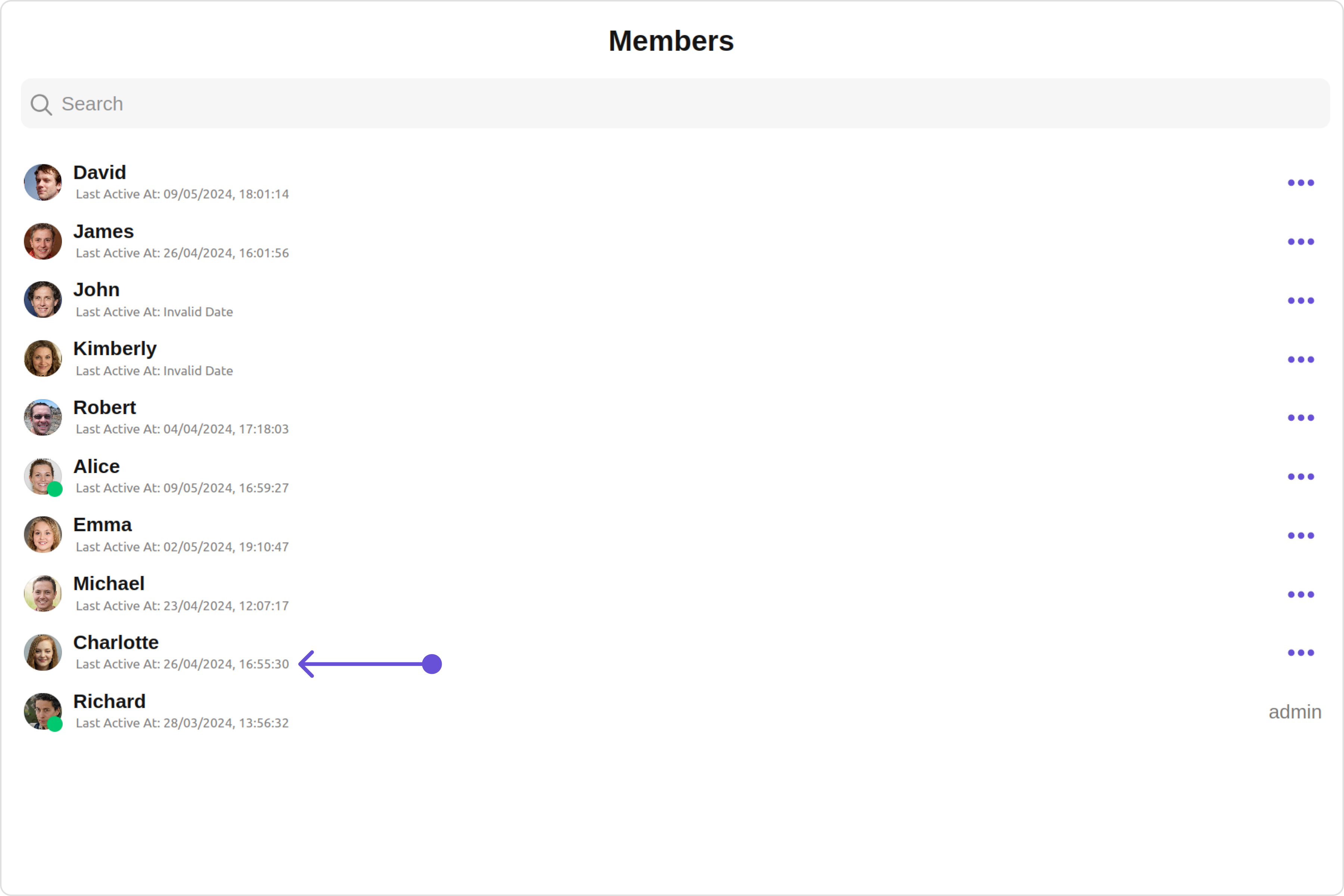

SubtitleView

You can customize the subtitle view for each group members to meet your requirements

Default:

Custom:

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;

  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [subtitleView]="subtitleTemplate"
  ></cometchat-create-group>
</div>

<ng-template #subtitleTemplate let-groupMember>
  <div
    style="display: flex; align-items: left; padding: 10px; font-size: 10px;"
  >
    your custom subtitle view
  </div>
</ng-template>

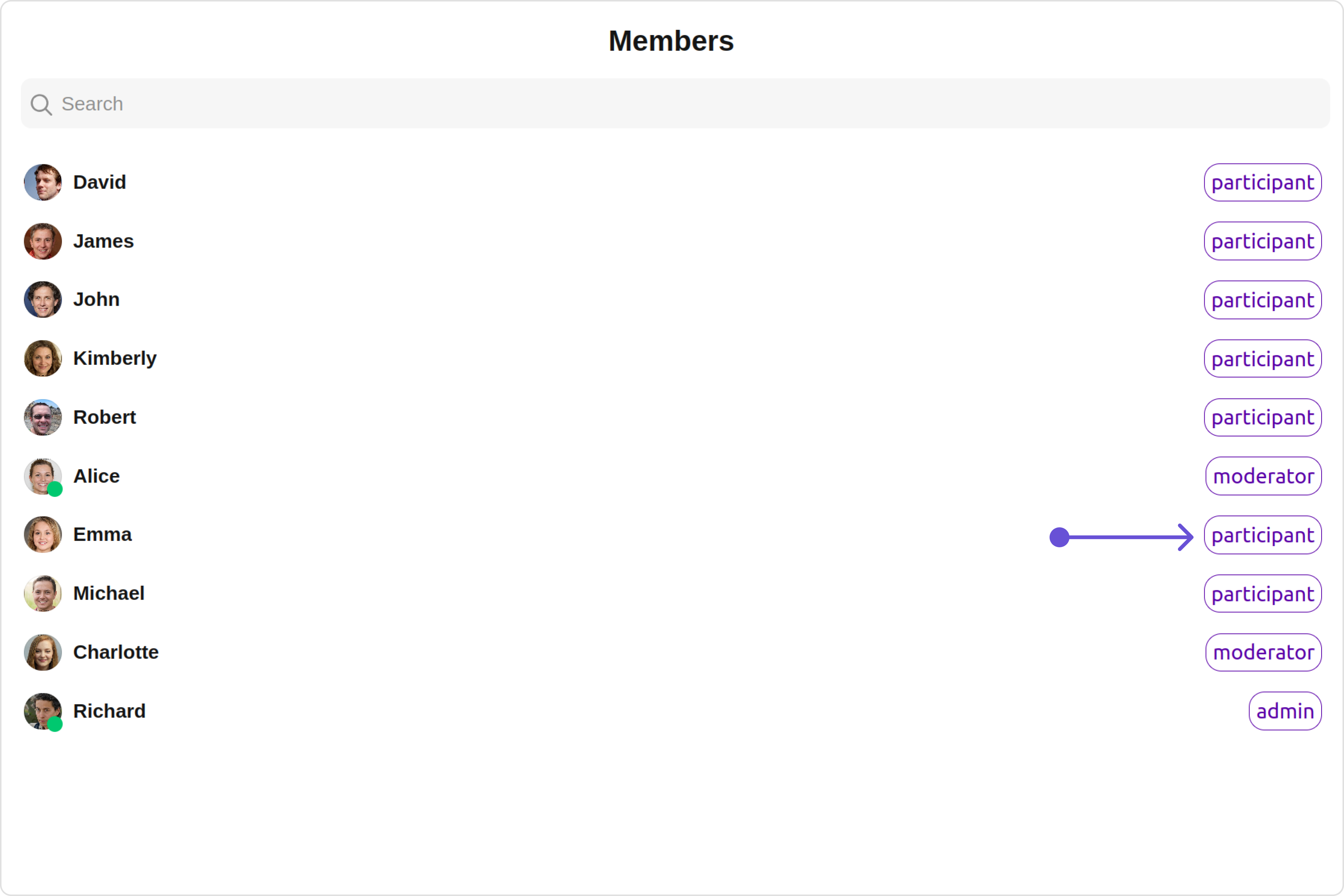

TailView

You can customize the tail view for each group members to meet your requirements

Default:

Custom:

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;

  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [tailView]="tailViewTemplate"
  ></cometchat-create-group>
</div>

<ng-template #tailViewTemplate let-groupMember>
  <div
    [ngStyle]="{
    color: '#5a00a8',
    border: '1px solid #5a00a8',
    borderRadius: '12px',
    padding: '5px'
  }"
  >
    {{ groupMember.getScope() }}
  </div>
</ng-template>

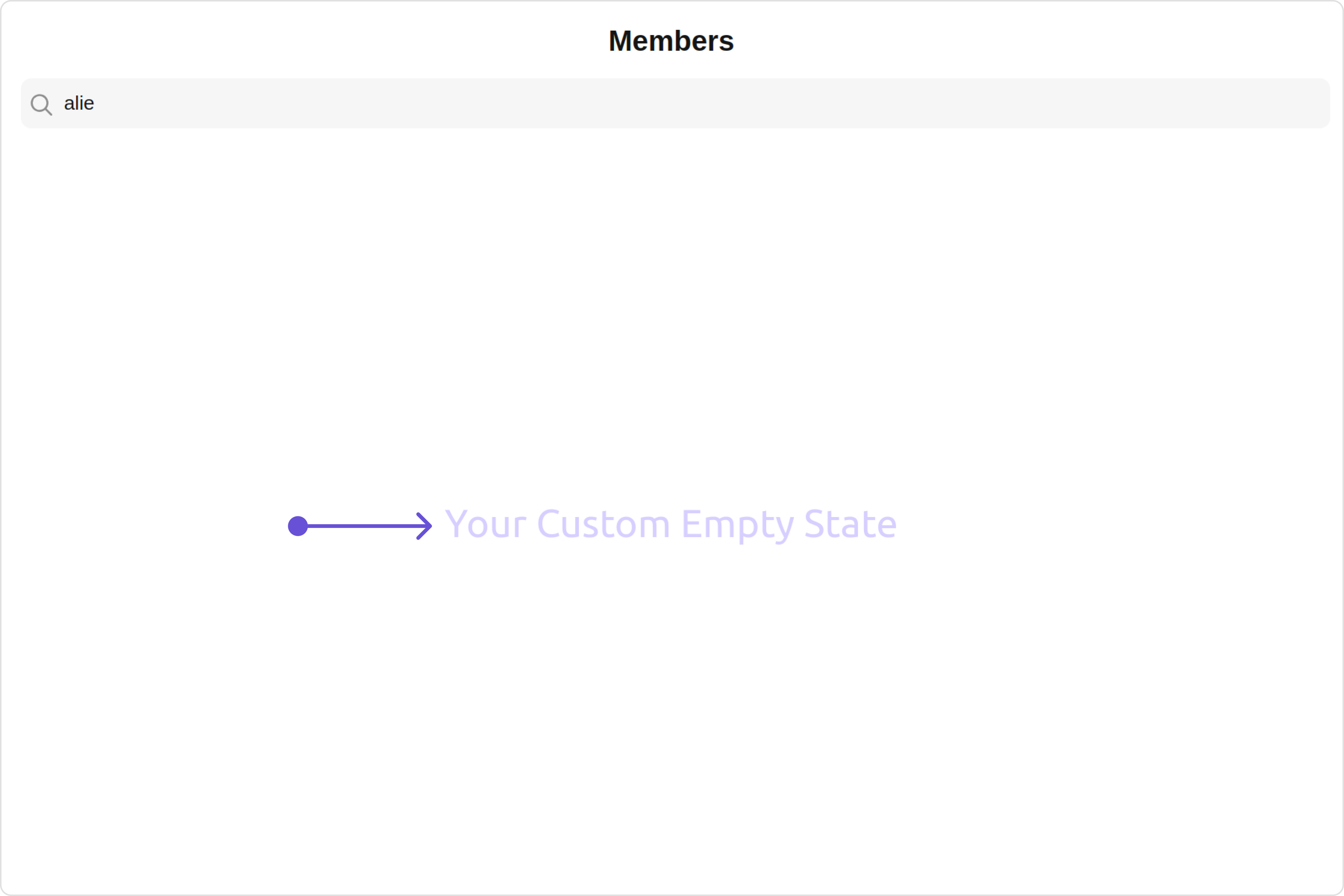

EmptyStateView

You can set a custom EmptyStateView using emptyStateView to match the empty view of your app.

Default:

Custom:

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;

  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [emptyStateView]="emptyStateView"
  ></cometchat-create-group>
</div>

<ng-template #emptyStateView>
  <div>Your Custom Empty State</div>
</ng-template>

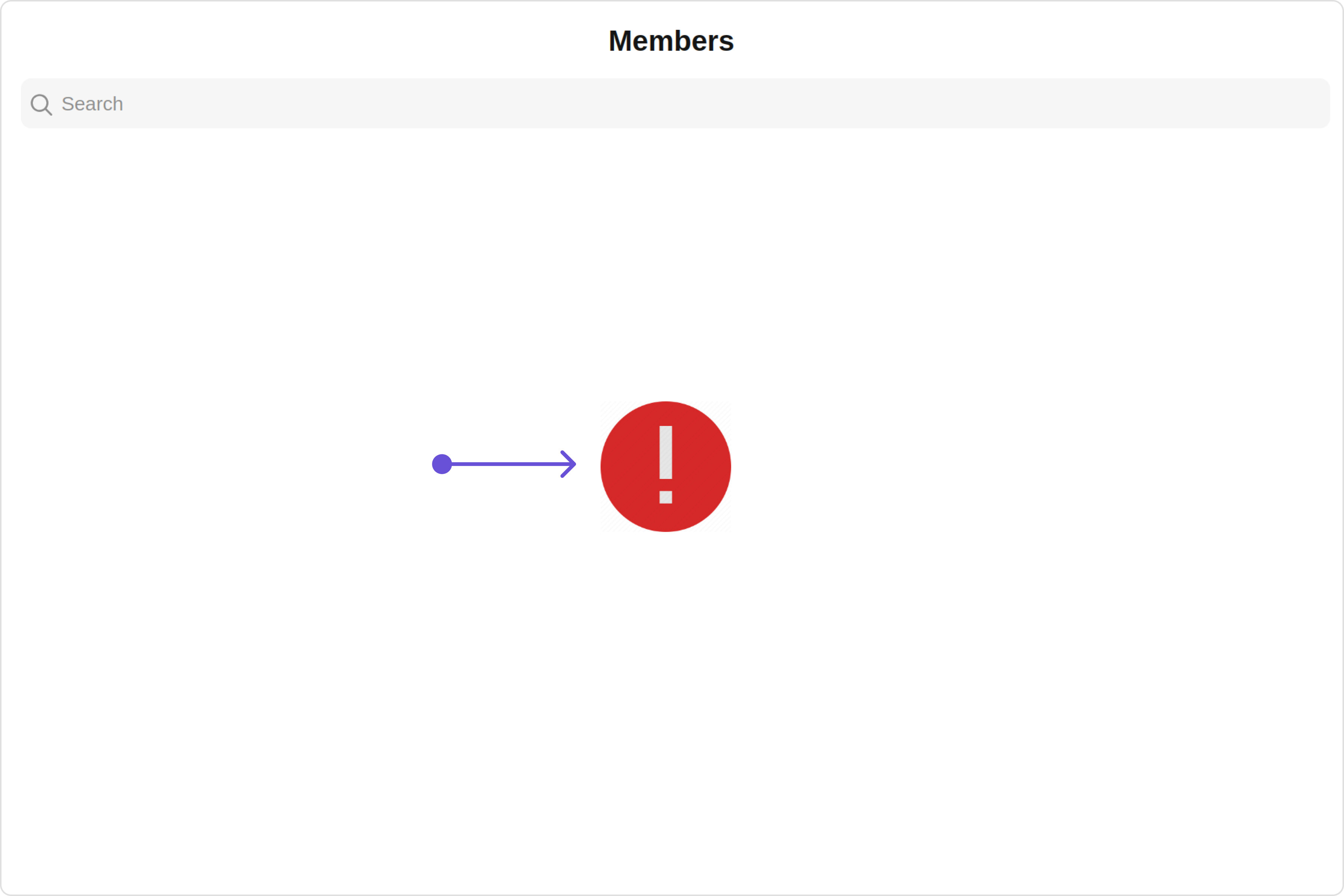

ErrorStateView

You can set a custom ErrorStateView using errorStateView to match the error view of your app.

Default:

Custom:

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;

  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [errorStateView]="errorStateView"
  ></cometchat-create-group>
</div>
<ng-template #errorStateView>
  <div style="height: 100vh; width: 100vw">
    <img
      src="icon"
      alt="error icon"
      style="height:100px; width: 100px; justify-content: center; margin-top: 250px; margin-right: 700px;"
    />
  </div>
</ng-template>

Menus

You can set the Custom Menu view to add more options to the Group Members component.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;

  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  handleReload(): void {
    window.location.reload();
  }

  getButtonStyle() {
    return {
      height: '20px',
      width: '20px',
      border: 'none',
      borderRadius: '0',
      background: 'transparent'
    };
  }
  getButtonIconStyle() {
    return {
      color: '#7E57C2'
    };
  }
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [menu]="menuTemplate"
  ></cometchat-create-group>
</div>
<ng-template #menuTemplate>
  <div style="margin-right: 20px;">
    <button [ngStyle]="getButtonStyle()" (click)="handleReload()">
      <img src="icon" [ngStyle]="getButtonIconStyle()" alt="Reload Icon" />
    </button>
  </div>
</ng-template>

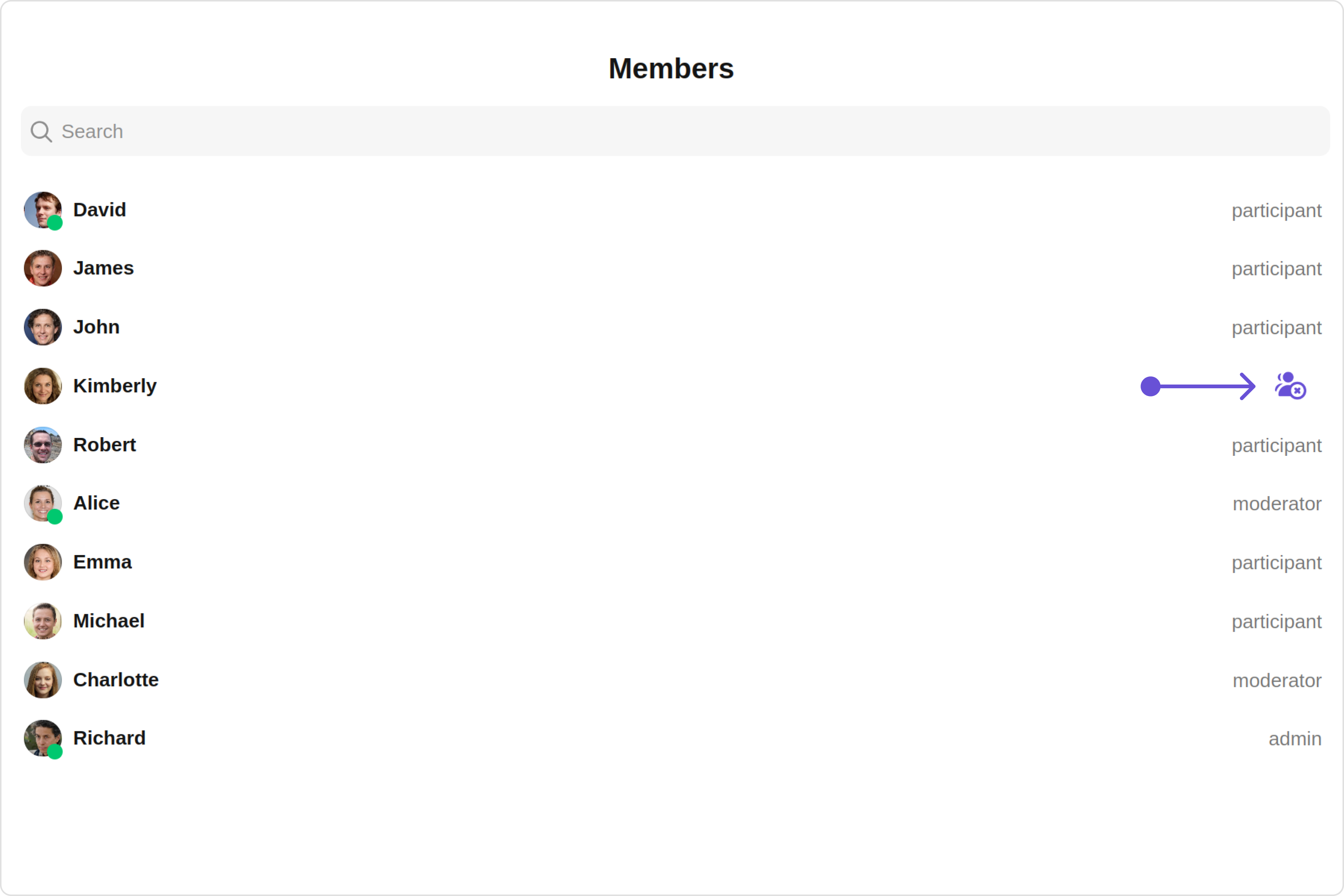

Options

You can set the Custom options to the Group Members component.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CometChatOption } from '@cometchat/uikit-resources';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  public groupObject!: CometChat.Group;

  ngOnInit(): void {
    CometChat.getGroup("guid").then((group: CometChat.Group) => {
      this.groupObject = group;
    });
  }
  getOptions = (user: any) => {
    const customOptions = [
      new CometChatOption({
        id: "1",
        title: "Title",
        iconURL: "icon",
        backgroundColor: "red",
        onClick: () => {
          console.log("Custom option clicked for user:", user);
        },
      }),
    ];
    return customOptions;
  };

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

<div class="fullwidth">
  <cometchat-create-group
    [group]="groupObject"
    [options]="getOptions"
  ></cometchat-create-group>
</div>

UI Kits

SDKs

Widgets

APIs

Overview​

Usage​

Integration​

Actions​

1. onSelect​

2. onItemClick​

3. onBack​

4. onClose​

5. onEmpty​

6. onError​

Filters​

1. GroupMembersRequestBuilder​

2. SearchRequestBuilder​

Events​

Customization​

Style​

1. GroupMembers Style​

2. GroupScope Style​

3. Avatar Style​

4. ListItem Style​

5. StatusIndicator Style​

Functionality​

Advance​

ListItemView​

SubtitleView​

TailView​

EmptyStateView​

ErrorStateView​

Menus​

Options​

Overview

Usage

Integration

Actions

1. onSelect

2. onItemClick

3. onBack

4. onClose

5. onEmpty

6. onError

Filters

1. GroupMembersRequestBuilder

2. SearchRequestBuilder

Events

Customization

Style

1. GroupMembers Style

2. GroupScope Style

3. Avatar Style

4. ListItem Style

5. StatusIndicator Style

Functionality

Advance

ListItemView

SubtitleView

TailView

EmptyStateView

ErrorStateView

Menus

Options
